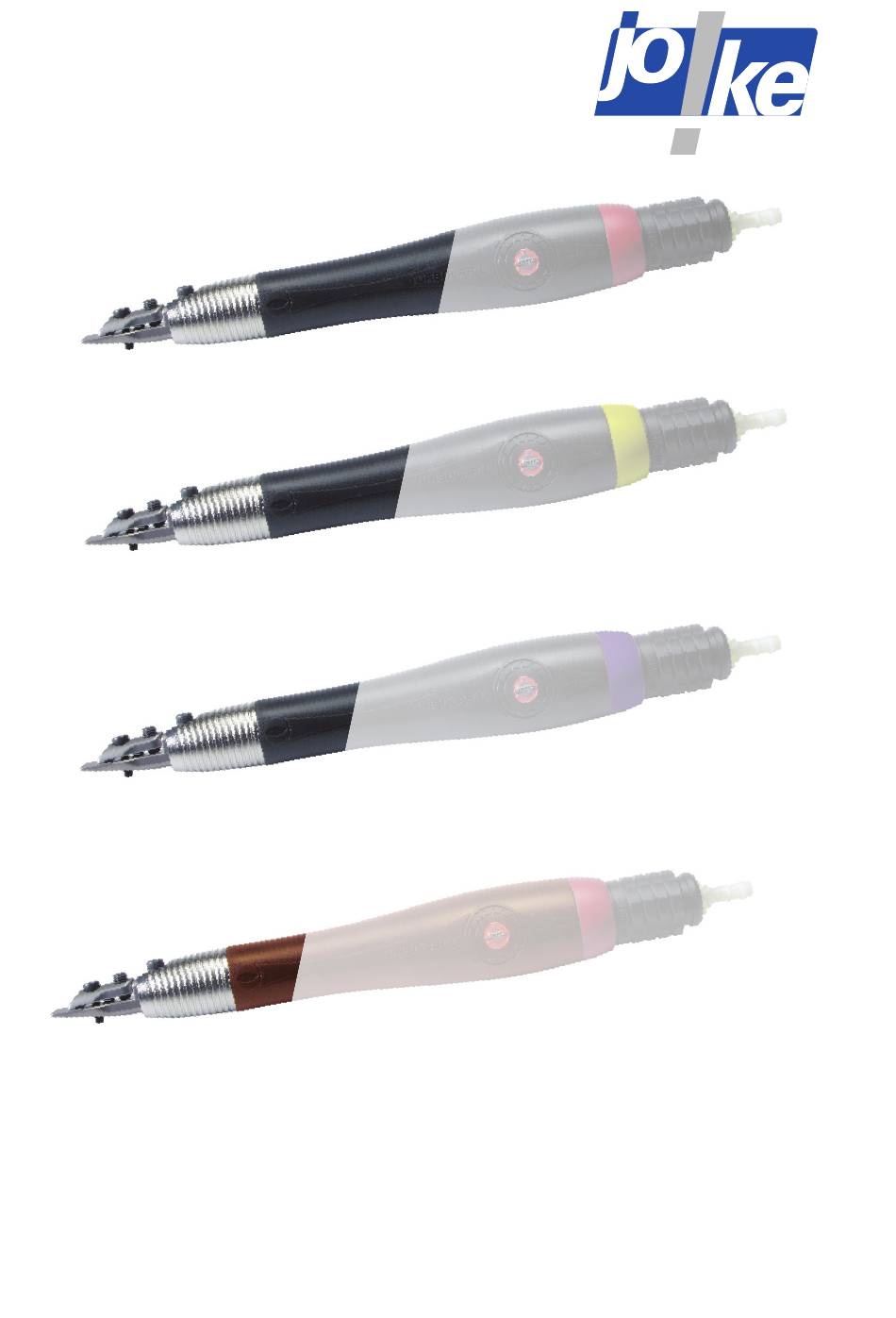

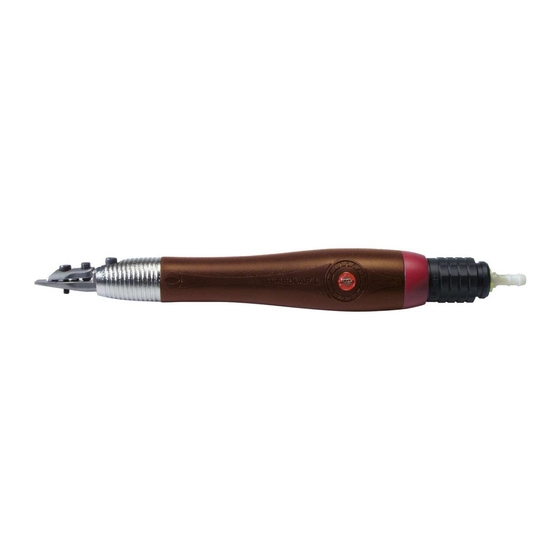

- Page 1 Oberflächentechnik Surface Technology Instruction Manual Turbolap Hand-filing machines TLL 03 + 07 + 12 · TLS 03 + 07 + 12 Order No: 0 750 700-704 · 0 750 709...
-
Page 2: Tips On Using The Manual
Please feel free to call our customer service department at any time should you encounter tech- nical problems which are not dealt with in this manual: Telephone: 0 22 04 / 8 39 - 0 Telefax: 0 22 04 / 8 39 - 60 Internet: www.joke.de... -
Page 3: Safety Instructions
The unit is designed exclusively for grinding, milling and polishing with the tools listed and approved in the joke catalogue. Any other use will be deemed to be contrary to its intended purpose. The manufacturer cannot be held liable for any resulting damages. - Page 4 Oberflächentechnik Oberflächentechnik Surface Technology Surface Technology Do not leave the device unattended when switched on! Stop and secure the device immediately in the event of malfunctions! Faults must be remedied at once. The construction of the filing handpiece is designed for an air pressure of 6 bars. If the device is operated with a higher air pressure, undesirable vibrations may occur that do not necessarily damage the device, but place stress on the user.
-
Page 5: Warranty
Surface Technology Warranty joke Technology GmbH warrant the correct manufacture of every joke product which is delivered in accordance with the terms of contract and supply. This warranty does not cover damages caused by normal wear and tear, incorrect handling, negligent use, the fitting of non-original spare parts, inadequate care and/or a failure to comply with this technical manual. -
Page 6: Device Overview
Oberflächentechnik Oberflächentechnik Surface Technology Surface Technology Device overview Scope of supply Air hose, exhaust air hose with ¼“ coupling sleeve incl. filter Turbolap hand- filing machine Tool holder Figure 5.1 Collet Tool Technical Data Turbolap TLL 03 TLS 03 TLL 07 TLS 07 TLL 12 TLS 12 Stroke length/transverse stroke... - Page 7 Oberflächentechnik Oberflächentechnik Surface Technology Surface Technology Futher technical data: Air consumption: ¼“ female thread (FT) Dimensions in mm: Ø 28 x 218 Scope of supply: tool holder, collet, supply air hose 1.5 m, exhaust air hose, connecting sleeve ¼“ incl. filter Turbolap TLS: the tool operates elliptically (area marked in orange), depending on stroke length.
- Page 8 • Water and dirt separator • Pressure gauge Optimum function of the compressed air filing machine is guaranteed by using the joke Dryjet maintenance unit (order no. 0 004 060). Further accessories and the installation package can be found in the current joke catalogue.
- Page 9 Air connection: 1/4“ Fig. 7.1 joke Dryjet maintenance unit (Order no. 0 004 060) Further accessories and the installation package can be found in the current joke catalogue. Setting up and connecting the maintenance unit 1. Check on the maintenance unit whether: •...
-
Page 10: Maintenance
1. Render the maintenance unit free of pressure using a ¼“ ball cock. We recommend a ball cock from the current joke catalogue, which is to be mounted laterally. 2. The condensation must be bled off through the drain valve before the maximum filling level is reached. - Page 11 (see above for address, per fax, as a pdf file to my email address. Turbolap TLL 03 Order no. 0 750 702 Turbolap TLL 07 Order no. 0 750 700 Turbolap TLL 12 Order no.
- Page 12 Fax +49 (0) 22 04 / 8 39-60 Mail info@joke.de Web www.joke.de © Copyright joke Technology GmbH • Juli 2013 • Changes due to technical progress, errors and printing errors reserved • Reproduction, also partial, only with prior written permission.
