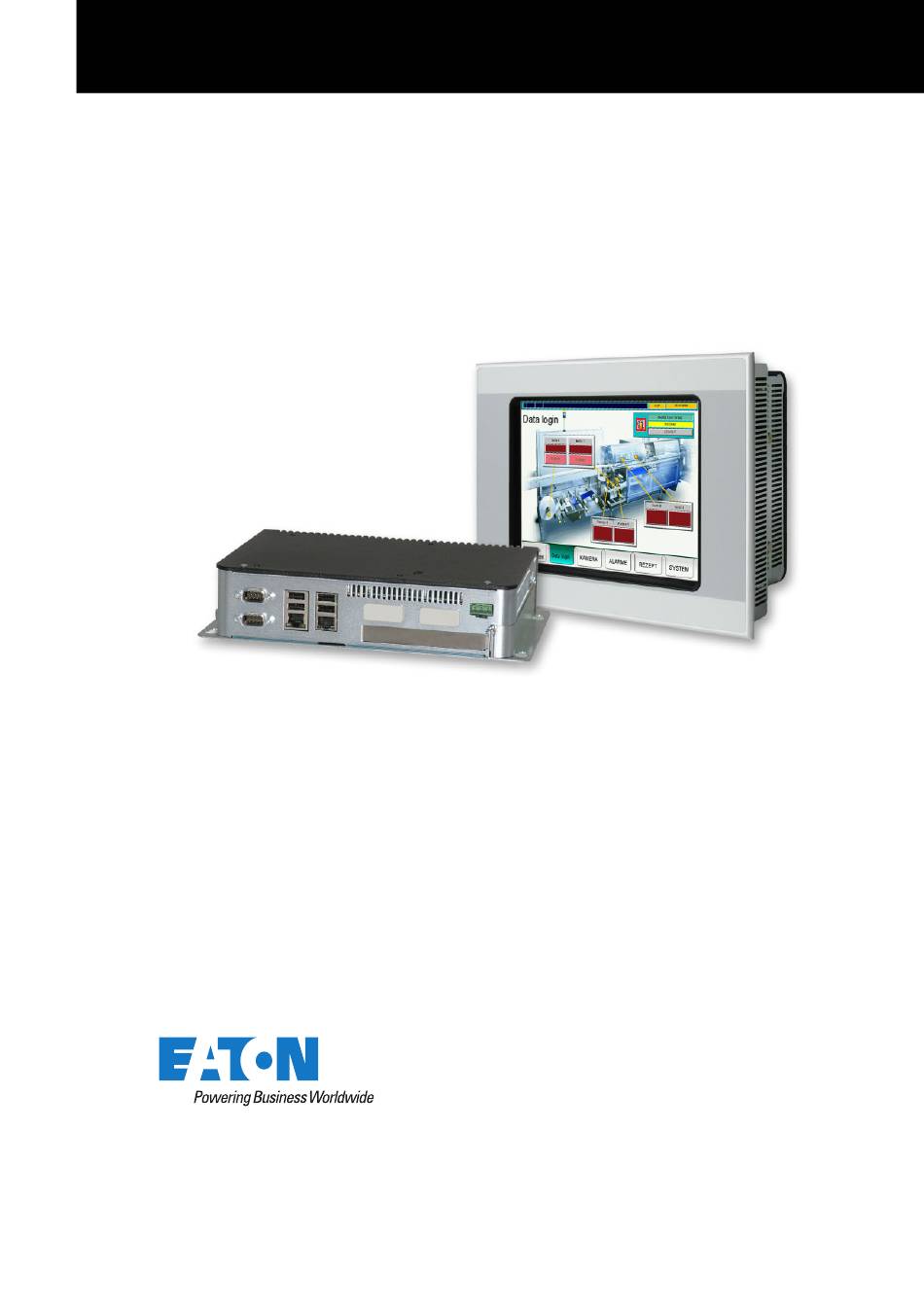

- Page 1 07/2011 MN04802003Z-EN Operating Instructions replaces M003161-02, 04/2010 XP-702 MICRO PANEL www.comoso.com...
- Page 2 All brand and product names are trademarks or registered trademarks of the owner concerned. Copyright © Eaton Automation AG, CH-9008 St. Gallen All rights reserved, also for the translation. None of this document may be reproduced or processed, duplicated or distributed by electronic systems in any form (print, photocopy, microfilm or any other process) without the written permission of Eaton Automation AG, St.
-
Page 3: Table Of Contents
Engineering conditions of acceptability by Underwriters Labaratories Inc. (UL) ..5.2.2 Requirements for the mounting position ..............Interfaces ........................5.3.1 Overview of interfaces....................5.3.2 Preparation of cables with D-Sub connector............... 5.3.3 Power supply....................... 5.3.4 RS232 (Com Port)....................... MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... - Page 4 BOX devices ....................... 9.1.2 8.4" devices......................... 9.1.3 10.4" devices....................... 9.1.4 12.1" devices....................... 9.1.5 15" devices........................Display ........................Touch sensor ......................System ........................Interfaces ........................9.5.1 Power supply....................... 9.5.1.1 Devices with 1 GHz (XP-702-C…, XP-702-E…)............MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
- Page 5 Contents 9.5.1.2 Devices with 1.8 GHz (XP-702-D…, XP-702-F…) ............Enclosure ratings ......................Agency approvals and standards................Applicable standards and regulations ................. Ambient conditions...................... MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
- Page 6 Contents MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
-
Page 7: General
(information on networks in general and on the integration of PCs and MICRO PANELs in networks) The documents can also be downloaded from www.eaton.com (search document No. via search field of the home page). MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com... - Page 8 1 General 1.3 Additional documentation MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
-
Page 9: Device Description
Device versions MICRO PANELs XP-702 are available in versions with and without display with 1 GHz or 1.8 GHz. Fig. 1 XP-702 with display Fig. 2 XP-702 without display (BOX device) MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 10: Devices With 1 Ghz (Xp-702-C
XGA, infra-red touch system, min. 4 GByte 1 × CF card, min. 1 GByte Tab. 1 Device versions devices with 1 GHz (XP-702-C…, XP-702-E…) 1) XP-702-E… devices are only available in the USA. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 11: Devices With 1.8 Ghz (Xp-702-D
1 × CF card with operating system, min. 4 GByte 1 × CF card, min. 1 GByte Tab. 2 Device versions devices with 1.8 GHz (XP-702-D…, XP-702-F…) 1) XP-702-F… devices are only available in the USA. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 12: Package Contents
CF card with operating system, min. 4 GByte (only supplied with XP-702-E… and XP-702-F… devices) CF card, min. 1 GByte (only supplied with XP-702-E… and XP-702-F… devices) Tab. 4 Package contents for 8.4" devices MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 13: And 12.1" Devices
CF card with operating system, min. 4 GByte (only supplied with XP-702-E… and XP-702-F… devices) CF card, min. 1 GByte (only supplied with XP-702-E… and XP-702-F… devices) Tab. 6 Package contents for 15" devices MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 14: Accessories
Windows XPe pre-installed without Windows license (license required (LIC-OS-EXP-S)) Additional retaining brackets 4 Retaining brackets with threaded pin for mounting the device ACCESSORIES-HKS-IP65 100 Retaining brackets with threaded pin for mounting the device ACCESSORIES-HKS-IP65-100 MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 15: Designation
Arrangement of interfaces and operating elements Support To ensure fast and optimum support always provide the support personnel with the following informa- tion on the nameplate: Part no. (Part-No or Art.-No) Serial no. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... - Page 16 2 Device description 2.6 Designation MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
-
Page 17: Safety Regulations
Read this chapter before working with the device. This contains important information for your personal safety. This chapter must be read and understood by all persons work- ing with this device. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 18: Meaning Of Symbols
Signal word CAUTION without safety alert symbol Indicates a situation which, if not avoided, could result in material damage. Indicates useful information. The danger symbol used and the text indicate the actual danger and the related preventative measures. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 19: Mandatory Requirements, Personnel
It must be ensured that the device is properly connected, mounted, maintained and disposed of in compliance with all relevant standards and safety regulations. 3.3.5 Prohibited use The implementation of safety functions (relating to the protection of personnel and machinery) using the device is prohibited. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 20: Requirements For Proper Operation
Failure or malfunction of the device Improper handling or use Failure to observe the Operating Instructions Conversions, modifications and repairs to the device Repairs, see Chapter 7.3.1 Repairs, 62. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 21: Device Related Hazards
Avoid contact with components (such as connector pins) that are susceptible to electrostatic discharge. Discharge (by touching a grounded metal object) any static charge accumulated in your body before touching the device. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... - Page 22 CAUTION UV light When exposed to UV light, plastics can embrittle and the lifespan of the device is reduced. Protect the device against direct sunlight (UV rays). MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
- Page 23 Do not use any pointed or sharp objects (e.g. knife) for cleaning. Do not use any aggressive or abrasive cleaning agent or solvent. Avoid any liquid entering the device (risk of short-circuit). MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
- Page 24 3 Safety regulations 3.4 Device related hazards MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
-
Page 25: Operating And Indication Elements
(min. ø 7 mm). It is not neces- sary to touch the infra-red touch protective panel. B Display Display operating and indication elements. Tab. 8 Operating and indication elements on the front MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 26: Operating Elements On The Service Side
Ejecting the CF card. C CF slot 0 Slot for CF card with operating system and applications. D CF slot 1 Slot for CF card with data. Tab. 9 Operating elements on the service side MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 27: Indication Elements On The Service Side
Lit during startup and operation. C CF ACT (red) Lit if a CF card is accessed. D HD ACT (red) Lit if the hard disk is accessed. Tab. 10 Indication elements on the service side MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... - Page 28 4 Operating and indication elements 4.3 Indication elements on the service side MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
-
Page 29: Installation
5 Installation 5.1 Safety regulations Installation Safety regulations Read Chapter 3 Safety regulations, 17 before installing and commissioning the de- vice. This contains important information for your personal safety. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 30: Requirements For The Place Of Installation
Clearance of at least 15 cm from heat radiating components such as heavily loaded trans- formers The expected temperatures should be within the permissible range. See Chapter 9.9 Ambient conditions, 85. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... - Page 31 Properties of the mounting surfaces: Material thickness at the mounting cutout 2…5 mm Flatness ≤ 0.5 mm (this requirement must also be fulfilled when the device is mounted!) Surface roughness Rz ≤ 120 MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
-
Page 32: Interfaces
Any generally applicable regulations and standards must be fulfilled. CAUTION Non-isolated interfaces The device may be damaged due to potential differences. The GND terminals of all bus stations must be connected. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 33: Overview Of Interfaces
→ Chapter 5.3.7, 40 → Chapter 5.3.8, 41 K VGA L DVI DVI (only BOX devices) → Chapter 5.3.9, 41 M DIAG DIAG Only for service tasks Tab. 11 Overview of interfaces MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 34: Preparation Of Cables With D-Sub Connector
The folded back shield braid end must be covered by the heat shrinkable tubing or by the rubber grommet. Fit the D-Sub connector to the cable end: The exposed metal shield braid must be clamped to the connector casing with the cable clamp. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... - Page 35 E D-Sub connector C Cable clamp F Mounting screw UNC The EMC values stated in the technical data (immunity and emission) can only be guar- anteed by observing the prescribed cable preparation! MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
-
Page 36: Power Supply
/ max. 2.5 mm (lead or wire) min. AWG18 / max. AWG12 Stripping length 7 mm Max. tightening torque 0.6…0.8 Nm / 5…7 Lb. In. Tab. 13 Preparing the wiring of the connector MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 37: Rs232 (Com Port)
Cable length Max. baud rate 2.5 m 115200 Bit/s 57600 Bit/s 10 m 38400 Bit/s 15 m 19200 Bit/s 30 m 9600 Bit/s Tab. 15 Relationship of cable length / baud rate MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... - Page 38 5 Installation 5.3 Interfaces When preparing the cables, ensure that there is a low-resistance connection between the cable shield and the connector casing (→ Chapter 5.3.2, 34). MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
-
Page 39: Ethernet
Communication can be disturbed and the connection mechanics damaged if the Ethernet interface is exposed to severe vibration or the RJ45 plug connection is pulled. Protect the RJ45 connection from severe vibration. Protect the RJ45 connection from pulling on the socket. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 40: Usb Host
Fig. 16 PCI interface (PCI 32 bit 2.1) PCI expansion card Only use 3.3 V compatible PCI expansion cards. Fig. 17 Usable PCI expansion cards Power consumptions: max. 6.6 W (2 A). MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 41: Vga
DVI-D standard and can be used for connecting a DVI monitor. Fig. 19 DVI interface (DVI-D Single Link) Cable Only use standard shielded DVI-D cable. Cable length: normally 5 m. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 42: Preparing The Device For Operation
Mount the device in the control cabinet, control panel or the control desk (BOX devices only in control cabinets): Devices with display, see Chapter 5.4.5 Mounting a device with a display, 51. BOX devices, see Chapter 5.4.6 Mounting a BOX device, 56. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... - Page 43 The device is not provided with an On/Off switch. If the power supply is not provided with a switch, the device will start up (boot) as soon as it is connected to the power sup- ply. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
-
Page 44: Fitting A Pci Expansion Card In The Device
Fig. 20 Removing the mounting screw (A) Remove the side cover. Fig. 21 Removing the side cover Remove the PCI card slot cover. Keep the PCI cardslot cover. Fig. 22 Removing the PCI card slot cover MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... - Page 45 Fig. 24 Positioning the side cover Fasten the PCI expansion card and the side cover on the device using the mounting screw (A). Fig. 25 Fastening the PCI expansion card and the side cover MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
-
Page 46: Inserting And Removing A Cf Card
If the writing of the CF card/hard disk cannot be avoided, use an uninterruptible power supply (USP) to prevent data loss. Do not apply any force (CF cards are protected against reverse insertion). MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... - Page 47 Fully press in the ejector button (B) of the CF slot containing the CF card to be removed. This will cause the CF card to come out of the CF slot slightly. Pull the CF card out of the CF slot. Fit the CF slot cover (A). MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
-
Page 48: Fitting A Hard Disk In The Device
If the writing of the CF card/hard disk cannot be avoided, use an uninterruptible power supply (USP) to prevent data loss. Remove the hard disk slot cover (A). Keep the hard disk slot cover. Fig. 28 Hard disk slot cover (A) MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... - Page 49 Do not apply force (hard disk is protected against incorrect insertion). Fig. 29 Inserting a hard disk into the hard disk slot Fasten the hard disk module with the two knurled screws. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
-
Page 50: Mounting The Active Cooling Unit
Position the active cooling unit on the device so that the expanding rivets are located on the device mounting holes provided for this. Fig. 31 Active cooling unit positioned Push the four expanding rivets into the mounting holes. Fig. 32 Active cooling unit mounted MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 51: Mounting A Device With A Display
+1/-1 Fig. 33 Mounting cutout for 8.4" devices Fig. 34 Mounting cutout for 10.4" devices 344.0 410.0 +1/-1 +1/-1 Fig. 35 Mounting cutout for 12.1" devices Fig. 36 Mounting cutout for 15" devices MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... - Page 52 CAUTION Mechanical damage to the device Tightening the threaded pins too tightly may damage the device. Tighten threaded pins with a max. tightening torque of 0.2 Nm. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
- Page 53 Fit one retaining bracket each at the left and right fixing position Left and right on the device: One retaining bracket each at the top and bottom fixing position Fig. 40 8.4" devices with eight retaining brackets (meet IP65 / NEMA 4X requirements) MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
- Page 54 Left and right on the device: One retaining bracket each at the central fixing position Fig. 42 10.4" and 12.1" devices with eight retaining brackets (meet IP65 / NEMA 4X requirements) MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
- Page 55 One retaining bracket each at the outermost and at the two innermost fixing positions Left and right on the device: One retaining bracket each at the two innermost fixing positions Fig. 44 15" devices with twelve retaining brackets (meet IP65 / NEMA 4X requirements) MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
-
Page 56: Mounting A Box Device
Select the mounting position of the device in the control cabinet as described in Chapter 5.2.2 Requirements for the mounting position, 30. Mount the device at the appropriate position. Fig. 45 BOX device with active cooling unit (view from rear) MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 57: Operation
If condensation is present on the device, or if it was exposed to temperature fluc- tuations, it must be allowed to adjust to room temperature (do not expose the de- vice to the direct heat of heating devices) prior to commissioning. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 58: Starting The Device
Shut down the operating system. De-energize the device. To switch on the device again, it must be de-energized and can only be switched on again after a pause of 20 seconds. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 59: Maintenance And Service
7 Maintenance and service 7.1 Safety regulations Maintenance and service Safety regulations Read Chapter 3 Safety regulations, 17 before working with the device. This contains important information for your personal safety. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 60: Maintenance
Clean the infra-red frame and the display with a clean, soft, damp cloth. With stubborn contamination, spray a little cleaning agent onto the damp cloth first. 7.2.2 Recalibrating the infra-red touch Devices with infra-red touch do not have to be recalibrated. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 61: Replacing The Battery
Remove the battery from the opening in the device housing by pulling on the tab. Insert a new battery into the device. Battery type, see Chapter 9.4 System, 77. Reset the date and time of the device. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 62: Service
Repairs The device must only be opened by the manufacturer or by an authorized repair center. Contact your local supplier or Eaton technical support for repairs. Only the original packaging should be used for transporting the device. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com... -
Page 63: Replacing The Active Cooling Unit
Pull the power supply connector from the active cooling unit. Fig. 48 Connector for the power supply of the active cooling unit Connect the power supply of the new active cooling unit on the device. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... - Page 64 Position the active cooling unit on the device so that the expanding rivets are located on the device mounting holes provided for this. Fig. 49 Active cooling unit positioned Push the four expanding rivets into the mounting holes. Fig. 50 Active cooling unit mounted MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
-
Page 65: Troubleshooting
The threaded pins for mounting the device have Loosen the threaded pins (observe max. torque, → Chapter 5.4.5, 51). been tightened too much. Device is faulty. Send in your device for repair. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 66: Activate The Second Display
On the desktop of the display booted, click the right mouse key. In the context menu, click [Graphics Properties]. Fig. 51 [Graphics Properties] in the context menu The window «Monitor and Digital Display» appears. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... - Page 67 Click [OK]. In the second display, it appears the same as in the first display. The window «Confirm the Desktop Change» appears. Fig. 53 Window «Confirm the Desktop Change» Click [OK]. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
- Page 68 7 Maintenance and service 7.4 Troubleshooting MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
-
Page 69: Storage, Transport And Disposal
Damage to the device must be prevented during transport (use an appropriate packaging). The ambient conditions must be fulfilled even when the device is transported. See Chapter 9.9 Ambient conditions, 85. Check the device on arrival for damage in transit. MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 70: Disposal
Tab. 18 Materials used in the device Materials used in the packaging Packaging Material External packaging Cardboard Internal packaging Closed-cell polyethylene foam, CFC-free Plastic bag: Polyethylene (PE) Tab. 19 Materials used in the packaging MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 71: Technical Data
Devices with active cooling unit 96 mm Weight Devices without active cooling unit Approx. 1.9 kg Devices with active cooling unit Approx. 2.3 kg Tab. 20 Dimensions and weights of the BOX devices MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 72: Devices
261 mm × 194 mm (±1 mm) Weight Devices without active cooling unit Approx. 3.2 kg Devices with active cooling unit Approx. 3.6 kg Tab. 21 Dimensions and weights of the 8.4" devices MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 73: Devices
Mounting cutout 329 × 238 mm (±1 mm) Weight Devices without active cooling unit Approx. 4.1 kg Devices with active cooling unit Approx. 4.5 kg Tab. 22 Dimensions and weights of the 10.4" devices MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 74: Devices
344 × 262 mm (±1 mm) Mounting cutout Weight Devices without active cooling unit Approx. 4.7 kg Devices with active cooling unit Approx. 5.1 kg Tab. 23 Dimensions and weights of the 12.1" devices MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 75: 15" Devices
410 mm × 315 mm (±1 mm) Weight Devices without active cooling unit Approx. 6.3 kg Devices with active cooling unit Approx. 6.7 kg Tab. 24 Dimensions and weights of the 15" devices MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 76: Display
Normally 400:1 Brightness Normally 400 cd/m Backlight Technology 8.4", 10.4" and 12.1" devices 2× CCFL 15" devices 4× CCFL Lifespan Normally 50 000 h Infra-red touch protective panel Non-reflective safety glass Tab. 25 Display MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 77: Touch Sensor
1× 2.5" hard disc for operating system, programs and data Use only original accessories. Real-time clock (battery backup) Battery type CR2477 (950 mA/h), maintenance-free Backup time in de-energized state Normally 10 years Tab. 27 System MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 78: Interfaces
PCI 32 bit 2.1: Slot for 3.3 V PCI expansion card (e.g.: communication module) DVI (only BOX devices) DVI-D (Single Link) → Chapter 9.5.1, 79 Power supply DIAG Only for service tasks Tab. 28 Interfaces MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 79: Power Supply
10.4" devices Basic device Max. 33 W (normally 27 W) PCI expansion card Max. 7 W USB stations on USB host Max. 6 W Hard disk Max. 2.5 W Total Max. 48.5 W MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... - Page 80 Max. 2.7 A (24 VDC) Starting current inrush Protection against reverse polarity Fuse Yes (replacement only by the manufacturer or by an authorized repair center) Potential isolation Tab. 29 Power supply devices with 1 GHz (XP-702-C…, XP-702-E…) MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
-
Page 81: Devices With 1.8 Ghz (Xp-702-D
12.1" devices Basic device Max. 44.5 W (normally 38 W) PCI expansion card Max. 7 W USB stations on USB host Max. 6 W Hard disk Max. 2.5 W Total Max. 60 W MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 82: Enclosure Ratings
Required number of retaining brackets and threaded pins for mounting: 8.4", 10.4" and 12.1" devices: 8 pieces each 15" devices: 12 pieces each Rear IP20, Enclosure Type 1 Tab. 31 Enclosure ratings MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 83: Agency Approvals And Standards
15" devices: 12 pieces each Tab. 32 Agency approvals and standards 1) Zone 22, category 3D: - IP5x for devices of the group IIIB (non-conductive dust) - IP6x for devices of the group IIIC (conductive dust) MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 84: Applicable Standards And Regulations
(Engineering conditions of acceptability by UL, → Kapitel 5.2.1, 30) Product standards EN 50178 Electronic equipment for use in power installations IEC/EN 61131-2 Programmable logic controllers, equipment require- ments and tests Tab. 33 Applicable standards and regulations MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... -
Page 85: Ambient Conditions
9…60 Hz: 0.15 mm Acceleration: 60…150 Hz: 2 g Schock in accordance with IEC/EN 60068-2-27 15 g / 11 ms Fall test In accordance with IEC/EN 60068-2-31 Tab. 34 Ambient conditions MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com... - Page 86 9 Technical data 9.9 Ambient conditions MICRO PANEL XP-702 07/2011 MN04802003Z-EN www.eaton.com www.comoso.com...
