  • Page 1 USER MANUAL...
  • Page 2 CONGRATULATIONS ON PURCHASING YOUR TOTALLY WICKED ORBIS ELECTRONIC CIGARETTE KIT...

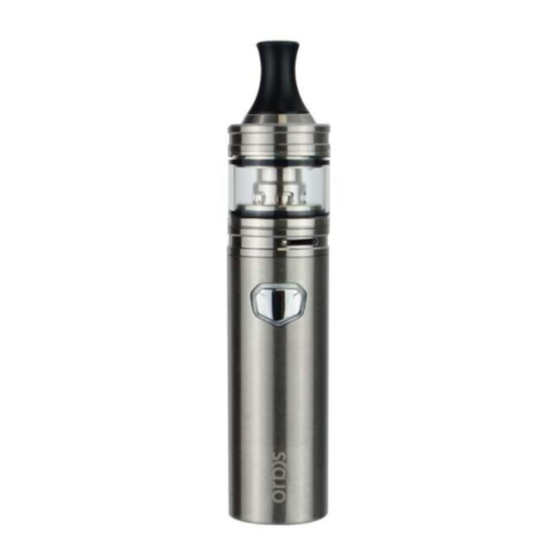

  • Page 3 TOTALLY WICKED ORBIS POWER AIRFLOW MOUTHPIECE BUTTON CONTROL INDICATOR LIGHT TANK TOP CAP CONNECTION...
  • Page 4 TOTALLY WICKED ORBIS GLASS TANK RETAINING ATOMIZER BASE RING HEAD TOP CAP RETAINING AIRFLOW TANK MOUTHPIECE RING SEAL CONTROL GLASS...
  • Page 5 • Prime the atomizer head • Fill the tank • Switch the Orbis on (5 clicks of the power button) • Press the power button and inhale • Charge the battery (possibly not shipped with a full charge)
  • Page 6 USING YOUR ORBIS Priming the Atomizer Head It is important to “prime” a new atomizer head before first use. Failure to do so can damage the atomizer head. Grip the airflow control and unscrew the tank from the battery. Holding the tank’s glass tube, unscrew the base from the tank.
  • Page 8 USING YOUR ORBIS Filling the Tank Pull the top of the tank upwards and slide the top cap open by pushing firmly in the direction indicated by the arrow on the top of the tank. Insert the filling nozzle of your e-liquid bottle through the slit in the silicone filling seal, and fill the tank, being careful not to overfill.
  • Page 9 USING YOUR ORBIS...
  • Page 10 Switching On and Off: To switch the Orbis on or off, quickly press the power button five times. The indicator light will flash five times when switched on or off.
  • Page 11 USING YOUR ORBIS Vaping: Press and hold the power button as you gently inhale the vapour, releasing the power button when you have finished inhaling. The indicator light will illuminate while the power button is held down, with its colour showing battery condition.
  • Page 12 USING YOUR ORBIS Changing Output Modes: The Orbis battery has 3 different power modes: High, Medium and Low. To switch between the power modes, press the power button three times in quick succession; the indicator light will illuminate Green for high power mode, Blue for medium power mode and Red for low power mode.
  • Page 13 USING YOUR ORBIS Battery Life Indication: When the power button is pressed in normal use, the indicator light will display the colours below, dependent on the device’s level of charge. Light Condition Battery Percentage Green 100% – 60% Blue 59% – 20%...
  • Page 14 USING YOUR ORBIS Charging the Battery Insert the supplied charge cable into the Orbis charging port, and connect the other end of the charge cable to a USB port or suitable wall adaptor. The indicator light will illuminate red while charging. When fully charged, the indicator light will switch off.
  • Page 15 USING YOUR ORBIS Note: After priming a new atomizer head and filling the tank, it is recommended to wait 5 minutes before vaping to ensure the atomizer head is fully saturated.
  • Page 16 USING YOUR ORBIS Replacing the Tank Glass The tank glass for the Orbis can be replaced using the special spanner provided in the kit. To change the glass, remove the tank from the battery and unscrew the base. Remove the atomizer head from the tank and insert...
  • Page 17 USING YOUR ORBIS Holding the tank, turn the tool anti clockwise until the retaining ring is completely unscrewed, and remove the glass, taking care not to lose the retaining ring seal. Replace the glass section, ensure the retaining ring seal is correctly seated in the groove in the glass retaining ring, and refit the glass retaining ring, tightening with the spanner.
  • Page 18 Atomizer Head Protection If the power button is held down for longer than 15 seconds while vaping, the indicator light will flash 10 times and the Orbis will refuse to power or produce any vapour. Releasing the power button allows normal operation to resume.
  • Page 19 Short Circuit Protection If an atomizer short circuit occurs, the indicator light will flash 5 times and the Orbis will switch off. Replace the atomizer head by following the steps in Replacing the Atomizer Head, then follow the procedure in Charging The...

  • Page 20: Kit Contents

    ADDITIONAL PRODUCT KIT CONTENTS INFORMATION 1 x Orbis battery There are no reported medical 1 x Orbis tank side effects with this product. If 1 x GT-M 0.6ohm you believe you experience a atomizer head (fitted) side effect, please contact the 1 x GT-M 0.6ohm...

  • Page 21: Specifications

    SPECIFICATIONS Dimensions: 22mm (diameter) x 104mm (length) Battery capacity: 1100mAh Max charging current: 1.0A Tank capacity: 2ml Atomizer head type: GT atomizer heads Maximum power: 25W Maximum filling nozzle diameter: 3.0mm...
  • Page 22 • Do not use the device in temperatures under -10°C or above 60°C. • Do not carry batteries in a pocket or bag with other metallic objects. • Do not attempt to repair a faulty Orbis battery as these are sealed units with no serviceable parts. Attempted repairs will void the warranty.

  • Page 23: Warranty

    WARRANTY The Orbis kit components have a six month parts warranty, with the exception of Atomizer Heads, which are consumable items and covered by “dead on arrival” warranty only. The USB cable supplied has a 12 month warranty. If any parts are found to be faulty within this time please contact our customer service team, whose details are on the back page of this booklet and we will arrange for a replacement.
  • Page 24 Manufactured in China under the authority of Pillbox38 UK Ltd, Stancliffe Street, Blackburn, Lancashire, BB2 2QR. Tel 01254 692244 Tel 0941-78447082 www.totallywicked.co.uk www.totallywicked.de...
