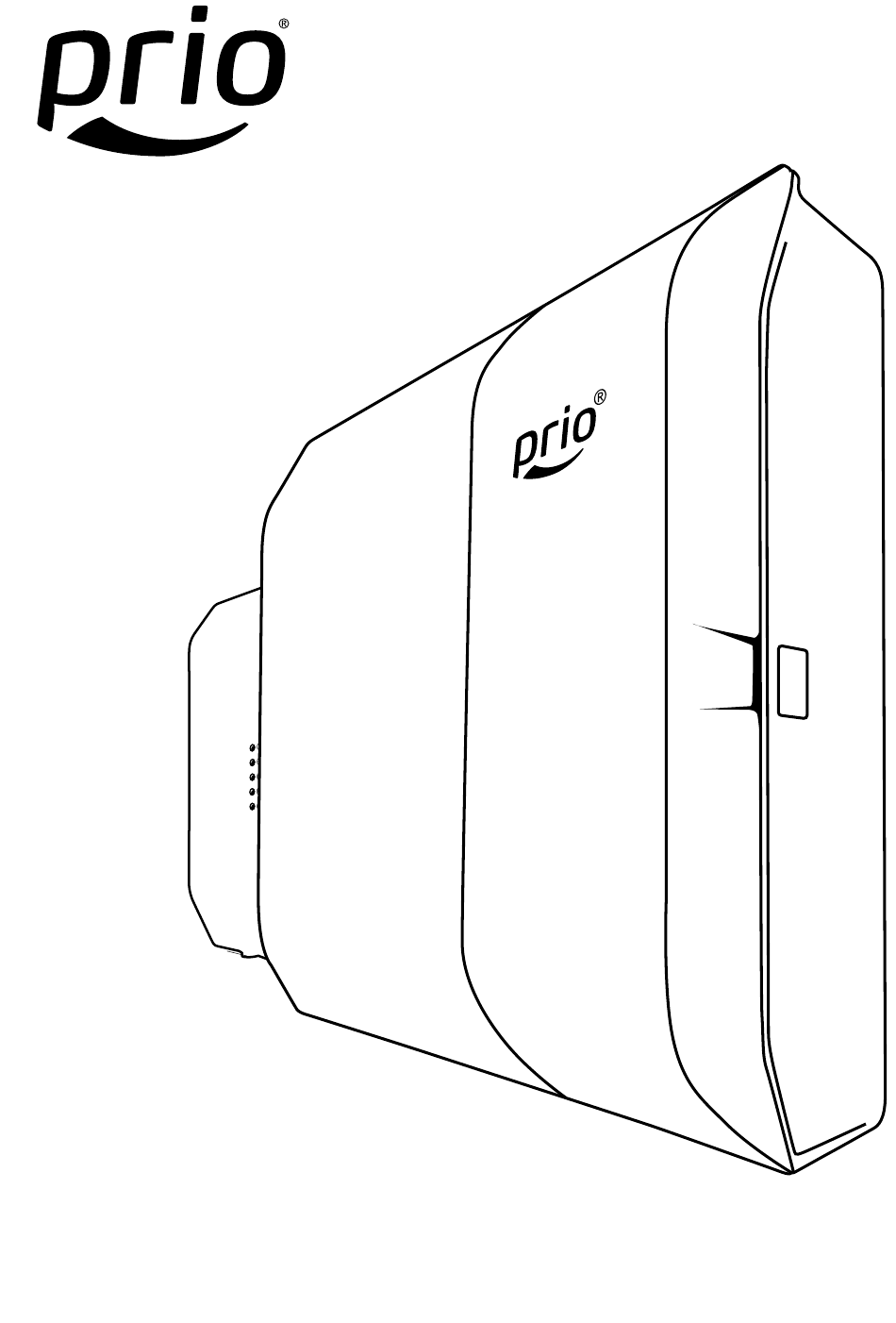

- Page 1 Prio Expert ® MOD600 Direct Flow Reverse Osmosis Filtration System (Pump Box Unit with Auto-Flush, Main Filtration Unit with High-Production R.O. Membrane Set) User’s Guide...
- Page 2 Before operating this appliance, please read the instructions carefully. You may want to save this guide for your future reference. Failure to follow the instructions or meet the operating requirements may lead to the product’s failure, malfunction, property damage or personal injury. Safety Warning Plug the pump unit into an electrical outlet only after you finish the installation.
- Page 3 Description Congratulations on your purchase of the Prio® Expert R.O. filtration system! With proper installation and maintenance, it will provide you with high quality drinking water for many years. This R.O. system removes odor and most harmful substances such as heavy metal ions and total dissolved solids from tap water making it tasty, fresh and vital.
- Page 4 Direct Flow R.O. Systems Benefits: Powerful booster pump and high-production R.O. membrane make it possible to build a high- end direct flow R.O. machine that offers high performance and water quality. Freshness of water filtered in real time. No more stale water from a tank. ■...
- Page 5 Usually, both units – the pump box and the R.O. unit – are placed under the sink (such as in your kitchen) and the filtered water facet is mounted on the sink deck near your normal water tap. After installation, you will get clean water by simply opening the filtered water faucet. The pump will turn on automatically and will produce filtered water in real time until you shut off the faucet.
-
Page 6: Specification
R.O. membrane: The third and main stage of the filtration is high-production R.O. membrane. It is “semi-per- meable”, which means that it allows water to pass through but prevents dissolved particles from passing through. It splits the feed water into two streams: clean water goes to the post-filter and then onto the faucet. -
Page 7: Installation
Idling protection: 120 minutes (the pump box unit shuts down the pump and goes into ■ ‘reset required’ mode if working mode continuous duration reaches 2 hours without inter- ruption) Weight and Size: Pump box unit: Size (WDH), body only, excluding protrusions: 8.74 x 4.80 x 12.44” (222 x 122 x 316 mm) Weight, without water and tubing: 8.6 lbs (3.9 kg) R.O. - Page 8 General connection scheme: filtered water inlet faucet valve from inlet valve to another point-of-use to R.O. unit inlet tee fitting (optional) from filtered water outlet of the R.O. unit R.O. unit inlet from waste water outlet of the R.O. unit X855 MOD600 to drain or...
- Page 9 IMPORTANT: Cut Tubing At 90° to Ensure a Watertight Seal: No skewed cut! To Connect the Tubing to a Fitting: 1. Remove the lock if present (not present in self-locking fittings). 2. Push. Insert the tube firmly until full stop. 3.
- Page 10 The maximum length of hose connections between the pump box unit and R.O. filtration unit is 50 ft. You may place both units under your kitchen sink, or you may place the R.O. filtration unit under the sink in your kitchen near the faucet, and the pump box unit in your bathroom near the electrical outlet, cold water supply and drain pipes.
- Page 11 Drill a ¼” hole in the drain pipe above the trap and on the ver- mount drain tical or horizontal tail piece. Lo- saddle here never cate the drain connection away mount from the garbage disposal to here prevent potential contamination never mount and system fouling.
- Page 12 Initial Washing: After installation it is recommended to perform the initial washing of the system. For this: open cold water open the filtered plug the pump ■ ■ ■ supply valve; water faucet; box unit’s power open the inlet cord into the ■...
- Page 13 Regular Use To get clean water just open the filtered water faucet. The pump will turn on automatically and will produce the filtered water flow in real time until you shut off the faucet. At the end of each water production cycle the membrane will be flushed, and then the system will shut off automatically.
- Page 14 To change filter(s) or membrane: shut off the inlet unplug the pump relieve the water pressure by opening the ■ ■ ■ valve box unit from the filtered water faucet electrical outlet remove the R.O. filtration unit from its locate the filter (membrane) to be ■...
- Page 15 Note: For a pre- or post-filter you only need to connect its inlet and outlet. For the membrane обр т оос от ч ской бр ы д в тся угловой обр т ый кл п Н который со д я тся с выходо воды Н...
- Page 16 Prio, Prio logo are the trademarks of DWT Deutsche Wassertechnologien gmbH, germany. As used herein, ® denotes registered trademark status in germany only.
