EN Instruction manual
ELECTRIC Hi-Lo Bathtub
Transcare
7203.00
7202.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Transcare Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Reval Transcare Series

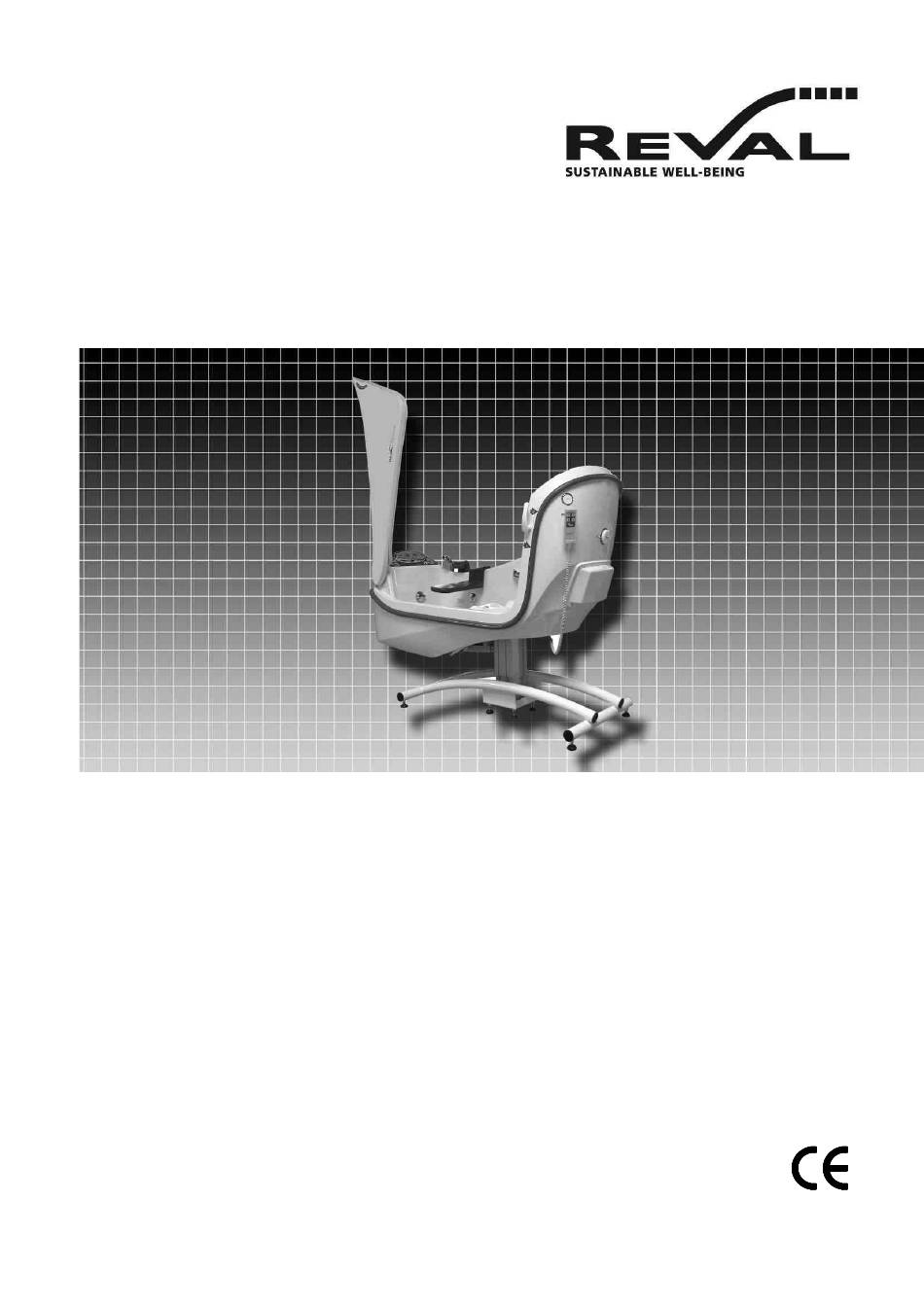

  • Page 1 EN Instruction manual ELECTRIC Hi-Lo Bathtub Transcare 7203.00 7202.00...
  • Page 2: Table Of Contents

    SUMMARY CONTENTS PAGES DIMENSIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - DESCRIPTION &...
  • Page 3: Dimensions

    DIMENSIONS 205cm 183cm 3° tilt of footbath 12° tilt of seat 47cm 128cm TUB IN LOW POSITION WITHOUT BASE TUB IN HIGH POSITION WITHOUT BASE 205cm 183cm 3° tilt of footbath 4cm adjustable height 12° tilt of seat 47cm 128cm TUB IN LOW POSITION WITH BASE TUB IN HIGH POSITION WITH BASE 40cm...
  • Page 4: Description & Control Panels

    DESCRIPTION 4 functions hand control Whirlpool control Control panel Chromotherapy control Temperature display Cleaning shower Aromatherapy option Tilting door Safety door to access to the Service panel plumbing and the disinfection (whirlpool system) shower (“disinfection” option) Base Hy/Low actuator CONTROL PANEL WITH THERMOSTATIC MIXER (VERSION 7202) Cleaning shower tap Location of the whirlpool control Thermostatic mixer...
  • Page 5 CONTROL PANEL WITH DIGITAL MIXING VALVE RADA SENSE (7203) + OPTIONS Cleaning shower temperature Digital mixing valve RADA SENSE display Bath fill temerature display Cleaning shower Filling spout Overflow / max water level Leg support Plug control / Overflow Chromotherapy lamp HAND CONTROL Down Recline...
  • Page 6: Technical Specifications

    TECHNICAL SPECIFICATIONS VERSIONS: REF. 7202.00 Bathtub "TRANSCARE" with thermostatic mixer. REF. 7203.00 Bathtub "TRANSCARE" with Digital Mixing Valve Rada Sense. OPTIONS : 7200.10 Chimic disinfection(version 7202.00) 7201.10 Chimic disinfection(version 7203.00) 7200.20 Air whirlpool. 7200.30 Base. 7200.50 Leg support. 7200.51 Added handgrip. 7200.52 Dispenser of washing product.
  • Page 7: Operation

    OPERATION The central lifting column, located under the tub, allows variable tub adjustment. Tub angle adjustment via hand control and electric action. Tub Hi/Low adjustment also via hand control. The hand control allows to control the variable height and tilting of tub. VERSION 7201 : To activate bath fill place hand over the bath fill sensor within 30mm.
  • Page 8: Safety Instructions And Warnings

    To ensure safe operation, carefully read this entire manual, especially the section on "Safety Instructions and Warnings", before installing, operating, or servicing this equipment. If anything is not completely understood, please contact Reval for more details. Failure to comply with warnings in this manual may result in injury.
  • Page 9: Directions For Use

    DIRECTIONS FOR USE _________________________________________________________________________ WARNING : This symbol is intended to alert the user to hazards or unsafe practices which could result in serious bodily harm. CAUTION: This symbol is intended to alert the user of the presence of important operating and maintenance instructions which could prevent product damage or possible personal injury.
  • Page 10: Door Operation

    DIRECTIONS FOR USE DOOR OPERATION Check there is adequate room to open the door. To close the door, pull the door down into position, and fully rotate the handle counter clockwise until you feel the locking mechanism engage. The handle should be positioned as shown in the photo when properly closed. To open the door, fully rotate the handle in a clockwise direction, until it stops, and lift the door up.
  • Page 11: Water Temperature Adjustment

    DIRECTIONS FOR USE WATER TEMPERATURE ADJUSTMENT (VERSION 7202) To adjust the water temperature, turn the button of the mixer. During use, If you need a water temperature upper to 40°C, push the red index and turn the button counter clockwise. A digital display allows to check tha water temperature.
  • Page 12: Concealed Digital Mixing Valve Rada Sense

    DIRECTIONS FOR USE CONCEALED DIGITAL MIXING VALVE RADA SENSE (VERSION 7203) : To adjust the water temperature,, pass your finger in front of the cold water sensitive captor (blue triangle) or in front of the hot water (red triangle) according to the temperature desired. Temperature display Full cold Warm...
  • Page 13: Disinfection Shower (Version 7202)

    DIRECTIONS FOR USE DISINFECTION SHOWER (VERSION 7202) The disinfectant system includes 1x 5 litres tank receiving the disinfectant product, 1x plunger with calibrated tube located in the tank, and connected by a flexible going through the top of the venturi (white plastic part) and 1x disinfection shower head with pawl.
  • Page 14: Air Whirlpool (Option)

    DIRECTIONS FOR USE AIR WHIRLPOOL (OPTION) FUNCTIONALITY Fresh clean air is ingested into the system. The air is then compressed passed through a heat-exchanger to heat the air to a specific temperature. The air is then expelled from the compressor at high pressure and passes into a multiplex-manifold connected via airlines to 12 de-fuser nozzles positioned specifically along the bottom of the bath.
  • Page 15: Chromotherapy (Option)

    DIRECTIONS FOR USE CHROMOTHERAPY (OPTION) The chromotherapy option consists of 6 LED lamps and 1 control button. The control button has 3 following functions : On/Off / Automatically alternate of 7 colours / Colour fixed. Push one time on the button to turn on the lamps. The colours of the lamps automatically alternate during 1 minute for each colour.
  • Page 16: Aromatherapy (Option)

    The auto-clean function significantly reduces the risk and development of micro -biological organisms that can develop in humid and wet environments. Reval's unique air ducting system can be dismantled without the need for tools and can be termically cleaned during routine servicing in a matter of minutes.
  • Page 17: Audio Spa (Option)

    DIRECTIONS FOR USE AUDIO SPA (OPTION) The “Audio spa” option consists of two loudspeakers, a waterproof amplifier, a 12V waterproof power supply, and waterproof control panel. Operation : 1°) Turn on the amplifier, Press MODE button to select Bluetooth function of your amplifier. (Bluetooth light indicator should be blinking blue) 2°) Turn on Bluetooth function of your mobile or music device.
  • Page 18: Maintenance

    MAINTENANCE CHIMIC DISINFECTION COMPOSITION : The bath is equipped with an automatic system to determine the quantity of disinfectant. The disinfection system includes : - 1x 5 liters tank receiving the disinfectant product. - 1X plunger with calibrated tube, located in the tank, and connected by a flexible going through the top of the venturi (white plastic part).
  • Page 19: Cleaning The Filtering Cartridge Of The Mixer

    MAINTENANCE CLEANING THE FILTERING CARTRIDGE OF THE MIXER (VERSION 7202) A right maintenance of the filter cartridge acts on flow and water temperature control. When "TH" degree of water is superior to 8 or when pipes conduct drive many impurities, clean the cartridge filter each month.
  • Page 20: Adjusting The Sealing Of The Door

    MAINTENANCE ADJUSTING THE SEALING OF THE DOOR The seal between the tub and the door is provided by a silicone seal. When you close the door, the seal compresses and therefore ensures sealing. Over time and following the many manipulations of the lock and / or deformation of the composite material of the door, the seal between the tub and the door can be reduced.
  • Page 21: Periodic Inspection

    6) Defects and damages of importance to the safety of the bathtub that have occurred between inspections and have already lead to corrective actions should be entered in the logbook. 7) Defects and damages should be reported back to Reval for action. This feedback should be reported in the logbook.
  • Page 22: Maintenance Form (Logbook)

    MAINTENACE FORM (LOGBOOK) 21/21...
  • Page 23 Usseau 17220 Sainte Soulle Tel: (33) 05.46.42.04.16 Fax: (33) 05.46.43.06.38 www.groupe-reval.com UNITED KINGDOM : Reval® Continuing Care Limited Unit 17 Brynmenyn Busines Centre St Theodore's Way - Brynmenyn CF32 9TZ BRIDGEND - WALES Tel: 01656 721 001 Fax: 01656 720 006...
