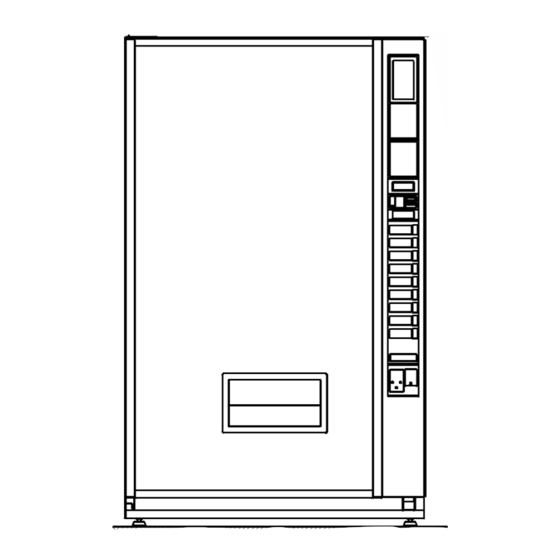

- Page 1 INSTALLAZIONE, USO, MANUTENZIONE INSTALLATION, MODE D’EMPLOI, ENTRETIEN INSTALLATION, USE, MAINTENANCE INSTALACIÓN, USO, MANTENIMIENTO INSTALLATION, BEDIENUNG, WARTUNG HANDBOEK VOOR GEBRUIK, INSTALLATIE, ONDERHOUD Zeta BISTANDARD ELECTRONICS Executive - MDB protocols Italiano Pagina Français Page English Page Español Página Deutsch Seite NL-B Pagina Nederlands-Vaals DOC.
- Page 3 DICHIARAZIONE DI CONFORMITA’ DECLARATION OF CONFORMITY DÉCLARATION DE CONFORMITÉ KONFORMITÄTSERKLÄRUNG DECLARACIÓN DE CONFORMIDAD DECLARAÇÃO DE CONFORMIDADE VERKLARING VAN OVEREENSTEMMING INTYG OM ÖVERENSSTÄMMELSE OVERENSSTEMMELSESERKLÆRING YHDENMUKAISUUSTODISTUS Valbrembo, 03/05/2001 Dichiara che la macchina descritta nella targhetta di identificazione, è conforme alle disposizioni legislative delle direttive: 89/392, 89/336, 73/23 CEE e successive modifiche ed integrazioni.
-
Page 5: Table Of Contents
PROGRAMMING PAGE 55 CONTROL BOARD FUNCTIONS AND INDICATOR LIGHTS PAGE 55 PAYMENT SYSTEMS PAGE 56 MINIDIP FUNCTIONS PAGE 56 PROGRAMMING PARAMETERS AND PRICES PAGE 56 READING THE STORED DATA PAGE 60 © by NECTA VENDING SOLUTIONS SpA 01 10 126-03... -
Page 6: Introduction
Any other use is incorrect and thus potentially dangerous. Fig. 2 Serial Product code number Model Frequency Type Operating voltage Corrente Absorbed power Type and amount of Refrigeration system refrigerant gas class © by NECTA VENDING SOLUTIONS SpA 01 10 126-03... -
Page 7: Positioning The Vending Machine
500 and 700 Kg according to the model. Therefore, the structure on which the machine stands must suitable for supporting such weight to avoid any hazardous conditions, like collapsing, sinking, other damage or any possible instability. © by NECTA VENDING SOLUTIONS SpA 01 10 126-03... -
Page 8: Technical Specifications
For other types of bottles, the best possible setting in the dispensing device must be identified. Bottles which are too irregular or not firm enough may not be suitable for automatic dispensing. © by NECTA VENDING SOLUTIONS SpA 01 10 126-03... -
Page 9: Variable Combination Lock
- 25 cans for the first selection - 23 cans for the second selection - 19 cans for the third selection - 15 cans for the fourth selection © by NECTA VENDING SOLUTIONS SpA 01 10 126-03... - Page 10 The columns can be preset for dispensing 66 dia. cans or round bottles with a diameter range of 62 to 73 mm. Warning: glass bottles can be dispensed only from single columns. © by NECTA VENDING SOLUTIONS SpA 01 10 126-03...
-
Page 11: Controls And Information
To correctly load the products to be dispensed in the columns, do as follows: - open the bottle retaining gate by sliding it inside the guides toward the left; © by NECTA VENDING SOLUTIONS SpA 01 10 126-03... -
Page 12: Releasing A Column
- reload the column and close the machine, then check possible, to limit as much as possible the increase of that the corresponding selection is working correctly. temperature inside the refrigerated box and therefore power consumption. © by NECTA VENDING SOLUTIONS SpA 01 10 126-03... -
Page 13: Routine Maintenance
- remove all products from the columns and clean the on the door side inside and all accessories. At installation the chain must be secured also on the cabinet side, adjusting the length according to the space available. © by NECTA VENDING SOLUTIONS SpA 01 10 126-03... -
Page 14: Installing The Payment System
The main switch, the power outlet and the plug should low. be located within easy reach. The electrical safety of the machine is ensured only when it is correctly earthed according to the safety standards in force. 01 10 126-03 © by NECTA VENDING SOLUTIONS SpA... - Page 15 To dispense 62-mm diameter glass bottles from single 2 - Spacers columns, it may be necessary to fit adapting plates as 3 - Spacer support bracket indicated in the figure. 4 - Product side support © by NECTA VENDING SOLUTIONS SpA 01 10 126-03...
- Page 16 The anti-friction elements must not be used for dispensing cans or for single columns. < Fig. 20 ÷ A - Removable inserts 1 - 1 row > 2 - 2 rows 4 - 4 rows 01 10 126-03 © by NECTA VENDING SOLUTIONS SpA...
- Page 17 The correct distance is obtained when the bottles fall and stay horizontal right down to the rotor. Fig. 23 1 - Double column 2 - Single column 3 - Frame 4 - Column back panel © by NECTA VENDING SOLUTIONS SpA 01 10 126-03...
-
Page 18: Removing The Door
Fig. 26 1 - Upper hinge mounting screws 2 - Upper hinge 3 - Electrical system connectors 4 - Door stop chain 5 - Door frame hinge 6 - Lower hinge 01 10 126-03 © by NECTA VENDING SOLUTIONS SpA... -
Page 19: Programming
- Storing of the total coin value cashed. - Storing of the motor locks following a time-out condi- tion. - Storing of the total motor resets. - Storing of the number of serial transmission failures occurred. © by NECTA VENDING SOLUTIONS SpA 01 10 126-03... -
Page 20: Payment Systems
U-key Interface emptied causes the release motor to be activated at intervals of five seconds and up to 30 consecutive selec- tions maximum. 01 10 126-03 © by NECTA VENDING SOLUTIONS SpA... - Page 21 Price of selection 10 1st digit of machine code 2nd digit of machine code 6th digit of machine code Counters display Time of cycle start Motor safety time (0 to 30 seconds) Initialising © by NECTA VENDING SOLUTIONS SpA 01 10 126-03...
- Page 22 For Italy this value is 50 (Lire), for other countries generally it is 10 (cents). In "serial" operating mode, this information is transmitted directly from the coin mechanism to the control board. 01 10 126-03 © by NECTA VENDING SOLUTIONS SpA...
- Page 23 This function is used to make available to the user any amount exceeding the selection price. 0 = change returned after each selection 1 = change returned only after pressing the button © by NECTA VENDING SOLUTIONS SpA 01 10 126-03...
-
Page 24: Reading The Stored Data
Total number for each selection The maximum value which can be stored is 50,000, beyond Total cashed which counting starts again from 0. Failures for motor stops (for each selection) Serial line failures 01 10 126-03 © by NECTA VENDING SOLUTIONS SpA... - Page 25 SERIAL PORT RS232 PUERTA SERIAL BALLAST BALAST DISPLAY BOARD CIRCUITO DISPLAY CONTROL BOARD CIRCUITO CONTROL MAQUINA STARTER STARTER TERM THERMOSTAT TERM TERMOSTATO TRANSFORMER TRANSFORMADOR TX..DELAYED FUSE (X=COURRENT) TX..FUSIBLE RETARDADO (X=CORRIENTE) © by NECTA VENDING SOLUTIONS SpA 01 10 126-03...
- Page 26 NECTA VENDING SOLUTIONS SpA Sx34002...
- Page 27 Zeta 550/9...
- Page 28 NECTA VENDING SOLUTIONS SpA Sx34400...
- Page 29 Zeta 550/6...
- Page 30 NECTA VENDING SOLUTIONS SpA Sx34700...
- Page 31 Zeta 450/5...
- Page 32 NECTA VENDING SOLUTIONS SpA Sx35100...
- Page 33 Zeta 450/7...
- Page 34 NECTA VENDING SOLUTIONS SpA Sx35300...
- Page 35 Zeta 750/9...
- Page 36 © by NECTA VENDING SOLUTIONS SpA NOTE...
- Page 37 © by NECTA VENDING SOLUTIONS SpA NOTE...
- Page 38 © by NECTA VENDING SOLUTIONS SpA NOTE...
- Page 39 Il Costruttore si riserva il diritto di modificare, senza preavviso, le caratteristiche delle apparecchiature presenta- te in questa pubblicazione; declina inoltre ogni responsabilità per le eventuali inesattezze imputabili ad errori di stampa e/o trascrizione contenute nella stessa. Le istruzioni, i disegni, le tabelle e le informazioni in genere contenute nel presente fascicolo sono di natura riservata e non possono essere riprodotte ne completamente ne parzialmente od essere comunicate a terzi senza l'autorizzazione scritta del Costruttore che ne ha la proprietà...
