Section 6b.
Tap Switch
For the Ottobit Jr., the external switch controls Tap Tempo and has all of the same functionality as the tap button on the
main pedal, this includes Stutter Hold. As with the main tap switch, if you hold the externally connected tap switch it will cause
the stutter hold the current or next valid stutter buffer.
Section 6c.

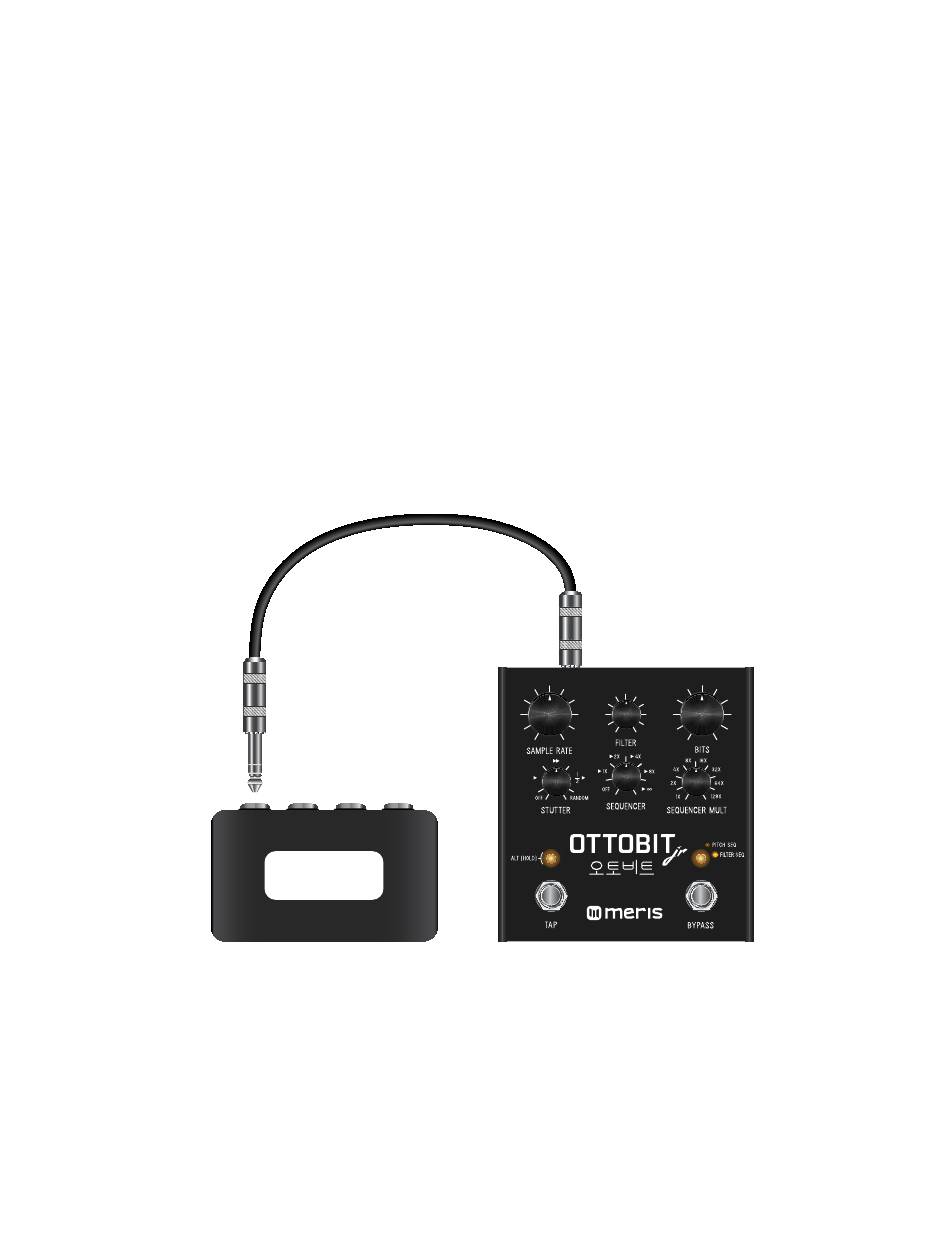

4 Button Preset Switch
This mode gives you access to and instant enabling of presets 1 through 4, when connected with a proprietary Meris 4 button switch.
Section 6d.
MIDI
The Ottobit Jr. features both MIDI In and Out via the EXP jack, and has a rich and deep MIDI implementation. All the
knobs, alt functions, expression pedal, and switches are available via MIDI CCs. You can receive program change messages (MIDI
PCs), sync to MIDI Beat Clock (Ottobit Jr.), you also have the ability to send and receive presets. Be sure to set the your desired
MIDI channel in Global Settings Configuration Mode. If you have multiple devices connected to MIDI in a chain, you will probably
want each to device to set to listen to and send on its own channel.
8
1 2 3 4
MIDI
MIDI IN 9V
-0
-2 -1
-3
-4
-5
-6
-7
-8
-9
-10
-11
-12
skip step
0%
skip step
