M A N U A L v . 4
M O R E T H A N L O G I C . U N I T I N G A R T + E N G I N E E R I N G .
C O N T A C T
email: info@meris.us
phone: 747.233.1440
website: www.meris.us

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ottobit jr and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Meris Ottobit jr

Summary of Contents for Meris Ottobit jr

  • Page 1 M O R E T H A N L O G I C . U N I T I N G A R T + E N G I N E E R I N G . C O N T A C T email: info@meris.us phone: 747.233.1440...

  • Page 2: Table Of Contents

    TAB LE O F CONTENTS SECTION 1 PG. 1 FRONT PANEL CONTROLS SECTION 2 PG. 2-4 GLOBAL SETTINGS CONFIGURATION MODE SECTION 3 PG. 4-5 STUTTER IN DEPTH SECTION 4 PG. 5 STUTTER HOLD IN DEPTH SECTION 5 PG. 5-6 SEQUENCER IN DEPTH SECTION 6 PG.

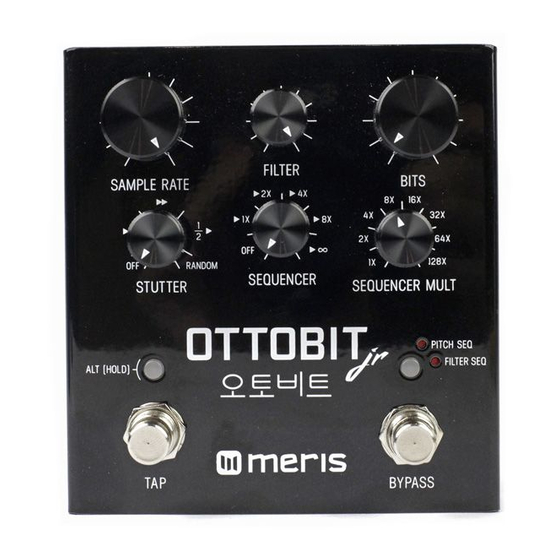

  • Page 3: Front Panel Controls

    Bits: Changes the bit depth Filter: Changes the cutoff frequency of the from 1 bit to 24 bits Meris original ladder style low pass filter Alt Function: Step 3 Third Sample Rate: Changes the sample from 96Hz to 24kHz . Alt Function: Step 2...

  • Page 4: Global Settings Configuration Mode

    SECTION 2 - GLOBAL SETTINGS CONFIGURATION MODE TO START GLOBAL SETTING CONFIGURATION MODE INPUT MODE: LINE/SY HOLD (L) LED switch on power up (power up takes 3 (L) LED indicates MONO (R) LED indicates TRS secs); all of the front panels LEDs will blink 3 times KILL DRY: EXPRESSION MODE: MIDI TH...
  • Page 5 LINE/SYNTH LEVEL: BYPASS MODE: (L) LED indicates (R) LED indicates LINE LEVEL (L) LED indicates (R) LED indicates INSTRUMENT LEVEL BUFFERED BYPASS RELAY BYPASS MIDI THRU ON: GLOBAL TEMPO: Toggle (R) foot switch Toggle (L) foot switch (L) LED indicates MIDI OUT (R) LED indicates MIDI THRU (L) LED indicates (R) LED indicates per...

  • Page 6: Stutter In Depth

    LEDs on front panel blink to indicate binary SECTION 3 - STUTTER IN DEPTH The Ottobit Jr.’s Stutter effect records and plays back audio to create the stuck buffer sound popularized by the character Max Headroom in the 80’s. The Stutter control knob sets the stutter length and how many times the stutter repeats. The knob is broken up into three speed ranges: full speed, double speed, half speed, and each range has 7 different selections.

  • Page 7: Stutter Hold In Depth

    You can also enter a stutter hold, before a stutter has trapped any audio. Without playing anything, hold tap to tell the Ottobit Jr. that you want the stutter to be held, and then we you play something it will stutter that note or chord until you let go.
  • Page 8 Pitch Sequence When set to sequence pitch, each step gives you the choice of every semitone between and octave below and an octave above the guitar’s pitch, with the middle of the knob equal to no shifting (just dry guitar). And as with every mode, when the knob is at minimum, that step is set to Skip;...

  • Page 9: Expression Jack Modes In Depth

    “toe up” to the “toe down” settings of the expression pedal, just unplug the cable from the Ottobit Jr. at the EXP jack and then plug it back in. It’s a really useful shortcut so you don’t have to manually recreate your sound if all you want the expression pedal to change is just one parameter.
  • Page 10 MIDI CCs. You can receive program change messages (MIDI PCs), sync to MIDI Beat Clock (Ottobit Jr.), you also have the ability to send and receive presets. Be sure to set the your desired MIDI channel in Global Settings Configuration Mode.

  • Page 11: Knob Behavior In Depth

    Depending on the EXP Jack modes you have chosen, the Ottobit Jr. will scan the top layer knobs and update the knobs on power up. If your Ottobit Jr. is set to either “Expression Pedal” or “Tap Switch” for its EXP mode, then it will scan the knobs at power up.
  • Page 12 SECTION 10 - EXPRESSION JACK MODES IN DEPTH control change ottobit jr control receive value range transmit value range CC# 04 expression pedal CC# 14 63 = bypass fx bypass for fx bypass 127 = fx enable for fx enable...
  • Page 13 SECTION 11 - OTTOBIT JR. PRESET 1 FACTORY SETTINGS eXPression Parameter Knob Position real WorlD value miDi Decimal miDi heX toe up sample rate toe up filter filter is bypassed toe up bits bits toe up stutter stutter is off...

  • Page 14: Technical Specifications

    SECTION 12 - TECHNICAL SPECIFICATIONS Conversion 24 bit A/D and D/A 32 bit floating point Sample Rate 48000 Hz Input Impedance 1 Meg Ohm 110dB typical Frequency Response 20Hz-20kHz Max Input Level +9 dBu (instrument level setting) +12.5 dBu (line/synth level setting) Power 9V DC center-negative, 150mA, 2.1mm jack Bypass...
