Battery Fire
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Battery Fire Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Termofor Battery Fire Series

Summary of Contents for Termofor Battery Fire Series

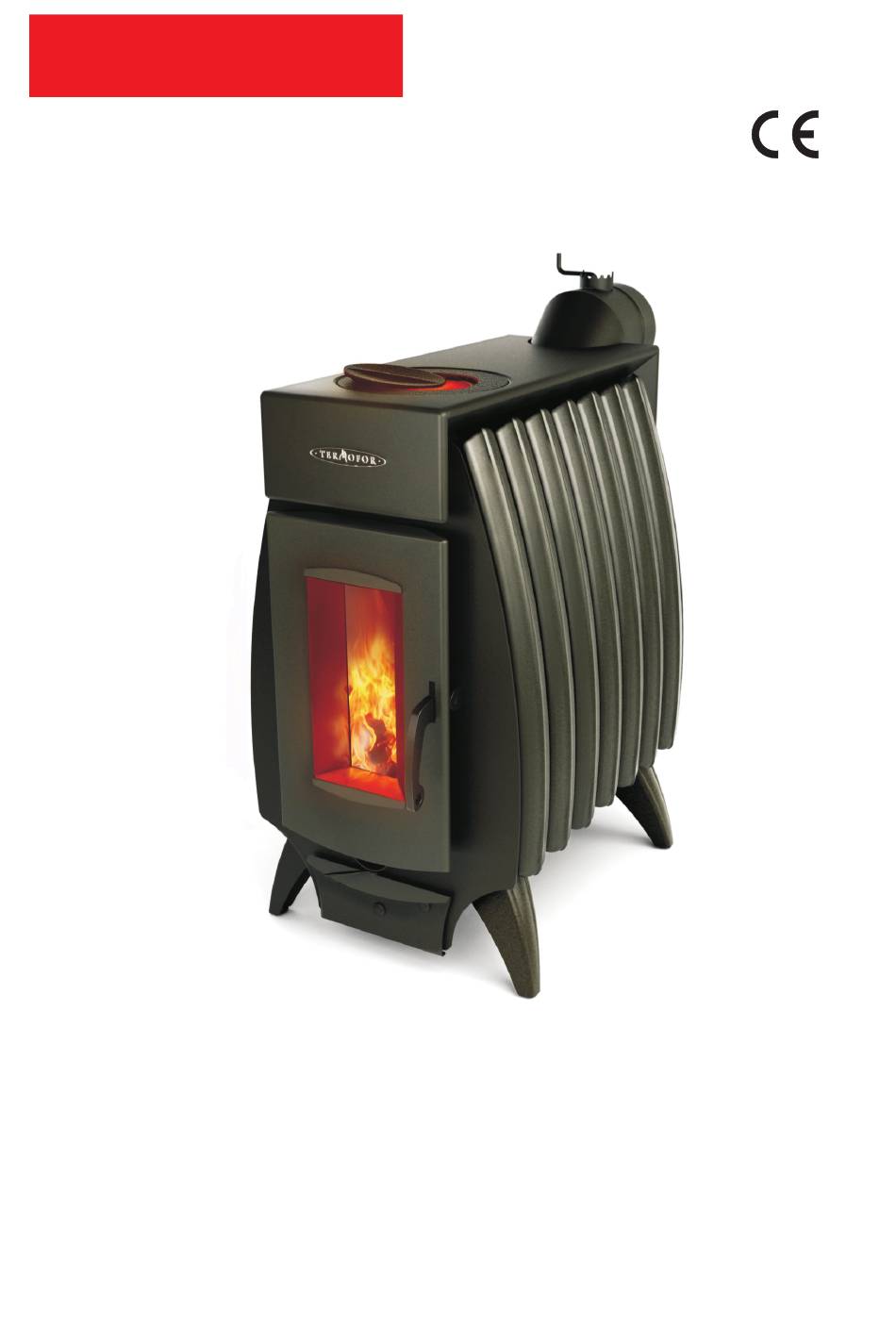

  • Page 1 Battery Fire USER MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Application 2. Product line 3. Design features 4. Specifications 5. Stove structure 7. Marking and packaging 8. Proper use 9. Maintenance 10. Preventive maintenance 11. Warranty 12. Storage 13. Transportation 14. Disposal 15. Delivery package...

  • Page 3: Application

    1. APPLICATION. «Battery-Fire» interior wood air heating stove is intended for efficient air heating of residential and nonresidential premises with a temporary presence of people, as well as for cooking. The stove operation is allowed within the range of ambient temperature changes from -60 to +40 ° C, climatic factors value corresponds to version UKHL, placement category 3 according to GOST 15150-69.

  • Page 4: Specifications

    A large vertically-oriented firebox door allows you to top up the stove with wood easily. Burning intensity fine adjustment allows you to choose any mode of the stove operation steplessly. A versatile flue outlet allows you to install the flue stack both upward and backward with equal ease. The flue damper lock securely holds it in the chosen position.
  • Page 5 Table 3. «Battery-Fire 7» and «Battery-Fire 7WT» specifications Models «Battery-Fire 7» «Battery-Fire 7WT» Heated space capacity, max. cu.m. Nominal power, kW Overall dimensions (WDH), mm 370? 680? 760 370? 680? 760 Weight, kg Firebox door opening, mm 150? 300 150? 300 Combustion chamber capacity, l Fuel maximum amount , l Firewood length, max., mm...

  • Page 6: Stove Structure

    Table 5. «Battery-Fire 11» and «Battery-Fire 11WT» specifications Models «Battery-Fire 11» «Battery-Fire 11WT» Heated space capacity, max. cu.m. Nominal power, kW Overall dimensions (WDH), mm 370? 930? 760 370? 930? 760 Weight, kg Firebox door opening, mm 150? 300 150? 300 Combustion chamber capacity, l Fuel maximum amount , l Firewood length, max., mm...
  • Page 7 1 – Cooking top 2 - Cast iron burner 3 - Deflector 4 - Firebox door 5 - Translucent wall 6 - Firebox 7 - Fine adjustment valve 8 – Ash drawer 9 - Flue damper lock 10 – Flue stack outlet 11 –...
  • Page 8 6.MARKING AND PACKING OF THE STOVE 6.1. Marking On a stove there is an information code plate with details about a model of a stove, its mass, factory serial number, production date of a stove and other technical features, and also the information on certificates for this model.
  • Page 9 7.2. Commissioning of the stove ATTENTION! At the time of the first heating of the stove applied on the metal industrial oils and light volatile compounds of organosilicone enamel evolve smoke and smell, which aren't evolved in the following. People having chest troubles and owners of the pets susceptible to smoke (for example birds) should take precaution measures.
  • Page 10 (haydite/dross/ basalt wool) bricks and so on (a nonflammable material) 1 - Bonnet 2 - Finish sandwich «Termofor» 3 – Flue module insulated (sandwich) «Termofor» 4 - Non-combustible ceiling 5 - Ceiling making 6 - Start-sandwich «Termofor» 7 - Walls of combustible material 8 –...

  • Page 11: Maintenance

    The stove won't be operating effectively if there is no draught of the definite value. The optimal draught for operation of stoves of «Termofor» trademark equals to 12±2 Pa. Provided the excessive draught the considerable air flow will be entering the fire chamber and this will lead to the stove overheating.
  • Page 12 The manufacturer recommends the use of «Termofor» modular light-wall superalloy rust-resisting steel stacks with diameter of 120 mm. They are effective, long-life and require minimal effort for installation and operation.
  • Page 13 The ideal solution for chimney stack – is the installation of ready-made pipe units with heat insulation of «sandwich» type of «Termofor» trademark. In case of connection of the stove to fixed built-in stove pipe or in other cases it is not recommended to deflect the axis of chimney stack from the vertical line for more than 45°.
  • Page 14 ATTENTION! Hot water tank is the unit of extra high hazard that is why it is necessary to exercise caution while being near it. ATTENTION! «Termofor» company is not responsible for improper fastening of the tank. ATTENTION! Avoid corrosive substances entering the hot water tank and water heating system.
  • Page 15 ATTENTION! It is prohibited to touch the warmed up to high temperatures surfaces of the tank with bare hands or with other parts of body in order to avoid burns and damages. «Termofor» company recommends to use «Battery-Fire» sauna stove along with tanks of «Termofor» trademark.
  • Page 16 ATTENTION! If the room temperature when intervals (version with a tank) is less than 5 ° C, then the water must be completely drained from the water heating system. ATTENTION! Do not operate the boiler with a defective flue. ATTENTION! The use of wood with a moisture content of more than 20% results in smoke and soot deposits rapid formation on the flue walls.
  • Page 17 Involvement of experts for checking and sweeping a chimney is preferable. ATTENTION! The company «Termofor» doesn't have responsibility for consequences of unqualified work to sweeping and checking of the chimney or the stove.

  • Page 18: Preventive Maintenance

    depending on a form and a cross-sectional size of a tube. ATTENTION! Take necessary measures to protect eyes and anatomical airways from a dust and soot at the time of a mechanical cleaning of chimneys. ATTENTION! Read instruction through carefully and follow recommendation of a manufacturer of chemical purifiers.

  • Page 19: Warranty

    1) It has established that a defect is in 12 months from the date of transfer the Products to the Consumer; 2) It has established that a defect is due to the fault of the company «Termofor». Warranty doesn't apply to the Products and also its units or elements which have been changed by the Consumer.

  • Page 20: Delivery Package

    12. CARRIAGE 12.1 Conditions of carriage Carriage of the product is permitted in a transport packaging by all types of transport (including heated airproof compartments of aircrafts no limits distance).The kind of carriage shall be small and low-rise at the time of waggonage.

This manual is also suitable for:

Battery fire 7Battery fire 9Battery fire 11Battery fire 5
