Termofor INDIGIRKA-2 Installation And Operation Owner's Manual

Electricity generating heating and cooking wood burning stove
Hide thumbs
Table of Contents

Advertisement

Quick Links

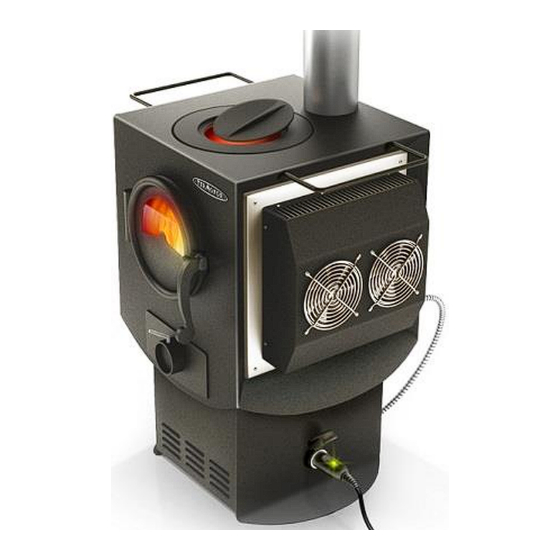

INDIGIRKA-2
ELECTRICITY GENERATING
HEATING AND COOKING
WOOD BURNING STOVE
WARNING
FOR YOUR SAFETY:
1. Read the installation, operation, and
maintenance instructions thoroughly before
installing or operating this equipment.
2. Failure to follow these instructions could
result in fire or explosion, which could
cause property damage, personal injury, or
death.
3. Improper
installation,
alteration, service or maintenance can
cause injury or property damage.
4. For Outdoor Use Only
INSTALLATION AND OPERATION OWNER'S MANUAL
1
adjustment,
Made in Russia
Warmth comes from Siberia!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INDIGIRKA-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Termofor INDIGIRKA-2

Summary of Contents for Termofor INDIGIRKA-2

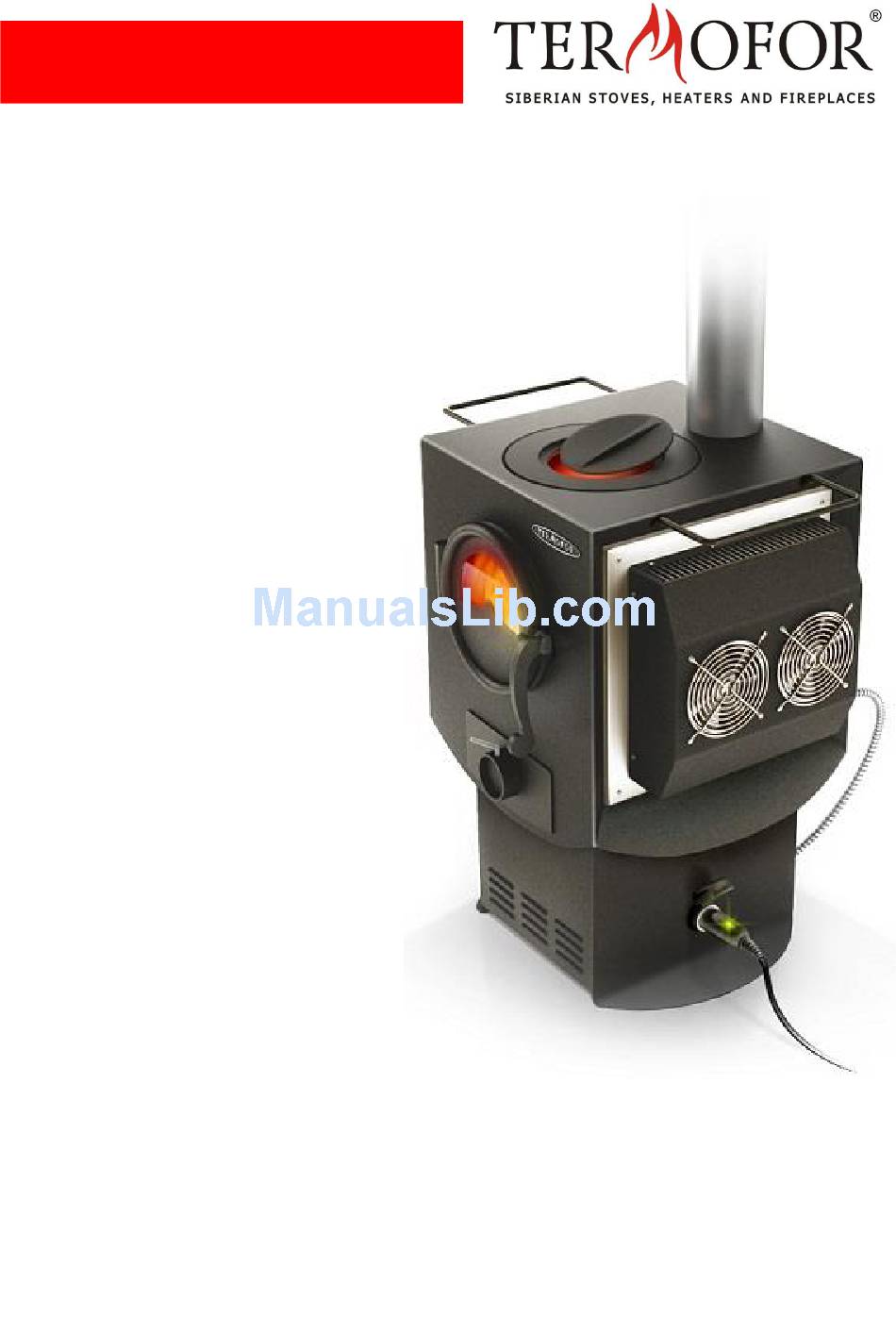

  • Page 1 INDIGIRKA-2 ELECTRICITY GENERATING HEATING AND COOKING WOOD BURNING STOVE WARNING FOR YOUR SAFETY: 1. Read the installation, operation, and maintenance instructions thoroughly before installing or operating this equipment. 2. Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury, or death.
