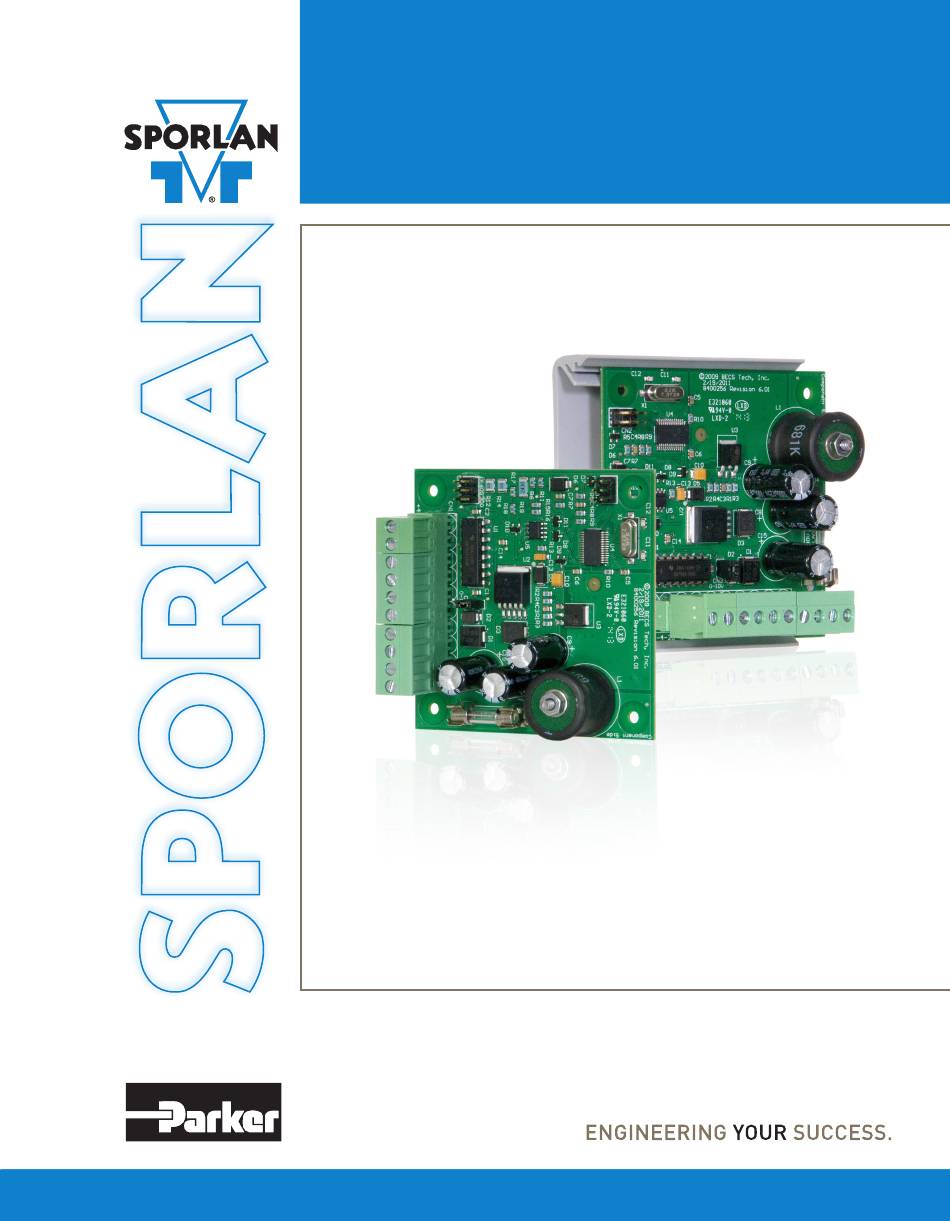

- Page 1 Bulletin 100-50-2 / Page 1 July 2014 / Bulletin 100-50-2 Sporlan IB Series Interface Boards IB1, IB2, IB3, IB6, IB ESX...
- Page 2 Page 2 / Bulletin 100-50-2 interface boards have been developed as economi- IB Series 3193 steps and the IB6 is used on valves with 6386 steps. “Q” cal compliments to the TCB temperature control boards. The denotes quick response for special applications. Please contact IB Series is available in five basic models, IB1, IB2, IB3, IB6, Sporlan Division.
-
Page 3: Ordering Information
Bulletin 100-50-2 / Page 3 Note: The terminals are labeled IN and GND. The GND termi- WIRING CONNECTIONS nal is shared with the grey ESX wire. Do not connect GND to system ground. From left to right when the board is oriented with the terminal strip across the bottom. - Page 4 OFFER OF SALE The items described in this document are hereby offered for sale by Parker Hannifin Corporation, its subsidiaries or its authorized distributors. This offer and its acceptance are governed by the provisions stated in the detailed “Offer of Sale” elsewhere in this document or available at www.parker.com.
