  • Page 2 • The printer kit 556-00239 contains a TT230SM printer without cutter. • The printer kit 556-00256 contains the TT230SMC printer with cutter. • The cutter is required if printing and cutting HellermannTyton Solid Colored Continuous Rolls. • The printer with cutter should not be used for printing...
  • Page 3 Each kit will contain a printer, hard shell case, TagPrint Pro 4.0 software and a ribbon. The 556-00256 kit will also contain a white ribbon.

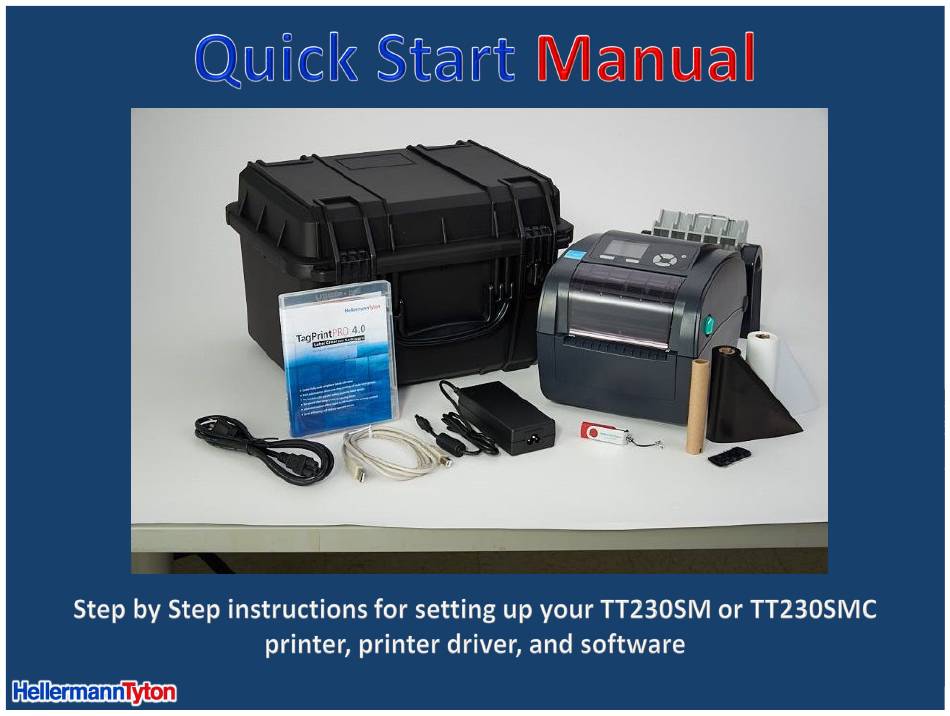

  • Page 4 Ensure that you have received all items associated with your order. This will include the following for both kits: • TT230SM or TT230SMC thermal transfer printer. • Caddy • Cardboard ribbon core • USB Stick • USB cable • Two pieces of Velcro •...
  • Page 5 The printer shown in this guide is the TT230SMC with cutter. Print Head After unpacking your printer, pull on the green release tabs on both sides of the printer lid. This will release the lid and allow it to open. Carefully remove the paper print head protector and discard.
  • Page 6 Pull open ribbon cover as shown in step 1. Insert the ribbon core by aligning the slot on the right side first and then pressing on the spring loaded spindle lock to engage the left side of the core as shown in these photos.
  • Page 7 Do not touch Print head when loading ribbon. Turn gear counter clockwise to tighten ribbon on core. Be sure to wind the ribbon until you only see BLACK and not any of the blue leader.
  • Page 8 Close ribbon cover. Move guides apart. They are not needed. Check that the sensor is centered in the printer. If not, move the sensor to the center.
  • Page 9 Apply Velcro strips as shown...
  • Page 10 Once Velcro is applied to both the caddy and the printer bottom, attach the caddy to the printer by mating the Velcro strips as shown below.
  • Page 11 Plug in the power supply and USB cable.
  • Page 12 Insert caddy spindle through the core of the label roll. • Adjust the label guides using the small gear to the right side. • The label stock should fit between the too guides, but not too tightly. • Stock should move easily between the guides.
  • Page 13 Load the continuous roll of label stock as shown. Adjust the label guides using the small gear to the right side. The label stock should fit between the too guides, but not too tightly. Stock should move easily between the guides.
  • Page 14 Press the green tab to release the cover so that it can be closed as shown below.
  • Page 15 Turn on power to the printer. The light on the top of the printer, located by the “Feed” button should turn green.
  • Page 16 Plug your USB cable into a port on your computer. Plug your USB stick into a separate port on your computer. This stick contains your printer driver.
  • Page 17 SELECT “OPEN FOLDER TO VIEW FILES”...
  • Page 18 ACCESS THE FILES ON THE USB STICK DOUBLE CLICK ON HT719M3 TO OPEN THE DRIVER INSTALLER...
  • Page 19 CLICK ON NEXT...
  • Page 20 CLICK ON FINISH...
  • Page 21 Ensure that “Install printer drivers” is selected and click on NEXT.
  • Page 22 Select the TT230SM driver (Select this even if you are installing a TT230SMC printer. Click on NEXT.
  • Page 23 Select or highlight USB001 and click NEXT...
  • Page 24 The default printer name isTT230SM. If you are installing a TT230SMC printer and wish to change this to TT230SMC, make the change and click NEXT.
  • Page 25 Click FINISH and your printer driver should be ready to use.
  • Page 26 Installing - System Requirements TagPrint Pro Standalone / TagPrint Pro Server  System Requirements  Single User: PC running Microsoft Windows 7, 8.1 and 10, 32 or 64 bit. Windows XP, Vista and Windows 8 are  not supported.  .NET Framework 4 or greater ...
  • Page 27 Remove the TagPrintPro 4.0 installation disk from your package. Insert the CD into your CD ROM drive.
  • Page 28 The following prompt will appear after the disk has been inserted into the CD ROM Drive. Click on “Open Folder to View Files”...
  • Page 29 A list of files will appear. Double click on the file named “TagPrint”.
  • Page 30 TO INSTALL A SINGLE-USER VERSION, INSERT THE CDROM INTO THE COMPUTER. THE FIRST SCREEN THAT WILL APPEAR IS THE LICENSE AGREEMENT. CLICK ON THE CHECK BOX TO ACCEPT AND THEN CLICK ON “INSTALL” TO CONTINUE TO DEFAULT DIRECTORY AND SETTINGS. TO CHANGE THE INSTALL SETTINGS, CLICK ON “ADVANCED”.
  • Page 31 THE NEXT STEP IS TO SELECT THE DEFAULTS FOR INSTALLATION. IT IS RECOMMENDED TO LEAVE THE DEFAULT PRINTER BLANK. CLICK ON “INSTALL” TO PROCEED.
  • Page 32 SELECT SET-UP TYPE AND CLICK NEXT.
  • Page 33 A STATUS BAR WILL SHOW THAT THE SOFTWARE IS INSTALLING. THIS CAN TAKE A COUPLE OF MINUTES. CLICK “NEXT”.
  • Page 34 THE SOFTWARE HAS BEEN INSTALLED. CLICK “FINISH”.
  • Page 35 TAGPRINT 4.0 Guide to printing die cut templates in Tagprint Pro 4.0 THESE INSTRUCTIONS ARE FOR DESIGNING AND PRINTING DIE CUT TEMPLATES USING TAGPRINT PRO 4.0.
  • Page 36 Launch the program via the Start menu and/ or the HellermannTyton folder TagPrint Pro 4.0 also can be launched from a Desktop icon or shortcut.
  • Page 41 Scroll down to find the TAG72T1-822...
  • Page 42 SELECT YOUR ACTUAL PART NUMBER HERE. SEE INSIDE OF LABEL ROLL CORE TO VIEW YOUR PART NUMBER AND SELECT.
  • Page 46 Move Cursor over label design and double click to add text.
  • Page 47 Type any text on the label design.
  • Page 48 Click once outside the label design to de-activate edit mode.
  • Page 50 SELECT LOCAL PRINTER...
