- Page 1 FULL HD VIDEO SECURITY SYSTEM Quick Start Guide...
-
Page 2: Troubleshooting
Troubleshooting If you are experiencing video loss, verify that all cables are properly and securely connected to the DVR. • Check your Network Connection • Check your Username and Password • Restart the DVR if you have trouble connecting. Main Menu > Shutdown > Enter Username & Password > Click “Reboot” To reset your DVR to factory settings, refer to the User manual. -
Page 3: Dvr Setup

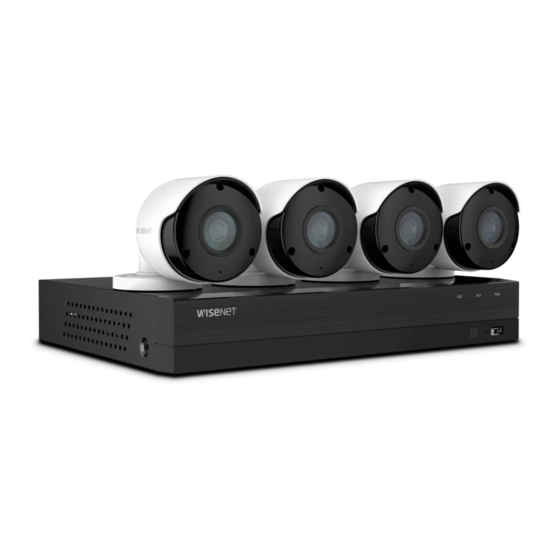

DVR Setup KIT Model SDH-B73026BF/SDH-B73046BF/SDH-B74046BF/SDH-B74086BF/SDH-C75086BF DVR Model SDR-73306/SDR-74306/SDR-75306 • 4CH DVR CAUTION RISK OF ELECTRI SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. - Page 4 Accessory category and quantity may differ depending on sales region. The administrator is recommended to store the remote control carefully in order to initialize it if the password is lost. Adapter may be different upon the destinations. • SDH-B73026BF SDR-73306 SDC-79446BF 60FT BNC Cable...
- Page 5 • SDH-B73046BF SDR-73306 SDC-79446BF 60FT BNC Cable Remote Control / Network Cable HDMI Cable Remote Control Battery (AAA x 2) Screw x 3EA (per Camera) / Mouse 1 to 4 Way Power Splitter Anchor x 3EA (per Camera) Power Adapter for DVR / Printed Material Power Adapter for Cameras English _...
- Page 6 DVR Setup • SDH-B74046BF SDR-74306 SDC-79446BF 60FT BNC Cable Remote Control / Network Cable HDMI Cable Remote Control Battery (AAA x 2) Screw x 3EA (per Camera) / Mouse 1 to 4 Way Power Splitter Anchor x 3EA (per Camera) Power Adapter for DVR / Printed Material Power Adapter for Cameras 6_ English...
- Page 7 • SDH-B74086BF SDR-74306 SDC-79446BF 60FT BNC Cable Remote Control / Network Cable HDMI Cable Remote Control Battery (AAA x 2) Screw x 3EA (per Camera) / Mouse 1 to 8 Way Power Splitter Anchor x 3EA (per Camera) Power Adapter for DVR / Printed Material Power Adapter for Cameras English _...
- Page 8 DVR Setup • SDH-C75086BF SDR-75306 SDC-79446BF 60FT BNC Cable Remote Control / Network Cable HDMI Cable Remote Control Battery (AAA x 2) Screw x 3EA (per Camera) / Mouse 1 to 8 Way Power Splitter Anchor x 3EA (per Camera) Power Adapter for DVR / Printed Material Power Adapter for Cameras 8_ English...
- Page 9 CAUTION RISK OF ELECTRI SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING : TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE UNITS NOT SPECIFICALLY DESIGNED FOR OUTDOOR USE TO RAIN OR MOISTURE.
- Page 10 DVR Setup Connect one end of the Ethernet cable into your router’s LAN port, and the other end of the cable to the Ethernet port on the rear panel. CAUTION RISK OF ELECTRI SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT OPEN COVERS.
- Page 11 Startup Wizard Guide Change your password on a regular basis. Please create a user name and password for your device. Password MUST be 8~13 characters long. When password is 8~9 characters long, it should be with at least a combination of letters, digits and special symbols. If it is 10~13 characters long, it should be with at least a combination of two types of characters.
- Page 12 Startup Wizard Guide Network In DHCP mode the router will automatically assign an IP address to DVR. If the DVR fails to obtain an IP address, refer to the DVR Router Guide. If the problem still cannot be resolved, contact technical support. Date/Time Set the date, time, NTP, DST.
- Page 13 Disk New hard drive(s) connected must be formatted before use. Upon connection, it will indicate to format new hard drive. Click on "Select" to select the unformatted hard drive. Click on "Format HDD" to pop up the user login window and enter the password to log in. A notice window will indicate "Entire Data Will Be Erased.
- Page 14 Startup Wizard Guide Mobile If you scan a QR code using WisenetLife, the device ID displayed in the DVR will be automatically reflected in the Mobile Viewer ID, and you can use the Mobile Viewer immediately by entering the ID/password of the DVR.
-
Page 15: Main Interface
Main Interface 3 4 5 6 7 05/02/2019 14:50:32 12 13 14 English _... - Page 16 Main Interface Camera Type Display channel name Video Loss Camera is off-line Manual Recording Enable or disable manual recording Manual Capture Make a snapshot of current video Instant Playback Playback of the last five minutes of the video Zoom Hold and drag mouse cursor to select a frame of current video to zoom in Color Setting Set hue, brightness, contrast and saturation of current channel Main Menu...
- Page 17 Remote Viewing App Once you’ve set up your system, you can install the WiseView app for remote viewing and access to your cameras from anywhere, anytime. Open Google Play or the App Store and download the free Wiseview app. Once installed, open the WiseView app. Tap the dropdown menu and select Device Tap [+] to add a new device.
-
Page 18: App Interface
App Interface Live view of Playback recordings View recorded video connected cameras footage View captured View the device(s) For more information images connected to the app about the app and add new device(s) 18_ English... - Page 19 Main Menu Device List 4/6/8/9/16 Split Screen Capture Record Video Stream Mode Start/Stop Live Stream Mute On/OFF Screen Size Format: Stretching, Original, 4:3, and 16:9 English _...
- Page 20 MEMO 20_ English...
- Page 21 MEMO English _...
- Page 22 MEMO 22_ English...
- Page 23 Camera Installation Template To make camera installation easier, you can tear off this page and adhere it to the place you would like to install your cameras. TEMPLATE This template is used to install the camera on the wall Screw holes for the Camera installation CAMERA FRONT...
