- Page 1 5M VIDEO SECURITY SYSTEM Quick Start Guide...
-
Page 2: Troubleshooting
To reset your DVR to factory settings, refer to the User manual. For more information about your product, please download the User Manual from "wisenetlife.com". Need Help? Contact our Technical Supprt Team 844-WISENET (844-947-3638) Open 7 days a week 2_ English... - Page 3 DVR Setup KIT Model SDH-B84045BF/SDH-C84085BF/SDH-C85105BF DVR Model SDR-84305/SDR-85305 • 8CH DVR CAUTION RISK OF ELECTRI SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
-
Page 4: Package Contents

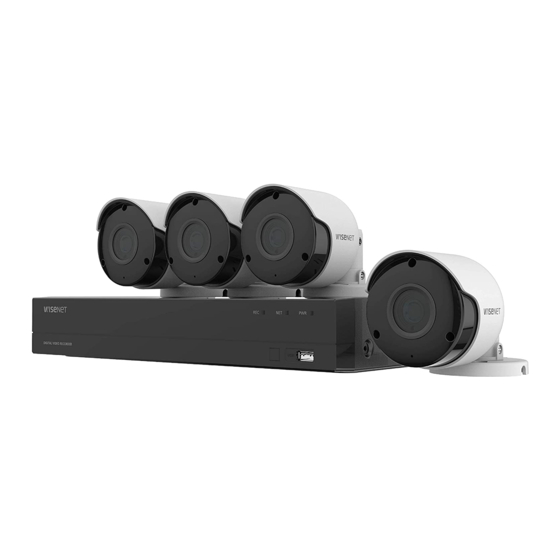

The appearance of the components may differ from the image shown. Accessory category and quantity may differ depending on sales region. The administrator is recommended to store the remote control carefully in order to initialize it if the password is lost. • SDH-B84045BF SDR-84305 SDC-89445BF 60ft camera cable... - Page 5 • SDH-C85105BF SDR-85305 SDC-89445BF 60ft camera cable Ethernet cable Remote Control / HDMI Cable Remote Control Battery Mouse Power splitter (2PCS) (AAA x 2) Power adaptor for DVR, Screw x 3EA (per Camera) / Power adaptor for 6 cameras, Printed Material Anchor x 3EA (per Camera) Power adaptor for 4 cameras English _...
- Page 6 DVR Setup CAUTION RISK OF ELECTRI SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING : TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE UNITS NOT SPECIFICALLY DESIGNED FOR OUTDOOR USE TO RAIN OR MOISTURE.
- Page 7 Connect one end of the Ethernet cable into your router’s LAN port, and the other end of the cable to the Ethernet port on the rear panel. Connect the camera's power supply (red) to the power splitter. Then connect the other end of the power splitter to the power adapter for Cameras and plug in the adapter to a wall outlet.
- Page 8 Startup Wizard Guide Change your password on a regular basis. Please create a user name and password for your device. Password MUST be 8~13 characters long. When password is 8~9 characters long, it should be with at least a combination of letters, digits and special symbols. If it is 10~13 characters long, it should be with at least a combination of two types of characters.
- Page 9 Network In DHCP mode the router will automatically assign an IP address to DVR. If the DVR fails to obtain an IP address, refer to the DVR Router Guide. If the problem still cannot be resolved, contact technical support. Date/Time Set the date, time, NTP, DST.
- Page 10 Startup Wizard Guide Disk New hard drive(s) connected must be formatted before use. Upon connection, it will indicate to format new hard drive. Click on "Select" to select the unformatted hard drive. Click on "Format HDD" to pop up the user login window and enter the password to log in. A notice window will indicate "Entire Data Will Be Erased.
- Page 11 Mobile If you scan a QR code using WisenetLife, the device ID displayed in the DVR will be automatically reflected in the Mobile Viewer ID, and you can use the Mobile Viewer immediately by entering the ID/password of the DVR. Summary Shows system and network status of DVR.
-
Page 12: Main Interface
Main Interface 3 4 5 6 7 12 13 14 12_ English... - Page 13 Channel Name Display channel name Video Loss Camera is off-line Manual Recording Enable or disable manual recording Manual Capture Make a snapshot of current video Instant Playback Playback of the last five minutes of the video Zoom Hold and drag mouse cursor to select a frame of current video to zoom in Color Setting Set hue, brightness, contrast and saturation of current channel Main Menu...
- Page 14 Remote Viewing & Cloud Service Once you’ve set up your system, you can access to your cameras from anywhere, anytime using Wisenet Life Cloud service. The appearance of the viewer may differ from the image shown. [With your PC] OS and browser environment • OS requirements:...
- Page 15 Some functions may not work properly depending on the manufacturer of the mobile device Start Wisenet Life monitoring & Cloud Service 1) Open Google Play or the App Store and download the free Wisenet Life app. 2) Once installed, open the Wisenet Life app.
-
Page 16: User Interface
Remote Viewing & Cloud Service User Interface Main Menu Device name Device Setup Find the Information You can check the You can change the about your plan and live and event settings of the notice and turn on/ images of the device. device. - Page 17 List Editor View mode Add Device You can change the View mode can be New devices can be display position of changed. added. the device. English _...
- Page 18 App Interface Live & Playback 18_ English...
- Page 19 Go into single view mode Android OS : 2 / 4 Split Screen iOS : 4 / 8 / 1+7 / 9 Split Screen Multi channel image capture UI guide Manual record and save Image capture Go into Event list page Go back to live page Select storage location Refresh the event list...
- Page 20 MEMO 20_ English...
- Page 21 Camera Installation Template To make camera installation easier, you can tear off this page and adhere it to the place you would like to install your cameras. TEMPLATE This template is used to install the camera on the wall CAMERA FRONT English _...
