Summary of Contents for Clarke MD1500

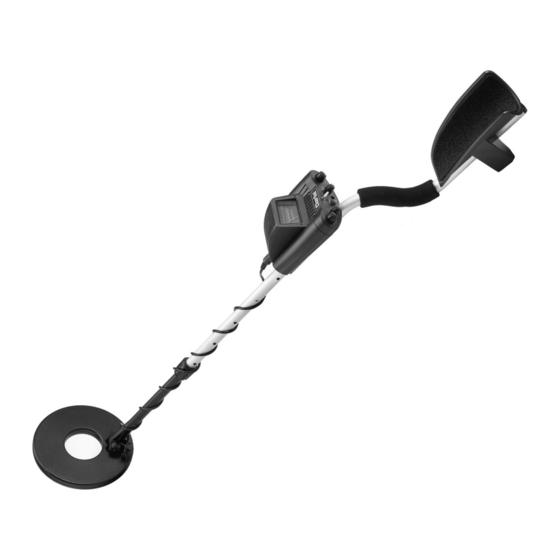

- Page 1 PROFESSIONAL METAL DETECTOR MODEL NO: MD1500 PART NO: 4501220 OPERATION & MAINTENANCE INSTRUCTIONS 05/08...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Professional Metal Detector. Before you try to use this product, read this manual and follow the instructions carefully. In doing so you will ensure your safety and the safety of others around you.You can also look forward to a purchase that gives you long and satisfactory service. -
Page 3: Code Of Ethics
CODE OF ETHICS When metal detecting, here are some basic rules that you should follow. • Always get consent of the landowner before you search any site. • Respect the rights and property of others. • Observe all national and local laws when you use the metal detector. -
Page 4: Assembling The Metal Detector
PREPARATION ASSEMBLING THE METAL DETECTOR 1. Remove the nut and bolt from the search Fig 1 coil. 2. Position the lower stem between the posts on the search coil and replace the nut and bolt as shown in Fig 1. 3. -
Page 5: The Control Panel
THE CONTROL PANEL NAME DESCRIPTION NAME DESCRIPTION DISC/ This setting is used SENS Used to adjust the TONE to make the metal sensitivity. detector reject lower quality targets. Corrects for the THRESHOLD Also used as a power metallic minerals switch that normally The threshold should be occur in the... -
Page 6: Operation
OPERATION HOW TO TURN THE DETECTOR ON OR OFF • Rotate the THRESHOLD control clockwise to turn the Metal Detector • Rotate the THRESHOLD control fully to the left to turn the Metal Detector OFF. DETECTION MODES There are 3 ways to detect metal using this metal detector. ALL METAL This MODE detects every type of metal and must be used when the material of the required object is not known. -
Page 7: Using The Metal Detector
USING THE METAL DETECTOR ALL-METAL MODE 1. Set the DISC/TONE dial (1) to the ALL METAL position. 2. Set the SENS dial to the middle position. 3. Hold the search coil 1 meter above the ground. 4. Hold down the TRACE button and rotate the GND BAL to the area marked 'P'. -
Page 8: Using Headphones
USING HEADPHONES 1. Insert your headphones into the headphone socket on the control housing. Connecting stereo headphones automatically disconnects the loudspeaker. Headphones give slightly more sensitivity as they reduce external noises which can interfere with your ability to detect objects. CAUTION: Set the volume to the lowest level before putting on the headphones. -
Page 9: Exploded Parts Diagram
EXPLODED PARTS DIAGRAM... -
Page 10: Parts List
PARTS LIST DESCRIPTION Part No DESCRIPTION Part No Search Coil TXMD150001 Washer TXMD150019 Screw ST2.6X6-F TXMD150002 End Shaft TXMD150020 Meter Cover Assembly TXMD150003 Knob TXMD150021 Meter TXMD150004 Lock Nut TXMD150022 Screw ST2.6X6-F TXMD150005 Slide Board TXMD150023 Meter Panel Assembly TXMD150006 Shaft Cover TXMD150024 TXMD150007... -
Page 11: Parts And Servicing
PARTS AND SERVICING For Parts & Servicing, please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 PARTS & SERVICE FAX: 020 8558 3622 e-mail as follows: PARTS: Parts@clarkeinternational.com SERVICE: Service@clarkeinternational.com...
