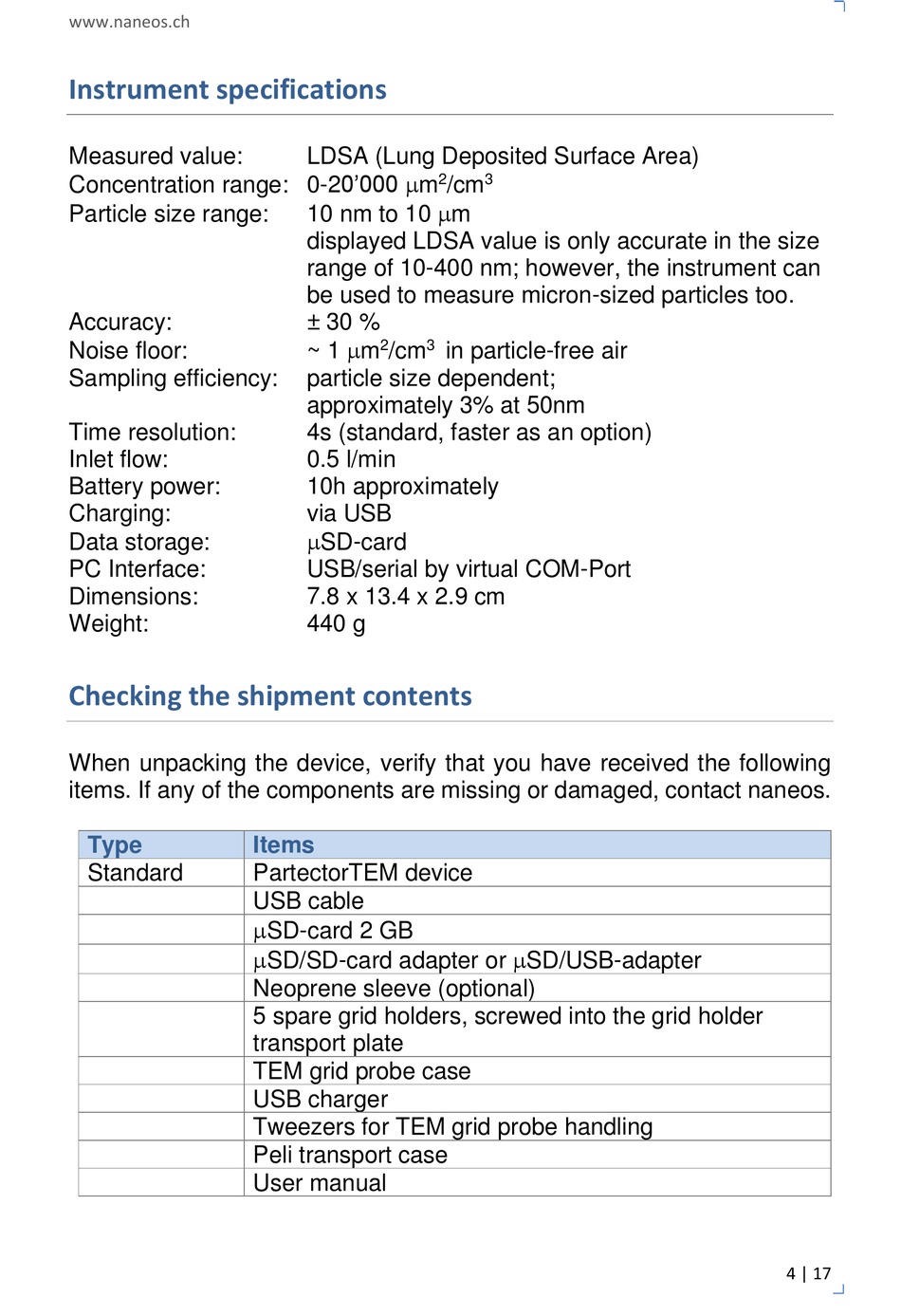

Instrument specifications

Measured value:
Concentration range: 0-20'000 m
Particle size range:
Accuracy:
Noise floor:
Sampling efficiency:
Time resolution:
Inlet flow:
Battery power:
Charging:
Data storage:
PC Interface:
Dimensions:
Weight:
Checking the shipment contents
When unpacking the device, verify that you have received the following
items. If any of the components are missing or damaged, contact naneos.
Type
Standard
LDSA (Lung Deposited Surface Area)
10 nm to 10 m
displayed LDSA value is only accurate in the size
range of 10-400 nm; however, the instrument can
be used to measure micron-sized particles too.
± 30 %
~ 1 m
2
/cm
particle size dependent;
approximately 3% at 50nm
4s (standard, faster as an option)
0.5 l/min
10h approximately
via USB
SD-card
USB/serial by virtual COM-Port
7.8 x 13.4 x 2.9 cm
440 g
Items
PartectorTEM device
USB cable
SD-card 2 GB
SD/SD-card adapter or SD/USB-adapter
Neoprene sleeve (optional)
5 spare grid holders, screwed into the grid holder
transport plate
TEM grid probe case
USB charger
Tweezers for TEM grid probe handling
Peli transport case
User manual
2 3
/cm
3
in particle-free air
