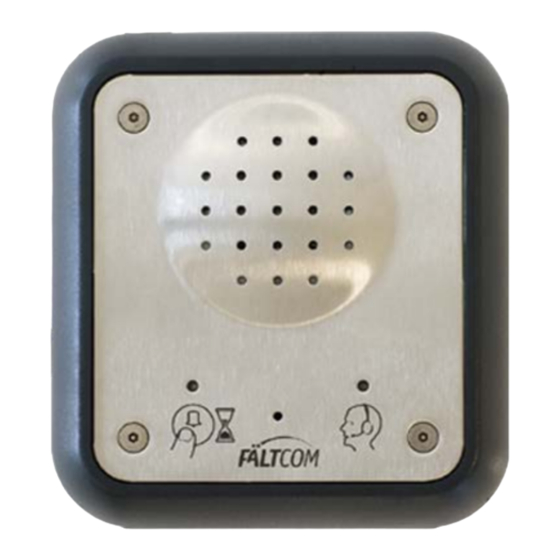

- Page 1 ® Fältcom ECII Flex Manual Version: 0.2.4-D...
- Page 2 Fält Communications 2016 © 162187 Manual Fältcom ECII® Flex V024D 2016-02-23 Page 1 of 41...
-
Page 3: Table Of Contents
Table of contents NOTES ..........................4 COPYRIGHT ........................4 DECLARATION OF CONFORMITY .................4 PRODUCT DESCRIPTION ....................5 Design and function....................5 Multiple lift phone connection ..................7 Programming and testing ..................7 INSTALLATION INSTRUCTIONS ..................8 Frame mounting ......................8 Mounting behind the car operating panel ..............8 Connection to alarm button ..................9 5.3.1 Closing alarm button function ................9 5.3.2... - Page 4 6.13.3 Active alarm mode ..................23 6.14 Answering time for incoming calls ................23 6.15 Technical & Battery alarm receiver ................ 24 6.15.1 Battery alarm from Power Supply (art. 2001) ..........24 6.15.2 Battery alarm from a GSM Gateway (art. 2236) ..........25 6.16 Simplified acknowledgement ..................
-
Page 5: Notes
Notes We would like to thank you for placing your confidence in Fält Communications AB and we are convinced that the choice of one of our security products will fulfill your expectations. In order to operate this Fältcom ECII® Flex correctly we would ask you to read this manual care- fully prior to using it. -
Page 6: Product Description
Product description The Fältcom ECII® Flex is an alarm equipment for the PSTN network with built in duplex speech communication designed for installation in lifts. When a lift passenger presses the button for alarm/emergency signal, the lift phone automati- cally calls up an alarm centre or some other predefined alarm receiver. Voice communication is established and the person in distress can talk to the staff at the alarm centre, from where help will be dispatched. - Page 7 On the lift phone’s front plate, there are two pictograms and two single colored LED (yellow and green), which are normally turned off. The left LED becomes yellow when an alarm call is in progress and the right LED becomes green when the alarm has been acknowledged by the receiver and a speech connection is established.
-
Page 8: Multiple Lift Phone Connection
4.2 Multiple lift phone connection The Fältcom ECII® Flex is designed to run on the existing telephone line power supply. Sepa- rate power supply is only required if several lift phones are connected to the same telephone line or if the line voltage is below 25 VDC. See more under section Technical data. Several lift phones may be connected to the same telephone line. -
Page 9: Installation Instructions
Installation instructions Only suitably qualified personnel may install the Fältcom ECII® Flex. Expertise, technical skill and correct equipment are required to ensure safe and efficient installation. Mind your own safety when installing Fältcom ECII® Flex. You must never work in an open lift shaft without a safety harness. -
Page 10: Connection To Alarm Button
5.3 Connection to alarm button Route a two-wire cable (max 10 m) from the lift’s alarm button and connect the wires to the lift phone’s terminal block at ”ALARM1” or “ALARM2”. Fasten the cable with cable ties or cable clips on the outside of the lift. Note that the alarm button in the lift car is normally double-breaking, i.e. -
Page 11: Connection With Separate Suspension Cable
In some installations the telephone line might have an automatic dial or automatic connection. This means that the telephone line automatically dials or connects to a pre-programmed number. By programming the Fältcom ECII® Flex with a pause the lift phone accepts that the telephone line manages to call up the pre-programmed number. -
Page 12: Connection Via Existing Cable
connect the wires to the terminals marked ”TELE”. Fasten the cable with cable ties or cable clips on the outside of the lift near the lift phone. Connect the two central wires in the enclosed modular connector to the suspension cable wire, and connect the modular connector to the telephone jack in the motor room. -
Page 13: Connection To Loop Amplifier
5.6 Connection to loop amplifier To enable passengers with impaired hearing to communicate with the alarm centre a loop amplifier can be connected to the Fältcom ECII® Flex. Contact your local distributor for infor- mation about approved loop amplifiers that can be used with Fältcom ECII® Flex. Connect the output marked “LOOP AMP”... -
Page 14: Programming
Programming Programming of alarm numbers, alarm codes and various functions can be affected by using the keypad on the reverse of the Fältcom ECII® Flex, by calling the unit using a standard tel- ephone or by using suitable Windows-based software. This section describes programming using the keypad and standard telephone. -
Page 15: Activation Of Programming Mode
1) Connected to the telephone line (analog line, not ISDN) 2) Connected to the alarm button (Normally Closed or Normally Open), and 3) Set the device in programming mode. Programming can be initiated approximately 20 sec. after the telephone has been connected to the telephone line. -
Page 16: Reset To Factory Settings
6.3 Reset to factory settings This function will reset the Fältcom ECII® Flex to its default settings; clearing all programmed receivers, codes and settings; all but Alarm Code 1 which is default set to ‘1’. Note: Reset to default setting will not erase speech messages. See section about speech messages for information on how to erase speech messages. -
Page 17: Prefix In A Pabx Switch Board
From keypad: < Telephone number (max 20 digits) > 001 From phone: < Telephone number (max 20 digits) > Enter Alarm Code for Receiver 1: From keypad: < Alarm Code 1 (max 10 digits) > 091 From phone: <... - Page 18 Note: If the alarm input is connected to the lift controller or other external devices the connec- tion must be separated using a relay connection, please view Appendix for relay connection drawing. Setting of alarm input 1 Normally closed function is default. If the lift phone version with integrated alarm button is used it is already connected to the lift phone alarm input.
-
Page 19: Test Of Alarm Reception
obtained in alarm input 2. The push button in alarm input 1 is filtered. When the signal in alarm input 2 changes to closed the alarm input 1 will be activated and alarm calls are possi- ble. Please note that there is a 30 second override on the alarm input even though it is fil- tered. -
Page 20: Change Of Time Delay For Alarm Button
002 # From phone: Test of Sequence Receivers (alarm receiver) 3-6 When this sequence is programmed the Fältcom ECII calls Alarm Receiver 3-6 after leaving programming mode. < > From keypad: 00 < 3-6 > # From phone: Priority order for test of receiver When setting a test of alarm receiver the test will be queued internally in the Fältcom ECII®... -
Page 21: Automatic Test Alarm/Routine Call
6.12 Automatic test alarm/routine call This function calls a test alarm/routine call receiver to verify the connection between the Fält- com ECII® Flex and the alarm receiver. Automatic test alarm/routine call shall only be pro- grammed if the lift phone is connected to an alarm central, the alarm central can verify that the incoming test alarms/routine calls are correct. -
Page 22: Incoming Calls
Number for separate test alarm/routine call receiver Enter the telephone number of the test alarm/routine call receiver: <Telephone number (max 20 digits)> From keypad: 300 < telephone number > # From phone: Enter alarm code for the test alarm/routine call: <Code (max 10 digits)>... -
Page 23: Multiple Units On The Line
6.13.1 Multiple units on the line For blocking the Fältcom ECII® Flex from incoming speech calls: From keypad: # 140 # From phone: For activation and allowance of incoming calls: From keypad: 140 < 1 – 9 > # From phone: With two or more Fältcom ECII®... -
Page 24: Active Alarm Mode
To go back to default settings program: From keypad: 140 < 1 > # From phone: 6.13.3 Active alarm mode This alarm mode opens the Fältcom ECII® Flex for incoming calls for 6 hours after an alarm call has been triggered. After this time the lift phone will be closed for incoming calls until a new alarm is triggered. -
Page 25: Technical & Battery Alarm Receiver
swer time must be changed to ‘4’ on the Fältcom ECII® Flex as well. 6.15 Technical & Battery alarm receiver It is possible to send all technical alarms from alarm input 2 and 3 and also battery alarms to a dedicated alarm receiver. This is activated by: <Telephone number (max 20 digits)>... -
Page 26: Battery Alarm From A Gsm Gateway (Art. 2236)
From keypad: # 330 # From phone: 6.15.2 Battery alarm from a GSM Gateway (art. 2236) Similar to 6.15.1 above the GSM Gateway (art. 2236) has battery back-up power incase of power failure in the building. When a battery alarm is generated in the GSM Gateway it will change the dial tone for the Fältcom ECII®... -
Page 27: 321 - Disconnection Of Acknowledgement
6.17 321 – Disconnection of acknowledgement It is possible to completely disconnect the acknowledgement function. This means that the Fältcom ECII® Flex will make only one attempt to reach the Alarm Receiver 1. No further calls will be made, regardless of result, until the alarm button is pushed again. Each time any of the buttons 0-9 is pressed on the telephone the disconnect time-out is reset to 180 seconds. -
Page 28: Detection Of Busy Alarm Receiver
From keypad: # 323 # From phone: Changing the disconnect command tone is made by: <0-9, , # > From keypad: 323 < 0-9, , # > # From phone: Note: If a speech message is used; press any key to stop the message. 6.19 Detection of busy alarm receiver Detection of busy tone is default activated. -
Page 29: Programmable Alarm Types
From keypad: # 510 # From phone: Return to the yellow/green flashing sequence by programming: From keypad: 510 # From phone: 6.21 Programmable alarm types When sending an alarm to an alarm receiver using the CPC protocol the alarm will be identi- fied by the alarm code and alarm type. -
Page 30: Info Alarm - Logging Of Alarms
601 <xx> # From phone: To reset the alarm type to the default value, enter: From keypad: # 601 # From phone: Programmable alarm type alarm input 3 Same functionality as for alarm input 1. Changed by: <XX> From keypad: ... -
Page 31: End-Of-Alarm
801 < Alarm code (max 10 digits) > # From phone: For deactivation of function: From keypad: # 800 # From phone: For test of the alarm receiver program: From keypad: 800 # From phone: Observe that if the main alarm was never acknowledged, no Info Alarm will be sent out. Also, this function will not dial out an Info Alarm following battery alarms nor test alarms/routine calls or end-of-alarm. -
Page 32: End-Of-Alarm Receiver
The 6 hour open magnetic switch will use the default alarm type specified for the magnetic switch function. To program another alarm type for the 6 hour open magnetic switch, first use: From keypad: < alarm type > 620 < alarm type > # From phone: Then activate the 6 hour open magnetic switch by programming: From keypad:... -
Page 33: Alarm Protocol
6.24 Alarm protocol The CPC protocol is the default protocol used in Fältcom ECII® Flex. An alternative protocol P100 is also available. This is activated by programming: From keypad: 060 # From phone: To return to the CPC protocol: From keypad: ... - Page 34 Listening to message 1: From keypad: 410 # From phone: Deleting message 1: From keypad: # 410 # From phone: Note: When downloading a message using the Flex Programmer SW; the message must be smaller then 128 kB. This is the allocated size in Flex memory. Speech message 2;...
-
Page 35: Alarm Reception
Alarm reception All tone dialing telephones (units with the keys * and #) can work as simple alarm receivers. The telephone keypad is used to control alarm reception and to acknowledge the alarm un- less the need for acknowledgment has been deactivated. The most important key to learn is 4, used to acknowledge the alarm and set up the call. -
Page 36: Ending A Call
7.3 Ending a call End the alarm call by pressing 0, END. If the alarm is ended with time disconnection and the call is not acknowledged the Fältcom ECII® Flex will make a new alarm call to the next alarm receiver. -
Page 37: Single Unit On The Line
in the chain. Note that #1 must be pressed by the caller even if only one lift phone is mounted. The Fältcom ECII® Flex will reply with another 3-tone message indicating the correct device has answered the call. Press 4 to activate voice connection. Press 5 to terminate a possible active alarm mode. -
Page 38: Product Label
Product label Following is a description of the Fältcom ECII® Flex product label. Liftphone Flex Unit Rev z.z Part No 2187 W yyww Snr MCCCCC www.faltcom.com The product label describes: Part No 2187: Product part number (order number) Snr MCCCCC: Serial number of the device. Rev z.z: Hardware revision of the product. -
Page 39: Updates
Vandalism or intentional damage. Normal wear and tear. Fält Communications AB reserves the right to determine if the product will be repaired or re- placed. Warranty ceases to be valid if defects occur due to incorrect use, or other method of application, or context than specified in this manual. -
Page 40: Technical Data
12 Technical Data Ext. power supply: 4-16 mA Indications: Yellow and green LED during alarm Sound and light indication when programming Test alarm/routine call: 1 time/day up to once every 30 days (selectable on/off) Alarm receiver types: Contact your local distributor for information about alarm cen- tres that can handle the CPC or P100 protocols. -
Page 41: Contact Information
13 Contact information Fält Communications AB Vasagatan 23 SE-903 29 UMEÅ, Sweden Support: + 46 (0)90 18 39 27 or via e-mail: support.liftphones@faltcom.se Phone: + 46 (0)90 18 39 00 (exchange) Fax: + 46 (0)90 18 39 29 Homepage: http://www.faltcom.com Fält Communications 2016 ©...
