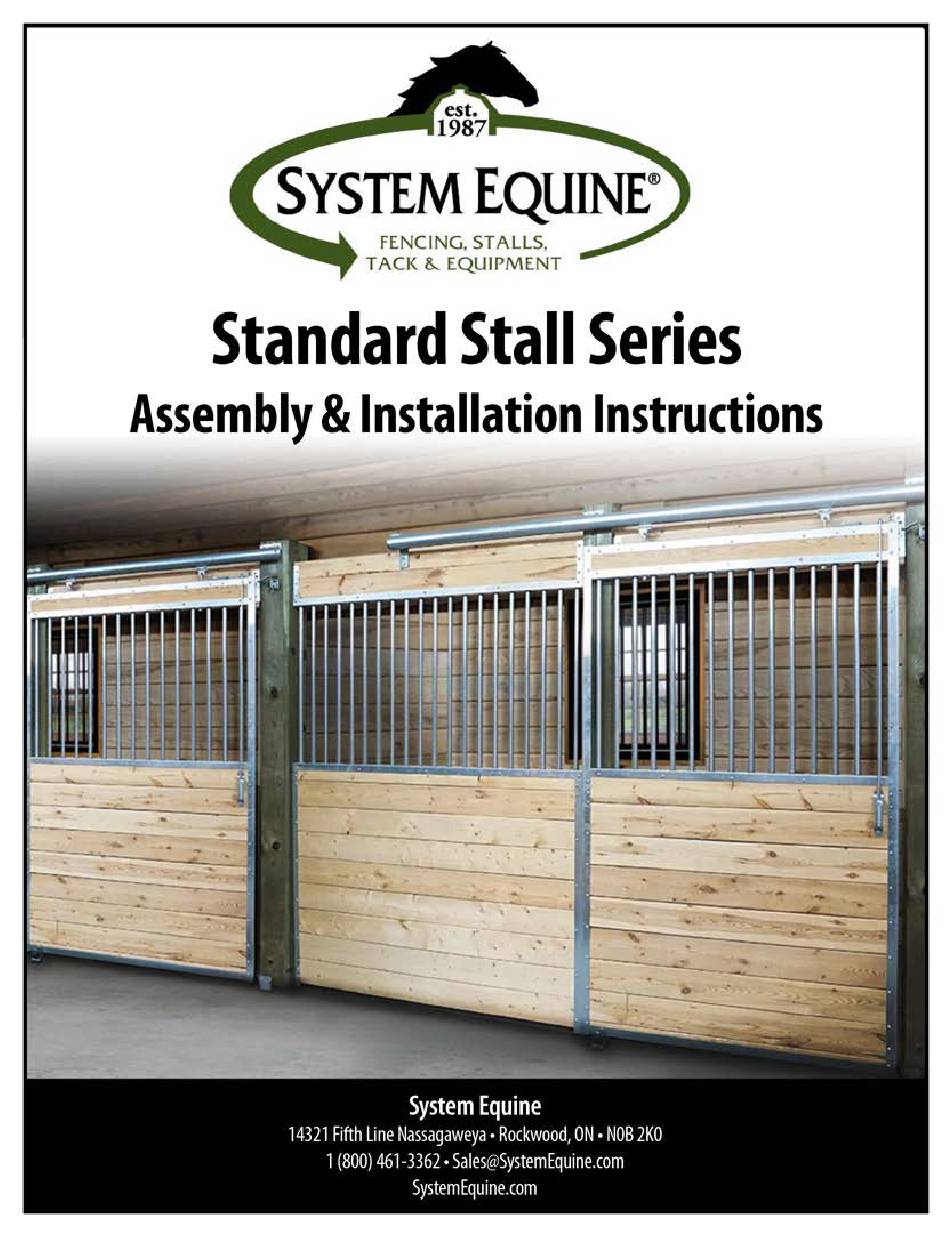

System Equine Standard Stall Series Assembly And Installation Instructions Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Standard Stall Series and is the answer not in the manual?

Questions and answers

Related Manuals for System Equine Standard Stall Series

Summary of Contents for System Equine Standard Stall Series

  • Page 2: Before You Start

    BEFORE YOU START NoTE: All measurements are based on finished wood sizes. Example 2” x 6” finished size is 1 1/2” x 5 1/2” Questions to be Answered… careful consideration when designing your barn layout will save you time, money and frustration. Do you want the horses to see one another? What type of latch do you like? ...

  • Page 3: Post Installation

    STEPS TO EASY INSTALLATION... POST INSTALLATION When you auger posts, all posts should be installed with the top at least 8’ above the ground. If the posts are not properly secured at the top, they must be buried to a depth of at least 3’ to provide YSTEM adequate stability.
  • Page 4 ¼ ” x 2 - 1 / 2 ” L a g , S p r i n g & P l a s t i c W a s h e r...
  • Page 5 FRONT WALL ASSEMBLY Detail D Detail E Detail F Round Track Rubber Grommet Installation Facemount bracket offset bracket End cover Rubber Grill Grommet Channel Grommets sit on top of wood Lumber NOTE: Use a soft faced mallet to tap grommets into place. NoTE: use a soft mallet to tap grommets into place.
  • Page 6 SIDE WALL ASSEMBLY (GRILLED & SOLID PARTITIONS) NoTE: FEED DOOR STYLES The U-channel required for a solid wall partition is 94 1/2" long The U-channel required for a grilled wall partition is 46" long Pull down STEP 1 & open First, select the U-channel for the type of wall partition to be installed.
  • Page 7 STALL DOOR ASSEMBLY Only put screws on the front or outside of the stall door. YSTEM STEP 1 piece of 2” x 6” lumber cut to 50 1/2”. Place the lumber evenly between the two channels and fasten securely in place. IMPoRTANT: cut 10 pieces of 2”...
  • Page 8 FULL GRILLED STALL DOOR ASSEMBLY Only put screws on the front or outside of the stall door. YSTEM STEP 1 STEP 6 cut two pieces of dressed 2” x 6” and one piece of dressed 2” x 8” lumber to Door Side Insert Pre-assembly: a length of 50 1/2”.

  • Page 9: Door Installation

    DOOR TROLLEY ASSEMBLY (see Detail C page 4) STEP 1 STEP 3 Assemble Round Track Trolley as per enclosed instructions. Insert bolt and pre-assembled roller assembly through hole, use flat washer and 2 hex nuts to secure in place that are included in your Round STEP 2 Track Trolley Package.
