Upgrade Kit NG/LP Proflame 2 Standard to
Remote Control
This kit is for use with the following models:
H*34**-F : H*34 Series with IPI Electronic Ignition
H*38**-F : H*38 Series with IPI Electronic Ignition
H*42**-F : H*42 Series with IPI Electronic Ignition
L38-DF(-ST)-F : L38DF with IPI Electronic Ignition
L42-DF(-ST)-F : L42DF with IPI Electronic Ignition
L52-DF(-ST)-F : L52DF with IPI Electronic Ignition
Ensure that all power to the appliance is off at the electrical breaker or fuse
before beginning installation. Ensure gas is turned off at the shutoff valve before
beginning installation.
Installation and service must be performed by a qualified installer, service agency or

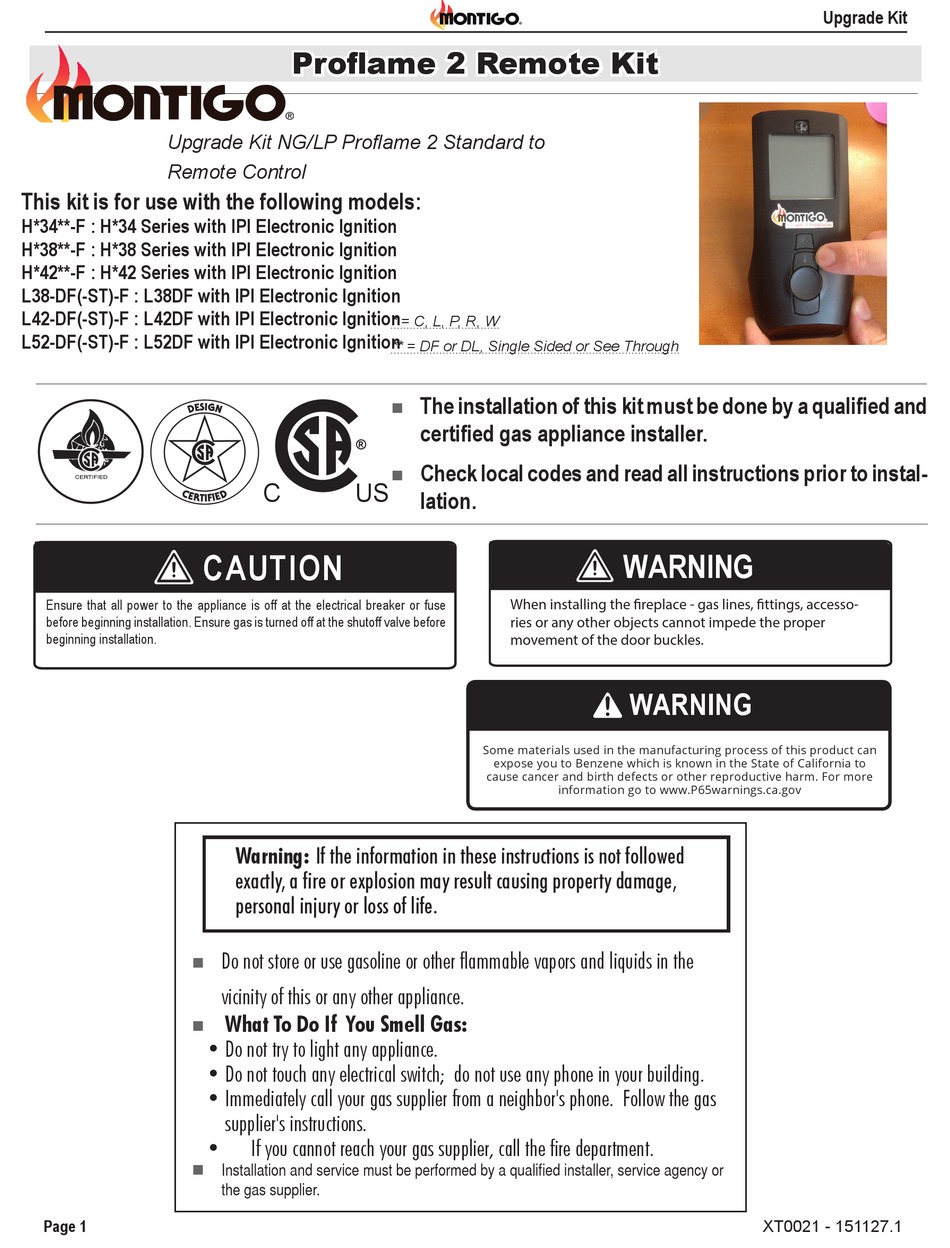

Page 1
Proflame 2 Remote Kit
®
C
US
CAUTION
Warning: If the information in these instructions is not followed
exactly, a fire or explosion may result causing property damage,
personal injury or loss of life.
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
What To Do If You Smell Gas:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
the gas supplier.
* = C, L, P, R, W
** = DF or DL, Single Sided or See Through
The installation of this kit must be done by a qualified and
certified gas appliance installer.
Check local codes and read all instructions prior to instal-
lation.
When installing the replace - gas lines, ttings, accesso-
ries or any other objects cannot impede the proper
movement of the door buckles.
Some materials used in the manufacturing process of this product can
expose you to Benzene which is known in the State of California to
cause cancer and birth defects or other reproductive harm. For more
information go to www.P65warnings.ca.gov
WARNING
WARNING
XT0021 - 151127.1
Upgrade Kit
Advertisement
Related Manuals for Montigo Proflame 2 Remote Kit
Summary of Contents for Montigo Proflame 2 Remote Kit
- Page 1 Upgrade Kit Proflame 2 Remote Kit Upgrade Kit NG/LP Proflame 2 Standard to Remote Control This kit is for use with the following models: H*34**-F : H*34 Series with IPI Electronic Ignition H*38**-F : H*38 Series with IPI Electronic Ignition...
-
Page 2: Table Of Contents
Installation Contents General Information A. Disconnect wire from existing module: This kit contains the necessary components for upgrading the Pro- B. Control Module Connection: flame 2 standard unit to operate with Remote Control. C. Main ON/OFF Switch Installation: The installation of this unit must also conform with local codes or, in D. -
Page 3: Disconnect Wire From Existing Module
Installation C. Main ON/OFF Switch Installation: A. Disconnect wire from existing module: Position the Main/off Switch bracket on the right leg of the Remove valve blind and glass door. firebox as shown in Figure 5 and Figure 6 Using the two selftapping screws supplied attach the bracket. See Figure 6. -
Page 4: Battery Holder Installation
Installation Figure 8 Attach switch to bracket E. Operation with Backup Battery: Install the four supplied AA batteries to the battery holder. CAUTION: Please note battery orientation while installing them. Incorrect orientation may damage battery, cause fire hazard and the fireplace may not function properly. -
Page 5: Cpi / Ipi Jumper Cable Installation
Installation G. CPI / IPI Jumper Cable Installation Installing the CPI Jumper Cable (only available for SIT Electronic Ignition Systems) 1). Access the controller (refer to the installation and maintenance manual for your model). “Why use CPI mode”? CPI means “Continuous Pilot Ignition” or “Standing Pilot” as it is commonly known. -
Page 6: Xt0021 - 151127.1
Proflame 2 Upgrade Kit XT0021 - 151127.1...
