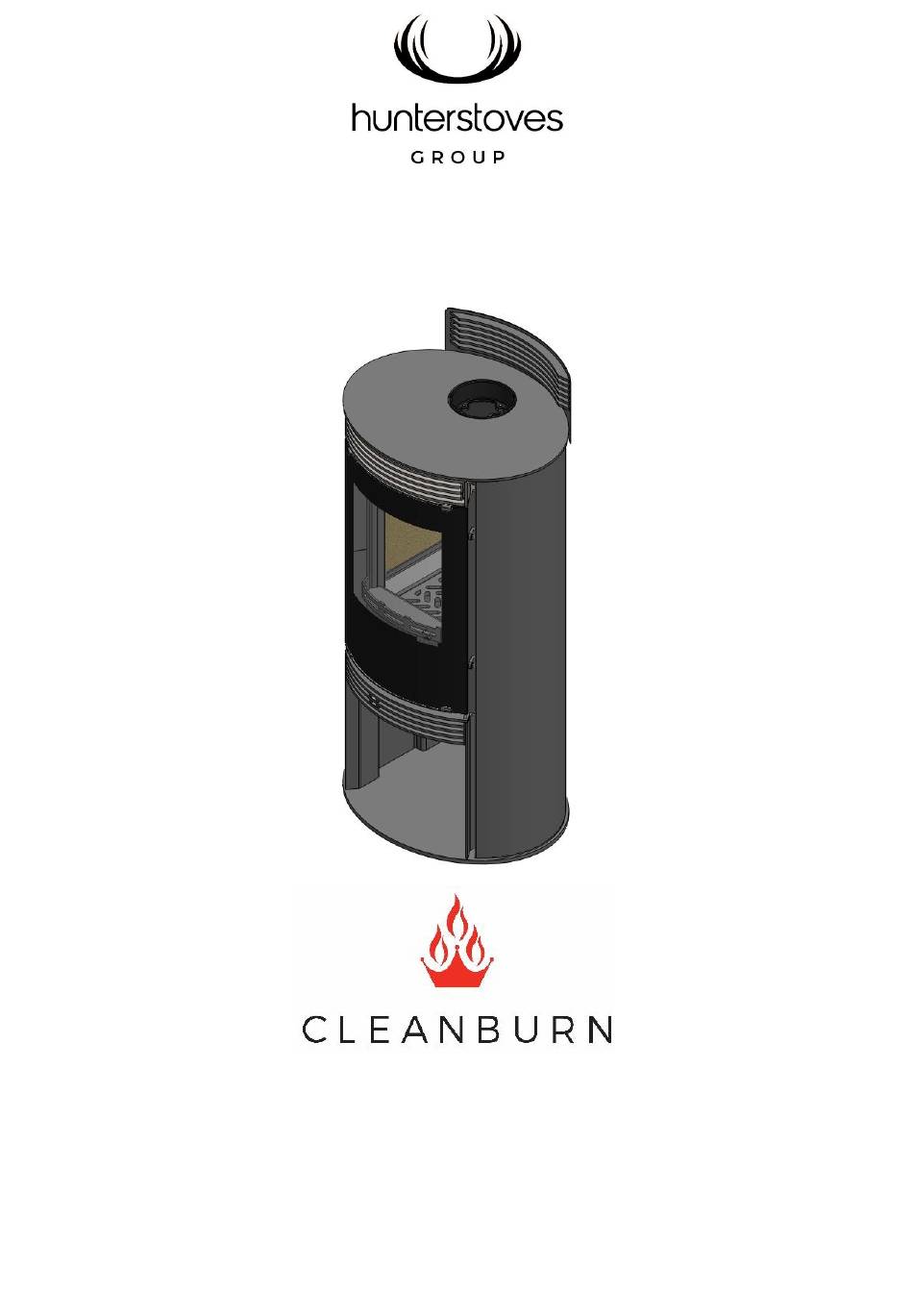

- Page 1 Strömstad Wood Burning Stove CVSVARFM Instructions for: Installation/Operating/Maintenance/Servicing JINSTR05 Rev A 06/10/15...
-
Page 2: Table Of Contents
CONTENTS INDEX: TECHNICAL SPECIFICATION……………………………………………………………………………………………3 GENERAL GUIDANCE……………………………………………………………………………………………………. 4-5 INSTALLATION………………………..................5-9 OPERATING INSTRUCTIONS………….……………………………………………………………………………… 9-11 MAINTENANCE…………………………………................11-12 TROUBLE SHOOTING…………….………………………………………………………………………………………13-14 REMOVING INTERNAL COMPONENTS..…………………………………………………………………………15 STOVE SPARES………..…………………………………………………………………………………………………… 16-18 WARRANTY INFORMATION..…………………………………..…………………………………………………… 19-21 COMMISSIONING & INSTALLATION CHECK LIST……………..……………….……………………………22 SERVICE RECORDS…………………………………………………………………………………………………………23 HUNTER STOVES GROUP, 8 Emperor Way, Exeter Business Park, Exeter, Devon. -
Page 3: Technical Specification
TECHNICAL SPECIFICATION STRÖMSTAD Model: BSEN13240 Nominal Heat Wood 4.7kW Output Efficiency Wood Mean CO (@13% 0.23% O₂) Appliance Mass 125kg Recommended Wood Seasoned Wood (less than Fuels 20% moisture content) Log Length 250mm (10”) Mean Flue Gas 288°C Temperature Flue Gas Mass Flow 3.9 g/s Flue Outlet Size 5”... -
Page 4: General Guidance
General Guidance UPPLY The room or space containing this appliance should have It is important that your stove is correctly installed as purpose provided ventilation (where necessary) in Hunter Stoves Group cannot accept responsibility for any accordance with Building Regulations. fault arising through incorrect use or installation. - Page 5 Do not attempt to relight the fire until the cause IRECT DAPTOR has been identified and corrected. If fitting the direct air adaptor kit, read the instructions If necessary seek professional advice. supplied with the kit before proceeding. ADVERSE WEATHER –...
- Page 6 Ensure the inter-connecting flue pipe also has adequate LEARANCES TO OMBUSTIBLE ATERIALS Note: combustible material refers to any material that will clearances to combustible materials. degrade when subjected to heat e.g. plaster. TORAGE For distances to combustible materials, see table below. No Fuel may be stored in the log recess underneath the stove.
-
Page 7: Installation
Both the chimney and flue pipe must be accessible for cleaning and if ANY part of the chimney cannot be reached through the stove (with baffle removed), a soot door must be fitted in a suitable position. RAUGHT If the draught exceeds the recommended maximum, a draught stabiliser must be fitted so that the rate of burning can be controlled and to prevent over firing. - Page 8 5. Remove the upper blanking plates from the inside NSTALLATION and outside of the back panel. 1. Remove the top plate by simply lifting it off. 6. Refit the back panel and retention screws. 2. Remove the two back panel retention screws. 7.
-
Page 9: Operating Instructions
9. Offer the stove into position. deposits in the stove and chimney, increase harmful emissions and will not produce a satisfactory heat output. 10. Connect the flue, ensuring all joints are sound. Do not burn waste, or treated or painted wood in this appliance. - Page 10 To operate the air controls, insert the end of the The door is fitted with a safety spring that will pull the door closed when it is not being held open. operating handle into either of the sockets as shown and slide to the left or right.
-
Page 11: Maintenance
ECOMMENDED ETTINGS Maintenance Important! –In order to ensure continued compliance with Once the fire is established the Primary Air Control should current Building Regulations, Local Authority Byelaws and be fully closed and the Secondary Air Control adjusted to a the Clean Air Act (if applicable), this appliance requires setting of approximately 40 -50% open. - Page 12 If the appliance has been unused for a long period, such as adjust the position of the hooks as necessary before during the spring and summer months, a competent person retightening the screws. should check the chimney for potential obstructions before lighting the stove i.e.
-
Page 13: Trouble Shooting
TROUBLE SHOOTING ISSUE CAUSE RESOLUTION Problem starting the fire and Low flue draught Speak to your installer keeping it burning Wood with moisture content over Ensure use of dry seasoned wood with less than 20% moisture content Unable to control fire High flue draught Speak to your installer Short burn time... - Page 14 ISSUE CAUSE RESOLUTION Creosote build-up in Wood with moisture content Use dry seasoned wood (less than chimney over 20% 20% moisture content). Operate at a high temperature for short periods each time the appliance is used to avoid large build-ups of tars and creosotes.
-
Page 15: Removing Internal Components
5. Remove the baffle brick by lifting it up, sliding it to EMOVING INTERNAL the right and then lowering it into the firebox. COMPONENTS 1. Open the door as detailed in the ‘Operating Instructions’ section. 2. Remove the ash pan by simply pulling it out by its handle. -
Page 16: Stove Spares
TOVE PARES PARES PERATING ANDLE VAR05ARRT025 JINSTR05 Rev A 06/10/15... - Page 17 TOVE PARES PARES JINSTR05 Rev A 06/10/15...
-
Page 18: Stove Spares
TOVE PARES ALVE PARES JINSTR05 Rev A 06/10/15... -
Page 19: Warranty Information
Hunter Stoves Group Ltd Extended 5 and 10 Year Warranty 2 year standard warranty Any appliance bought through the showroom of an authorised Hunter Stoves Group dealership will automatically be covered by our standard 2 year conditional guarantee. However this standard 2 year warranty can be extended to a 5 year or 10 year conditional warranty dependent on the model type (5 years- Boiler models, 10 years- Room heater and Gas models). - Page 20 For Gas Stoves: Gas pilot assemblies Thermocouples and Oxy pilots Ceramic log & coal 'fuel -effects' For both Solid Fuel and Gas Stoves: The paint or surface covering of the appliance: Damage to the paint surface caused by the appliance being stored in a damp and cold environment is not covered on the warranty.
- Page 21 Warranty Registration Document Stove Details Brand* Model* Serial Number* Single or Double Door Date of Purchase Your Details Title* First Name* Last Name* Contact Number* Email Address* City Post Code* Date of Birth Supplier Details Supplier* Contact Number* Email Address* City Post Code* Installer Details...
-
Page 22: Commissioning & Installation Checklist
COMMISSIONING & INSTALLATION CHECKLIST PURCHASE INFORMATION Dealer/Retailer Name Address Telephone Number Email Date Purchased INSTALLER INFORMATION Installer Name Address Telephone Number Email APPLIANCE INFORMATION Date Installed Appliance Stock Code Appliance Description Serial Number COMMISSIONING CHECK (Complete & Sign) Does the chimney/flue system meet the appropriate standard? Has the chimney/flue system been swept and passed the soundness test? Has this appliance passed the flue draught test? Please write down the flue draught reading:... -
Page 23: Service Records
SERVICE RECORDS Service Service Date of Service Date of Service Date of next Service Date of next Service Servicing Company/ Servicing Company/ Engineer Engineer Signature Signature Service Service Date of Service Date of Service Date of next Service Date of next Service Servicing Company/ Servicing Company/ Engineer... - Page 24 Further Information For extra guidance on using your stove, please visit our YouTube channel by searching ‘Hunter Stoves Group’ or see the helpful hints section of our website; www.hunterstoves.co.uk This appliance is suitable for intermittent burning. All genuine Hunter Group spares can be purchased through our website www.hunterstoves.co.uk/spares through your authorised dealer.
