Summary of Contents for Hunterstoves Group Parkray ASPECT 4

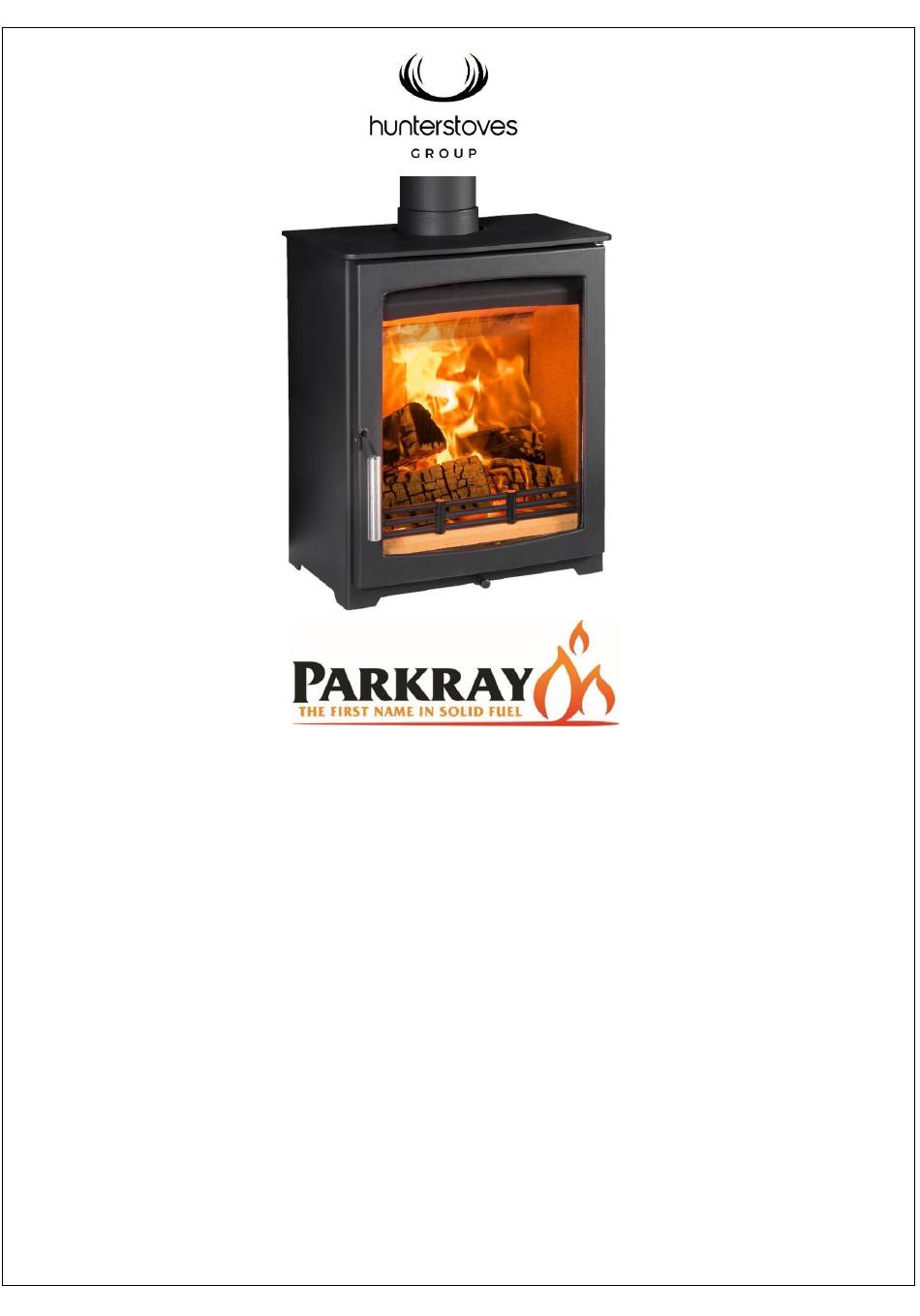

- Page 1 ASPECT 4 ASPECT 4 COMPACT ASPECT 5 ASPECT 5 COMPACT WOODBURNING STOVE MODELS CVSPA04W/CVSPA04CW/CVSPA05W/CVSPA05CW Instructions for: Installation/Operating/Maintenance/Servicing JINSPA04/04C/05/05C REV A 02/12/2015...
-
Page 2: Table Of Contents
CONTENTS INDEX: WARRANTY………………………………………………………………………………………………………. TECHINCAL SPECIFICATION………………………………………………………………………………. IMPORTANT INFORMATION…………………………………………………………………………….. SAFETY…………………………………………………………………………………………………………….. REMOVE INTERNAL COMPONENTS………………………………………………………………….. ASSEMBLY INSTRUCTIONS……………………………………………………………………………….. APPLIANCE DIMENSIONS…………………………………………………………………………………. PRE INSTALLATION REQUIRMENTS………………………………………………………………….. LEGAL REQUIREMENTS……………………………………………………………………………………. CLEARANCES……………………………………………………………………………………………………. 10/11 COMMISSIONING AND HANDOVER…………………………………………………………………. OPERATING INSTRUCTIONS…………………………………………………………………………….. 13-15 MAINTENANCE & SERVICING………………………………………………………………………….. 15-17 TROUBLESHOOTING……………………………………………………………………………………….. 18/19 SPARES……………………………………………………………………………………………………………. 20-22 COMMISSIONING & INSTALLATION CHECK LIST………………………………………………. SERVICE RECORDS……………………………………………………………………………………………... -
Page 3: Techincal Specification
Technical Specification Nominal Heat Output Wood 4.9kW 4.9kW 4.9kW 4.9kW Efficiency Wood 85.9% 85.5% 79.0% 81.6% Mean CO (@13% O₂) 0.33% 0.48% 0.17% 0.18% Appliance Mass 56kg 52kg 72kg 79kg Recommended Fuels Wood Seasoned Wood (less than 20% moisture content) Log Length 280mm 280mm... -
Page 4: Important Information
PLEASE READ THESE INSTRUCTIONS PRIOR TO INSTALLATION AND OPERATION. KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERANCE AND SERVICING. THIS APPLIANCE WILL BECOME VERY HOT WHEN USED IN ACCORDANCE WITH THESE INSTRUCTIONS, HUNTER STOVES RECOMMEND THAT AN APPROVED GUARD IS USED TO PROTECT THE YOUNG, ELDERLY OR INFIRM FROM HARM. -
Page 5: Safety
Do not attempt to re-light the fire until the cause AFETY of the fume emission has been identified and corrected. WARNING – This appliance will be hot when in operation and due care should be taken. The supplied If necessary, seek expert advice. operating tool or glove may be used to open the door and operate the air controls. -
Page 6: Remove Internal Components
REMOVING INTERNAL COMPONENTS All internal components must be removed prior to fitting the stove. This will make handling the stove easier; allow access to fixings and the flue outlet; as well as protect the internal components from damage during the installation process Bottom Grate Brick Lift up bottom grate brick on one side (A) and slide out of stove body (B). -
Page 7: Assembly Instructions
Baffle/Throat Plate Push up and (A) drop one edge downward into the bottom of the stove and pull outwards (B). Pull top inwards (A) and then remove the brick from STOVE ASSEMBLY the stove (B). Flue Collar Top Rear Bricks Top or rear outlet Place the flue collar gasket on the outlet... -
Page 8: Appliance Dimensions
Front Dimension Aspect 5 Compact/Aspect 5 RE-ASSEMBLING THE STOVE Refit all the internal parts by following the ‘removing internal component’ instructions in reverse order. APPLIANCE DIMENSIONS Front Dimension Aspect 4 Compact/Aspect 4 Side Dimension Aspect 5 Compact Side Dimension Aspect 4 Compact Side Dimension Aspect 5 Side Dimension Aspect 4... -
Page 9: Pre Installation Requirments
Please check the suitability of the fireplace and/or PRE-INSTALLATION REQUIREMENTS surround for use with this appliance before installing it. If you have any doubts about the suitability of your LEASE CHECK THE FOLLOWING chimney, consult your local Dealer/Stockist or Installation Engineer. Both the chimney and flue pipe Any existing chimney/flue system must be confirmed must be accessible for cleaning and if ANY part of the as suitable for this appliance as defined in Building... -
Page 10: Legal Requirements
AIR SUPPLY EGAL EQUIREMENTS The room or space containing this appliance does not Hunter Stoves Group requests that before installation need a permanent, unobstructed air opening unless and/or use of this appliance that you read these the air permiambility rating is is less than or equal to instructions carefully to ensure that all the relevant 5m³/hour/m²... - Page 11 The stove can be recessed in a suitable sized fireplace TOP HEAT SHIELD but a permanent free air gap of at least 150mm on top and 50mm (although we recommend 150mm) around the sides and 50mm at the back of the stove to obtain maximum heat output and for access to the rear of the stove.
-
Page 12: Commissioning And Handover
Please advise the customer on the correct use of the & H COMMISSIONING ANDOVER appliance with the fuels likely to be used on the stove and warn them to use only the recommended fuels APPLIANCE CHECK for the stove. Please check that all components are correctly Advise the user on what to do should smoke or fumes assembled and working correctly. -
Page 13: Operating Instructions
Further information on the requirements of the Clean ONTROL Air Act can be found here: http://smokecontrol.defra.gov.uk/ This stove has been designed to burn far more efficiently than a traditional stove if used correctly, Your local authority is responsible for implementing with the obvious notable feature of CLEAN GLASS. - Page 14 B) To operate pull the air control rod away from BURNING WOOD the stove. For the Primary and Secondary air Lighting the Stove to be in the fully open position pull the air control rod knob away from the stove until it First, load the fire with starting fuel, i.e.
-
Page 15: Maintenance & Servicing
the chimney for potential obstructions before lighting the stove i.e. get the chimney swept before the start Maximum Length: of the heating season? See page 2. AFFLE Ensure your logs are well seasoned with a moisture This should be removed and cleaned at least once a content of less than 20% month to prevent any build-up of soot or fly ash that could lead to blocked flue ways and dangerous fume... - Page 16 IREBRICKS CHANGING THE DOOR HANDLE In normal use, these can last for many years. It is possible however, to crack them if logs are continually jammed against them or if they are frequently struck Remove screw with a poker. Check periodically for seriously cracked holding in door hook.
- Page 17 NNUAL ERVICE Further Information Hunter Stoves Group recommend that this appliance is serviced annually, preferably prior to the start of For extra guidance on using your stove, please visit the heating season, thus avoiding any delay in our YouTube channel by searching ‘Hunter Stoves receiving replacement components, should you need Group’...
-
Page 18: Troubleshooting
TROUBLESHOOTING ISSUE CAUSE RESOLUTION Problem starting the fire and Low flue draught Speak to your installer keeping it burning Wood with moisture content over 20% Ensure use of dry seasoned wood with less than 20% moisture content Unable to control fire High flue draught Speak to your installer Short burn time... - Page 19 ISSUE CAUSE RESOLUTION Creosote build-up in chimney Wood with moisture content over 20% Use dry seasoned wood (less than 20% moisture content). Operate at a high temperature for short periods each time the appliance is used to avoid large build-ups of tars and creosotes.
- Page 20 Flue Gather Kit – HHR99987K Multifuel Conversion Kit – JPA04 - PARKRAY ASPECT 4 JPA04C - PARKRAY ASPECT 4 COMPACT JPA05 - PARKRAY ASPECT 5 JPA05C - PARKRAY ASPECT 5 COMPACT Heat Shields – Top - Aspect 4s – ECIC04047 // Aspect 5s – ECIC05031...
-
Page 21: Spares
Spares Information DOOR FRONT VIEW ASPECT 4 COMPACT/ ASPECT 4 Complete Door ECIC04ARRT002 DOOR REAR VIEW ASPECT 4 COMPACT/ ASPECT 4 DOOR FRONT VIEW ASPECT 5 COMPACT/ ASPECT 5 Complete Door ECIC05arrt002 DOOR REAR VIEW ASPECT 5 COMPACT/ ASPECT 5... - Page 22 BODY ASSEMBLY SPARES ASPECT COMPACT 4 AND 4 BODY ASSEMBLY SPARES ASPECT COMPACT 5 AND 5...
-
Page 23: Commissioning & Installation Check List
INSTALLATION & COMMISSIONING CHECKLIST PURCHASE INFORMATION Dealer/Retailer Name Address Telephone Number Email Date Purchased INSTALLER INFORMATION Installer Name Address Telephone Number Email APPLIANCE INFORMATION Date Installed Appliance Stock Code Appliance Description Serial Number COMMISSIONING CHECK (Complete & Sign) Does the chimney/flue system meet the appropriate standard? Has the chimney/flue system been swept and passed the soundness test? Has this appliance passed the flue draught test? Please write down the flue draught reading:... -
Page 24: Service Records
SERVICE RECORDS Service Service Date of Service Date of Service Date of next Service Date of next Service Servicing Company/ Servicing Company/ Engineer Engineer Signature Signature Service Service Date of Service Date of Service Date of next Service Date of next Service Servicing Company/ Servicing Company/ Engineer... -
Page 25: Full Warranty Information
Hunter Stoves Group Ltd Extended 5 and 10 Year Warranty 2 year standard warranty Any appliance bought through the showroom of an authorised Hunter Stoves Group dealership will automatically be covered by our standard 2 year conditional guarantee. However this standard 2 year warranty can be extended to a 5 year or 10 year conditional warranty dependent on the model type (5 years- Boiler models, 10 years- Room heater and Gas models). - Page 26 For both Solid Fuel and Gas Stoves: The paint or surface covering of the appliance: Damage to the paint surface caused by the appliance being stored in a damp and cold environment is not covered on the warranty. In the course of the initial firings of the appliance the paint or enamel surface may change colour. This is considered to be normal and as such is therefore not covered by the warranty.
