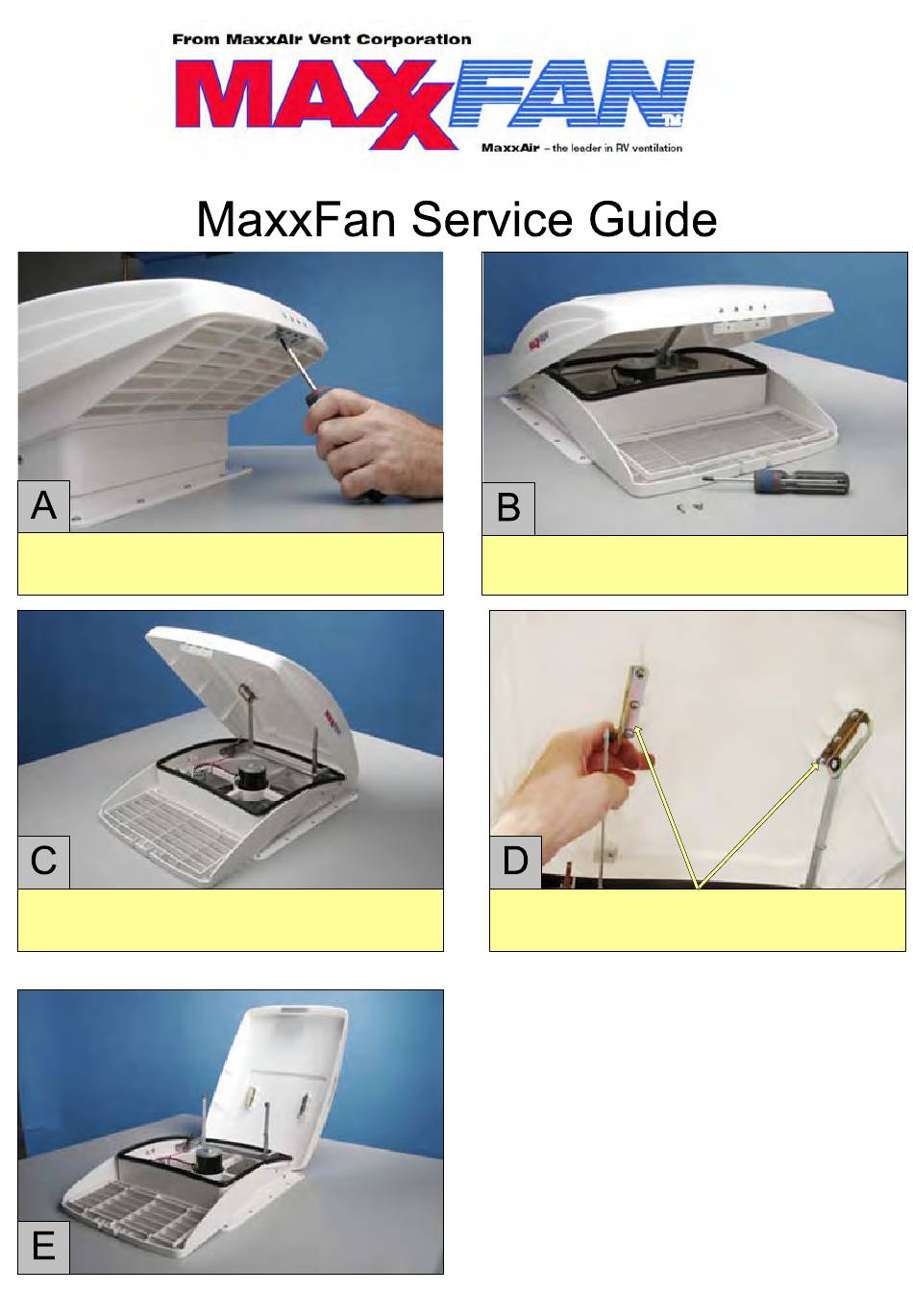

With the MaxxFan in the open position, remove the
two rear hinge screws.
Continue to open the MaxxFan and release the
Lifting Arms from the two Upper Brackets. Ref.
Photos 'D' and 'E'.
Allow the Rain Shield to swing downward as shown
in photo 'B'.
Upper Brackets
9.26.05
Advertisement
Related Manuals for MAXXFAN 5100
Summary of Contents for MAXXFAN 5100
- Page 1 With the MaxxFan in the open position, remove the Allow the Rain Shield to swing downward as shown two rear hinge screws. in photo ‘B’. Continue to open the MaxxFan and release the Upper Brackets Lifting Arms from the two Upper Brackets. Ref.
- Page 2 MaxxFan Models 5100-5103, 6200-6203, Item Descritpion MaxxAir Part Number Motor, Fan 10-20965 Fan Blade, Clear P/C with Compression Ring 10-20258 Resistor Pack 10-20950 Micro Switch, Lid Closed Motor Cutoff 10-21226 Lifter, Arm 5/8" Dia. 10-20222 Spring, Lid Support 10-20243 Operator Assembly, Left Hand Ceiling Mount 10-20255 9.26.05...
- Page 3 MaxxFan Models 5100, 5103, 6200, and 6203 Item Descritpion MaxxAir Part Number Triangle Printed Circuit Board 10-20201 Knob, Thermostat Control 10-20218 Assy, Interior Round Screen 05-30925 Knob, Round Screen Frame 05-21235 Knob, Locking 05-21236 Garnish Ring 10-20211 Screw, #8x1" Zink Painted...
- Page 4 (auto vent opening Maxxfan models only) (2) Broken operator gear Replace operator gear assembly Remove MaxxFan assembly from roof, (1) Loose plug connection check plug connection between circuit board Vent lid motor not running and lid lifting motor.
