Summary of Contents for Gude GSE 5500 DSG

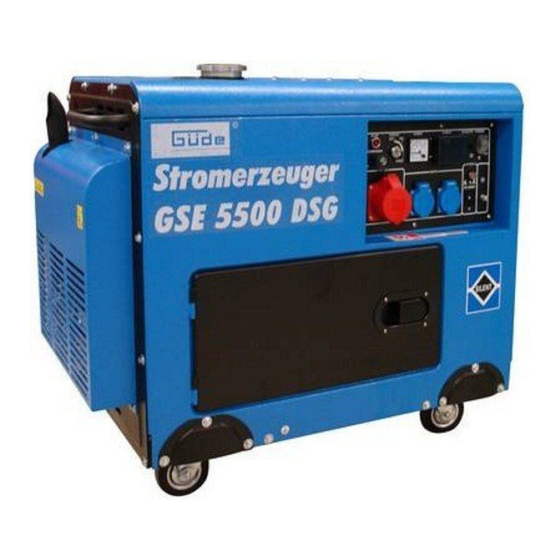

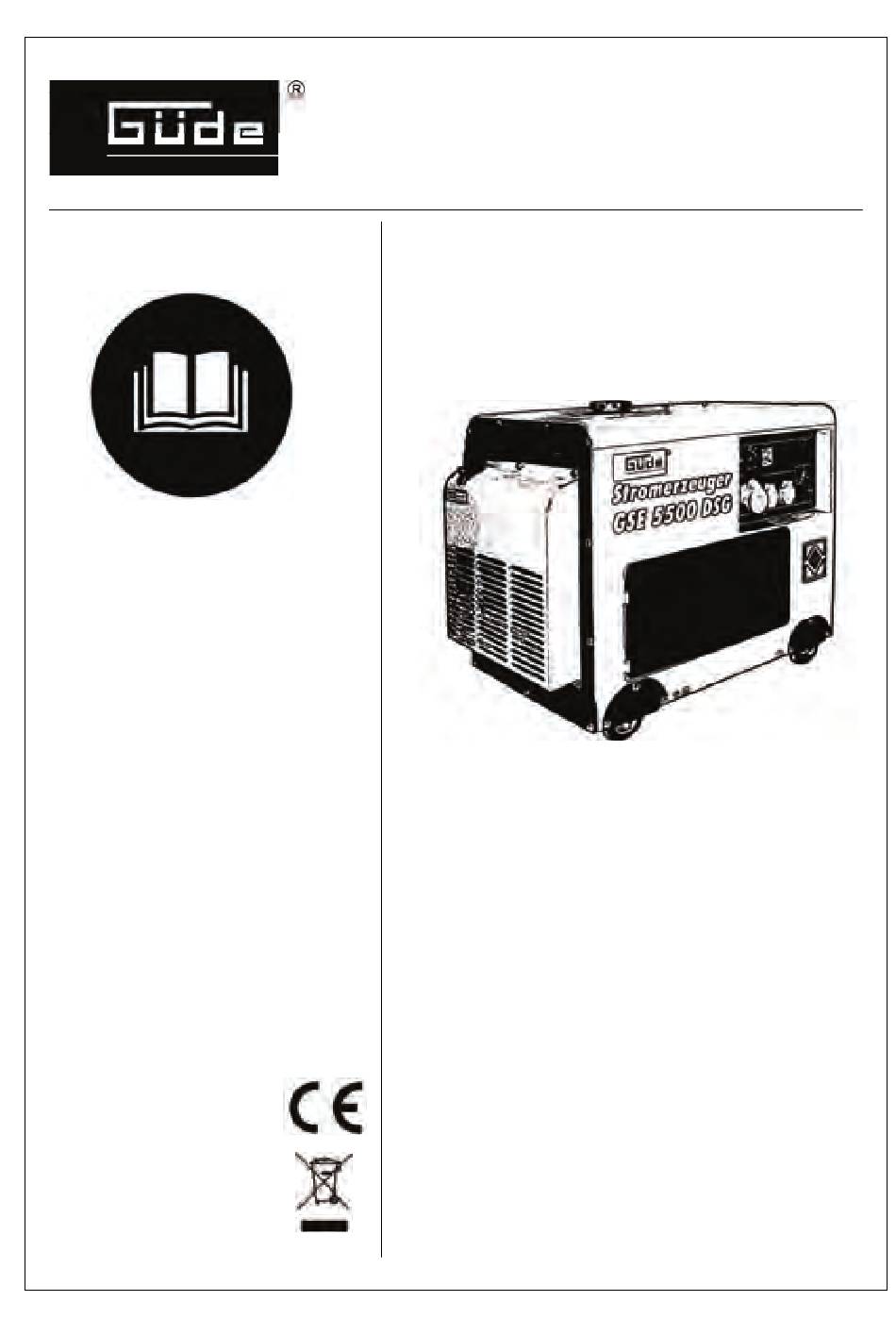

- Page 1 GSE 5500 DSG #40586 English Translation of original operating instructions © Güde GmbH & Co. KG - Birkichstrasse 6 - D-74549 Wolpertshausen - Deutschland...
- Page 2 Please read carefully the following Operating Instructions before putting the appliance into operation A.V. 2 Any reprints, even partial, are subject to approval. Technical changes reserved. Illustrative pictures! Translation of original operating instructions. Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needless bureaucracy at our home page www.guede.com in the Service part.
-
Page 3: Scope Of Delivery
Scope of Delivery GSE 5500 DSG # 40586 Generator Battery (not included in the supply – can be received in an authorised shop) On/off / Electric starting Oil replenishment plug Voltmeter Overloading protection 400 V 400 V / 230 V switch... -
Page 4: Behaviour In Case Of Emergency
Behaviour in case of emergency Provide necessary first aid treatment corresponding to the injury nature and seek qualified medical help as soon as possible. Protect the injured person from other injuries and calm him/her down. First aid kit must always be available in the place of your work in case of accident in accordance with DIN 13164. Material taken out of the first aid kit needs to be supplemented right away. -
Page 5: Product Specific
IP 23 Protection type Product specific: Voltage automatic Caution! Caution! control Diesel only! Hot surface Assigned Use This generator is exclusively designed for driving electric tools and machines, the maximum output of which is in rage of the generator output. The induction appliances higher start-up current must be accounted for. The manufacturer shall not be held liable for any damage should the provision of general regulations and this instruction manual be not observed. -
Page 6: Technical Data
Training Use of the unit requires adequate lesson by a professional or the use of the manual only. Special training is not required. Technical Data GSE 5500 DSG 230 V 400 V 4,4 kVA/3,5 kW 6,2 kVA/5,0 kW Max. -
Page 7: Assembly And Initial Operation
Assembly and Initial Operation CAUTION: The generator must be switched on for about 10 minutes every three months. Attention, important notice: At appliances with electric starting system! Insert a battery before you start the appliance for the first time. Appropriate battery type: 12V - 17Ah with flat pole connections, max. -
Page 8: Operation
The silencer and the air filter work as flame trap. Make sure that the parts are installed correctly and in perfect condition. Operation Use of GSE 5500 DSG (# 40586) – Battery Starting Make sure that no appliance is connected to the unit. Open the fuel cock by turning it ON ... -
Page 9: Operator Safety Instructions
Fig. 4 GSE 5500 DSG (#40586) Generator Turning Off Disconnect the appliance from the unit before stopping the engine. Close the fuel tap (OFF). Turn the fuel cock in (OFF) position. CAUTION! Always pill the key from the unit when the generator is out of use and keep it at a safe place. -
Page 10: Scheduled Maintenance And Inspections
No smoking in the course of the described jobs. Never work close to sparks, flames or open fire. Scheduled Maintenance and Inspections Air Filter The air filter should be cleaned every 50 hrs of operation. Loosen the service cover screwing. ... -
Page 11: Eg-Konformitätserklärung
Bei einer nicht mit uns abgestimmten Änderung der Geräte verliert diese Erklärung ihre Gültigkeit. In a case of alternation of the machine, not agreed upon by us, this declaration will loose its validity. Bezeichnung der Geräte: - GSE 5500 DSG Machine desciption: Artikel-Nr.: - 40586 Article-No.: Einschlägige EG-Richtlinien:...
