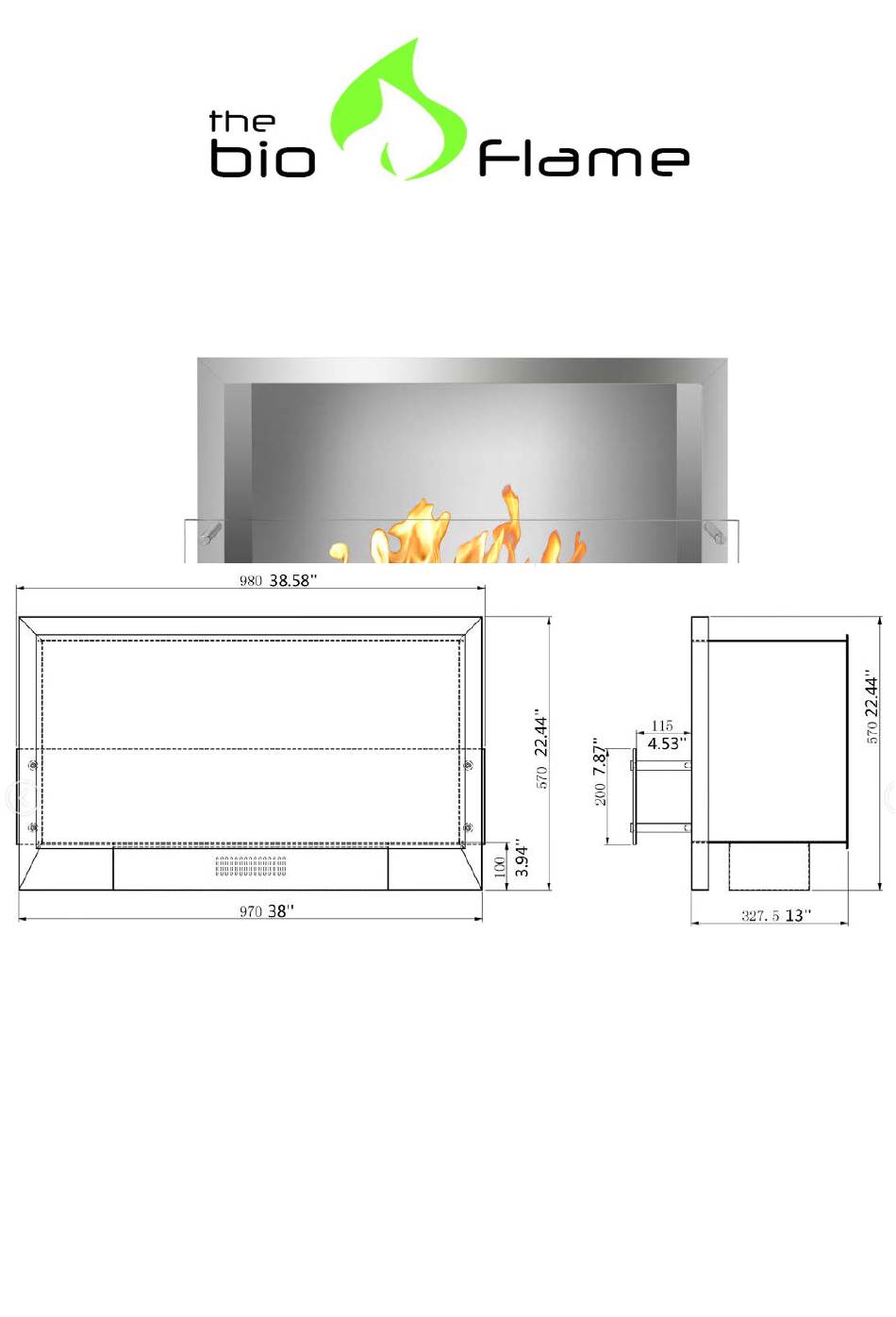

- Page 1 38” F IREBOX S S Installation I nstructions ...
- Page 2 Non combustible materials must be used around the firebox! The Firebox cavity must be a lined with a minimum of 3/8" thick cement board. A: 980mm (38‘’) B: 177.8mm (7’) C: 165mm (6”) 1. Line the base with cement board and insert your Firebox into the base. 2.
- Page 3 3. Continue building the wall, ensuring that there is a layer of cement board between the stud and your Firebox on all sides. 4.First stud on either side of the Firebox must be flush with the Firebox and flange 5. Install a stud horizontally on top of the firebox to be able to continue with the wall. 6.
- Page 4 7. Continue building the wall 8. Support the firebox with screws around the flange into the stud 9. Cover the firebox with sheetrock, wonderboard, stones, tile, etc. 10. Mount the glass into firebox...
- Page 5 ...
- Page 6 User’s m anual a nd S afety I nstructions of ...
- Page 7 de-‐shape a nd d amage t he p aint o n t he i nsert. Fill n o m ore t han 2 /3 o f t he w ay t o p revent o verflow. l...
