The Bio Flame XL Firebox SS User Manual

Hide thumbs
1
2
3

Advertisement

Table of Contents

Installation Instructions

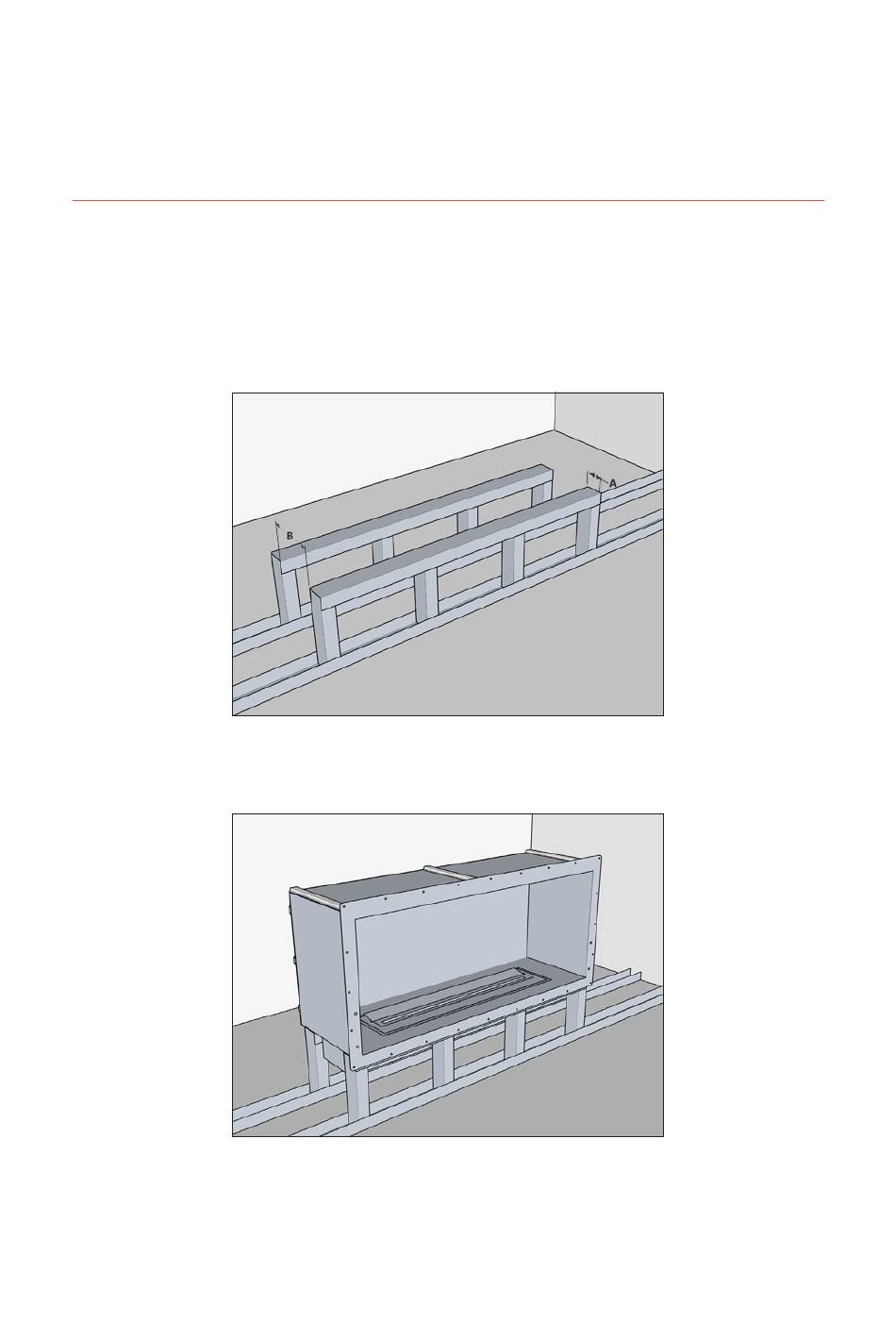

1. Build a base for the Firebox to sit on. (use 2x3 studs)
2. Base may be built of any material.
3. Make sure base is level on all sides.
Size "A" - should not be more than 3inches
Size "B" - Should be from 8-1/4 to 8-1/2 inches
4. Insert your Firebox into the base.
5. Make sure the Firebox is centered.
www.ignisproducts.com
Firebox - User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL Firebox SS and is the answer not in the manual?

Questions and answers

Related Manuals for The Bio Flame XL Firebox SS

Summary of Contents for The Bio Flame XL Firebox SS

  • Page 1: Installation Instructions

    Firebox - User’s Manual Installation Instructions 1. Build a base for the Firebox to sit on. (use 2x3 studs) 2. Base may be built of any material. 3. Make sure base is level on all sides. Size “A” - should not be more than 3inches Size “B”...
  • Page 2 6. Continue building the wall. 7. First stud on either side of the Firebox must be flush with the Firebox and flange. 8. Install a stud horizontally on top of the firebox to be able to continue with the wall. 9.
  • Page 3 Firebox - User’s Manual 10. Continue building the wall. 11. Support the Firebox with screws around the flange into the studs. 12. Measure and mark placement of glass brackets. 13. Cover the Firebox with sheetrock, wonderboard, stone, etc... 14. Drill in finish materials for glass installation. www.ignisproducts.com...
