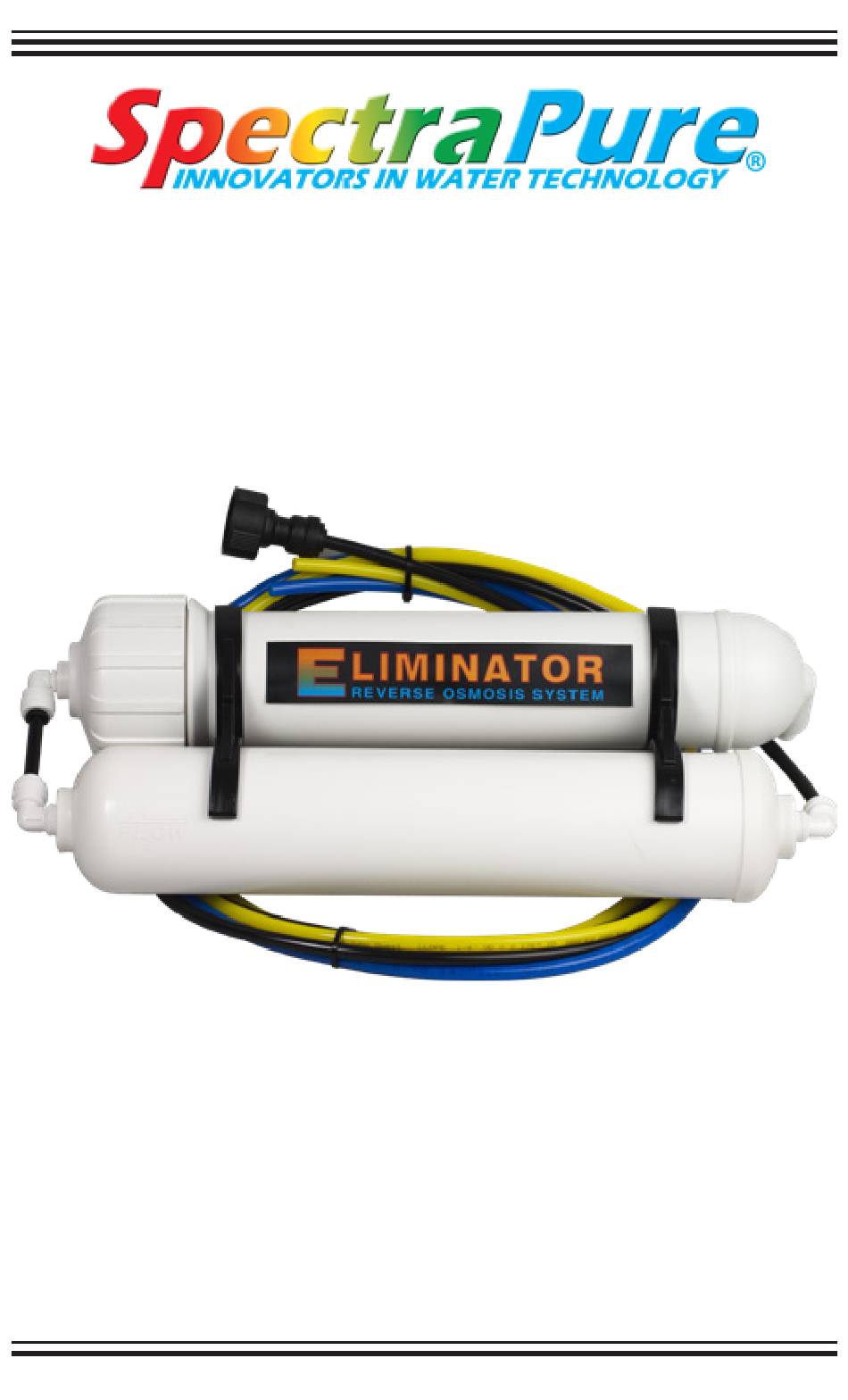

Eliminator RO™ BASIC
Reverse Osmosis Water Purification System
Eliminator RO™ 100 -BASIC
Eliminator RO™ 200 -BASIC
INSTALLATION AND OPERATING MANUAL
WARNING
Please read carefully before proceeding with installation. Failure to
follow any attached instructions or operating parameters may lead to
the product's failure and possible damage to property.
2019-09-30
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SpectraPure Eliminator RO BASIC Series
Summary of Contents for SpectraPure Eliminator RO BASIC Series
- Page 1 Eliminator RO™ BASIC Reverse Osmosis Water Purification System Eliminator RO™ 100 -BASIC Eliminator RO™ 200 -BASIC INSTALLATION AND OPERATING MANUAL WARNING Please read carefully before proceeding with installation. Failure to follow any attached instructions or operating parameters may lead to the product’s failure and possible damage to property.
-
Page 2: Table Of Contents
ALL RIGHTS RESERVED No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written permission of SpectraPure Inc. SpectraPure Inc. -
Page 3: Introduction
Dimensions: 8" H x 15" W x 5" D The Eliminator RO™ Systems come complete with: • 100 gallon per day, high-rejection Spectrapure advanced thin-film membrane in the Eliminator RO™ 100 BASIC (200 gallon per day membrane for the Eliminator RO™... -
Page 4: System Specifications
*Operating pressure less than 40 psi may require a booster pump: Operating pressure greater than 80 psi may require a pressure regulator. SpectraPure® Inc Assumes no responsibility for water damage due to leaks. It is the user’s responsibility to determine that the system is leak-free. -
Page 5: System Description
SpectraPure ® SYSTEM DESCRIPTION: The ELIMINATOR™ System gives you a continuous supply of sparkling clear, delicious water for drinking, cooking, hydroponics, etc. Foods will look better and taste better, too. The reliability with the ELIMINATOR™ Water Treatment System is greatly improved over other systems and costly maintenance may be avoided. -
Page 6: Single Membrane System
SpectraPure ® SINGLE MEMBRANE SYSTEM - 100 GPD & 200 GPD: Feed Water TFC RO Membrane (ELIM-MEM-100 or Attaches ELIM-MEM- 200) & Housing Here 5 micron Carbon Block Blue Product Yellow Waste Filter Water Tubing Water Tubing (ELIM-IL-CB-12) SpectraPure Inc. -
Page 7: Working With Push Fittings
SpectraPure ® WORKING WITH PUSH FITTINGS: Push fittings are very reliable and convenient tubing connectors. To remove the tubing from its push fitting: 1. Firmly depress and hold the push fitting collar down with your thumbnail. 2. While the push fitting collar is depressed, pull the tubing straight out of the push fitting. -
Page 8: System Installation & Initialization
8. Check the system to ensure that all fittings are tight and leak- free before leaving the system unattended. (If anything is leaking, contact SpectraPure for assistance.) NOTE: It is recommended that at least 2 gallons (7.57 liters) of purified water be discarded now before collecting purified water for use. -
Page 9: Carbon Block Filter Replacement
SpectraPure ® CARBON BLOCK FILTER REPLACEMENT: A Carbon Filter will usually last 4-6 months, depending on the chlorine (or chloramine) content of your tap water. The best way to determine when your Carbon Block Prefilter needs replacement is to use a chlorine test kit. -
Page 10: Ro Membrane Replacement
SpectraPure ® RO MEMBRANE REPLACEMENT: 1. Turn off the water supply to the RO system. Place the system where the membrane housing(s) can be easily accessed. 2. Remove the black tubing from the membrane feed push fitting by depressing the collar on the fitting with your thumb and pulling the tubing from the push fitting. -
Page 11: Ro Membrane Diagnostics
TESTING THE QUALITY OF THE MEMBRANE: The performance of a RO membrane is measured by its ability to reject salts or TDS (Total Dissolved Solids). This procedure will require a TDS Meter. SpectraPure offers several models: ELIM-MTR-TDS-EZ HM Digital Hand-held TDS Meter... -
Page 12: Membrane Production Calculation
SpectraPure ® Rejection of the RO Membrane Calculation Example 1. Tap water TDS = 150 ppm (X) 2. RO water TDS = 15 ppm (Y) 3. X - Y = 135 ppm 4. (X - Y) ÷ X = 135 ÷ 150 = 0.90 5. - Page 13 SpectraPure ® Temperature Correction Factor Table (TCF) °F /°C °F /°C °F /°C 41.0 /5 0.521 59.0 /15 0.730 77.0 /25 1.000 42.8 /6 0.540 60.8 /16 0.754 78.8 /26 1.031 44.6 /7 0.560 62.6 /17 0.779 80.6 /27 1.063 46.4 /8...
-
Page 14: Tips For Long Membrane Life
SpectraPure ® TIPS FOR LONG MEMBRANE LIFE: 1. Replacement of 5 micron carbon block filter at least once every 6 months or when chlorine breakthrough occurs or when water production is severly reduced. This will ensure good membrane life and protect the membrane from chlorine damage. -
Page 15: One Year Limited Warranty
® a period of one year from the date of receipt. SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B. SpectraPure’s factory, any product of SpectraPure’s manufacture. -
Page 16: Optional Accessories
Delicate plant cloning requires some of the purest water on the planet, even beyond that produced by traditional RO systems. By adding the SpectraPure CloneMaster DI™ stage to your existing Eliminator™ RO system you can produce the ultra-purified water necessary for these delicate growth challenges.
