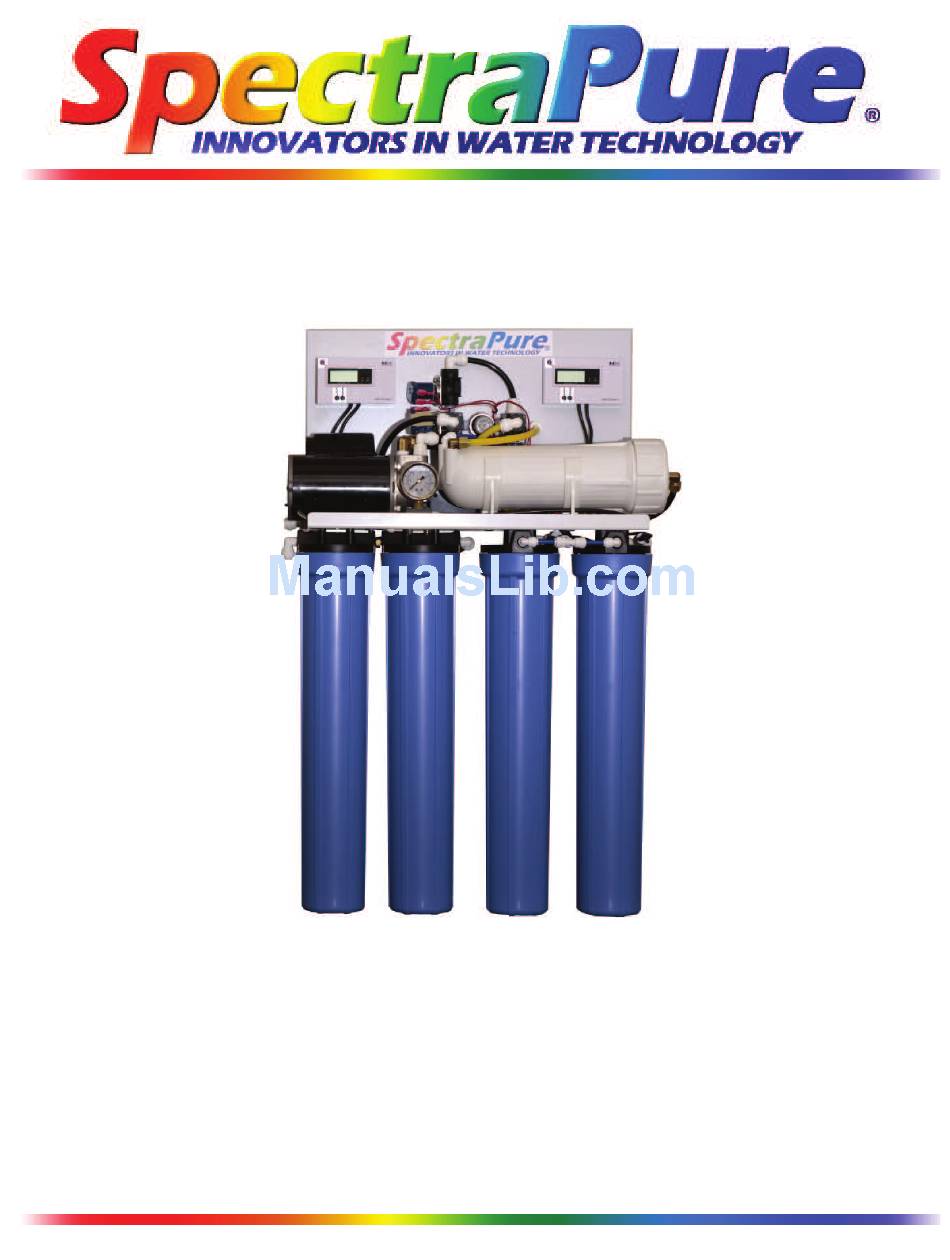

- Page 1 MaxCap-400 Ultra-High Efficiency RO/DI (MC-RODI-UHE-400) INSTRUCTIONS WARNING Please read carefully before proceeding with installation. Failure to follow any attached instructions or operating parameter may lead to the product’s failure and possible damage to property. REV. 02-17-2010...
-
Page 2: Table Of Contents
Thank You for your purchase of a SpectraPure® System. With proper installation and maintenance, this system will provide you with high quality water for years to come. All SpectraPure® products are rigorously tested by us for safety and reliability. If you have any questions or concerns, please contact our customer service department at 1.800.685.2783 or refer to our online troubleshooting at www.spectrapure.com. -
Page 3: Operational Specifications
MaxCap DI Cartridged (CF-0.5-20) (DI-MC-20) IF ANY OF THE ITEMS LISTED ABOVE ARE MISSING PLEASE CONTACT SPECTRAPURE PRIOR TO INSTALLATION. ALL RETURNS WITHOUT RMA# WILL BE REFUSED. CLAIMS MUST BE WITHIN 10 DAYS FROM RECEIPT. SpectraPure®Inc. 480.894.5437 Call us toll-free 1.800.685.2783... -
Page 4: Operation Description (How The System Functions)
® SpectraPure OPERATION DESCRIPTION (how the system functions) 1. First, the incoming feed water (3/8” Black line) is passed through a 0.2 micron Zeta-Zorb sediment pre-filter. This filter is required to remove excess turbidity (particulate matter) that may cause the carbon block filter to plug. -
Page 5: Preparation
® SpectraPure PREPARATION 1. CHOOSING THE BEST MOUNTING LOCATION: LIGHT SOURCE: Algae is more likely to thrive inside clear housings when exposed to ultraviolet light and other sources like metal halide lighting. Avoid installing the unit in bright light or direct sunlight. -
Page 6: Getting To Know Your System
® SpectraPure 4. GETTING TO KNOW YOUR SYSTEM: I f you are setting up this system for the first time, or replacing either DI cartridges, it is very important that you rinse the MaxCap DI cartridge with the downstream DI removed. There is a large ionic load present in a new MaxCap DI cartridge. -
Page 7: Set-Up Procedures
® SpectraPure SET-UP PROCEDURES STEP 1: Unscrew the third position housing (MaxCap DI) and the fourth position housing (Silica-Buster DI) from the system and remove the DI Cartridges. Then, re-install the empty housings back onto the system. STEP 2: Connect the 3/8” Black Line to the cold water line by using either the garden hose adapter, which is provided with the system, or a Feed Water Adapter. -
Page 8: Pressure Adjustment With Regulator
This will damage the membrane and void any warranty. This procedure will assure you of maximum life and reliability of your SpectraPure System. Failure to perform this procedure can permanently damage the membrane and will void the pro-rated Membrane Warranty. -
Page 9: Connecting Bulk Head Fittings
® SpectraPure Note: At least 2 gallons (7.57 liters) of purified water will be discarded during the flushing before you can collect purified water for use. Upon start-up, air may be trapped in the DI cartridges (housing may not appear full), this is a normal condition and it will not affect the operation of the DI system. -
Page 10: Final Connection
® SpectraPure STEP 13: FINAL CONNECTION: 1. Direct the waste line (yellow ) to a drain or connect it permanently to a drain pipe via a drain saddle. (Drain Saddle is not included with system) Look for leaks and do not leave the system alone until you are sure there are no leaks. -
Page 11: Maintenance Regimen
® SpectraPure MAINTENANCE REGIMEN Maintenance and trouble-shooting procedures have been made easy and effective with a combination of the (2) Dual TDS meters and a built-in pressure gauge. It is recommended that you keep replacement cartridges on hand, ready to install as soon as the monitor indicates that the cartridge in use is exhausted. -
Page 12: Carbon Block Pre-Filter Replacement
® SpectraPure CARBON BLOCK PRE-FILTER REPLACEMENT: For maximum contaminant removal and long membrane life, the Carbon pre-filter must be changed when the system fails to maintain the pre-set pressure of 100 PSI. Materials Required: 0.5 micron Carbon Block Filter (CF-0.5-20), Filter Wrench, Chlorine Test Kit (TK-CL-10) Procedure: (SECOND FILTER ON LEFT WHEN FACING SYSTEM) 1. -
Page 13: Reverse Osmosis Membrane Performance Testing
® SpectraPure REVERSE OSMOSIS MEMBRANE PERFORMANCE TESTING: Actual performance of a membrane is dependent on three factors: Osmotic Pressure, Tap Water Pressure and Tap Water Temperature. What is Osmotic Pressure: The flow of water through a membrane in response to differing concentrations of solutes on either side generates an additional pressure across the membrane called osmotic pressure. -
Page 14: Reverse Osmosis Membrane Replacement
® SpectraPure REVERSE OSMOSIS MEMBRANE REPLACEMENT: 1. Turn off the water supply to the RO system and unplug the transformer. Place the system where the membrane housing is easily accessible. 2. Remove the black tubing from the membrane feed push-fitting by depressing the collar on the fitting with your thumb and pulling the tubing from the push-fitting. -
Page 15: De-Ionization Cartridge Maintenance And Replacement
® SpectraPure DE-IONIZATION CARTRIDGE MAINTENANCE AND REPLACEMENT Maintenance for MaxCap DI Cartridge: Procedure: When the reading on the right-hand TDS meter (set to “IN”) displays 50% (or greater) of the reading on the left-hand TDS meter (set to “OUT”), it is time to replace the MAXCAP DI ™ cartridge. -
Page 16: Troubleshooting Guide
® SpectraPure TROUBLE SHOOTING GUIDE Problem Cause Corrective Action Low production rate. plugged pre-filters. Replace pre-filters. low water Use higher GPD temperature. membrane. fouled membrane. Replace membrane. plugged flow Replace flow restrictor & restrictor. membrane. Zero production rate. Dried membrane. -
Page 17: Warranty Information
Effective on products purchased after March 10, 2005. SpectraPure, Inc.® warrants the product to the original owner only to be free of defects in material and workmanship for a period of three years from the date of receipt. SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B. -
Page 18: Replacement Parts List
® SpectraPure REPLACEMENT & OPTIONAL PARTS Replacement Parts No. Catalog No. Replacement Parts Description SF-ZZ-0.2-20 Sediment Filter 0.2 Micron Sediment Filter (1st Stage) (Failure to use a Zeta-Zorb sediment filter for replacement will void the system’s warranty.) CF-0.5-20 Carbon Filters 0.5 Micron Carbon Pre-Filter (2nd Stage)
