Brief operating instructions

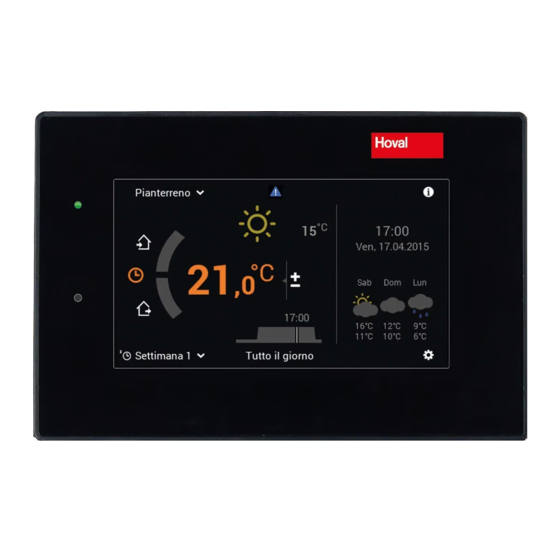

TopTronic
E control module easy for heat generator and comfort ventilation
®
13
2
3
4

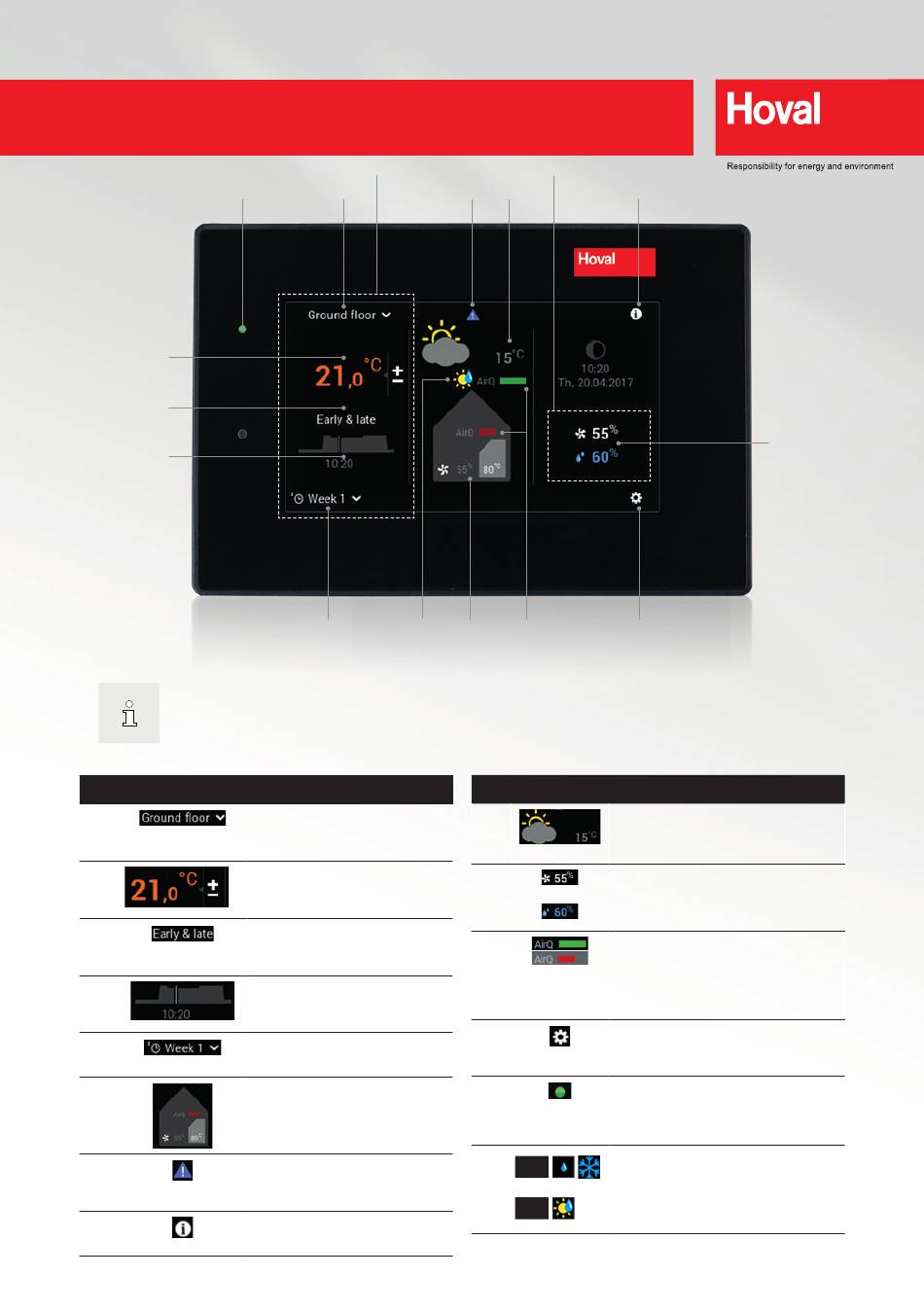

Operating elements/buttons are shown in white on a black background or in black on a
white background. Display elements, on the other hand, are shown in colour.
No. Icon
Designation/function
1
Heating circuit
Heating circuit selection – if there are
several
2
Room temperature (current)
Setting the required room temperature
(page 2)
3
Active day program
Day program selection reg. room
temperature (pages 2 and 3)
4
Switching cycle
Display of the current heating times.
Setting in the main menu (page 3).
5
Active basic program
(heating)
6
Information –
heat generator/ventilation
Display element – no operation
7
Alarm message display
Selection and display of alarm messag-
es. Only visible in the event of an alarm.
8
Information area
Heating control
1
5
14
Ventilation control
7
9
8
6
11
12
No. Icon
Designation/function
9
Outdoor temperature
(only with outdoor sensor)
Display element – no operation
10
Required air quantity
Can be overridden
Max. air humidity
11
Air quality (optional)
If air quality sensor(s) are installed, the interior
or interior and exterior air quality is displayed.
The air quality can have an impact on the
air quantity.
12
Main menu
Menu overview and processing of all functions
(page 4)
13
LED operating status
Green: operation
If the LED lights up red or orange, see item 7.
14
Air quantity modulation
AQ
The set air quantity is modulated by the pre-
vailing ambient conditions. However, the air
CV
quantity display remains at the set value.
10
1
