Installation
Packing List
•
•
•
T H
IS
•
E
S ID
U P

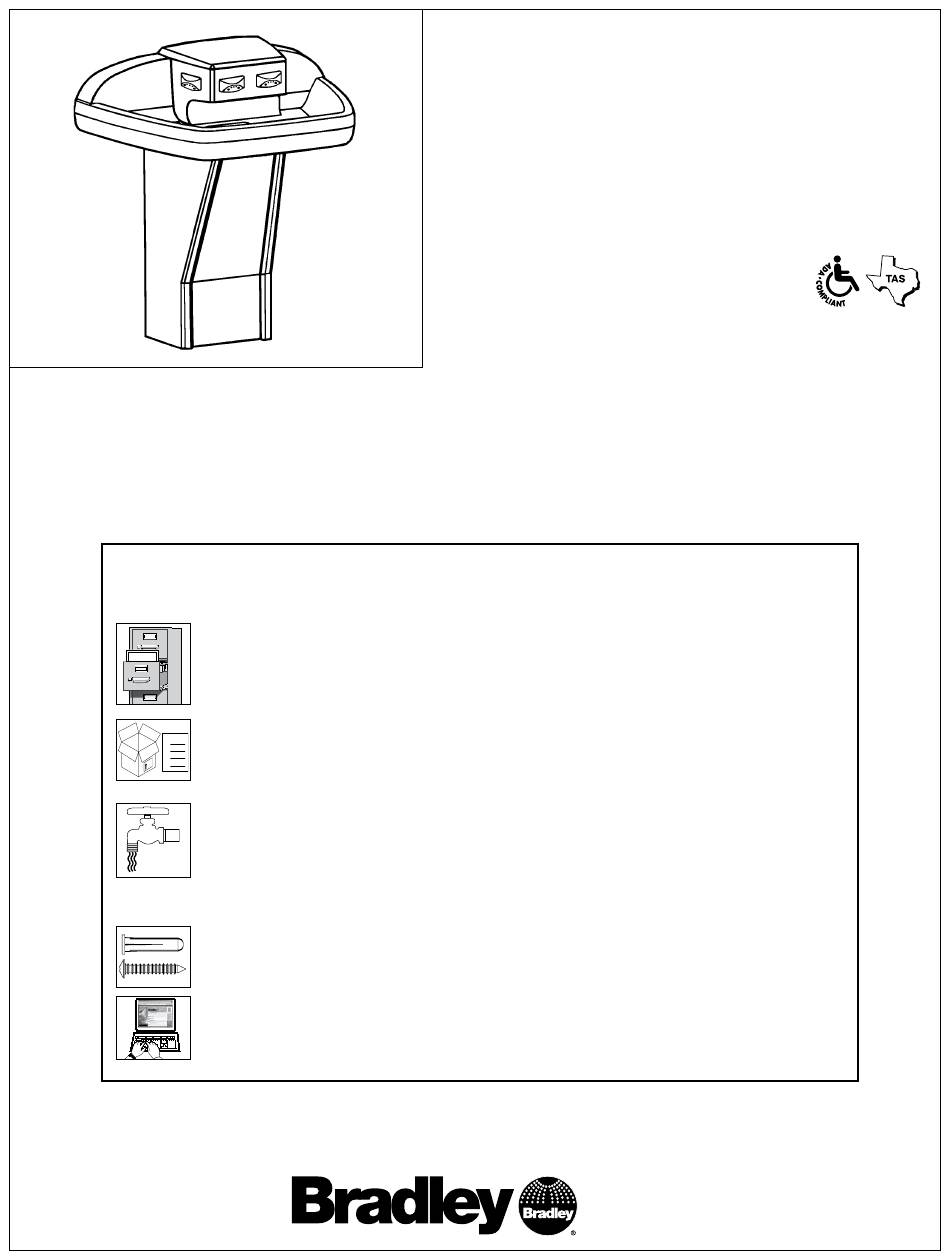

215-1373 Rev. P; ECN 14-00-006
© 2014 Bradley
Page 1 of 14
6/6/2014
IMPORTANT!
Read this entire installation manual to ensure proper installation. When
finished with the installation, file this manual with the owner or maintenance
department.
Separate parts from packaging and make sure all parts are accounted for
before discarding any packaging material. If any parts are missing, do not
begin installation until you obtain the missing parts.
Water supply requires a flowing pressure of at least 20 psi, but no greater
than 80 psi.
Make sure that all water supply lines have been flushed and then completely
turned off before beginning installation. Debris in supply lines can cause
valves to malfunction.
Hardware supplied by installer must be appropriate for wall construction. Wall
anchors used must have a minimum pull-out rating of 1,000 lbs.
Product warranties may be found under "Product Information" on our web site
at www.bradleycorp.com.
Installation

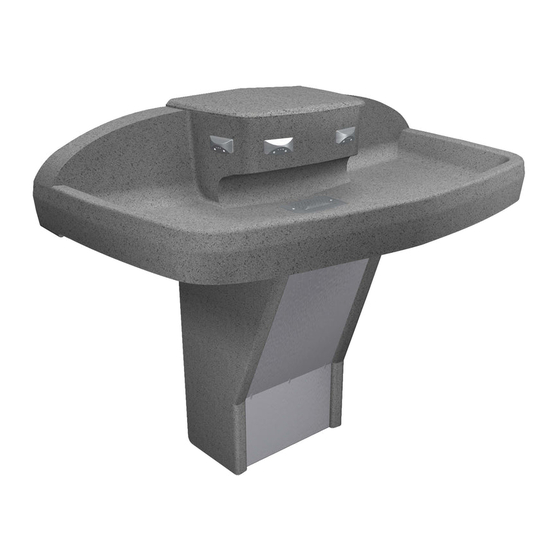

MF2944/BIR3
Terreon
Quadra-Fount
®
with Battery Operated Infrared Control
(Standard*, Juvenile and OBC Height)
* Standard Height is ADA/TAS Compliant
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Parts Included with the Quadra-Fount
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-9
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . .10-11
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-14
P .O . Box 309, Menomonee Falls, WI 53052-0309
Phone: 1-800-BRADLEY Fax: (262) 251-5817
http:\\www .bradleycorp .com
Washfountain
™
. . . . . . . . . . . . . . . . . 3
™
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Bradley Terreon Quadra-Fount MF2944/BIR3
Summary of Contents for Bradley Terreon Quadra-Fount MF2944/BIR3
- Page 1 Product warranties may be found under “Product Information” on our web site at www.bradleycorp.com. 215-1373 Rev. P; ECN 14-00-006 P .O . Box 309, Menomonee Falls, WI 53052-0309 Phone: 1-800-BRADLEY Fax: (262) 251-5817 © 2014 Bradley http:\\www .bradleycorp .com Page 1 of 14...
-
Page 2: Pre-Installation Information
Barrier-free and ADA compliant The Terreon Quadra-Fount with infrared is designed to comply with all ADA and TAS guidelines on reaches, clearances and operation when mounted at standard height dimensions by the installer . Bradley • 215-1373 Rev. P; ECN 14-00-006 6/6/2014... - Page 3 Parts included with the Quarda-Fount ™ Separate all parts from packaging materials and ensure you have all the parts required for assembly . If any parts are missing, do not attempt to assemble the Bradley Terreon Quarda-Fount Washfountain until you obtain all parts .
- Page 4 Install the upper and lower brackets to the pedestal panels with two pan RIGHT PEDESTAL head 1/4"- 20 x 1/2" screws and PANEL 5/16" I .D washers supplied . LOWER CENTERLINE OF BRACKET FIXTURE Bradley • 215-1373 Rev. P; ECN 14-00-006 6/6/2014...
- Page 5 ASSEMBLY (supplied by installer) for 3/8" bolts . After floor anchors are installed, secure the pedestal assembly to the floor anchors using two 3/8" bolts and washers (supplied by installer) . Bradley • 2215-1373 Rev. P; ECN 14-00-006 6/6/2014...
-
Page 6: Bradley • 215-1373 Rev. P; Ecn 14
For optional single tempered supply: attach the Hot Supply stop to the 1/2" tempered supply line . Connect Inlet the stop to the solenoid valve assembly with the flexible supply hose . Bradley • 215-1373 Rev. P; ECN 14-00-006 6/6/2014... - Page 7 Install strainer in the bowl drain using the two #10-24 x 1/2" flat socket head screws supplied . Connect the drain trap (supplied by installer) to the drain spud and drain line . Bradley • 2215-1373 Rev. P; ECN 14-00-006 6/6/2014...
- Page 8 (with batteries) in a convenient location in the pedestal . Battery Holder (S83-177) 6-Volt Lithium Battery Type DL223A or Equivalent (261-010) Snap the battery connector cables into the circuit board plugs . Bradley • 215-1373 Rev. P; ECN 14-00-006 6/6/2014...
- Page 9 To install front panel, slip slot in bottom of front pedestal panel over the lip on the lower bracket, SCREW Secure panel to upper bracket with attached screw . FRONT PANEL LOWER BRACKET Bradley • 2215-1373 Rev. P; ECN 14-00-006 6/6/2014...
-
Page 10: Cleaning And Maintenance
Avoid contact with harsh chemicals such as paint remover, bleach, acetone, etc. Avoid contact with hot pans and objects. Repair Kits: Terreon repair kits are available . Contact your Bradley representative or distributor for part numbers and pricing . Repair kits are made to order and have a shelf life of 30 days. -
Page 11: Cleaning And Maintenance
. Many products named are regional in distribution, and can be found in local supermarkets, department and hardware stores, or through your cleaning service . It is emphasized that all products should be used in strict accordance with package instructions . Bradley • 2215-1373 Rev. P; ECN 14-00-006 6/6/2014... -
Page 12: Troubleshooting
. Make a note of the numbers printed on the circuit OPEN VALVE board, then contact your Bradley representative for assistance . CLOSED VALVE Bradley • 215-1373 Rev. P; ECN 14-00-006... - Page 13 Flow Restrictor, .5 GPM Solenoid Valve with Circuit Board - Part nos. S07-083S (Closed Body) & S07-083AS) Thru Body Circuit Board (S83-178) Pan Head Screw 6-19 x 3/4" (160-451) Valve Assembly Bradley • 2215-1373 Rev. P; ECN 14-00-006 6/6/2014...
-
Page 14: Troubleshooting
198-014 Check Valve* 132-051 Retaining Ring* 118-319 Valve Body 146-079 U-Clip * Included with Prepack S65-326 Tempered Line Adapter Option Part no. S39-804 (replaces S59-4000 if tempered line is used) Strainer (173-028) Bradley • 215-1373 Rev. P; ECN 14-00-006 6/6/2014...
