EVT1000-BLK
EVENT
SO U ND STAN D
designed by Chris Melia
Inspiration for the design of
the Event Soundstand came
from
contemporary
interior trends blended with
high end materials.
delivers fabulous stereo sound
with real bass and minimal
visual impact.
Simple assem-
bly with minimal fixings is key
to the success of the design.
How to build on YouTube
www.youtube.com/alphasondesigns
Scan this QR
Code with your
smartphone to
watch our
assembly video.
You'll need to
download a QR
reader to your phone
Follow us on:
www.facebook.com/alphasondesigns
www.youtube.com/alphasondesigns
Issue: 003/04/11
Model:
minimal
Event
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Alphason EVT1000-BLK
Summary of Contents for Alphason EVT1000-BLK

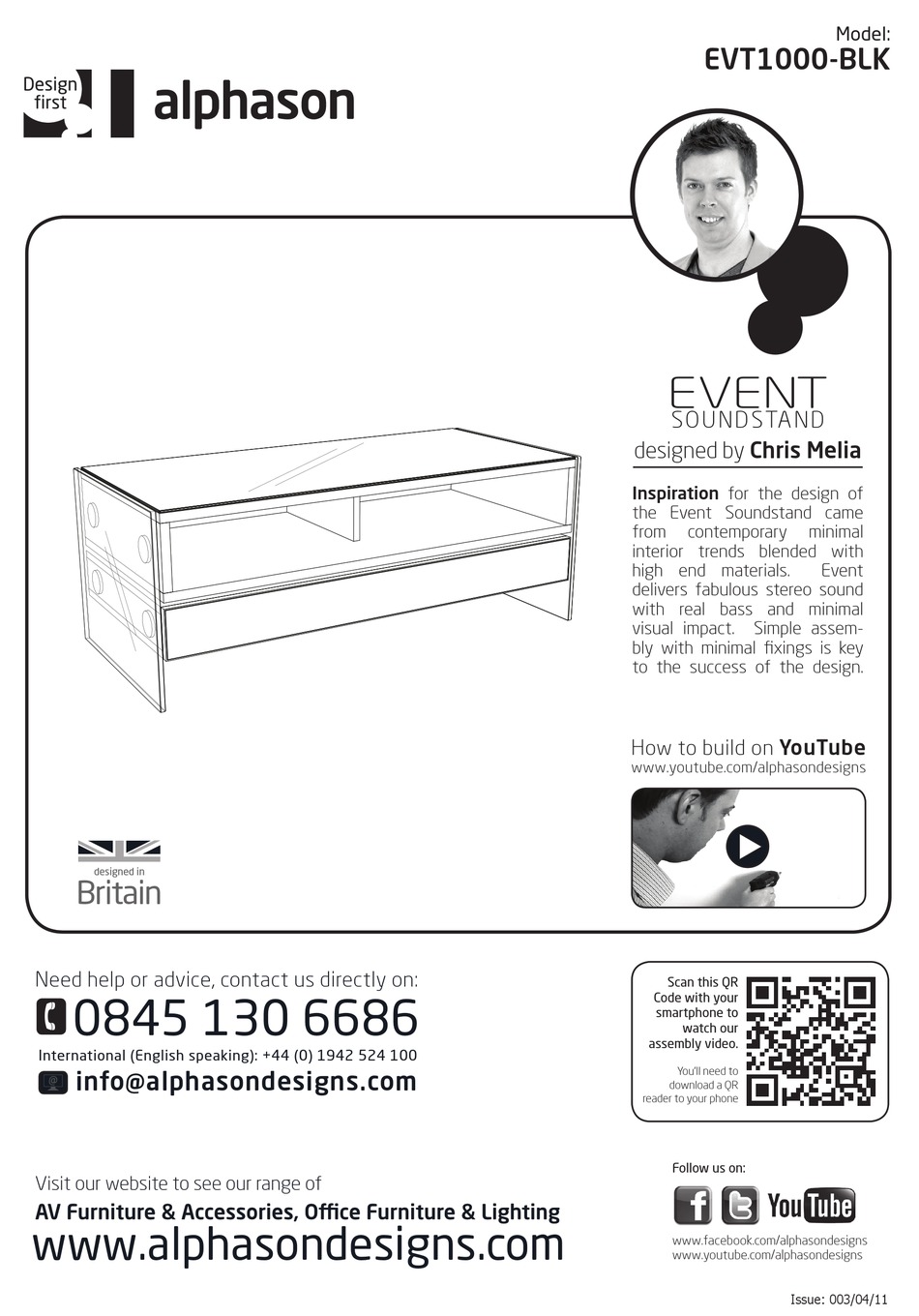

- Page 1 Model: EVT1000-BLK EVENT SO U ND STAN D designed by Chris Melia Inspiration for the design of the Event Soundstand came from contemporary minimal interior trends blended with high end materials. Event delivers fabulous stereo sound with real bass and minimal visual impact.
- Page 2 Should your Event Soundstand stop functioning - DO NOT disassemble or attempt to repair the electronics yourself. This could result in irreparable damage and possible electrocution. Please contact Alphason Designs using the details provided in this manual. The Event Soundstand features roller glides on it’s base to make final adjustments to position easier.
- Page 3 Maximum load for cabinet top shelf is 50Kg. Maximum load for cabinet shelf is 20Kg. Alphason Designs Ltd. accepts no liability for any damage caused through incorrect or inappropriate use of this audio visual support. Need help or advice? Missing/damaged parts...
- Page 4 Maximálne zaťaženie vrchnej police skrinky je 50 kg. Maximálne zaťaženie police kullanımından kaynaklanabilecek herhangi bir zararın sorumluluğunu kabul etmez. Alphason Designs Ltd. erkent geen aansprakelijkheid voor schade als gevolg van skrinky je 20 kg. verkeerd of onjuist gebruik van deze audiovisuele steun.
-
Page 5: Table Of Contents
Contents EVT1000-BLK CONTENTS WHERE TO START How to use this Manual Warranty WHAT’S IN THE BOX 7-13 What’s in the Box Assembly Instruction CONNECTING YOUR EQUIPMENT 14-15 Arena Controls and Connections Your Connections Which Connection? Where? REMOTE CONTROL Remote Control Handset... -
Page 6: Where To Start
Section 8. Warranty Alphason offers a Two Year Warranty on parts and labour from date of purchase. Products must be purchased from an authorised Alphason Dealer and must be returned to that Dealer with proof of purchase for service or repair. Please contact your authorised Dealer for its policy on returns and replacements. -
Page 7: What's In The Box
What’s in the Box EVT1000-BLK WHAT’S IN THE BOX Glass Top Top Panel Left Side Panel Right Side Panel Centre Panel Bottom Panel Back Panel Speaker Cabinet... -
Page 8: What' In The Box
What’s in the Box EVT1000-BLK Right Glass Leg Left Glass Leg Amplifier Metal Dowel x 12 Wooden Dowel x 18 Cam x 12 Short Bolt x 4 Long Bolt x 4 Short Screw x 4 Self-adhesive Pad x 7 Allen Key x 1... -
Page 9: Assembly Instruction
Assembly Instruction EVT1000-BLK Assembly Instruction How to build on YouTube www.youtube.com/alphasondesigns Confused? Call our helpline on: Interested in Alphason products? Visit our website at: Alphason Designs Ltd., Alphason House, 0845 130 6686 www.alphasondesigns.com Swan Lane, Hindley Green, Wigan, WN2 4EY, UK. - Page 10 Assembly Instruction EVT1000-BLK How to build on YouTube www.youtube.com/alphasondesigns Confused? Call our helpline on: Interested in Alphason products? Visit our website at: Alphason Designs Ltd., Alphason House, 0845 130 6686 www.alphasondesigns.com Swan Lane, Hindley Green, Wigan, WN2 4EY, UK.
- Page 11 Assembly Instruction EVT1000-BLK How to build on YouTube www.youtube.com/alphasondesigns Confused? Call our helpline on: Interested in Alphason products? Visit our website at: Alphason Designs Ltd., Alphason House, 0845 130 6686 www.alphasondesigns.com Swan Lane, Hindley Green, Wigan, WN2 4EY, UK.
- Page 12 Assembly Instruction EVT1000-BLK How to build on YouTube www.youtube.com/alphasondesigns Confused? Call our helpline on: Interested in Alphason products? Visit our website at: Alphason Designs Ltd., Alphason House, 0845 130 6686 www.alphasondesigns.com Swan Lane, Hindley Green, Wigan, WN2 4EY, UK.
- Page 13 Assembly Instruction EVT1000-BLK How to build on YouTube www.youtube.com/alphasondesigns Confused? Call our helpline on: Interested in Alphason products? Visit our website at: Alphason Designs Ltd., Alphason House, 0845 130 6686 www.alphasondesigns.com Swan Lane, Hindley Green, Wigan, WN2 4EY, UK.
-
Page 14: Connecting Your Equipment
Connecting Your Equipment EVT1000-BLK SOURCE POWER IR RECEIVER CORNER LINE IN TV IN AUX IN OPTICAL IN DELAY VOLUME WALL FREESTANDING NORMAL CONNECTING YOUR EQUIPMENT Controls & Connections SOURCE SOURCE POWER IR RECEIVER CORNER LINE IN TV IN AUX IN... -
Page 15: Which Connection
Connecting Your Equipment EVT1000-BLK Which Connection? 3.5mm Jack to Jack Stereo Phono to Phono Optical (Not provided) (Mini Jack) Better quality audio Best quality audio The plug and play solution! connection. Volume will be connection. Volume will be Simple connection to the TV... -
Page 16: Remote Control Handset
Remote Control EVT1000-BLK REMOTE CONTROL Important Note In some cases, volume can be controlled by your existing (TV) Remote Control. This option is only available on certain TV’s when connected via the TV’s HEADPHONE OUT and the TV IN. Please see section 5 Your Connections for more details:... -
Page 17: Connections
Connections EVT1000-BLK CONNECTIONS TV In Important Note Do not insert the power cable into an electrical outlet until all other connections have been made. Connect TV using only one of the method in this section. SOURCE POWER IR RECEIVER CORNER... -
Page 18: Line In
Connections EVT1000-BLK Line In Important Note Do not insert the power cable into an electrical outlet until all other connections have been made. SOURCE POWER IR RECEIVER CORNER LINE IN TV IN AUX IN OPTICAL IN DELAY VOLUME Connect TV using only one of the method in this section. -
Page 19: Optical In
Connections EVT1000-BLK Optical In Important Note Do not insert the power cable into an electrical outlet until all other connections have been made. Connect TV using only one of the method in this section. SOURCE POWER IR RECEIVER CORNER LINE IN... -
Page 20: Aux In (External Source)
Connections EVT1000-BLK AUX In (External Source) Important Note SOURCE POWER IR RECEIVER CORNER LINE IN TV IN AUX IN OPTICAL IN DELAY VOLUME Do not insert the power cable into an electrical outlet until all other connections have been made. -
Page 21: Setup
Quick Start Guide EVT1000-BLK SETUP Position Switch There are three preset tone settings designed for certain room configurations. The proximity of the unit to solid walls alters the way the product performs acoustically. Select the most appropriate description for your room position or your preferred sound. -
Page 22: Alternative Connections
Alternative Connections EVT1000-BLK ALTERNATIVE CONNECTIONS If you are not able to connect your TV to the unit as described in section 5, you may find the alternative connection helpful. Aux In (TV) Important Note Do not insert the power cable into an electrical outlet until all other connections have been made. -
Page 23: Aux In (Scart)
Alternative Connections EVT1000-BLK Line In (SCART) Important Note Do not insert the power cable into an electrical outlet until all other connections have been made. Connect TV using only one of the method in this section. SOURCE POWER IR RECEIVER... -
Page 24: Troubleshooting
Troubleshooting EVT1000-BLK TROUBLESHOOTING Sound Indicator Light check Green - Signal being received. Check the volume of your source equipment and the volume of the unit itself if your connecting method uses the Remote Control supplied. Red - No Signal received. Check your audio connections. -
Page 25: Remote Control
Troubleshooting EVT1000-BLK Remote Control Remote control fails to adjust volume Make sure the batteries are inserted correctly Make sure that the TV IN connection is vacant on the control panel Make sure that the SET DELAY switch is set to NORMAL (LED indicator not orange) -
Page 26: Specifications
Specifications EVT1000-BLK SPECIFICATIONS Specifications Description Audio Amplifier Module: Analogue Devices audio processor combined with high efficiency 4 channel class D power amplifier. Full Space Sensitivity: 100 mV for 83.2 dB @ 1m Hi-Fi Quality Sound 2 x 3 driver configured reflex enclosure each channel... - Page 28 Alphason Designs Ltd., Alphason House, Swan Lane, Hindley Green, Wigan, WN2 4EY, UK. www.alphasondesigns.com...
