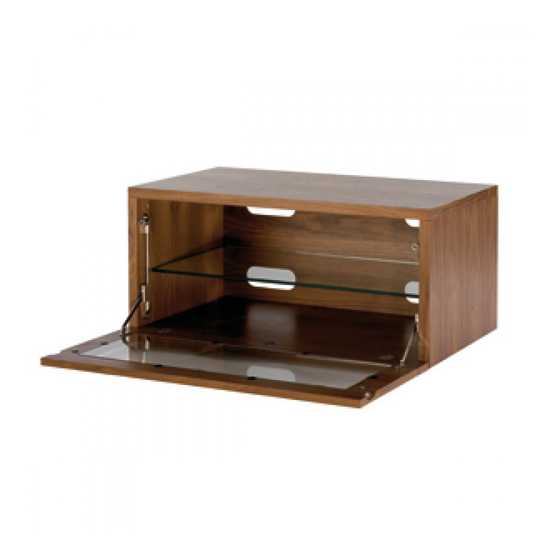

MODEL: ABR800
AV CABINET
ASSEMBLY INSTRUCTIONS
PLEASE NOTE OTHER TOOLS REQUIRED:
BEFORE STARTING THIS
ASSEMBLY PLEASE TAKE TIME
!
A HAMMER
TO FAMILIARISE YOURSELF
WITH THE COMPONENTS
CROSS-HEAD SCREWDRIVER
LISTED ON THE BACK PAGE
Please Note:
Maximum load for this support is 80Kg.
This support must be assembled in accordance with these assembly instructions.
Maximum load for each glass shelf is 60kg.
Alphason Designs Ltd. accepts no liability for any damage caused through incorrect or inappropriate use of this audio visual support.
Alphason Designs Limited
Alphason House, Bolton Road, Atherton, Greater Manchester M46 9AW UK
Tel: +44 (0)1942 885600
Fax: +44 (0)1942 876955
www.alphasondesigns.com
issue
AI-01 09/06
181751
Advertisement
Related Manuals for Alphason Ambri Series
Summary of Contents for Alphason Ambri Series
- Page 1 This support must be assembled in accordance with these assembly instructions. Maximum load for each glass shelf is 60kg. Alphason Designs Ltd. accepts no liability for any damage caused through incorrect or inappropriate use of this audio visual support. Alphason Designs Limited...
- Page 2 All manuals and user guides at all-guides.com STAGE 1 1. 1. • Place base panel on its back edge, on a clean flat surface to avoid scratching. Using screws attach panels to panel • Insert 4X (Minifix cams) into large holes in panel Ensure arrows are pointing to the outside edge of the panel.
-
Page 3: Touch Plate
All manuals and user guides at all-guides.com STAGE 5 • Assemble top panel as shown in the diagram to the left. • Ensure dowel fixings align with corresponding holes in panels • Tighten all cams that were put in place in stage 2. STAGE 6 Position location tape pieces around the rebate in... - Page 4 All manuals and user guides at all-guides.com STAGE 9 • Attach left and right hand flap stays using screws • If adjustment of flap stays is required, this can be achieved by turning grey plastic column shown in fig 9a below. The flap stays may require adjusting;...
-
Page 5: Certificate Of Conformity
All manuals and user guides at all-guides.com MODEL: ABR800 CERTIFICATE OF CONFORMITY COMPONENT DESCRIPTION PACKED BY BASE PANEL (with pre fitted dowels) TOP PANEL LEFT END PANEL RIGHT END PANEL (with pre fitted dowels) BACK PANEL GLASS PANEL FOR DOOR CABINET DOOR GLASS SHELF ROLLER GLIDE PANEL... - Page 6 All manuals and user guides at all-guides.com COMPONENT DESCRIPTION PACKED BY FLAP HINGE 6 x 1/2” SCREW RIGHT HAND FLAP STAY LEFT HAND FLAP STAY TOUCH PLATE 6 X 5/8” SCREW ROLLER GLIDE SHELF PEG 34mm MINIFIX DOWEL MINIFIX CAM PINE TREE CLIP 8 X 1”...
