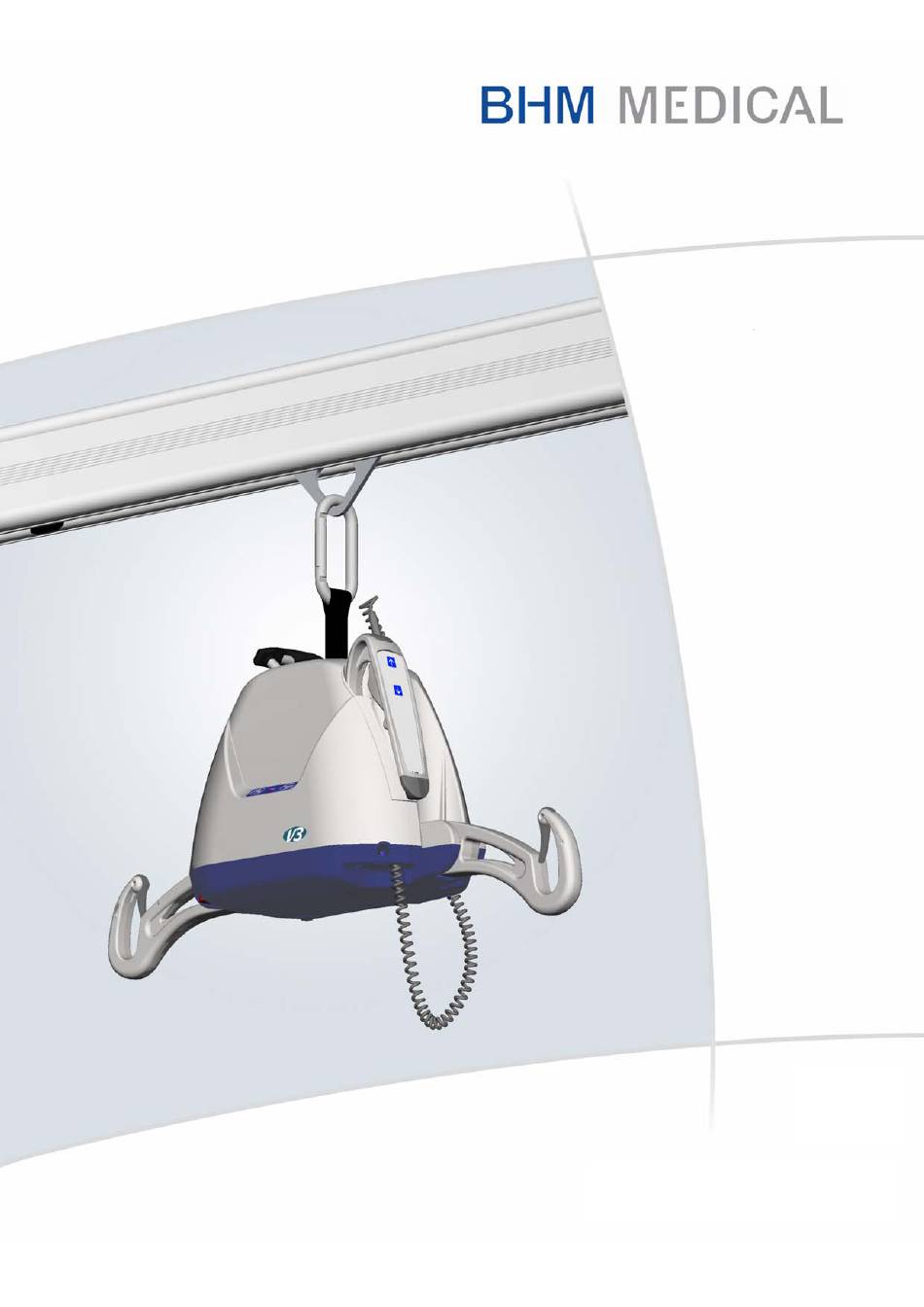

- Page 1 Instructions for Use 001.16000.EN rev. 7 • September 2011...
- Page 2 Printed in Canada BHM Medical Inc. reserves the right to change or discontinue any specifications, design, features, model or accessories shown without notice. TM Trade-mark of BHM Medical Inc. All rights reserved. © BHM Medical Inc., 2010 The content of this publication may not be copied either whole or in part without the consent of BHM...
-
Page 3: Table Of Contents
Human and Environmental Safety Practices ..........11 Battery and Battery Charger Safety Practices ..........11 Equipment Warning Labels ................11 Part Designation ...................... 12 V3 Portable Lift and Charger Station ............. 12 Legend ......................12 Handset ......................13 Slings......................... 14 Compatible Slings ................... - Page 4 Table of Contents Care and Maintenance .................... 22 Inspections by an Authorized Service Technician .......... 23 Daily Checklist ....................24 Inspection and Cleaning ................24 Strap Inspection .................... 24 Handling and Storage ................... 24 Battery Replacement ..................25 Verification of the Charger’s Power Source ..........25 Sling Inspection and Care ................
-
Page 5: General Information
Thank you for purchasing the V3 portable lift from BHM Medical. Please read this manual in its entirety before using your V3. Your V3 is part of a series of The information in this manual is crucial to the proper... -
Page 6: Manufacturer Information
V3’s life span. A transfer is defined as the displacement of a patient from one point to another. A transfer cycle includes a lifting Intended Use and a descending action. -
Page 7: Equipment Identification
WARNING: Do not attempt to use this equipment without fully understanding the information contained in this manual. To ensure the safe operation of the V3, read the entire manual carefully, especially the “Safety Instructions” section, before installing, operating, or servicing this equipment. -
Page 8: Symbols Used
General Information Symbols Used Symbol Key to symbols This symbol is accompanied by the name and the address of the authorized representative in the European Community. This symbol is accompanied by a date to indicate the date of manufacture and by the address of the manufacturer. This symbol indicates the products comply with the medical device directive 93/42/EEC. -
Page 9: Safety Instructions
BHM Medical representative for servicing. Safe Working Load The V3 has been designed with a lifting capacity of 200 kg (440 lb). WARNING: The V3 is intended to be used for patients whose weight is within a specified safe working load. -
Page 10: Important Safety Directions
BHM Medical contractor or installer. specifically designed for KWIKtrak ceiling • The equipment is used by trained staff. rail systems, and BHM Medical slings and accessories. • The track installation will accept a load equal or higher to that of the portable lift. -
Page 11: Fire And Explosion Prevention
Safety Instructions Fire and Explosion Prevention Battery and Battery Charger Safety Practices WARNING: Do not place or store the battery under direct sunlight or near a heat WARNING: Do not expose the battery source. Do not expose the batteries or connector or the battery charger to water. -
Page 12: Part Designation
Part Designation V3 Portable Lift and Charger Station Legend 5) Handset holder 11) D button 6) Handset unit 12) Power cord 1) Emergency lowering tool 7) Support 13) Charger 2) Pass through hook 8) DC charger inlet 14) Emergency shut-off... -
Page 13: Handset
Part Designation Handset The V3’s handset unit is used to operate the portable lift. Each function is described in Fig. 5. The buttons raise or lower the lift. DOWN button DOWN button Fig. 5... -
Page 14: Slings
Slings Compatible Slings Hammock 6 sling Quick Fit sling Hammock sling (THA6-X & THA6I-X) (TIR-X) (THA-X & THAI-X) Hygienic sling Combi sling Walking Sling (THY-X) (62600X-X) (TEM) Limb sling Repositioning sling (300.20005) (624500) -
Page 15: How To Use The V3
How to Use the V3 WARNING: Always read “Safety WARNING: The back of the sling has sewn Instructions” section before operating the handles to allow better positioning for the caregiver and enhancing patient safety. The track must be installed and modified... -
Page 16: Emergency Shut-Off
UP button. around the patient. This may disengage the brake and make 12) When the V3 is no longer required, plug the the patient fall. The emergency lowering portable lift back to the charger. - Page 17 How to Use the V3 Fig. 7...
-
Page 18: Battery Information
NOTE: Connect the charger to the lift when The batteries included in the V3 are 12 VDC, 2.3 Ah the lift is not in use. At minimum, charge the and rechargeable. They provide 10 to 30 transfers per batteries until the light is yellow before battery charge. -
Page 19: Use Of Slings
CAUTION: Do not attempt to use a battery • Grey - Extra Extra Small - XXS not authorized by the manufacturer. The V3 • White - Extra Small - XS and its charging system use specially designed batteries may seriously damage •... -
Page 20: Pass-Through Hook
How to Use the V3 Pass-Through Hook Acceptable Track Configurations The “pass-through hook” feature is an ergonomic PARALLEL AND CENTERED handle serving to transport the lift and a practical way to transfer a patient from one rail to the other without removing the lift or the patient. -
Page 21: Pass-Through Procedure
How to Use the V3 If any of the diagrams under the “Unacceptable 4) Do not stop until the lift has completely Track Configurations” subheading represent your transferred beneath the trolley on the other track. current installation, attempt the pass-... -
Page 22: Preventive Maintenance Schedule
WARNING: Safety related maintenance and authorized service must be carried out by qualified personnel, fully trained in servicing procedures by BHM Medical, and equipped with correct tools. Failure to meet these requirements could result in personal injuries and/or unsafe equipment. -
Page 23: Inspections By An Authorized Service Technician
Load test with SWL (maximum working capacity). WARNING: To avoid injuries that can be attributed to the use of inadequate parts, BHM Medical strongly advises and warns that only BHM Medical designated parts should be used on equipment and other appliances supplied by BHM Medical. Unauthorized modifications on any BHM Medical equipment may affect its safety. -
Page 24: Daily Checklist
Inspection and Cleaning To clean the V3, wipe it down with a damp cloth using NOTE: The manufacturer recommends warm water and a disinfectant cleaner. Disinfectant changing the strap at least every two years wipes, supplied already impregnated with a 70% v/v (see “Care and Maintenance”... -
Page 25: Battery Replacement
Replace the batteries when there is a noticeable Annual Inspection reduction in the number of transfers that can be performed between charges. If you hear the V3 lift The V3 and its accessories must be inspected beeping and notice a red light flashing, see the annually by a qualified technician. -
Page 26: Troubleshooting
Troubleshooting WARNING: Do not attempt to open the V3 portable lift cassette. Only a qualified technician is authorized to open it. Alterations made to the portable lift by someone other than a qualified technician may cause serious injury. Problem To check The red “service”... -
Page 27: Labels On The Lift
Labels on the Lift 1) Product name 2) Serial number label 3) Charger information Fig. 18... -
Page 28: Technical Specifications
WARNING: Radio transmitting devices such as mobile telephones, two-way radios, etc., should never be used near the V3 since they can interfere with the function of the lift. Cables from potentially strong sources of electromagnetic fields should not be placed near the unit. -
Page 29: Lift Dimensions
Technical Specifications Lift Dimensions Fig. 19... - Page 31 Logbook Product Name: Serial Number: Date of Purchase: Warranty Period: Distributed by: TO BE COMPLETED AFTER EACH SERVICE OR INSPECTION Service type: Pre-delivery Periodic inspection Minor Major Condition report: Action taken: Date: Inspected by: dd/mmm/yyyy Block letters Signature ...
- Page 32 Logbook Service type: Pre-delivery Periodic inspection Minor Major Condition report: Action taken: Date: Inspected by: dd/mmm/yyyy Block letters Signature Service type: Pre-delivery Periodic inspection Minor Major Condition report: Action taken: Date: Inspected by: dd/mmm/yyyy Block letters Signature...
-
Page 33: Limited Warranty
This warranty is extended only to the original purchaser/user of BHM Medical products. Subject to the limitations and exclusions hereafter, BHM Medical Inc. warrants its products to be free from defects in material under normal use and service, within the periods stated below from the date of purchase. If within such warranty period any such product shall be proven to be defective, such product shall be repaired or replaced at BHM Medical option. - Page 34 In no event shall BHM Medical’s liability for breach of warranty, or for any delay in the performance of this warranty due to cause beyond the control of BHM Medical, breach of contract, negligence or strict liability exceed the cost of the product covered hereby.
- Page 36 …solutions to life's challenges BHM Medical 2001, Tanguay Magog QC CANADA J1X 5Y5 Phone: 819-868-0441 Fax: 819-868-2249 www.bhm-medical.com MEMBER OF THE GETINGE GROUP...
