Selmo SMART Plus ClassII FP Manual

Selmo
"SMART Plus
Electronic control for towel radiators

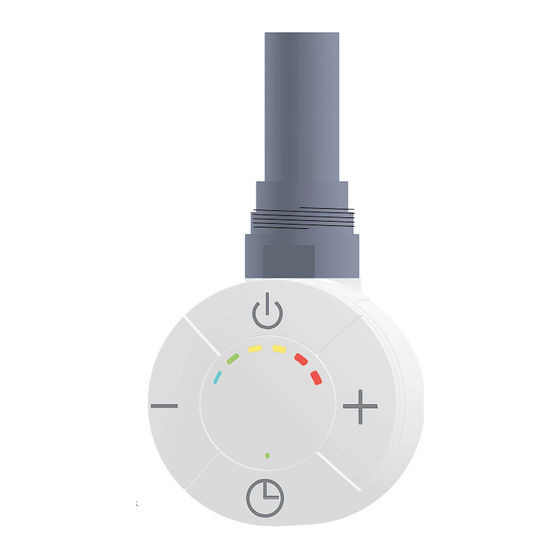

SMART Plus ClassII FP is an electronic
thermostat for the automatic control of electric
towel radiators. The device is capable of detecting
the room temperature and of keeping it to a
desired value by means of a heating element.
Operative modes: Comfort, Boost,
Standby/Antifreeze, Timer12, Timer24, Fil-Pilote.
• "Fil-Pilote" mode: In "Fil-Pilote" mode the
device is remotely controlled by a central control
system supporting the "Fil- Pilote" standard with
up to six commands: Standby, Comfort, ECO,
antifreeze, Eco-1, Eco-2.
• "Boost" mode: In "Boost" mode the heating
element is activated for a period of 2 hours
independently of the configured temperature. The
temperature is however automatically controlled in
order not to exceed 29°C. At the end of the 2 hours
period, the device returns to "Comfort" mode.
• "Timer" mode: The control system enters into "Boost"
mode for 2 hours; after that it returns into "Comfort"
mode for 22 or 10 hours (period configurable by the
user) and then it enters again into "Boost" mode for 2
hours. This sequence is repeated endlessly.
• "Standby/Antifreeze" mode: In this mode the device goes in standby and powers off
the heating element.
SMART Plus ClassII FP is a certified product:
SMART Plus ClassII FP compliant with the following standards:
-Eco-design Directive for Energy-using Products, 2005/32/EC (<0,5W).
-EN 60335-1:2012+A11:2014
-EN 60335-2-43:2003+A1:2006+A2:2008
-EN 61000-3-2:2014 -EN61000-3-3:2013 -EN 62233:2008
-EN 55014-1:2006+A1:2009+A2:2011
Selmo
Electronic
Vi i a Pacinotti, 24 - 35030 Rubano (PD) Italy- Tel +39.049.8976761, Fax +39.049.8976085 -
Comfort technology division
ClassII FP
Available colours: - White
Rel. 04 – October 2015
"
- Chromed
EN
www.selmo.it
