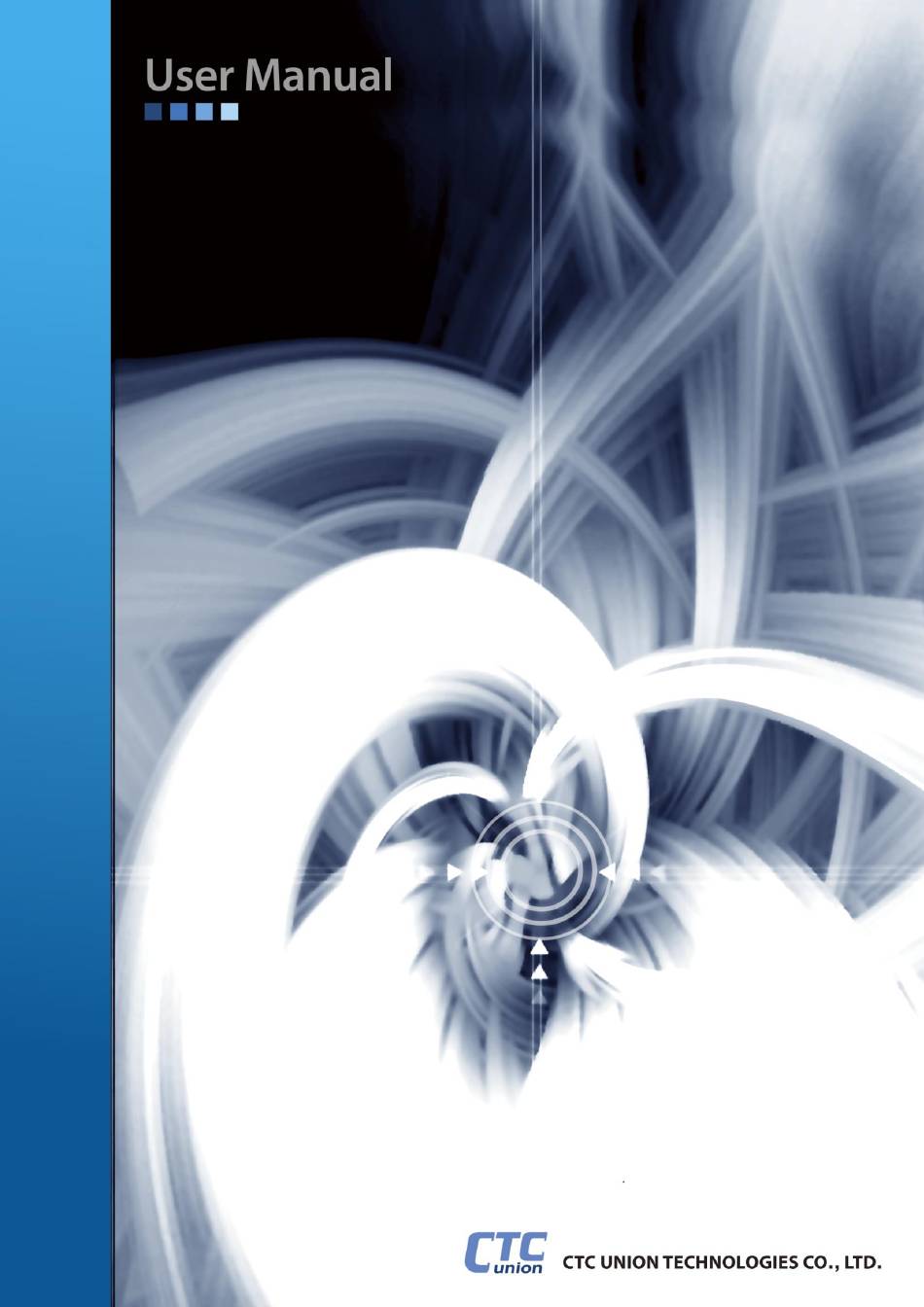

- Page 1 FRM220-CH08 Hardware Installation...
- Page 3 Fiber In-band Managed Media Platform Rack, 8 Slot, 1U Version 1.0 February 7, 2012 (official release) Version 1.1 August 27, 2018 (update) Copyright © 2011~2018, CTC Union Technologies, Inc. All rights reserved. All specifications are subject to change without prior notice.
- Page 4 CTC Union Technologies assumes no responsibility, however, for possible errors or omissions, or for any consequences resulting from the use of the information contained herein. CTC Union Technologies reserves the right to make changes in its products or product specifications with the intent to improve function or design at any time and without notice and is not required to update this documentation to reflect such changes.
-
Page 5: Table Of Contents
Table of Contents Chapter 1 Introduction .................................. 7 1.0 Introduction ..................................7 1.1 Functional Description ................................. 7 1.2 Chassis Front Description ..............................7 1.3 LED Indicators and Alarm Relay ............................8 1.4 Chassis Rear Description ..............................8 1.5 Chassis Physical Dimensions ............................... 8 1.6 Chassis Specifications ................................ - Page 6 Table of Contents...
-
Page 7: Chapter 1 Introduction
SNMP managed chassis. 1.1 Functional Description The FRM220-CH08 is a 1U high 19" Rack, 8 slot modular media converter center. The Modular Media Chassis provides an economic solution for high density Fiber Converter installations in enterprises or central offices. -
Page 8: Led Indicators And Alarm Relay
Chapter 1 Introduction 1.3 LED Indicators and Alarm Relay Color Indication PWR 1 Green When On, indicates good power from module #1 PWR 2 Green When On, indicates good power from module #2 FAN a Green When On, left fan of power module is OK FAN b Green When On, right fan of power module is OK... -
Page 9: Chassis Specifications
1.7 NMC (SNMP) The FRM220-CH08 must be ordered with an NMC Card. The card is placed in the far left, upper card slot. Management is accomplished either via local control on the asynchronous RS-232 port with an ASCII terminal or via Ethernet and any standard SNMP network management software that supports MIB-II. -
Page 10: Chapter 2 Installation
Antistatic mat or antistatic foam to set the equipment on. 2.2 Site Preparation Install the FRM220-CH08 within reach of an easily accessible grounded AC outlet or three wire (-48VDC, Power return, Earth Ground) central office power. The AC outlet should be capable of furnishing 100 to 240 VAC. -
Page 11: Power/Fan Modules Removal/Replacement
Figure 2-2 Power Modules for CH08 2.3.3 Line Card Conversion, Stand-alone/Rack The FRM220 Media Converter Line Card may be mounted in the FRM220-CH08 or CH20 chassis or serve as a stand-alone unit. When installing in the FRM220-CH01 single slot chassis or FRM220-CH02 dual slot chassis, the outer cover holds the line card. -
Page 12: Electrical Installation
Alarm Contacts 125VAC 110VDC 0.6A 30VDC Figure 2-5 Alarm Relay Contacts FRM220-CH08 Programmable alarm relays Alarm 1 Alarm2 Light, Visual Alarm Siren, Audible Alarm Figure 2-6 Example of electrical circuit for visual and audible alarms... -
Page 13: Nmc Card Installation
Chapter 2 Installation 2.6 NMC Card Installation Slot number 1 of the chassis is reserved for the Network Management Controller (NMC). The NMC card provides the full network management features. When the NMC is installed, the rack and all line cards become manageable by industry standard SNMP protocol. -
Page 14: Chapter 3. Management Quick Start
The terminal screen is refreshed every few seconds. By default, no password is set from the factory, so you should immediately see a screen like that below. **************************************** *** CTC UNION TECHNOLOGIES CO., LTD. *** *** FRM220 NMC VER. 5.27 *** **************************************** <1>:SLOT #01 >... -
Page 15: Tcp/Ip Setup
3.3.3 TCP/IP Setup From the main menu, use the 'L' key to enter the 'SNMP System Configuration Setup' menu. An example menu is displayed below. **************************************** *** CTC UNION TECHNOLOGIES CO., LTD. *** *** FRM220 NMC VER. 5.27 *** **************************************** <<... -
Page 16: Telnet Terminal
Chapter 3 Management Quick Start 3.4 Telnet Terminal Use either a Windows® command window or Telnet client application and connect to the FRM220 NMC using the assigned management IP address. The following is an example of a Telnet screen. It is the same as a local serial console screen, only it can be accessed remotely. -
Page 17: Element Management System (Ems)
CTC Union's SmartView™ EMS is a proprietary device management system designed to provision, monitor and maintain multiple equipments designed by CTC Union. It is a client/server architecture using a Windows® based server with Microsoft MS-SQL Server for a database and Java based server and client. The client software can be run on the server or remotely on another physical machine if there is an IP connection between the client and server. - Page 18 Chapter 3 Management Quick Start...
