CTC Union FRM220-CH01 User Manual

Description
FRM220 series product line includes various chassis sizes, which can hold from
one to nineteen FRM220 series line card. FRM220-CH01 is a one-slot chassis,
which is design as a stand-alone unit. There are six types of one-slot chassis
available, FRM220-CH01, chassis with external AC power
adapter, FRM220-CH01/AC, chassis with Internal AC (100~240V) power supply,
FRM220-CH01/DC, chassis with Internal DC (18~75V) power supply,
FRM220-CH01/AD supports both internal AC and DC power supplies,
FRM220-CH01/AA supports internal two 100~240 VAC ±10%, (47~63Hz) power
supplies and FRM220-CH01/DD supports internal two 18~75 VDC power supplies.
Features
■ 1-Slot chassis for FRM220 series slide-in module converter as stand-alone unit
■ Available in six case types: Power adapter, or Built-in
compact AC, DC, AC+DC, AC+AC, DC+DC redundant power supply
■ Perfect ventilation
■ Multiple EMC and EMI standards compliant
s a l e s @ c t c u . c o m

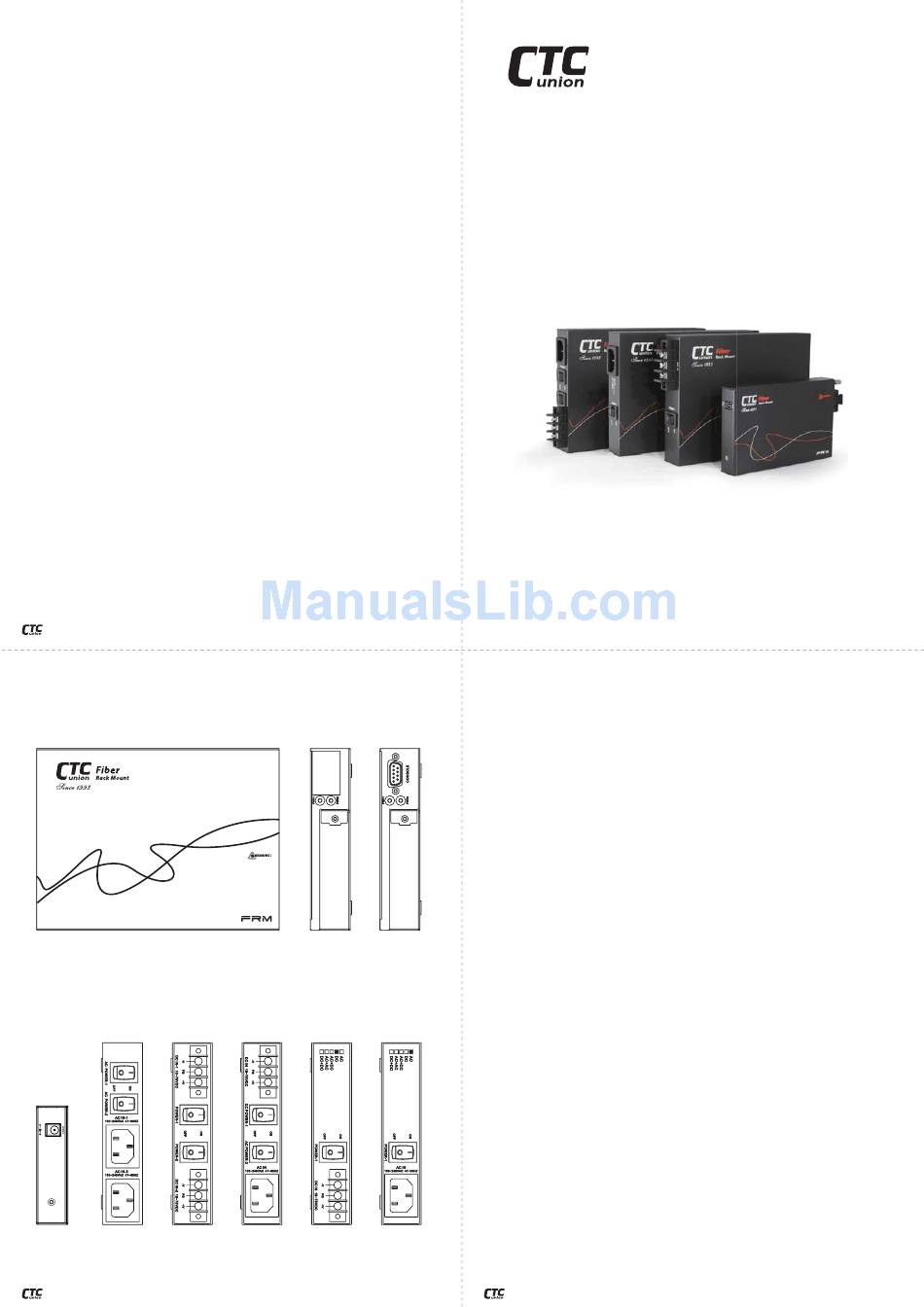

Panel
■
Figure #1. Front Panel of FRM220-CH01
■ Figure #2. Rear Panel of FRM220-CH01
CH01 CH01-AA CH01-DD
AC Adapter
s a l e s @ c t c u . c o m
w w w . c t c u . c o m
CH01 CH01M
CH01-AD CH01-DC CH01-AC
CH01M-AD
w w w . c t c u . c o m
CTC Union Technologies Co., Ltd.
w w w
User Guide
FRM220 1-Slot Chassis
Fiber Converter Chassis
FRM220-CH01
s a l e s @ c t c u . c o m

Specifications

■ Slot Capacity :
1 Slide-in units
■ Power :
- FRM220-CH01: Chassis with external AC Power adapter (12VDC at 1A)
- FRM220-CH01-AC: Chassis with internal 100~240 VAC ±10%, (47~63Hz) power supply
- FRM220-CH01-DC: Chassis with internal 18~75 VDC power supply
- FRM220-CH01-AA: Chassis with internal two 100~240 VAC ±10%, (47~63Hz) power supply
- FRM220-CH01-DD: Chassis with internal two 18~75 VDC power supply
- FRM220-CH01-AD: Chassis with both internal 100~240VAC ±10%, 18~72VDC power supplies
- FRM220-CH01M-AD: Chassis with both internal 100~240VAC ±10%,
18~72VDC power supply with console
■
Operation & Storage Temperature :
Operating Temperature -- -10°C – 60°C
Storage Temperature -- -20°C – 70°C
Humidity -- 10 – 90%
■
Dimension and Weight: ( W x D x H ) mm
- FRM220-CH01 : 88 × 141 × 23 mm
- FRM220-CH01/AC : 135 × 188 × 32 mm
- FRM220-CH01/DC : 135 × 198 × 32 mm
- FRM220-CH01/AD : 135 × 198 × 32 mm
- FRM220-CH01/AA : 135 × 188 × 32 mm
- FRM220-CH01/DD : 135 × 198 × 32 mm
■
Shipping Weight :
- FRM220-CH01 : 358g
- FRM220-CH01/AC : 725g
- FRM220-CH01/DC : 725g
- FRM220-CH01/AD : 770g
- FRM220-CH01/AA : 770g
- FRM220-CH01/DD : 770g
■
Emission / Safety :
FCC Part 15 Class A, CE Mark, RoHS
s a l e s @ c t c u . c o m
. c t c u . c o
- FRM220-CH01M/AC : 135 × 190 × 32 mm
- FRM220-CH01M/DC : 135 × 200 × 32 mm
- FRM220-CH01M/AD : 135 × 200 × 32 mm
- FRM220-CH01M/AA : 135 × 190 × 32 mm
- FRM220-CH01M/DD : 135 × 200 × 32 mm
w w w . c t c u . c o m
m
V.: 1.6
