Mounting location
• The ceiling and wall must be strong enough to support the
monitor and mounting accessories.
• DO NOT install in locations where a door or gate can hit
the unit.
• DO NOT install in areas where the unit will be subjected
to strong vibrations and dust.
• DO NOT install the monitor next to a location where the
main power supply is fed into the building.
• DO NOT install the monitor in a location where people
can easily grab and hang onto the unit or the mounting
equipment.
• Allow for adequate ventilation or provide air conditioning
around the monitor, so that heat can properly dissipate
away from the monitor and from the mounting equipment.
Maintenance
• Periodically check for loose screws, gaps, distortions,
or other problems that may occur with the mounting
equipment. If a problem is detected, please refer to
qualified personnel for service.
• Regularly check the mounting location for signs of
damage or weakness that may occur over time.

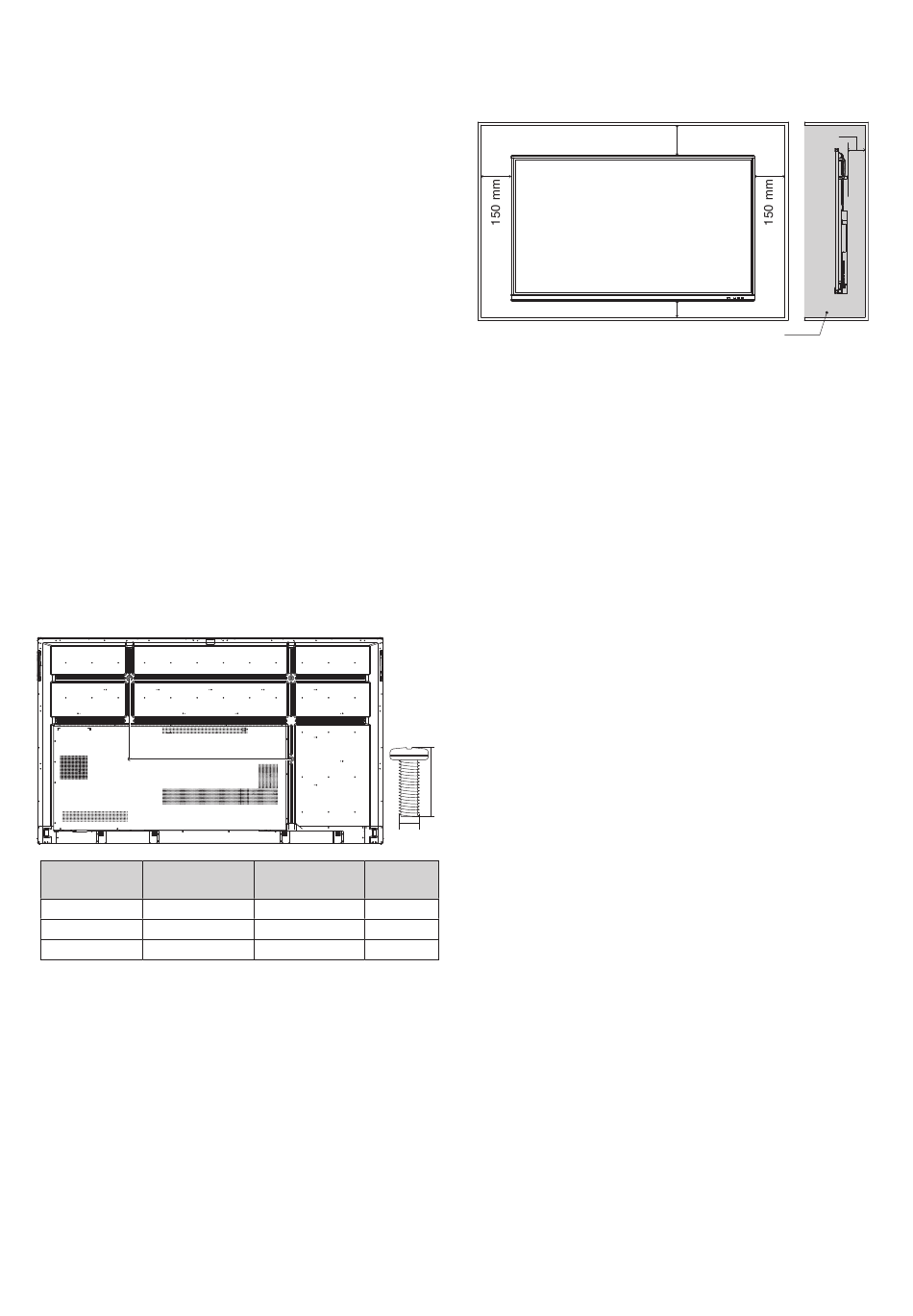

Attaching Mounting Accessories

The monitor is designed for use with the mounting system.
1. Attach Mounting Accessories
Be careful to avoid tipping the monitor when attaching
accessories.
B
A
inch Spec. (A x B)
CB651Q 600 x 400 mm
CB751Q 800 x 400 mm
CB861Q 800 x 600 mm
Mounting accessories can be attached with the monitor in
the face down position. To avoid damaging the front face,
place the protective sheet on the table underneath the LCD
monitor. The protective sheet was wrapped around the LCD
monitor in the original packaging. Make sure there is nothing
on the table that can damage the monitor.
NOTE:
Prior to installation, be sure to place the monitor
on a flat area with adequate space.
C
Standard screw Quantity
(C x D)
M8 x 25 mm 4
M8 x 25 mm 4
M8 x 25 mm 4
English-8
2. Ventilation Requirements
When mounting in an enclosed space or recessed area,
leave adequate room between the monitor and the enclosure
to allow heat to disperse, as shown below.
Must be under 40 Degree Celsius.
Allow adequate ventilation or provide air conditioning around
the monitor, so that heat can properly dissipate away from
the unit and the mounting equipment; especially when you
use monitors in a multiple screen configuration.
NOTE:
The sound quality of the internal speakers will be
different depending on the acoustics of the room.
D
27 mm
150 mm
100 mm
