profi-air
defroster heating DN 125
®
Installation and operating instructions
DRAINAGE SYSTEMS
ELECTRICAL SYSTEMS
BUILDING TECHNOLOGY
INDUSTRIAL PRODUCTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the profi-air Series and is the answer not in the manual?

Questions and answers

Summary of Contents for FRÄNKISCHE profi-air Series

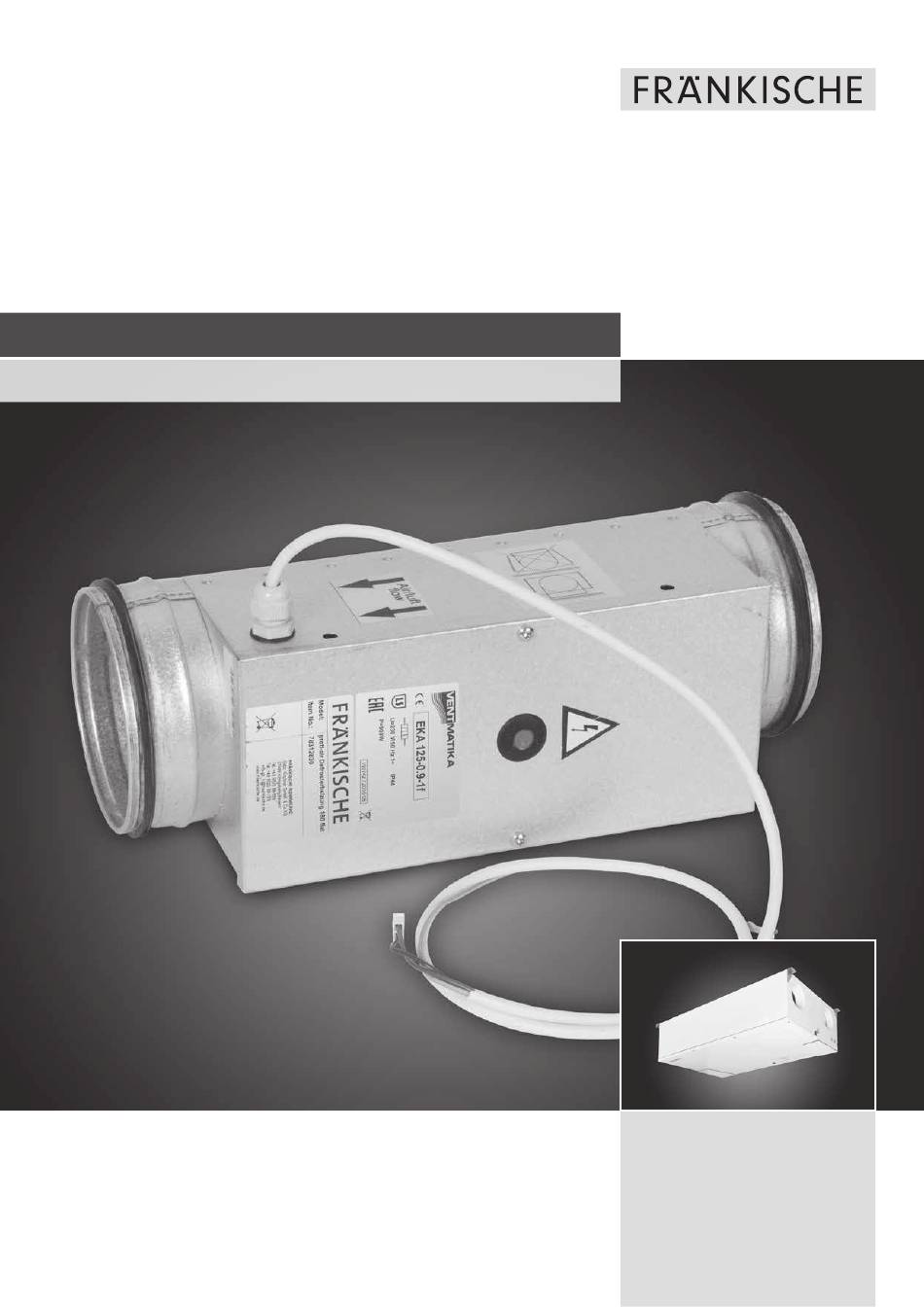

  • Page 1 profi-air defroster heating DN 125 ® Installation and operating instructions DRAINAGE SYSTEMS ELECTRICAL SYSTEMS BUILDING TECHNOLOGY INDUSTRIAL PRODUCTS...
  • Page 2: Table Of Contents

    Table of contents 1 General Introduction Safety 2 Intended use 3 Structure 4 Scope of delivery 5 Technical data Device specifications Dimensional drawing Pressure loss diagram 6 Safety instructions 7 Installation instructions Installation position Installation in the fresh air pipe Installation of the defroster heating Putting into operation 8 Maintenance and cleaning...
  • Page 3: General

    1 General The profi-air defroster heating DN 125 tected against frost without having to ensures that the heat exchanger in the temporarily turn off the supply air fan. profi-air 180 flat ventilation unit is pro- 1.1 Introduction These installation and operating instruc- instructions can also serve as a refer- tions are intended to help you install a ence for service and maintenance work...
  • Page 4: Intended Use

    1 General 1.2.3 Symbols used Risk of personal injury Risk of: damage to equipment errors while operating the device if the instructions are not complied with correctly other material damage Additional notices Reference to other sections and/or guidelines of the manufacturer Disposal instructions 2 Intended use The profi-air defroster heating DN 125 /...
  • Page 5: Technical Data

    5 Technical data 5.1 Device specifications Electrical connection: 1~230 V / 50 Hz; 1 m cable with connector plugs Heating performance: 900 Watt Power consumption: 4.1 A Safety components: 1 x safety temperature monitor 1 x safety temperature limiter integrated into the circuit of the heater coil Air volume flow rate: 70 to 220 m³/h Air pipe connection:...
  • Page 6: Safety Instructions

    6 Safety instructions The device may be used as a The device may only be put into The installation positions specified defroster only and must be installed operation when installed, i.e. with in the installation instructions must in the fresh air pipe of the ventilation connected air pipes.
  • Page 7 7 Installation instructions 7.2 Installation of the fresh air pipe In case of horizontal installation of the defroster heating, a flammable pipe / ventilation unit can be installed downstream of the heater coil. Defroster heating Ventilation unit profi-air iso pipe In case of vertical installation of the defroster heating, a non-flammable pipe with a minimum length of 300 mm must be connected downstream of the heater coil.
  • Page 8 7 Installation instructions 7.3 Installation of the defroster heating The insulation kit included with the delivery is used to insulate the defroster heating. Use the connection cable included with the delivery to establish a direct connec- tion between the defroster heating an the ventilation unit. FRÄNKISCHE MBA profi-air defroster heating...
  • Page 9 7 Installation instructions only if unit vertically mounted nur wenn Geräte vertikal montiert kun hvis aggregat moteret lodret min. 300mm FRÄNKISCHE MBA profi-air defroster heating...
  • Page 10 7 Installation instructions 4 3 2 1 4 3 2 1 Digital input J19 RS – – 4 3 2 1 Digital input J19 RS485 – J4 J6 J7 J21 FACTORY ONLY J16 J17 J 230V Pre- FAN1 FAN2 ByPass jumper FAN1 FAN2 Heater...
  • Page 11: Maintenance And Cleaning

    7 Installation instructions 7.4 Putting into operation The wireless remote control option- ventilation unit is required to put the ally available for the profi-air 180 flat defroster heating into operation. For more information on putting into operation, see the 180 flat wireless remote control operating instructions. 8 Maintenance and cleaning The heating spiral must be regular- period).
  • Page 12: Declaration Of Conformity

    9 Declaration of Conformity EC - Declaration of Conformity Manufacturer: FRÄNKISCHE ROHRWERKE Gebr. Kirchner GmbH & Co. KG Hellinger Str. 1 97486 Königsberg / Germany Phone: +49 9525 88-0 Fax: +49 9525 88-411 Email: info.kbg@fraenkische.de Internet: www.fraenkische.com Product name: Device for air conditioning Type: profi-air defroster heating DN 125 / 180 flat Application:...
  • Page 13: Liability

    10 Warranty Deviating from the applicable GTCs, material and/or construction defects the manufacturer grants a warranty of occurring within the warranty period. 24 months from the time of comple- In case of a warranty claim, the profi- tion of the installation for the profi-air air defroster heating DN 125 may not defroster heating DN 125.
  • Page 14 Notes FRÄNKISCHE MBA profi-air defroster heating...
  • Page 15 Notes FRÄNKISCHE MBA profi-air defroster heating...
  • Page 16 Rooted in Königsberg – globally successful! Our facilities in Europe: Königsberg, Germany (headquarters) Bückeburg, Germany Schwarzheide, Germany Okříšky, Czech Republic St.-Leonards-on-Sea, Great Britain Moscow, Russia Yeles/Toledo, Spain Torcy-le-Grand, France Ebersbach/Fils, Germany Our facilities in Africa: Hermsdorf, Germany Ben Arous, Tunisia Mönchaltorf, Switzerland Casablanca, Morocco Milan, Italy...
