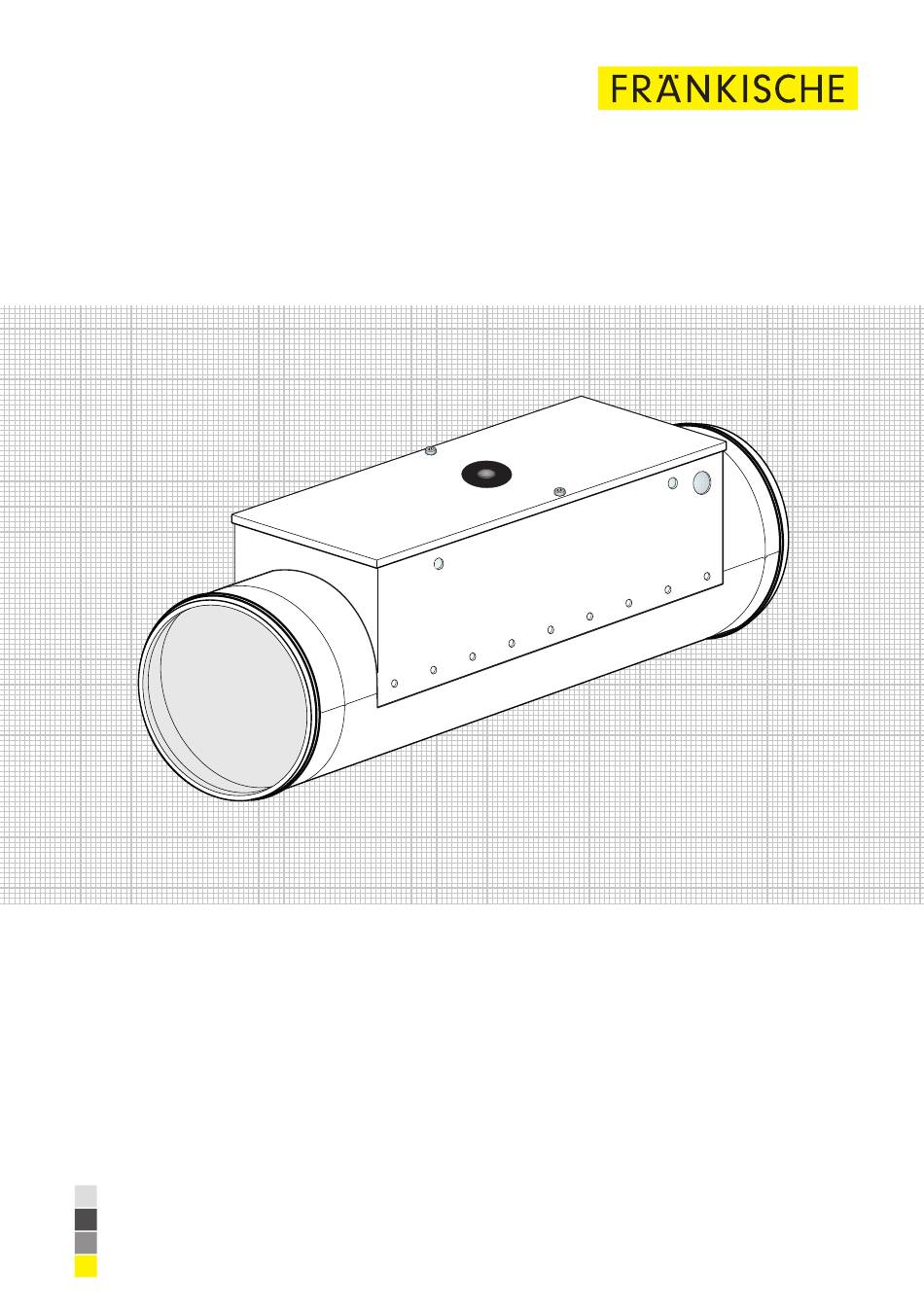

- Page 1 Installation / operating instructions Defroster heating profi-air® DN 125 Building Technology www.fraenkische.com...
- Page 2 Installation / operating instructions – defroster heating profi-air DN 125...
-
Page 3: Table Of Contents
Installation / operating instructions – defroster heating profi-air DN 125 Table of contents 1 General 7 Installation instructions 1.1 Introduction 7.1 Installation position 1.2 Safety 7.2 Installation in the fresh air pipe 7.3 Installation of the defroster heating 2 Intended use 7.4 Putting into operation... -
Page 4: General
Installation / operating instructions – defroster heating profi-air DN 125 1 General The profi-air defroster heating DN 125 ensures that the heat exchanger in the profi-air 180 flat ventilation unit is protected against frost without having to temporarily turn off the supply air fan. -
Page 5: Intended Use
Installation / operating instructions – defroster heating profi-air DN 125 1 General 1.2.3 Symbols used Risk of personal injury Risk of: damage to equipment errors while operating the device if the instructions are not complied with correctly other material damage... -
Page 6: Technical Data
Installation / operating instructions – defroster heating profi-air DN 125 5 Technical data 5.1 Device specifications Electrical connection: 1~230 V / 50 Hz; 1 m cable with connector plugs Heating performance: 900 W Power consumption: 4,1 A Safety components: 1 x safety temperature monitor... -
Page 7: Safety Instructions
Installation / operating instructions – defroster heating profi-air DN 125 6 Safety instructions The device may be used as a defroster only and must be Exercise caution when cleaning the heating spiral – it may installed in the fresh air pipe of the ventilation unit. -
Page 8: Installation In The Fresh Air Pipe
Installation / operating instructions – defroster heating profi-air DN 125 7 Installation instructions 7.2 Installation of the fresh air pipe In case of horizontal installation of the defroster heating, a flammable pipe / ventilation unit can be installed downstream of the heater coil. -
Page 9: Installation Of The Defroster Heating
Installation / operating instructions – defroster heating profi-air DN 125 7 Installation instructions 7.3 Installation of the defroster heating The insulation kit included with the delivery is used to insulate the defroster heating. Use the connection cable included with the delivery to establish a direct connection... - Page 10 Installation / operating instructions – defroster heating profi-air DN 125 7 Installation instructions 7.3 Installation of the defroster heating only if unit vertically mounted nur wenn Geräte vertikal montiert kun hvis aggregat moteret lodret min. 300mm...
- Page 11 Installation / operating instructions – defroster heating profi-air DN 125 7 Installation instructions 7.3 Installation of the defroster heating 4 3 2 1 4 3 2 1 Digital input – – 4 3 2 1 Digital input J19 RS485 –...
-
Page 12: Putting Into Operation
Installation / operating instructions – defroster heating profi-air DN 125 7 Installation instructions 7.3 Installation of the defroster heating Electrical connections must be established by authorised and qualified personnel and in the “dead” state of the ventilation unit only. In addition, applicable local regulations and safety provisions must be complied with. -
Page 13: Declaration Of Conformity
Installation / operating instructions – defroster heating profi-air DN 125 9 Declaration of Conformity EC - Declaration of Conformity Manufacturer: FRÄNKISCHE Rohrwerke Gebr. Kirchner GmbH & Co. KG Hellinger Str. 1 97486 Königsberg / Germany Phone: +49 9525 88-0 Fax: +49 9525 88-411 Email: info.kbg@fraenkische.de... -
Page 14: Warranty
Installation / operating instructions – defroster heating profi-air DN 125 10 Warranty Deviating from the applicable GTCs, the manufacturer grants a warranty of 24 months from the time of completion of the installation for the profi-air defroster heating DN 125. Warranty claims can only be asserted for material and/or construction defects occurring within the warranty period. - Page 15 Installation / operating instructions – defroster heating profi-air DN 125 Notes...
- Page 16 FRÄNKISCHE Rohrwerke Gebr. Kirchner GmbH & Co. KG | Hellinger Str. 1 | 97486 Königsberg / Germany Phone +49 9525 88-2200 | Fax +49 9525 88-92200 | marketing@fraenkische.de | www.fraenkische.com EN.70137/2.02.21 | Subject to change without notice | Cat. no. 5000-1340-00 | 01/2018...
