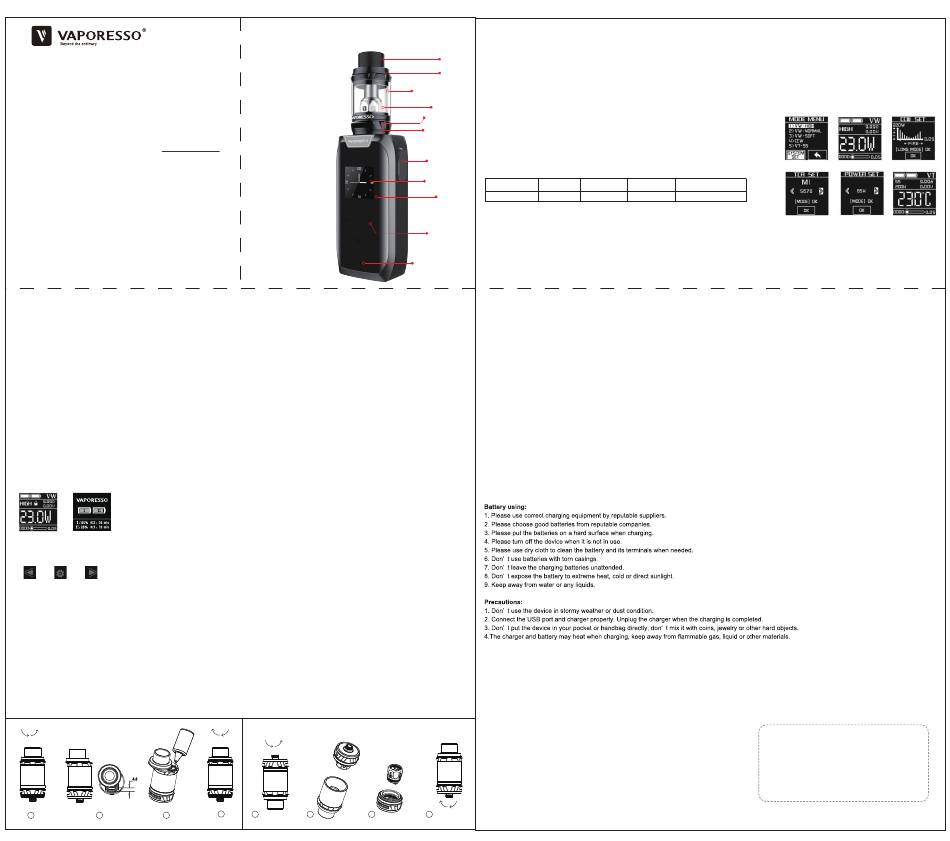

Vaporesso Revenger X Quick Manual

Thank you for choosing Vaporesso Products!
Revenger X, a new member to the Vaporesso Revenger Family, is so immersive
that the device itself disappears into the experience. The mechanical buttons now
give way to a highly responsive touch buttons, bringing out the more integrated look
of the IML interface. Built with OMNI Board 2.2, in additional to all the advanced
settings and output modes, it now has a more friendly UI, easier to navigate for all
vapers. Equipped with NRG tank improved, you will be rest assured enjoying the
flavor and vapor out of the variety of GT cores available.
Say hello to the future and meet our Revenger X！
Please read this manual carefully to ensure proper use. For additional information or
questions regarding to this product or its use, please visit www.vaporesso.com

Main features

● OMNI Board 2.2, DO IT ALL and EASIER
● Immersive and more integrated look, responsive touch buttons
● Revolutionary IML Case, Durable and Environmental Friendly
● Slide-n-Fill Design, Easier Refilling than Ever

Specification:

NRG Tank / NRG Mini Tank
NRG: 5ml / 24.5x56mm / 66 g
NRG Mini: 2ml / 23x47mm / 48g
Specification:
Revenger X Mod
Diameter: 45x89x28mm
Weight: 129g
Output Modes: Smart VW(H/N/S), CCW, CCT,VT(NI,TI,SS),
TCR(M1,M2), RCT, BYPASS
Temperatue Control Range: 100°C-315°C/200F-600F
Output Power: 5-220 Wattage
Display: OLED 0.96"
Resistance range: 0.05Ω-5Ω
Thread: 510 thread
Max Output Current: 50A
Voltage Range: 0 - 9v
Battery Cell: 2x18650 Battery(not included)

How to Use

1.Switch On/Off:
Press the fire button 5 times in quick succession within 2 seconds to turn the device on. In the same way, the device will be powered off after 5 presses.
2.Vaping:
Hold the fire button and inhale through the mouthpiece. Release the fire button and exhale.
3.Screen Display:
After switch on, the OLED displays voltage resistance, battery level, temperature, output wattage etc. And the screen is locked. After switch on, the display will change to Real
Time Clock after 10 seconds if unused and the Real Time Clock will be shut off after 15 minutes if unused. Press "+" or "-" or Mode button once and the screen will be lit with
Real Time Clock display and press "+" or "-" or Mode button again, the screen will be lit with main menu. Press the fire button at any time, the screen will be lit with main menu.
4.Automatic atomizer recognition:
The mod will read the coil's resistance as soon as the connection is detected. It will also recognize coil type, when a kanthal coil is used, the mod will shift from TC to wattage
mode automatically.
5.Adjustment buttons lock/unlock:
The touch buttons always stays at lock status once the home screen switch on. For unlock the touch buttons, please press fire button for 3 times.
For manually lock the touch buttons, please press fire button for 1 time(only works in the home screen interface)
At Lock State RCT
6.Switch vaping modes:
After unlock the touch buttons, press the mode button for three seconds or quick press the mode button for 3 time to vaping modes selected menu and system setting menu.
Down Select Up
7.Charging:
It is with Quick Charge System and equalizing charge system. Simply plug in the USB cable to charge the battery, OLED display current battery level (0%, 20%, 50%, 80%, and
100%) and the Remaining Charging Time to get the battery fully charge. The Remaining Charging Time will be shown in every10 minutes. And the display will remain lit while
charging.
8.Firmware update and customizing:
Can be updated and customized through a simple software that can be downloaded directly from our website. The software will be made to run on Windows systems and will be
available in English. It will also include a "help"sections for urgent questions. The directions on how to use our software will be found on our website and Facebook page.
9.Adjustment of airflow:
The bottom airflow system can be adjusted with slight twisting of the airflow ring.
10.Filling E-liquid:
The Slide-n-Fill design only asks you to slide the top lip counter clockwise to the fullest extend. Fill in juice through the opening and slide the top back.
11.Changing Atomizer:
Remove the base and unscrew the GT Cores and insert the new GT cores onto the base. Secure the base back in place. There are a variety of GT cores available for NRG Tank
series. Please select the GT Cores you desire.
OPEN
1 2 3
Revenger X Kit
Revenger X Kit
Package Include:
1 x Revenger X Mod
1 x NRG Tank with GT8 Core
preinstalled
1 x Extra GT4 Core
1 x Extra Pyrex Glass Tube
1 x USB Charger Cable
Revenger X Mod
Package Include:
1 x Revenger X Mod
1 x USB Charger Cable
Protection Functions
USB Input Protection
Equalizing charge system
Low voltage protection
Output short circuit protection
Low resistance protection
Over-temperature protection
Overcurrent protection
Anti-loaded battery protection
CLOSE
OPEN
4 1 2 3

How to Set the Mode

Quick Guide
1) Smart VW mode:
As an advanced Variable Wattage mode, there are 3 levels of VW: VW-High stands for High; VW-Normal stands for Normal; VW-Soft stands for Soft. The default setting is
Normal. VW(High/Normal/Soft) will guarantee your mod' s ability to skillfully select the adequate average wattage for your atomizer, according to its resistance reading,
Drip tip
automatically.
2) In CCW mode: While on VW mode, using the plus and minus buttons (Ramp up time and consequent performance) to confirm and to implement any modifications to the
Top Lid
wattage line; move on to the next bar with a press of the fire button.When all modifications are final set, please press the mode button to save and exit.
3) In TC-Ni/TC-Ti/TC-SS/TCR(M1, M2) Mode:
Pyrex glass tube
When set in VT-SS/VT-Ni/VT-TI mode, the device can separately support 316 Stainless, Steel Nickel 200,and Titanium coils. The OMNI Board 2.2 allows you to change the start
up wattage under temperate control mode. The default wattage is 75W. You could also adjust the value of the coil within the given range.
GT Cores
In TCR (Temperature Coefficient of Resistance) mode, the device can support different temperature control coils within different TCR value ranges and you can set the TCR at
Air Flow Ring different values within proper range.
The Setting of TCR Mode (M1,M2):
Base
When set in TCR-M1,TCR-M2 mode
1. Press mode button to select the features setting among TCR Set, POWER Set ;
2. Press the up or down button to increase or decrease the TCR value and the power wattage according to the
Power Button
material of the coil you used;
Following are different TCR value ranges for different coils for your reference:
OLED Display
Material Nicle Titanium
IML Case TCR Value Range 600-700 300-400
Note: 1.The TCR value in the sheet is 10 multiplied of the actual TCR.
2.Our total range of TCR value is 1-1000.
Adjust temperature: In TC-Ni/TC-Ti/TC-SS/TCR(M1,M2) mode, temperature can be adjusted from 100-315℃ or 200-600℉ by pressing up button or down button, up button to
Button
Touch
increase and down button to decrease. Each press of the up or down button will increase or decrease the temperature setting by 5℃ or 10℉. Long press up button or down
button can rapidly increase or decrease temperature setting.
Automatic atomizer recognition: To achieve better temperature control effect, the mod will ask the user if the new atomizer is attached. " OLD LOAD: -, NEW LOAD: + " will
appear on the display. If a new atomizer is attached, press " + ", the mod will read new resistance; if not, press " - ", the mod will read at locked resistance.
USB Charging Port
4) In CCT mode:
While on any VT mode, press the mode button to select CCT. using the plus and minus buttons (Ramp up time and consequent performance) to confirm and to implement any
modifications to the temperature line; move on to the next bar with a press of the fire button.When all modifications are final set, please press the mode button to save and exit.
5) In Bypass mode:
Direct output voltage system is applied in Bypass mode. The higher the batterylevel is, the higher the output voltage is. When set in this mode, the device can support a coil
whose resistance is within the range of 0.05-5ohm.
6) Smart ON/OFF:
As an advanced Variable Wattage mode, Smart VW could be switched on and off on the main manual and it does not impact the VW(H/N/S). Enter Smart ON/OFF and press
Yes or NO to confirm.
7) Screen Timeout:
The default timeout setting is 10 seconds of main menu and then switch to Real Time Clock for another 15 minutes. The timeout setting could be adjusted from 3 seconds up to
60 minutes. Enter the Screen Timeout and adjust the time up or down as you wish. For example, if you choose 3 seconds, after 10 seconds of showing the main menu, the
display will be showing 3 seconds of Real Time Clock.
8). Default:
You could reset to default setting by entering Default and pressing YES.
Warning:
When inserting the batteries into the new mod, remember to make sure they are new, and that they are one of a pair. Unevenly charged batteries, used batteries, or non-match-
ing batteries may cause significant delays in charging and affect the performance of the device.
Caution
1. It is intended for usage by people over 18, NOT by non-smokers, children, pregnant or breastfeeding
women, people with or at risk of heart disease, or people taking medication for depression or asthma.
The electronic cigarette is not a smoking cessation device.
2. Please keep this unit out of reach of children or pets;
3. Please don't drop, throw or abuse your Mod,it may cause damage.
4. Do not place it in extremely temperatures;
5. Do not try to disassemble the battery.
This refillable electronic cigarette is intended for use with compatible liquid, which may contain nicotine. Nicotine is an addictive substance and its
use is not recommended for use by the following:
- Non smokers or persons under the legal smoking age
- Pregnant or breastfeeding women
- Persons experiencing heart disease, stomach or duodenal ulcers, liver or kidney problems, long-term throat disease or difficulty breathing due to bronchitis,
emphysema or asthma.
- Persons with an overactive thyroid gland or experiencing phaeochromocytoma (a tumour of the adrenal gland that can affect blood pressure)
- Those taking the medications Theophylline, Ropinirole or Clozapone
You may experience the following side effects if you use nicotine containing
e-liquid in combination with this product. If this happens, please consult a
healthcare professional and show them this leaflet if possible:
- Feeling faint / - Nausea /- Dizziness /- Headache /- Coughing
- Chest palpitationspain or an irregular heart rate /- Irritation of the mouth or throat
- Stomach discomfort /- Hiccups /- Nasal congestion/- Vomition
This device should not be used by persons under the age of 18 or non-smokers.
CLOSE
4
Main
Menu
NiFe SS(303,304,316,317)
300-400 80-200
TCR
Designed in California
Manufacturer:Shenzhen Smoore Technology Limited
Add:Building 8,Dongcai Industrial Park,Gushu Town,
Baoan District,Shenzhen, China 518102
Management System of SMOORE factory has been assessed
and registered under the Norm cGMP, ISO13485, ISO9001
and ISO14001.TM and ©2016 Vaporesso All rights reserved
Smart VW CCW
Power Set VT
