Summary of Contents for Oase InScenio FM-Master WLAN
- Page 1 FM-Master WLAN FM-Master WLAN EGC...
- Page 2 - - FMR0026 FMR0003 FMR0028 FMR0027...
- Page 3 - - FMR0005 FMR0029 FMR0031 EGC0003...
- Page 4 - - FMR0008 FMR0030 FMR0007...
- Page 5 - EN - - EN - Translation of the original Operating Instructions Version of the instructions for use: 3.0 W AR N I N G • This unit can be used by children aged 8 and above and by per- sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand...
-
Page 6: Table Of Contents
Intended use ............................ 49 Installation and connection ......................... 49 Connecting the antenna ........................49 Setting up the InScenio FM-Master WLAN ..................49 Connecting the power supply ......................49 Connecting an EGC-compatible device ..................50 Connect the units to the power supply distributor ................50 Commissioning/start-up .......................... - Page 7 - EN - Maintenance and cleaning .......................... 82 Cleaning the unit ..........................82 Replacing the fuse ........................... 82 Wear parts ..............................82 Spare parts ..............................82 Disposal ............................... 82 Technical data ..............................863 Symbols on the unit ............................865...
-
Page 8: Information About These Operating Instructions
- EN - Information about these operating instructions Welcome to OASE Living Water. You made a good choice with the purchase of this product GA InScenio FM Master WLAN. Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit. -
Page 9: Safe Operation

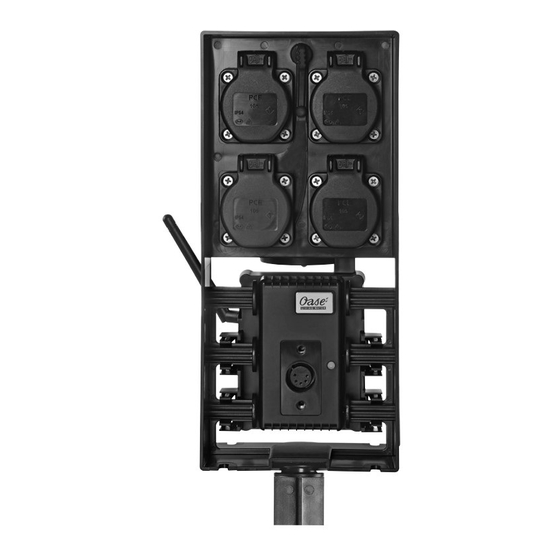

Terminal resistor for the EGC network Product Description InScenio FM-Master WLAN is a device control system with a wireless local area network (WLAN). The con- nected devices can be controlled via a smartphone or tablet and the "OASE FM-Master" app. -
Page 10: Intended Use
Intended use Exclusively use the GA InScenio FM Master WLAN as follows: • Operation only as a power supply distributor for suitable OASE products. • Operation only at ambient temperatures of -20 °C … +45 °C. • Operate in accordance with instructions. -
Page 11: Connecting An Egc-Compatible Device
EGC-OUT so that the EGC network is correctly terminated. – The terminal resistor is included in the delivery scope of the InScenio FM-Master WLAN EGC. Connect the units to the power supply distributor •... -
Page 12: Commissioning/Start-Up
Malfunction Remedy: • Disconnect from the power supply. Wait for 10 seconds then reconnect. • Reset the InScenio FM-Master WLAN to the factory default settings (→ Restoring the factory default settings) • Carry out a Firmware_Update (→ Updating the firmware) Installing the OASE "FM-Master" app... -
Page 13: Establishing A Connection To The Wlan Router (Router/Cloud Mode)
1. Press the WPS button on the router to activate WPS. – Follow the information given in the router operating instructions. – WPS is only active for a limited time. Activate WPS on the InScenio FM-Master WLAN during this time. J On the InScenio FM-Master WLAN EGC: 2. -
Page 14: Establishing A Direct Wlan Connection (Access Point Mode)
Establishing a direct WLAN connection (access point mode) Prerequisite: • The range of the WLAN connection between the router and InScenio FM-Master WLAN can span a distance of up to 80 m provided there is unobstructed signal transmission and no sources of interference. -
Page 15: Operation
• Establish a direct connection with the device (access point) or via a WLAN router. • For changing the network name (SSID) and password. • For updating the firmware. Status of the WLAN connection • ONLINE: Smartphone/tablet is connected to the InScenio FM-Master WLAN. -
Page 16: Adapting The Symbol For The Socket
- EN - • OFFLINE: Smartphone/tablet is not connected to the InScenio FM-Master WLAN. 15:51 System time of the InScenio FM-Master WLAN. • The system time can be updated to the time shown on the operating device. (→ Updating the system time) Dimming the device connected to the bottom left-hand socket •... -
Page 17: Operating A Device With Manual Transmitter
In the case of a device with manual transmitter, the manual transmitter is displayed on the screen. Functions and ease of use are the same. The OASE product name will be displayed at the top right of the screen. The added device can be labelled with an individual name. -
Page 18: Operating The Pump Via Egc
7.1.3 Operating the pump via EGC "Home" screen The OASE product name will be displayed at the top right of the screen. The added device can be labelled with an individual name. FMR0037 Tiles for operation and display of current values. - Page 19 - EN - Seasonal Flow Control (SFC) Only available for pumps supporting this function. The SFC function is described in the in- structions for use of the pump. • Tap "On" or "Off" to switch the SFC function on or off. –...
-
Page 20: Operating Proficlear Units Via Egc
7.1.4 Operating ProfiClear units via EGC "Home" screen The OASE product name will be displayed at the top right of the screen. The added device can be labelled with an individual name. FMR0039 Tiles for operation and display of current values. - Page 21 - EN - Current water temperature in °C • Display only. Number of cleaning cycles in the past 24 hours • The total of the automatic and time-dependent cleaning cycles is displayed. • The value is saved in the filter control system. N O T E : The filter system self-diagnostics monitor automatic cleaning.
- Page 22 - EN - Cleaning time ʺCleaningʺ (CL) This setting changes the duration of the cleaning cycle. If the water does not carry away all dirt, a longer cleaning time is required. This may become necessary if, for instance, very long drain pipes or drain pipes with many bends were installed or there is a particularly large amount of sticky dirt (e.g.
-
Page 23: Operating Profilux Units Via Egc
7.1.5 Operating ProfiLux units via EGC "Home" screen The OASE product name will be displayed at the top right of the screen. The added device can be labelled with an individual name. FMR0054 Tiles for operation and display of current values. - Page 24 - EN - Colour settings The colour is set for all LED lamps. A separate adjustment is not possible. How to proceed: 1. Touch and hold the colour circle for 2 seconds. – A dialogue field will open. 2. Tap the desired colour of a colour circle or swipe across the colour circles to select the co- lour.
-
Page 25: Timer" Screen
- EN - "Timer" screen "Timer" screen FMR0023 24 hour scale (0:00 … 24:00) Time axis for display of the programmed timer. • A time axis is assigned to each socket. • Programmed timers are represented as green bars on the time axis. •... -
Page 26: Adding A Timer
- EN - 7.2.1 Adding a timer "Timer" screen FMR0024 How to proceed: 1. Touch the touch symbol of the desired socket or touch an unassigned area on the time axis and hold. – A new timer will be displayed. 2. -
Page 27: My Devices" Screen
- EN - Deleting a timer How to proceed: 1. Touch and hold the desired timer. – The timer is displayed. 2. Touch to delete the programmed timer. – A query is displayed asking whether only this timer or all programmed timers for the socket are to be de- leted. -
Page 28: Adding An Egc-Compatible Device
– Only EGC devices found by the InScenio FM-Master WLAN in the EGC network can be added. – For information on the device, tap . If the following prompt is confirmed with "OK", the OASE homepage with the relevant product information opens in your browser. -
Page 29: Adding A Device With A Hand-Held Transmitter
2. Select the desired device with a hand-held transmitter in the list. – For information on the device, tap . If the following prompt is confirmed with "OK", the OASE homepage with the relevant product information opens in your browser. -
Page 30: Proficlear Premium Filter - Upgrade To Egc
ProfiClear Premium Filter – upgrade to EGC "My devices" screen To connect a ProfiClear Premium filter with the InScenio FM-Master WLAN, ensure that the control system is EGC-compatible. For older ProfiClear Premium filters this compatibility can be established with a separately available upgrade control system (article number 47723). - Page 31 2. Select the device ″ProfiClear Controller Upgrade″ in the list. – The device can only be added if InScenio FM-Master WLAN has found the device in the EGC network. – For information on the device, tap . If the following prompt is confirmed with "OK", the OASE homepage with the relevant product information opens in your browser.
-
Page 32: Removing A Device
- EN - 7.3.4 Removing a device "My devices" screen Variant 1 How to proceed: 1. Select the device to be deleted in the device list. 2. Tap 3. Confirm the subsequent prompt with "OK". – The device has been removed. Variant 2 How to proceed: 1. -
Page 33: Settings" Screen
– The device makes a wireless network (WLAN) available under the specified network name with which the smartphone/tablet is directly connected. – The network name in the factory default settings is specified on the InScenio FM-Master WLAN on the adhesive label next to the type plate. (→ Establishing a direct WLAN connection (access point mode)) –... - Page 34 Use the button to start the InScenio FM-Master WLAN in router/cloud mode. In this mode, the InScenio FM-Master WLAN is connected to the available WLAN of a router. The smartphone/tablet has to be connected to the same WLAN. (→ Establishing a connection to the WLAN router via WPS (router/cloud mode)) (→ Manually establishing a connection to the WLAN router (router/cloud mode))
-
Page 35: Establishing A Connection To The Wlan Router Via Wps (Router/Cloud Mode)
– WPS is activated. Activate WPS on the WLAN router within 2 minutes. Read the router instructions if ne- cessary. – The connection is established when the LED on the InScenio FM-Master WLAN flashes green slowly (2 seconds on, 1 second off). -
Page 36: Changing The Network Name
– A prompt appears for the device password. 2. Enter a new network name and confirm with "change". – The InScenio FM-Master WLAN gives an acoustic signal to indicate that the password has been suc- cessfully changed. – The WLAN connection to the InScenio FM-Master WLAN is disconnected and restarted. -
Page 37: Activating The Cloud Connection
EGC devices connected to the InScenio FM-Master WLAN EGC can be controlled from anywhere via the OASE web portal. For this the InScenio FM-Master WLAN EGC has to be connected to the OASE cloud and then added to the web portal. The device series number and device password are required for adding the InScenio FM-Master WLAN EGC in the web portal. -
Page 38: Changing The Device Password
When the device password is changed, the InScenio FM-Master WLAN EGC is automatically blocked in the OASE web portal. • The InScenio FM-Master WLAN EGC has to be deleted in the web portal and then added again. The device series number and the new device password are required for this. -
Page 39: Updating The Firmware
Updating the firmware "Settings" screen For a firmware update, the InScenio FM-Master WLAN changes to the firmware update mode and provides a new network. Your smartphone/tablet has to be connected to this network for installing the update. Prerequisites for a malfunction-free firmware update: •... -
Page 40: Resetting The Network Settings
– An acoustic warning signal will sound at short intervals, signalling the deletion of the network settings. – The network settings have been reset when the green LED on the InScenio FM-Master WLAN EGC is lit. – Network name (SSID) and password of the WLAN router are deleted. -
Page 41: Remedy Of Faults
WLAN is interrupted. • The green LED is lit. • The green LED flashes when the WLAN connection is established. The receiver in the InScenio FM-Master WLAN is Contact the OASE service. defective. The "FM-Master" app is outdated. Install the latest version of the "FM-Master"... -
Page 42: Manually Starting The Firmware Update Mode
5. Connect to the power supply again while pressing the reset button. 6. Release the reset button after approx. 2 seconds. – The InScenio FM-Master WLAN is in firmware update mode when the yellow LED is flashing. 7. Use your smartphone/tablet to establish a WLAN connection with the WLAN OASE_UPDATE_XXXXXX or OASE_UPDATE_EGC_XXXXXX. - Page 43 6. Reinsert the plug. Wear parts • Fine-wire fuse, dimmer Spare parts The use of original parts from OASE ensures continued safe and reliable operation of the unit. Please visit our website for spare parts drawings and spare parts. www.oase-livingwater.com/spareparts...
- Page 44 Anschlussspannung Gesamtbelastung Leistung Gesamtbelastung Strom Belastung dimmbare Steckdose Feinsicherung Dimmer Mains voltage Total output, rating Total output, current Load, dimming socket Fine-wire fuse, dimmer Tension de raccordement Charge totale rendement Charge totale courant Densité de courant Prise avec variateur Variateur à fusible pour courant faible Aansluitspanning Max.
- Page 45 Frequenz WLAN / max. Reichweite Frequenz Funksteuerung / max. Reichweite Ausgänge Abmessungen Gewicht WLAN frequency / max. range Wireless control frequency / max. range Outlets Dimensions Weight Fréquence WLAN / portée max. Fréquence radiocommande / portée max. Sorties Dimensions Poids Frequentie WLAN / max.
- Page 46 Schutz gegen das Eindringen Vor direkter Sonneneinstrahlung Nicht mit normalem Hausmüll Lesen Sie die Gebrauchsanlei- von Spritzwasser. schützen. entsorgen! tung Protection against the ingress of Protect from direct sun radia- Do not dispose of together with Read the operating instructions splash water.
