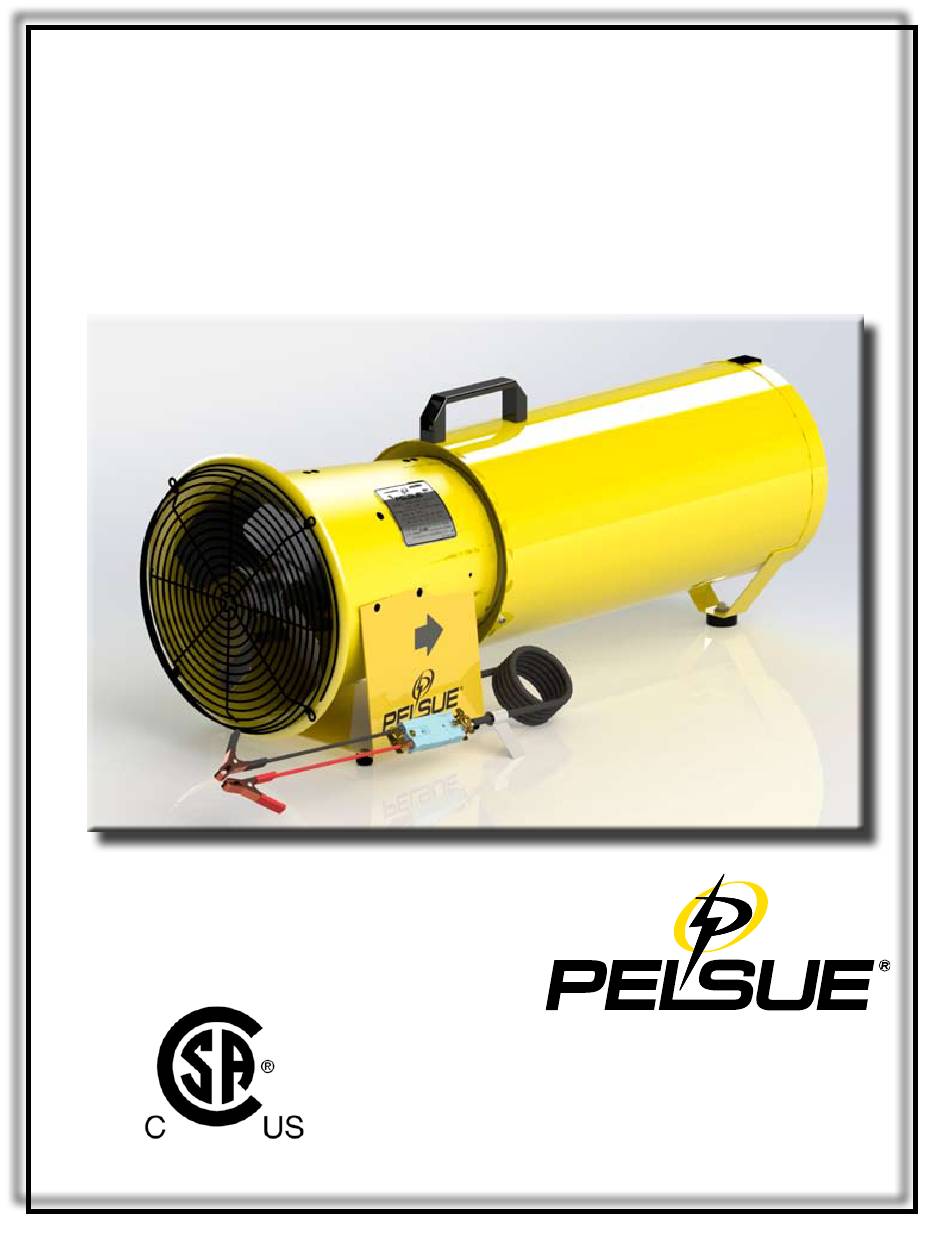

- Page 1 Part #110731-001 Product Manual: Model #1475D & #1485D (12VDC) Axial "AIRPAC" Ventilator IS O 9 0 0 1 Certified T.A. Pelsue Company 2500 South Tejon Street Englewood, Colorado, USA 80110 Tel. 800-525-8460 or 303-936-7432 Fax. 303-934-5581 Internet: www.pelsue.com Email: sales@pelsue.com...
- Page 2 Page 2 #110731-001 Product Manual - Model #1475D & #1485D Axial 'AIRPAC' Ventilator - Revision 05 - Date 03-04-2014...
- Page 3 ISO 90 01 C er t if ied ince our inception in 1963 – the T.A. Pelsue Now, in our second generation of family direction, Company has designed and manufactured high continued commitment to innovation and quality quality equipment to improve the personnel effi-...
-
Page 4: Table Of Contents
Section Description Page # 1.0........... General Information......... 5 1.1........Quality Policy 1.2........Pelsue Product Warranty 2.0........... Introduction & Product Information..7 2.1........Serial Number 3.0........... Configuration & Assembly...... 8 3.1........Parts Diagram & List (1475D & 1485D) 3.2........Parts Diagram & List (Ventilator Assembly) 3.3........ -
Page 5: General Information
THE PART OR SERVICE PROVIDED WAS DESTINED FOR OUR OWN OR OUR FAMILY’S USE. WE WILL ALWAYS THINk QuAlIty FIRSt. EVERY T.A. PELSUE COMPANY EMPLOYEE IS ExPECTED TO COMMIT TO THIS PHILOSOPHY IN THE PERFORMANCE OF HIS OR HER DAILY TASkS. -
Page 6: Pelsue Product Warranty
In the event of failure of any components of a Pelsue product within the warranty period, service must be pre- ... -
Page 7: Introduction & Product Information
2.0 - Introduction & Product Information Congratulations on your choice of a Pelsue Model #1475D & #1485D Axial "AIRPAC" Ventilator to compliment your confined space ventilation operation. This equipment has been designed and manufactured to exceed confined space requirements and regulations in order to meet the needs of the discriminating operator for the efficient and safe opera- tions of personnel in a confined space. -
Page 8: Configuration & Assembly
Model #1475D & #1485D Axial "AIRPAC" Ventilator in the event replacements become necessary. The parts list table displays applicable part numbers, descriptions, and quantity per assembly. **Refer to parts list if replacement parts are required. Replacement parts can be ordered from the T.A. Pelsue Com- pany at 800-525-8460. - Page 9 3.1 - Parts Diagram & List (continued) Figure 3.1a: #1475D & #1485D Parts Diagram Page 9 #110731-001 Product Manual - Model #1475D & #1485D Axial 'AIRPAC' Ventilator - Revision 05 - Date 03-04-2014...
-
Page 10: Parts Diagram & List (Ventilator Assembly)
The parts list table displays applicable part numbers, descriptions, and quantity per assembly. **Refer to parts list above if replacement parts are required. Replacement parts can be ordered from the T.A. Pelsue Com- pany at 800-525-8460. Item Number Part Number... -
Page 11: Parts Diagram & List (Hose & Canister Assembly)
Hose & Canister Assembly in the event replacements become necessary. The parts list table displays applicable part numbers, descriptions, and quantity per assembly. **Refer to parts list above if replacement parts are required. Replacement parts can be ordered from the T.A. Pelsue Company at 800-525-8460. -
Page 12: Parts Diagram & List (Adapter Sub Assembly)
Adapter Sub Assembly in the event replacements become necessary. The parts list table displays applicable part numbers, descriptions, and quantity per assembly. **Refer to parts list below if replacement parts are required. Replacement parts can be ordered from the T.A. Pelsue Company at 800-525-8460. -
Page 13: Safety
You are responsible for the safe operation of your Pelsue #1475D & #1485D Axial "AIRPAC" Ventilator. You must ensure that anyone who will operate or work around the equipment be familiar with confined space ventilation procedures. This manual will take you step-by-step through the workings and capabilities of the #1475D &... -
Page 14: General Safety Information
4.2 - General Safety Information Safety Precautions: It is necessary to follow these safety precautions, each time, prior to using the product. The Safety Precautions is not limited to, but must include the following items; Do not use the Ventilator for anything other than its intended use. Do not wear loose clothing that can become entangled in operating machinery. -
Page 15: Product Operation
15 to 18 amps. ! Many automotive power ports & cigarette lighter outlets are not rated for the required 15 amp draw, the T.A. Pelsue Company is not liable to any damage incurred when connecting the blower to an under- rated 12VDC power supply source! Axial "AIRPAC"... -
Page 16: Start-Up & Operating Procedures
It is necessary to perform a visual inspection, each time, prior to using the product. If deficiencies are found, remove the product from service and contact the T.A. Pelsue regarding repair. The following checklist coupled with Figure #5.2a should be used as a guide to determine whether the equipment is in good operating condition prior to usage. Equipment that is not in good condition can endanger the safety of the entrant and attendant during use. - Page 17 Pelsue Air Flow Alarm (#FLO-CHEk) in order to alert the entrants that positive ventilation is lost. The Axial ventilator can also be used in conjunction with a Pelsue Airpac that connects to the ventilator and has storage built-in for the hose.
- Page 18 Notes Page 18 #110731-001 Product Manual - Model #1475D & #1485D Axial 'AIRPAC' Ventilator - Revision 05 - Date 03-04-2014...
- Page 19 Notes Page 19 #110731-001 Product Manual - Model #1475D & #1485D Axial 'AIRPAC' Ventilator - Revision 05 - Date 03-04-2014...
- Page 20 T.A. Pelsue Company 2500 South Tejon Street, Englewood, Colorado, USA 80110 Toll free 800-525-8460 or 303-936-7432 Fax. 303-934-5581 ISO 90 0 1 Certified Internet: www.pelsue.com Email: sales@pelsue.com...
