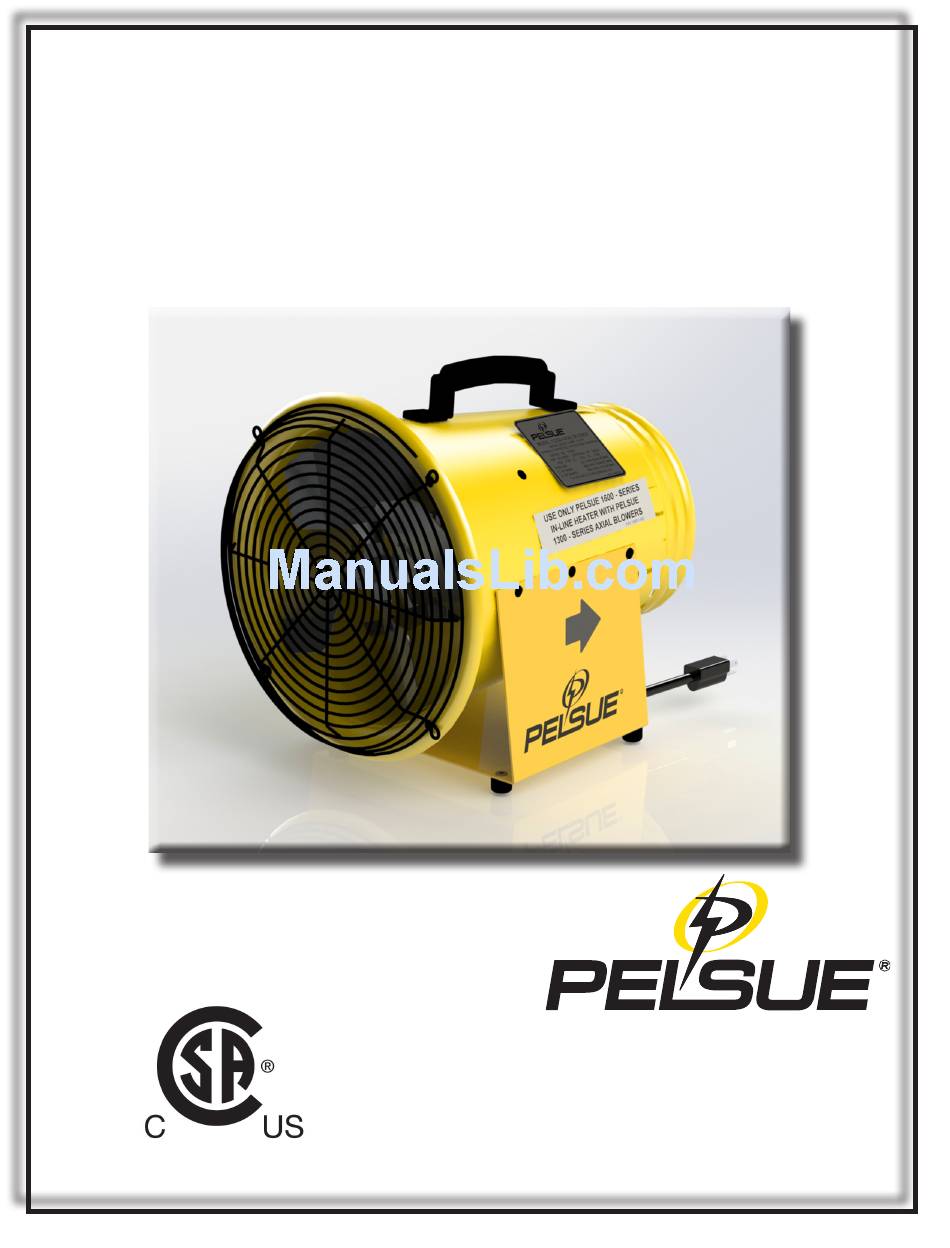

- Page 1 Part #109998-001 Product Manual: Model #1325D Axial Ventilator IS O 9 0 0 1 Certified T.A. Pelsue Company 2500 South Tejon Street Englewood, Colorado, USA 80110 Tel. 800-525-8460 or 303-936-7432 Fax. 303-934-5581 Internet: www.pelsue.com Email: sales@pelsue.com...
- Page 2 Page 2 #109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016...
- Page 3 Pelsue continues the dedication that industry throughout the world. has made us pre-eminent in this field. Page 3 #109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016...
-
Page 4: Table Of Contents
4.0........Safety............11 4.1......Safety Alert Symbol 4.2......General Safety Information 5.0........Product Operation........13 5.1 ......Product Description & Capabilities 5.2 ......Start-Up & Operating Procedures Page 4 #109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016... -
Page 5: General Information
EVERY T.A. PELSUE COMPANY EMPLOYEE IS ExPECTED TO COMMIT TO THIS PHILOSOPHY IN THE PERFORMANCE OF HIS OR HER DAILY TASkS. QUALITY FIRST! T.A. PELSUE COMPANY SENIOR MANAGEMENT TEAM Page 5 #109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016... -
Page 6: Pelsue Product Warranty
In the event of failure of any components of a Pelsue product within the warranty period, service must be pre- ... -
Page 7: Introduction & Product Information
2.0 - Introduction & Product Information Congratulations on your choice of a Pelsue Model #1325D Axial Ventilator to compliment your confined space ven- tilation operation. This equipment has been designed and manufactured to exceed confined space requirements and regulations in order to meet the needs of the discriminating operator for efficiency and safety during confined space entry operations. -
Page 8: Configuration & Assembly
3.0 - Configuration & Assembly Upon initial receipt of the #1325D Axial Ventilator, inspect the packaging for any evidence that the product may have been damaged in shipment. While unpacking the product, inspect all of the components for damage. If damage to any of the components is discovered, Alert the shipping carrier immediately of the damage to the shipment. - Page 9 3.1 Parts Diagram & List (continued) Figure 3.1a: #1325D Parts Diagram Figure 3.1b: #110002-010 Parts Diagram Page 9 #109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016...
-
Page 10: Wiring Diagram
370 VAC, 60 HZ (BN) (BK) (BK) (WT) (WT) (GN) (GN) BUTT SPLICE 14/16 (3X) PLUG 120 VAC, 60 HZ Figure 3.2a: #1325D Wiring Diagram Page 10 #109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016... -
Page 11: Safety
You are responsible for the safe operation of your Pelsue #1325D Axial Ventilator. You must ensure that anyone who will operate or work around the equipment be familiar with confined space ventilation procedures. This manual will take you step-by-step through the workings and capabilities of the #1325D Axial Ventilator and alert you to all good safety and operating practices while using the system. -
Page 12: General Safety Information
For Parts & service; t.A. Pelsue Service Department 2500 South Tejon STreet Englewood, Colorado 80110 Phone: 800-525-8460 or 303-936-7432 Fax: 303-934-5581 www.pelsue.com Page 12 #109998-001 - Product Manual - #1325D Axial Ventialtor - Revision 07 - Date: 07-13-2016... -
Page 13: Product Operation
5.1 - Product Description & Capabilities The Pelsue #1325D Axial Ventilator is built with a cold rolled steel housing for exceptional strength and durability. The Pelsue #1325D Axial Ventilator is specifically designed for confined space applications. All specifications, instructions, and procedures provided within this manual or upon Pelsue Specification Documents are based upon and only valid for usage with Pelsue accessories. -
Page 14: Start-Up & Operating Procedures
5.2 - Start-Up & Operating Procedures Prior to Operation, the #1325D Axial Ventilator should be configured and prepared according to the following guide- lines. 1. Pre-Operation Inspection: It is necessary to perform a visual inspection, each time, prior to using the product. If deficiencies are found, remove the product from service and contact the T.A. - Page 15 Ensure that the Ventilator provides positive airflow the entire time during usage. The axial Ventilator can be used with an accessory Pelsue Air Flow Alarm (FLO-CHEk) in order to alert the entrants that positive ventilation is lost. 1.5 m...
- Page 16 T.A. Pelsue Company 2500 South Tejon Street, Englewood, Colorado, USA 80110 Toll free 800-525-8460 or 303-936-7432 Fax. 303-934-5581 ISO 90 0 1 Certified Internet: www.pelsue.com Email: sales@pelsue.com...
