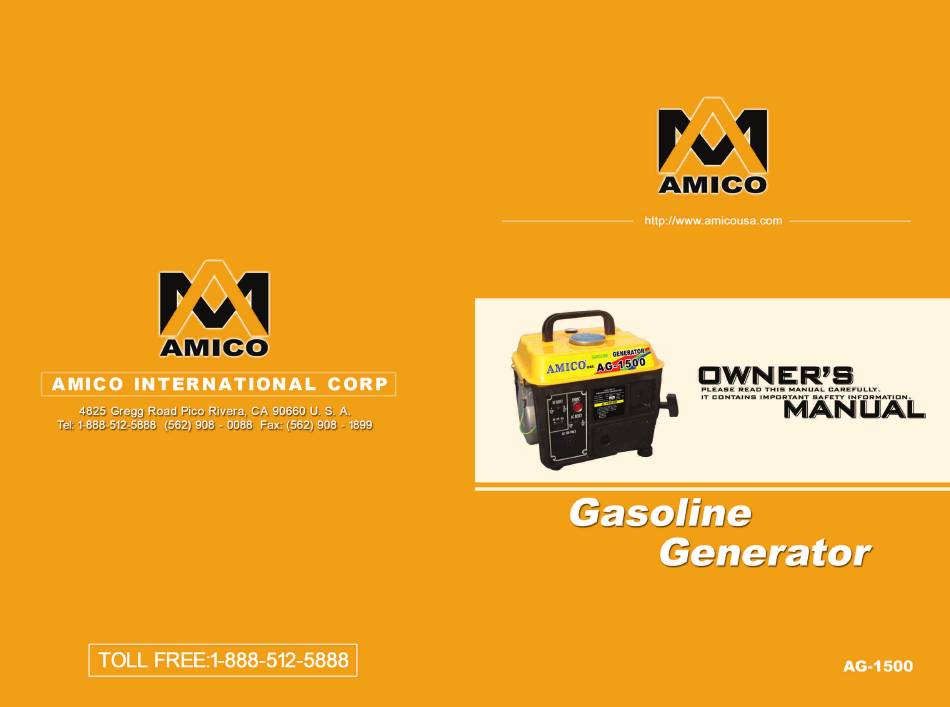

Amico AG-1500 Owner's Manual

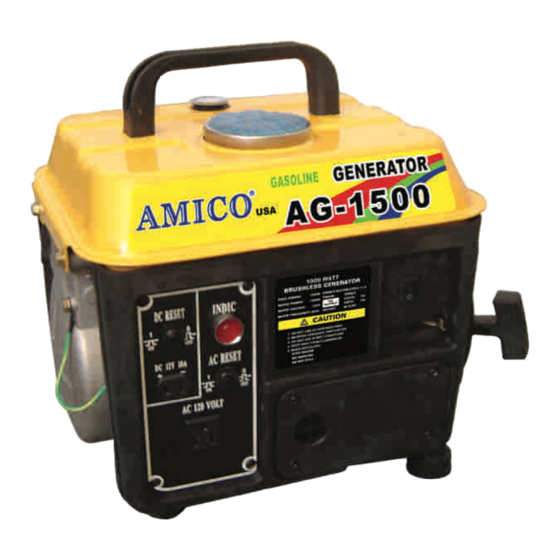

Gasoline generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AG-1500 and is the answer not in the manual?

Questions and answers

juan antonio Reyna reyna acuna
July 29, 2025

Dónde se encuentra el número de serie del generador eléctrico de gasolina amico ah 1500

0

Related Manuals for Amico AG-1500

Summary of Contents for Amico AG-1500

  • Page 2: Table Of Contents

    CONTENTS SAFETY INFORMATION PRE-OPERATION CHECK STARTING THE ENGINE STOPPING THE ENGINE CONNECTION PERIODIC MAINTENANCE APPLICATION RANGE TROUBLESHOOTING SPECIFICATIONS CALIFORNIA AND FEDERAL EMISSION CONTROL WARRANTY STATEMENT DETAIL DIAGRAM CYLINDER AND CYLINDER HEAD AND MUFFLER ASSEMBLY PANEL AND CARBURETOR ASSEMBLY STARTER AND IGNITION ASSEMBLY CRANK AND CONNECTING ROD AND PISTON ASSEMBLY FUEL TANK ASSEMBLY ALTERNATOR ASSEMBLY...

  • Page 3: Safety Information

    1.SAFETY INFORMATION EXHAUST FUMES ARE POISONOUS Never operate engine indoors FUEL IS HIGHLY FLAMMABLE. Stop engine when refuelling. No Smoking while refuelling. Take care not to spill fuel. Never operate in wet weather conditions. Never place near inflammables. Never touch with wet hands.
  • Page 4 Ground (earth ) generator. DO NOT connect to commercial power outlet. DO NOT connect to another generator.

  • Page 5: Pre-Operation Check

    2.PRE-OPERATION CHECK Fuel tank capacity:4L Use oil-mixed petrol Do not make fuel reach the top of fuel filter. How to make mixed petrol: Petrol and oil mixing Ratio:50:1...
  • Page 6 Use fuel tank cap to measure as: 1.(L):0.02 (L) 2.(L):0.04 (L) 3.(L):0.06 (L) 4.(L):0.08 (L) Shake fuel tank before starting.

  • Page 7: Starting The Engine

    3.STARTING THE ENGINE Before starting,DO NOT connect with any electrical appliance. 1.Turn fuel lever to "ON" position. "ON" 2.Turn choke lever to "1"...
  • Page 8 3.Turn engine switch to "ON" "ON" 4.Pull slowy on recoil starteruntil engaged,then pull it briskly. 5. Return choke lever.

  • Page 9: Stopping The Engine

    4.STOPPING THE ENGINE. Before stopping, turn off all electrical appliance. 1.Turn engine switch to"stop" "STOP" 2.Turn fuel lever to "OFF" position. "OFF"...

  • Page 10: Connection

    5.CONNECTION. 1.WIND LEAD 2 OR 3 TURNS AROUND THE HANDLE 2.Start engine. 3.Plug into AC socket. Battery charger (if equipped) Connect red lead (provided as accessory) To positive pole (+) ,and black to negative pole (-)
  • Page 11 SAFETY DEVICES RESET Press to reset AC or DC protector. Reduce load under the top limit of rated output. If AC or DC protector (if equipped) turns off. RESET "On" "Off"...

  • Page 12: Periodic Maintenance

    6.PERIODIC MAINTENANCE Every 50hrs Every 150hrs ITEM REMARKS Every month Every 3 month Remove carbon Adjust gap. Spark plug Replace if necessary. CLEAN Air filter Replace if necessary. CLEAN Fuel filter Replace if necessary. CLEAN Replace the related Carbon Deposits part if necessary.
  • Page 13 SPARK PLUG 1.Remove spark plug. 2.Remove carbon deposits. 3.Check for discolouration. Standard:Tan colour. 4.Check spark plug gap. 0.7~0.8mm (0.028~0.031)
  • Page 14 AIR FILTER 1. Air filter 2.Wash in solvent. 3.Motor oil (SEA#20) 4.Squeeze out. Never run engine without the filter element.
  • Page 15 FUEL FILTER 1.Stop engine. 2.Turn fuel lever to "OFF" 3.Clean with solvent.
  • Page 16 1.Clean in solvent. 2.Wipe off. 3.Insert.

  • Page 17: Application Range

    7.APPLICATION RANGE Appliance AG-1500 Power factor ~900W 0.7~0.8 ~670W ~790W 0.7~0.95 If DC output is equipped Max chargeable 12V/8.3A batterycapacity: 40A.h...

  • Page 18: Troubleshooting

    8.TROUBLESHOOTING ENGINE WON'T START "ON" "ON" 1.Check fuel. (Fuel switch to "ON") 2.Engine switch to "ON" 3.Check spark plug...
  • Page 19 If engine still won't start- Check the following: 1.Fuel cock clogging 2.Air filter clogging Or consult with your dealer.

  • Page 20: Specifications

    9.SPECIFICATIONS AG-1500 Unit AC Output Rated Voltage Frequency AC Current Rated Output 1000 Maximum Output 1200 Operation hours...

  • Page 21: Control Warranty Statement

    Your emission control system may include parts such as the carburetor, ignition, intake and exhaust systems. AMICO INTERNATIONAL CORP. will repair your engine at no cost to you for diagnosis, replacement parts and labor, should a warrantable condition occur.
  • Page 22 Warranty, the ECS Warranty shall apply except in circumstances where the AMICO INTERNATIONAL CORP. Warranty may provide a longer warranty period. Both the ECS Warranty and the AMICO INTERNATIONAL CORP.Warranty describe important rights and obligations with respect to your new engine.
  • Page 23 ECS Warranty claim. AMICO INTERNATIONAL CORP. shall not be held liable hereunder for failures of any warranted parts of a AMICO INTERNATIONAL CORP. engine caused by the use of such an unapproved, add-on, modified, counterfeit and/or "grey market"...

  • Page 24: Detail Diagram

    10.DETAIL DIAGRAM...

  • Page 26: Cylinder And Cylinder Head And Muffler Assembly

    11.CYLINDER AND CYLINDER HEAD AND MUFFLER ASSEMBLY...
  • Page 27 CODE DESCRIPTION QUANTITIES Number AG-1500 AG-1500 AG-1500 bolt LSB06012 Fan cover AG-1500062011 cylinder head nut LMD06 LMB06 cylinder head AG-150001201 spark plug AG-150001100 High voltage set AG-150001101 screw,hexagon LSB06016 gasket,cylinder head AG-150001202 clinder head AG-150001203 screw,pan head LSB06020 muffler assy...

  • Page 28: Panel And Carburetor Assembly

    12.PANEL AND CARBURETOR ASSEMBLY...
  • Page 29 CODE DESCRIPTION QUANTITIES Number AG-1500 AG-1500 AG-1500 LSA06065 screw,pan head AG-1500062011 Panel Pad LSA06065 screw AG-150002300 air cleaner case assem. AG-150002303 Pane Pad cover unit AG-150002304 screw set AG-150002301 air cleaner element LSA06065 screw AG-150002201 carburetor iron gasket LSB06015 bolt,flange...

  • Page 30: Starter And Ignition Assembly

    13.STARTER AND IGNITION ASSEMBLY...
  • Page 31 CODE DESCRIPTION QUANTITIES Number AG-1500 AG-1500 AG-1500 bolt,flange LSB06012 rope,starter AG-150003607 handle,starter AG-150003606 fan cover AG-150003600 spiral spring AG-150003601 sheave drum AG-150003602 driver pawl AG-150003603 spring, drive plate AG-150003604 driver platebolt AG-150003605 bolt LSA06010 flywheel AG-150003300...

  • Page 32: Crank And Connecting Rod And Piston Assembly

    14.CRANK AND CONNECTING ROD AND PISTON ASSEMBLY CODE DESCRIPTION QUANTITIES Number AG-1500 AG-1500 AG-1500 AG-150004001 crank, flywheel AG-150004101 pin, crank AG-150004102 bearing,conrod AG-150004103 connecting rod AG-150004200 crank, PTO AG-150004104 key,woodruff AG-150004105 screw LSA06025 weight stay AG-150004106 bearing,piston AG-150004304 circlip AG-150004301...

  • Page 33: Fuel Tank Assembly

    15.FUEL TANK ASSEMBLY CODE DESCRIPTION QUANTITIES Number AG-1500 AG-1500 AG-1500 AG-150005100 cap assy AG-150005101 seal ring AG-150005001 fuel cup AG-150005002 strainer AG-150005005 Fuel Meter AG-150005004 handle assy PDA06 washer,seal TDA06 washer,spring LSA06030 screw,pan head AG-150005006 fuel tank lsa06012 screw AG-150005201...

  • Page 34: Alternator Assembly

    16.ALTERNATOR ASSEMBLY CODE DESCRIPTION QUANTITIES Number AG-1500 AG-1500 AG-1500 AG-150006100 stator assy AG-150006200 rotor assy AG-150006400 rectifier assy AG-150006300 fan,generator AG-150006001 bearing PDA06 washer,plate TDA06 washer,spring LSB06152 bolt AG-150006002 rear cover AG-150006500 insulator LSB06080 screw,pan head LSB06012 screw,pan head...

  • Page 35: Wiring Diagram

    17.WIRING DIAGRAM...

  • Page 36: Limited Warranty

    Starting batteries are not warranted by AMICO. All transportation cost under warranty including return to the factory if necessary, are to be prepaid by the purchaser. All decisions of AMICO with regard to this limited warranty shall be final.

  • Page 37: Product Registration Card

    PRODUCT REGISTRATION CARD For more efficient customer service, please fill out the information below and mail to our produce Warranty and Registration Division: Amico International Corp. 4825 Gregg Road, Pico Rivera, CA 90660, U.S.A Tel: 562-908-0088 Fax: 562-908-1899 Website: www.amicousa.com Purchase Date.
