Fitness Reality X-Class 710ST Owner's Manual

Smart technology flywheel elliptical trainer
Hide thumbs Also See for X-Class 710ST:
Table of Contents

Advertisement

Quick Links

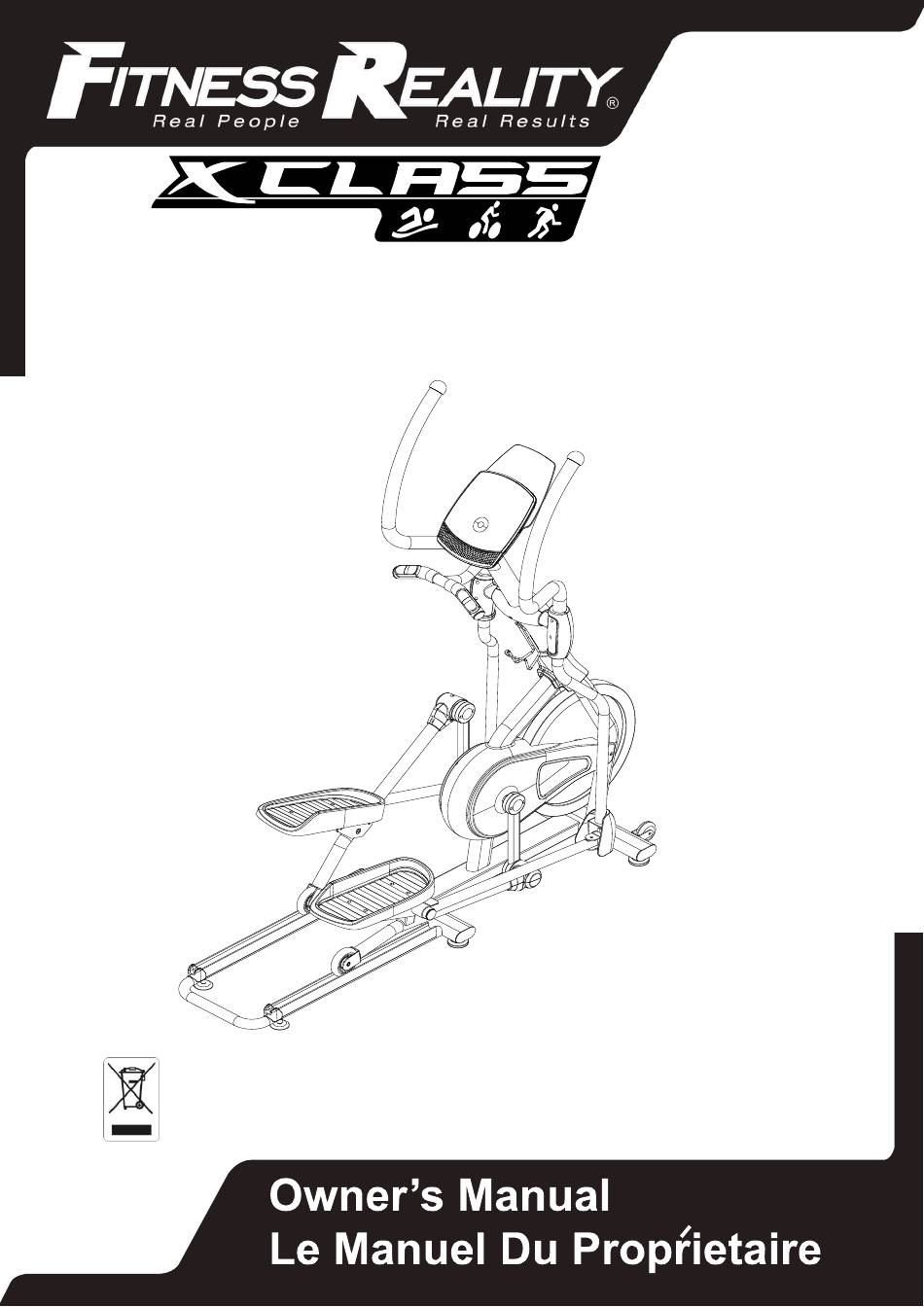

710ST SMART TECHNOLOGY
FLYWHEEL ELLIPTICAL TRAINER
IMPORTANT: Read all instructions carefully before using this product. Retain
this owner's manual for future reference. The specifications of this product
may vary from this photo and, subject to change without notice.
2366.5-121217

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-Class 710ST and is the answer not in the manual?

Questions and answers

Related Manuals for Fitness Reality X-Class 710ST

Summary of Contents for Fitness Reality X-Class 710ST

  • Page 1 710ST SMART TECHNOLOGY FLYWHEEL ELLIPTICAL TRAINER IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and, subject to change without notice. 2366.5-121217...
  • Page 2 PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE. STOP. Contact customer service if you have any questions regarding assembly or proper operation of the machine. Email us at: Service@paradigmhw.com Or call us at: 1-844-641-7920 Hours: 8:00 am to 5:00 pm (PST) Daily...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SERVICE ------------------------------------------------------------------------------------ LABEL PLACEMENTS ------------------------------------------------------------------- IMPORTANT SAFETY GUIDELINES ------------------------------------------------ OVERVIEW DRAWING ------------------------------------------------------------------ PARTS LIST -------------------------------------------------------------------------------- HARDWARE & TOOLS PACK -------------------------------------------------------- ASSEMBLY --------------------------------------------------------------------------------- CONSOLE---------------------------------------------------------------------------------- TRANSPORTING------------------------------------------------------------------------ ADJUSTMENTS-------------------------------------------------------------------------- TROUBLE SHOOTING & MAINTENANCE ---------------------------------------- WARRANTY ------------------------------------------------------------------------------- PARTS REQUEST FORM -------------------------------------------------------------...

  • Page 4: Service

    SERVICE IMPORTANT: FOR NORTH AMERICA ONLY For damaged or defective product, questions, replacement parts or any other service support, please contact our customer service department by the below methods: For The Best Service, please Email: service@paradigmhw.com Response Time: 1-2 Business Days Emailing us with the information above will be the best method to receive a response during peak business hours Website:...

  • Page 5: Label Placements

    LABEL PLACEMENTS...

  • Page 6: Important Safety Guidelines

    IMPORTANT SAFETY GUIDELINES GUIDELINES Read all guidelines before using this machine. When using this machine, basic precautions should always be followed, including the following: WARNING - To reduce the risk of injury to persons: Make sure your equipment is correctly assembled before you use it. Be sure all screws, nuts, and bolts are tightened prior to use.
  • Page 7 IMPORTANT SAFETY GUIDELINES Do not use this equipment if you have any of the following conditions or ailments: • Pregnancy • Extreme obesity • Middle ear infection • Hiatus hernia or Ventral hernia • Glaucoma, retinal detachment or conjunctivitis • Use of anticoagulants including Aspirin in high doses.

  • Page 8: Overview Drawing

    OVERVIEW DRAWING...
  • Page 9 OVERVIEW DRAWING...

  • Page 10: Parts List

    PARTS LIST No. Description No. Description Cross Recessed Pan Head Tapping Rear Stabilizator Screw ST4.2*16 Foot pad Crank Assembly Aluminum Track rail Wave Washer Φ19 Track Tube End cap Nylon Bushing φ38.1*φ19.1*15.38 Tapered Spacer φ11*φ8.2*3.5 Washer Φ6 Hexagon Socket Bolt M8*20 Crank U-Bracket Locknut M8 Upright Post...
  • Page 11 PARTS LIST No. Description No. Description Hexagon Socket Bolt M10*55 Spring Washer Φ8 Hexagon Socket Bolt M10*70 Upright Rubber Ring Left Lower Handle Bar Assembly Upright Cover 57R Right Lower Handle Bar Assembly Cover Pivot Cover Magnet 25.4*12.7*6.4 Hexagon Socket Button Head Bolt Magnet 25.4*25.4*6.35, M8*45 Curve Washer Φ8...

  • Page 12: Hardware & Tools Pack

    HARDWARE & TOOLS PACK...

  • Page 13: Assembly

    ASSEMBLY Tool: Wrench 13,17mm 1PC Step 1 1A. Installing The Front Stabilizer – Lift up the front of the Main Frame (15) and align the holes of the Front Stabilizer (73) with the bracket holes on the Main Frame (15). Ensure that the wheels are facing outwards.
  • Page 14 ASSEMBLY Tools: Multi Hex Tool with Phillips 13,17mm Wrench 1PC Screwdriver 1PC 5mm Allen Wrench 1PC Step 2 2A. Installing The Rear Stabilizer – Lift the Main Frame (15) up and slide the Rear Stabilizer (1) into the curved bracket. Align the holes on the Main Frame (15) and the Rear Stabilizer (1). Insert two Carriage Bolts (13), through the top, and secure with two Washers (12), and two Locknuts (11).
  • Page 15 ASSEMBLY WARNING:DO NOT FULLY TIGHTEN THE BOLTS UNTIL TOLD TO DO SO IN STEP 7. Tool: 6mm Allen Wrench 1PC Step 3 3A. Installing the Upright Cover & Ring – Slide the Upright Rubber Ring (88) and Upright Cover (89) onto the Upright Post (35). Hold the parts above the bolt holes for the steps 3b and 3c. 3B.
  • Page 16 ASSEMBLY Tool: WARNING:DO NOT FULLY TIGHTEN THE BOLTS UNTIL TOLD TO DO SO IN STEP 7. 6mm Allen Wrench 1PC Step 4 4A. Installing the Left & Right Handlebars – Insert a Bushing (76) and Wave Washer (31) onto the ends of the smaller tubes sticking out perpendicular to the Upright Post (35). Attach the Right Handlebar (63R) with one D Washer (114), one Washer (113),one Spring Washer (87) and one Hexagon Socket Bolt (6).

  • Page 17: Aluminum Track Rail

    ASSEMBLY WARNING:DO NOT FULLY TIGHTEN THE BOLTS UNTIL TOLD TO DO SO IN STEP 7. Tools: 6mm Allen Wrench 1PC Step 5 13,17mm Wrench 1PC 5A. Installing the Left Side Lower Handlebar – Ensuring that the lower half curves outwards, install the Left Lower Handlebar (57L) to the Left Handlebar (63L) with three Hexagon Socket Bolts (59), three Curve Washers (60), three Lock Nuts (7).
  • Page 18 ASSEMBLY WARNING:DO NOT FULLY TIGHTEN THE BOLTS UNTIL TOLD TO DO SO IN STEP 7. Tools: 6mm Allen Wrench 1PC 13,17mm Wrench 1PC Step 6 6A Installing The Right Side Lower Handlebar – Ensuring that the lower half curves outwards, install the Right Lower Handlebar (57R) to the Right Handlebar (63R) with three Hexagon Socket Bolts (59), three Curve Washers (60), three Lock Nuts (7).
  • Page 19 ASSEMBLY Step 7 Tightening the Hardware of steps 4, 5, and 6: To ensure smooth and quiet operation of the elliptical do the following: 1. Turn the Flywheel (66) 3 times to allow the parts of steps 3, 4, 5, and 6 to self-align. 2.
  • Page 20 ASSEMBLY Tools: 6mm Allen Wrench 1PC Step 8 8A. Installing The Handlebar – As you are slowly attaching the bracket end of the Handlebar (80) to the Upright Post (35), feed the Pulse Sensor Wires I (111A) through the Upright Post (35) so that it comes out the top of the post.
  • Page 21 ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver 1PC Step 9 9A. Removing the Hardware from the Console – Remove the four Cross Recess Head Screw (78) from the Console (79) with the Multi-Hex Tool with Phillips Screwdriver. 9B. Connecting the Console Wires - As you are lowering the Console (79) connect the main wire coming from the console to the Upright Wire (75) coming out from the Upright Post (35).
  • Page 22 ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver 1PC Step 10 10A. Installing The Handle Bar Shield – Install the left side Front Handle Bar Shield (61A) and Rear Handle Bar Shield (61B) onto the where the joint of the Left Handlebar (63L) is with two Cross Recess Pan Head Tapping Screws (29).
  • Page 23 ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver 1PC Step 11 11A. Installing The Crank Covers – Install the Pivot Covers (58) to the lower portion of the Right Lower Handlebar (57R) and the Left Lower Handlebar (57L) with two Cross Recess Screw Pan Head Tapping Screws (29).

  • Page 24: Main Frame

    ASSEMBLY Step 12 12A. Power Adaptor Installation – Plug the small end of the Transformer (110) into the Wire (109) at the rear of the Main Frame (15). Before plugging in the Transformer (110) into an electrical outlet.

  • Page 25: Console

    CONSOLE 1. Button Functions START： 1. Begins the desired workout. 2. Resumes a paused workout session. STOP： 1. While exercising, press to pause a workout. 2. While paused, press to end the workout. 3. Press and hold for 3 seconds to reset the console.
  • Page 26 CONSOLE GENERAL FUNCTIONS: Use the UP or DOWN buttons to navigate the console options: PROGRAMS, and USERS then press OK to continue through each of the function's options. QUICK START: When the console first turns on you can enter a QUICK START work out by immediately pushing the START button at the main screen.
  • Page 27 CONSOLE CUSTOM: Customized Programs 1. At the main screen use the UP or DOWN buttons to navigate to the “PROGRAMS” selection, then press OK. 2. Use the UP or DOWN buttons to navigate to “CUSTOM”, then press OK to confirm the selection.
  • Page 28 CONSOLE Users: User Selection 1. At the main screen use the UP or DOWN buttons to navigate to the “USERS” selection, then press OK. 2. Use the UP or DOWN buttons to navigate to between User1 through User4 and press OK. 3.

  • Page 29: Transporting

    TRANSPORTING Transporting the Elliptical Hold the Rear Stabilizer (1) and lift up the rear of the machine until the Wheels (72) make contact with the floor. Push or pull the unit to the desired location, then gently lower the Rear Stabilizer (1) and Foot Pads (2) & (108) contact to the ground.

  • Page 30: Adjustments

    ADJUSTMENTS Adjusting the Floor Stabilizers If the machine wobbles when exercising turn the Foot Pads (2) and Foot Pads (108) until they make contact with the ground to level the machine.

  • Page 31: Troubleshooting & Maintenance

    TROUBLESHOOTING & MAINTENANCE TROUBLE SHOOTING PROBLEM: The elliptical wobbles when in use. SOLUTION: Turn the rear stabilizer end cap on the rear stabilizer as needed to level the elliptical. PROBLEM: There is no display on the computer console. SOLUTION: Remove the computer console and verify the wires that come from the computer console are properly connected to the wires that come from the front post.

  • Page 32: Warranty

    WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual.

  • Page 33: Parts Request Form

    PARTS REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO Service@paradigmhw.com NAME:_____________________________________________________________________________________ ADDRESS:__________________________________________________________________________________ CITY:________________________ STATE:_____________ ZIP:_______________________________________ TELEPHONE: (Day)______________________________________________________________________ (Night)_____________________________________________________________________ SERIAL#:___________________________________________________________________________________ MODEL#:___________________________________________________________________________________ PURCHASE DATE:___________________________________________________________________________ PLACE OF PURCHASE:_______________________________________________________________________ PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS” This form can also be faxed to #: 626-810-2166...
