Fitness Reality AIR ELLIPTICAL Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

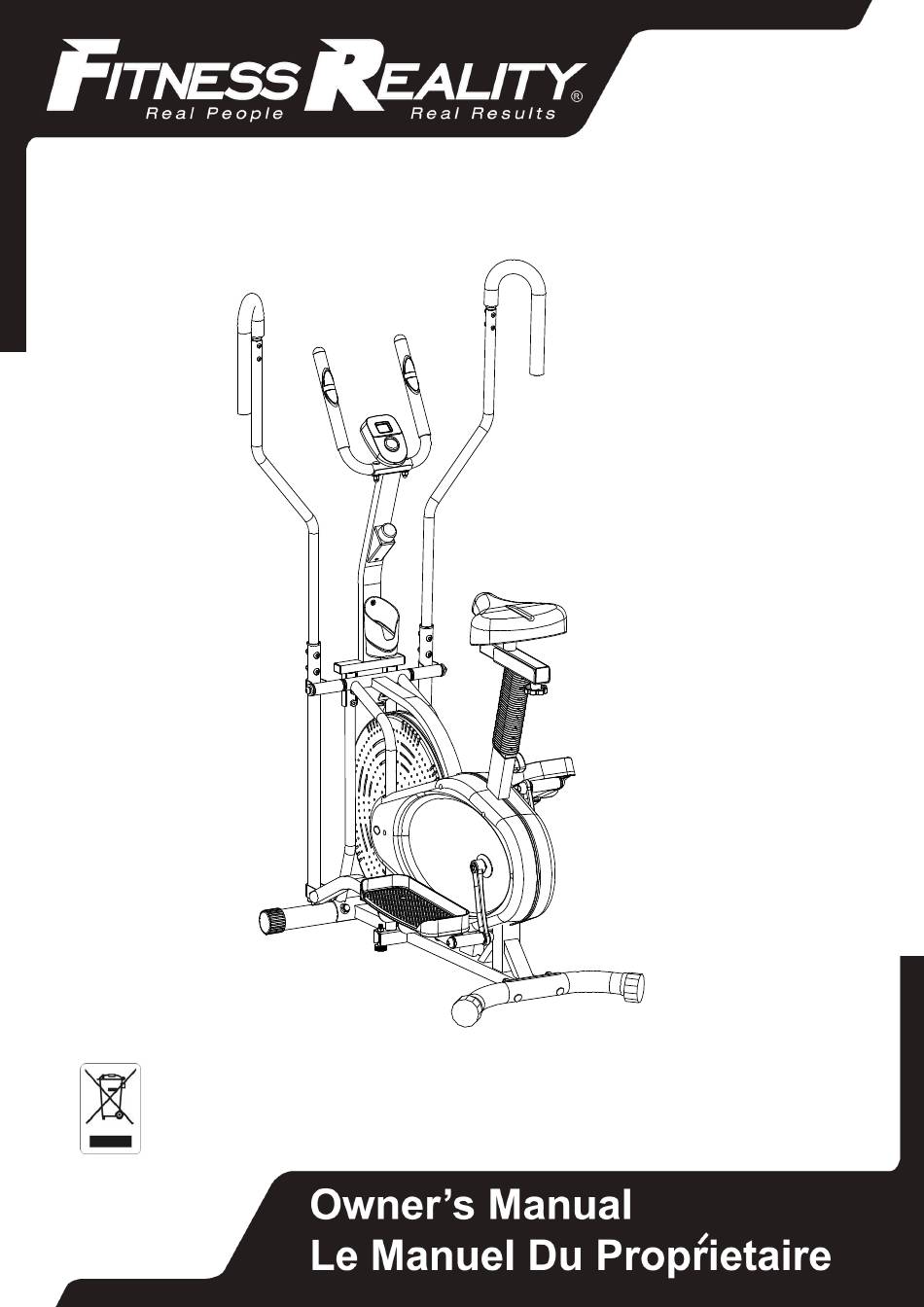

AIR ELLIPTICAL
Read all instructions carefully before using this product. Retain this owner's
manual for future reference.
The specifications of this product may vary from this
photo and, subject to change without notice.
2310.4-080717

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIR ELLIPTICAL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fitness Reality AIR ELLIPTICAL

Summary of Contents for Fitness Reality AIR ELLIPTICAL

  • Page 1 AIR ELLIPTICAL Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and, subject to change without notice. 2310.4-080717...
  • Page 2 PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE. STOP. Contact customer service if you have any questions regarding assembly or proper operation of the machine. Email us at: Service@paradigmhw.com Or call us at: 1-844-641-7920 Hours: 8:00 am to 5:00 pm (PST) Daily...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SERVICE ----------------------------------------------------------------------------------------- LABEL PLACEMENTS ----------------------------------------------------------------------- IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------------- OVERVIEW DRAWING ----------------------------------------------------------------------- PARTS LIST ------------------------------------------------------------------------------------- HARDWARE & TOOLS PACK -------------------------------------------------------------- ASSEMBLY -------------------------------------------------------------------------------------- COMPUTER CONSOLE----------------------------------------------------------------------- TENSION ADJUSTMENT -------------------------------------------------------------------- LEVEL ADJUSTMENT ------------------------------------------------------------------------ USING THE U SHAPE GRAB BARS ----------------------------------------------------- TRANSPORTING THE ELLIPTICAL ------------------------------------------------------ MAINTENANCE --------------------------------------------------------------------------------- TROUBLESHOOTING ------------------------------------------------------------------------...

  • Page 4: Service

    SERVICE IMPORTANT: FOR NORTH AMERICA ONLY For damaged or defective product, questions, replacement parts or any other service support, please contact our customer service department by the below methods: For The Best Service, please Email: service@paradigmhw.com Response Time: 1-2 Business Days Emailing us with the information above will be the best method to receive a response during peak business hours Website:...

  • Page 5: Label Placements

    LABEL PLACEMENTS...

  • Page 6: Important Safety Instructions

    IMPORTANT SAFETY GUIDELINES Read all instructions before using the Elliptical Trainer. When using an Elliptical Trainer, basic precautions should always be followed, including the following: WARNING - To reduce the risk of injury to persons: Make sure your equipment is correctly assembled before you use it. Be sure all screws, nuts, and bolts are tightened prior to use.
  • Page 7 IMPORTANT SAFETY GUIDELINES Do not use this equipment if you have any of the following conditions or ailments:  Pregnancy  Extreme obesity  Middle ear infection  Hiatus hernia or Ventral hernia  Glaucoma, retinal detachment or conjunctivitis  Use of anticoagulants including Aspirin in high doses. ...

  • Page 8: Overview Drawing

    OVERVIEW DRAWING...

  • Page 9: Parts List

    PARTS LIST Description Description Right U Shape Grab Bar 28 Right Nylon Nut 1/2” Ø25x1.8 02 Right Handrail Arm Ø25x1.8 29 Computer Console M1202 U-Shaped Grab Bar Foam Grip Hand Pulse Handlebar End Cap Ø24xØ34x410 Ø25x1.5 Handrail Arm Plastic Bushing 31 Hand Pulse Sensor Ø32x1.5 Hand Pulse Handlebar Foam Grip...
  • Page 10 PARTS LIST Description Description 56 Cap Nut M10 88 Cap Nut 16mm 57 Adjustable Leveler M8x45 89 Small Magnet Ø15x7 58 Nut M8 90 Left Handrail Arm Ø25x1.8 59 Mainframe 91 Crank Cover Ø22 60 Rotation Rod Ø15.8x376 92 Bolt M6x45 61 Rear Stabilizer End Cap Ø50 93 Transport Wheel Ø23xØ6x32 62 Rear Stabilizer Ø50x1.5x550...

  • Page 11: Hardware & Tools Pack

    HARDWARE & TOOLS PACK...

  • Page 12: Assembly

    ASSEMBLY Tool Flat Wrench Step 1 1a. Front Stabilizer Installation: Align the Front Stabilizer (54) onto the front curved bracket of the Mainframe (59). Make sure the arrow is pointing UP on the front stabilizer and that the wheels are positioned toward the front and are parallel off the floor. Insert two Carriage Bolts (52) through the Front Stabilizer (54) holes and attach two Big Curve Washers (55) and two Cap Nuts (56) at the end.
  • Page 13 ASSEMBLY Flywheel Tool 6mm Allen Wrench with Step 2 Phillips Screwdriver 2a. Rotation Rod Lubrication: Use the 6mm Allen Wrench with Phillips Screwdriver provided to remove the following PRE-ASSEMBLED hardware from both ends of the Rotation Rod (60): two Bolts (5), two Spring Washers (6), two Washers (7), and two Wave Washers (22). Put the removed hardware to the side.
  • Page 14 ASSEMBLY Tool Flat Wrench Step 3 3a. Left Foot Bar Installation: Make sure the Left Foot Bar (76) is angled downward for correct installation. Refer to the above illustration. Attach the Left Foot Bar (76) onto the bottom end of the Left Handrail (77) with one Hex Bolt (11) and one Nylon Nut (14).
  • Page 15 ASSEMBLY R for right bolt Tools Important: Installing right bolt into right crank can only be done by turning right (CLOCKWISE). Flat Wrench 8mm Allen Wrench Step 4 4a. Foot Pedal Support Bracket Installation: Attach the Foot Pedal Support Bracket (18) onto the right side of the Right Foot Bar (17) using two Bolts (23), two Washers (24), and two Nylon Nuts (25).
  • Page 16 ASSEMBLY Figure F NOTE: Look to Figure F for the correct installation of the Right Crank Bolt (21). Keep the bolt perfectly straight when the bolt goes through the Right Foot Bar (17), and is being screwed into the Right Crank (26). If the bolt is screwed into the crank at an angle, this may damage the equipment.
  • Page 17 ASSEMBLY Tools L for left bolt Important: Installing left bolt into left crank can only be done Flat Wrench by turning left (COUNTER-CLOCKWISE). 8mm Allen Wrench Step 5 5a. Foot Pedal Support Bracket Installation: Attach the Foot Pedal Support Bracket (18) onto the right side of the Left Foot Bar (76) using two Bolts (23), two Washers (24), and two Nylon Nuts (25).
  • Page 18 ASSEMBLY Figure F NOTE: Look to Figure F for the correct installation of the Left Crank Bolt (64). Keep the bolt perfectly straight when the bolt goes through the Left Foot Bar (76), and is being screwed into the Left Crank (75). If the bolt is screwed into the crank at an angle, this may damage the equipment.
  • Page 19 ASSEMBLY Tool Flat Wrench Step 6 6a. Right Foot Pedal Installation: Attach the Right Foot Pedal (19R) onto the top of the Right Foot Bar (17) and the Foot Pedal Support Bracket (18). Use two Bolts (20) and two Nylon Nuts (14) to attach the pedal to the bar.
  • Page 20 ASSEMBLY Tools 6mm Allen Wrench Flat Wrench Step 7 7a. Right Handrail Arm Installation: Insert the Right Handrail Arm (2) with the handlebar grip bent outwards into the Right Handrail (9) and align the holes. Secure the Right Handrail Arm (2) using two Big Curve Washers (81), two Bolts (47), and two Cap Nuts (80).
  • Page 21 ASSEMBLY Tools 6mm Allen Wrench with Phillips Screwdriver Flat Wrench Step 8 8a. Right U Shape Grab Bar Installation: Insert the Right U Shape Grab Bar (1) into the Right Handrail Arm (2). Secure the Right U Shape Grab Bar (1) using two Bolts (103), two Conical Washers (102), two Big Curve Washers (101) and two Cap Nut (100).
  • Page 22 ASSEMBLY Figure G Figure A Tool 6mm Allen Wrench with Phillips Screwdriver Step 9 9a. Tension Cable Connection: As you begin to mount the Hand Pulse Handlebar Support Frame (41) to the Mainframe (59), insert the Tension Cable (79), coming out from the Mainframe (59), through the bottom opening in the shaft of the Hand Pulse Handlebar Support Frame (41) and pull it out through the shaft opening located near the top of the Hand Pulse Handlebar Support Frame (41).
  • Page 23 ASSEMBLY Tool 6mm Allen Wrench with Phillips Screwdriver Step 10 10a.Tension Cable and Tension Control Knob Connection: First set the Tension Control Knob (37) to the lowest tension setting by turning it counterclockwise. Take the resistance cable attached to the Tension Control Knob (37) and thread it to connect to the Tension Cable (79), which should be coming out from an upper hole of the Main Frame (41).
  • Page 24 ASSEMBLY Tools: Flat Wrench Step 11 11a. Hand Pulse Handlebar Installation: Mount the Hand Pulse Handlebar (33) onto the curved bracket at the top of Hand Pulse Handlebar Support Frame (41) with two Carriage Bolts (39), two Big Curve Washers (81), and two Cap Nuts (80). Use the Flat Wrench to tighten the Cap Nuts (80)until they are firm and secure.
  • Page 25 ASSEMBLY Tool Flat Wrench Step 12 12a. Seat Cushion and Seat Sliding Tube Installation: Remove the three Nylon Nuts (25) and the three Flat Washers (115) from the three bolts coming out from the underside of the Seat Cushion (114) using the Flat Wrench provided. Put these nuts and washers aside. Guide the bolts coming out from the underside of the Seat Cushion (114) through the holes of the triangular plate on the top the Seat Sliding Tube (112).
  • Page 26 ASSEMBLY Figure H Step 13 13a. Computer Console Installation: Connect the Extension Sensor Wire (10) coming out from the top side of the Hand Pulse Handlebar Support Frame (41) to the male connector wire coming out from under the Computer Console (29). Make sure the connectors “click” when connected. Connect the two Hand Pulse Sensor Wires (35) coming out from the Hand Pulse Handlebar (33) to the two female connectors coming out from the Computer Console (29).

  • Page 27: Computer Console

    COMPUTER CONSOLE SPECIFICATIONS TIME ---------------------------------------------------- 00:00-99:59 MIN:SEC SPEED ------------------------------------------------- 0.0-999.9 MPH DISTANCE -------------------------------------------- 0.00-99.99 MILE CALORIE ---------------------------------------------- 0.0-999.9 KCAL PULSE ------------------------------------------------- 40-200 BPM USING YOUR COMPUTER The computer can be activated by pressing the MODE button or by pedaling. If you leave the equipment idle for 4 minutes, the power will turn off automatically.

  • Page 28: Tension Adjustment

    TENSION ADJUSTMENT Adjusting the Tension Control Knob To increase the tension, turn the tension control knob in a clockwise direction. To decrease the tension, turn the tension control knob in a counter-clockwise direction After prolong use of the elliptical trainer, the strap will begin to stretch out and it will become necessary to tighten the strap for optimum performance.

  • Page 29: Level Adjustment

    LEVEL ADJUSTMENT Adjustable Leveler Rear Stabilizer End Caps Adjusting the Adjustable Leveler The Elliptical has to be set up on a flat surface. Otherwise there might be shaking or wobbling during usage of the elliptical. Follow these important steps to ensure the stability of the elliptical when in use. Adjusting the Rear Stabilizer End Caps (61) The Rear Stabilizer End Caps (61) are designed with different angles of flat surfaces to level the...

  • Page 30: Using The U Shape Grab Bars

    Using the U Shape Grab Bars This Air Elliptical can be used either as an elliptical trainer or an exercise bike. The User can choose to stand up when you want to use the elliptical trainer or sit down on the seat when you use the exercise bike.

  • Page 31: Transporting The Elliptical

    TRANSPORTING THE ELLIPTICAL Transporting the Elliptical Equipment Hold the Handlebar (33) and slowly lean the machine towards you until the Transport Wheels (93) on the Front Stabilizer (54) make contact with the floor. Push or pull the unit to the desired location while balancing on the wheels.

  • Page 32: Maintenance

    MAINTENANCE Regular maintenance of your elliptical is necessary to extend the life of your machine and will allow it to continue to function properly. Keep the elliptical, especially the console, out of direct sunlight to prevent screen damage or premature wear. Cleaning Keep the machine clean and free of any debris by vacuuming around the moving parts and wiping the machine.

  • Page 33: Troubleshooting

    TROUBLESHOOTING PROBLEM SOLUTION The computer console will not 1. Check that the batteries are inserted properly with the power up. correct polarity (see markings on the inside of the battery compartment). 2. Check that the battery springs are in proper contact with batteries.
  • Page 34 TROUBLESHOOTING PROBLEM SOLUTION The elliptical equipment is 1. 1. Make sure both the Adjustable Levelers (57) are not sturdy enough. touching the ground. 2. 2. Make sure the elliptical equipment is leveled. The tension adjustment 1. 1. Undo the buckle of the Clip (117) and then pull the top doesn't work.

  • Page 35: Warranty

    WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual.

  • Page 36: Parts Request Form

    PARTS REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO Service@paradigmhw.com NAME:______________________________________________________________________ ADDRESS:___________________________________________________________________ CITY:________________________ STATE:_____________ ZIP:________________________ TELEPHONE: (Day)________________________________________________________ (Night)_______________________________________________________ SERIAL#:____________________________________________________________________ MODEL#:____________________________________________________________________ PURCHASE DATE:____________________________________________________________ PLACE OF PURCHASE:________________________________________________________ PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS” * This form can also be faxed to #: 626-810-2166...
