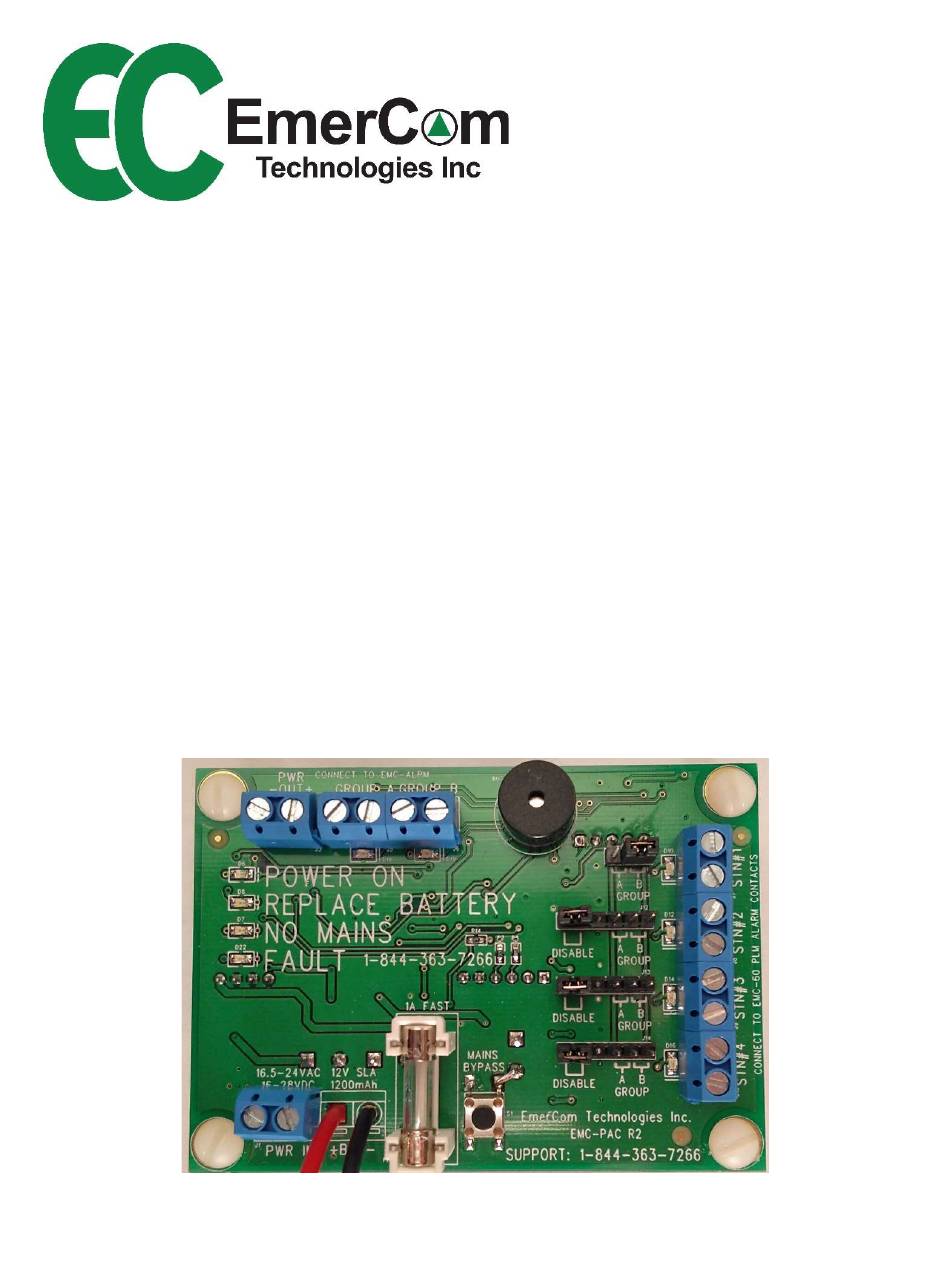

- Page 1 EMC-PAC USER GUIDE Power and Alarm Consolidator...
- Page 2 EMC-PAC User Guide Quick start guide 1 Connect first station phone line alarm STN#1 to PLM on EMC-60 phone Connect additional stations (as required) STN#X to PLM on EMC-60 phon 2 Configure STN#1 group Move jumper to GROUP A or GROUP B Configure additional station’s group...
-
Page 3: Table Of Contents
EMC-PAC User Guide Contents About the EMC-PAC Power & Alarm Consolidator Board................3 EMC-PAC, EMC-60 and EMC-ALRM Connections ..................4 EMC-ALRM and EMC-PAC Low-Rise Layout ....................5 Description of Operation ..........................6 Configuring Groups ............................6 Troubleshooting ............................7 Dimensions ..............................7 Specifications .............................. -
Page 4: Emc-Pac, Emc-60 And Emc-Alrm Connections
EMC-PAC User Guide EMC-PAC, EMC-60 and EMC-ALRM Connections ALARM ALARM EmerCom EMC-60 Phone EmerCom EMC-ALRM Board LINE LINE LINE PROGM PROGM PROGM WAKE WAKE WAKE TEST TEST TEST ↑ ↑ ↑ ↑ ↑ ↑ CANCEL CANCEL CANCEL SPKR SPKR SPKR ↓... -
Page 5: Emc-Alrm And Emc-Pac Low-Rise Layout
EMC-PAC User Guide EMC-ALRM and EMC-PAC Low-Rise Layout Group A Group B EMC-60 Hands-free phones in elevator cabs EMC-ALRM EMC-ALRM EMC-PAC 110 V AC battery Telco Phone Line Shielded Twisted Pair (STP) Shielded CAT 5 110V Supply - 5 -... -
Page 6: Description Of Operation
EMC-60 Hands-free Elevator phones. The EMC-PAC board can accept PLM wiring from up to 4 phones and allows the alarms to be combined as one or two groups. When attached to a 12V SLA battery, the EMC-PAC board provides backup power to 2 EMC-ALRM boards during a power outage. -
Page 7: Troubleshooting
EMC-PAC User Guide Troubleshooting Name Possible Symptoms Status Normal operation POWER ON Mains and battery not connected Mains not connected to PWR IN Flashing REPLACE BATTERY Replace battery + buzzer Mains not connected to PWR IN... -
Page 8: Specifications
EMC-PAC User Guide Specifications Phone Line Alarm One shielded pair of communication cable, minimum 24AWG, with the shield preferably grounded at the controller end of the traveling cable. Output Power 12Vdc typical, 200mA max Input Power 16.5 – 24Vac 16 – 28Vdc... -
Page 9: Warranty
EmerCom Technologies Inc. shall not be liable for any loss or damage resulting from causes beyond its reasonable control and in no event whatsoever shall we be liable for consequential damages resulting in personal injuries, property damage or economic loss to any party. - Page 10 EMC-PAC User Guide Rev: 1p0a - 10 -...
