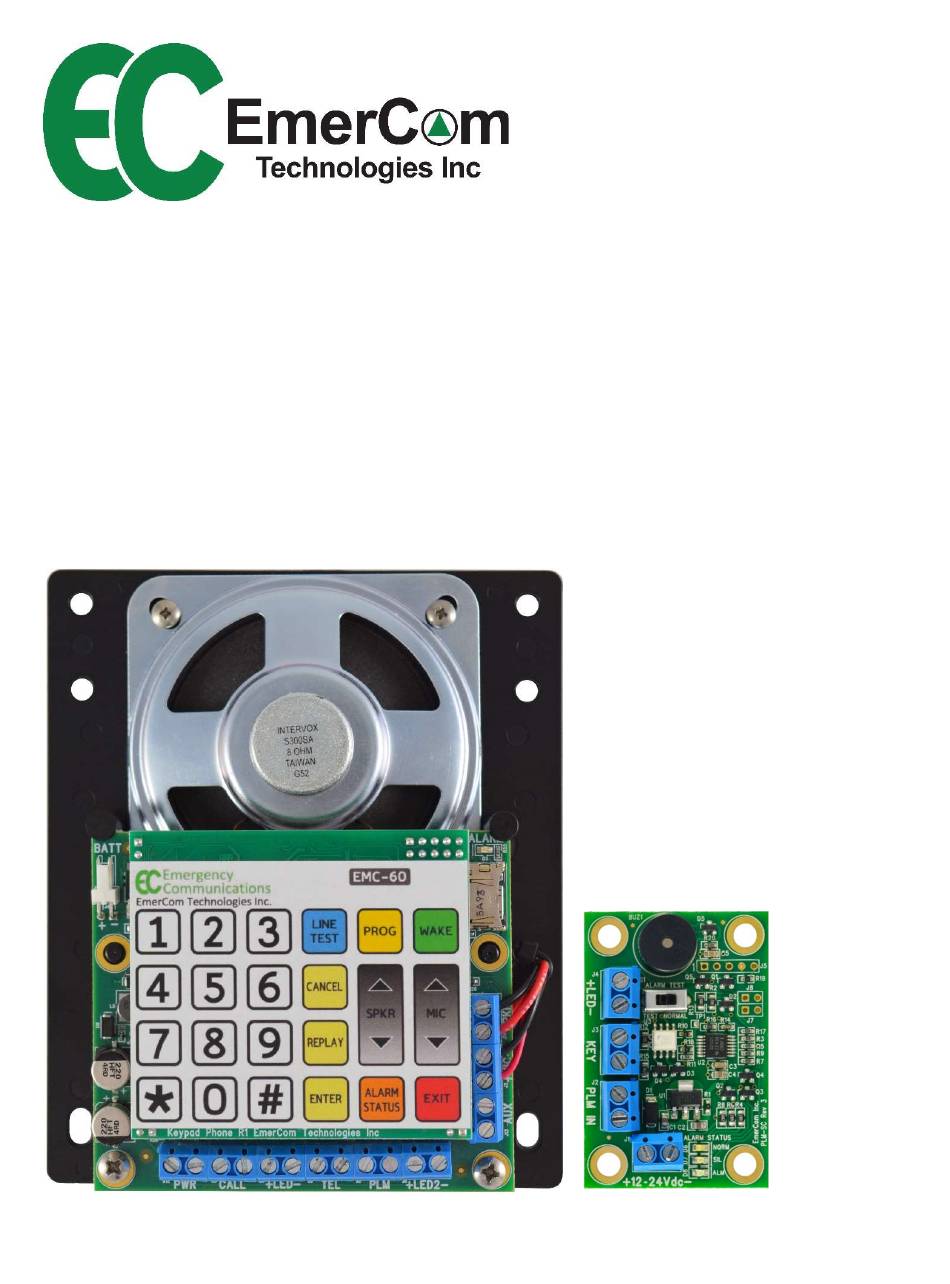

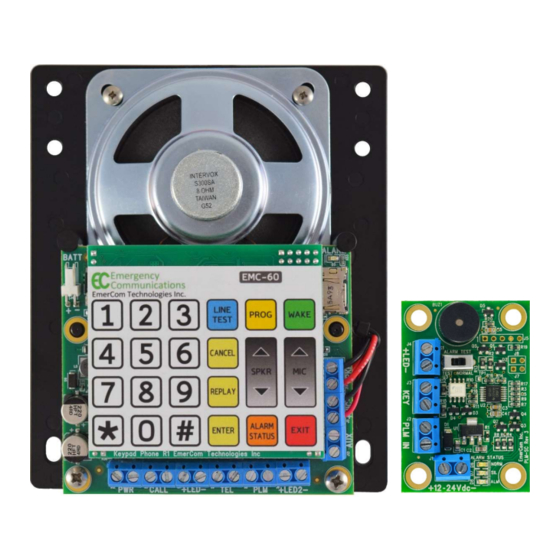

- Page 1 EMC-ALRM USER GUIDE Phone Line Monitoring System EMC-60 Hands-Free Phone EMC-ALRM Board...
- Page 2 Reconnect to reset then repeat but wait for alarm. 3 The EMC-ALRM red ‘ALARM’ LED on the PCB will illuminate, the buzzer will “beep” once every 30 seconds and the PLM LED flash.
- Page 3 Emergency Phone Consolidator, if applicable, verifies the operability of the telephone line and signals the EMC-ALRM if the line is not functional. In the event of a phone line failure, the EMC-ALRM activates an audible and illuminated visual signal for each group of elevators.
- Page 4 EMC-ALRM User Guide EMC-60 and EMC-ALRM Connections for Low-Rise EmerCom EMC-60 Hands Free Elevator Phone (w/o EMCS) phone line from other EMC-60 phones in the group An EMC-PAC Battery-backed-up Power Supply and Connector unit is available to simplify Low-Rise site...
- Page 5 EMC-ALRM User Guide EMC-PAC and EMC-ALRM Low-Rise Layout Group A Group B EMC-60 Hands-free phones in elevator cabs EMC-ALRM EMC-ALRM EMC-PAC 110 V AC battery Telco Phone Line Shielded Twisted Pair (STP) Shielded CAT 5 110V Supply - 5 -...
- Page 6 EMC-ALRM User Guide EMCS and EMC-ALRM High-Rise Layout EC-MR’s Group A Group B EMC-60 Hands-free phones in elevator cabs EMC-ALRM 110 V AC EMC-ALRM Phone lines EMCS Security Desk Shielded Twisted Pair (STP) Shielded CAT-5 110V Supply - 6 -...
- Page 7 Elevator Phone monitors the phone line as required by ASME A17.1/CSA B44 Code. If the phone line fails a pair of contacts in the EMC-60 will open (fail-safe) to signal the EMC-ALRM Alarm Annunciator to generate an audible & visual alert in the elevator lobby, in the vicinity of the Firefighters Recall Switch.
- Page 8 EmerCom Technologies Inc. shall not be liable for any loss or damage resulting from causes beyond its reasonable control and in no event whatsoever shall we be liable for consequential damages resulting in personal injuries, property damage or economic loss to any party.
