OPERATING, INSTALLATION AND SERVICE MANUAL
FOR INSTALLATION IN RECREATIONAL VEHICLES AND MOBILE HOUSING

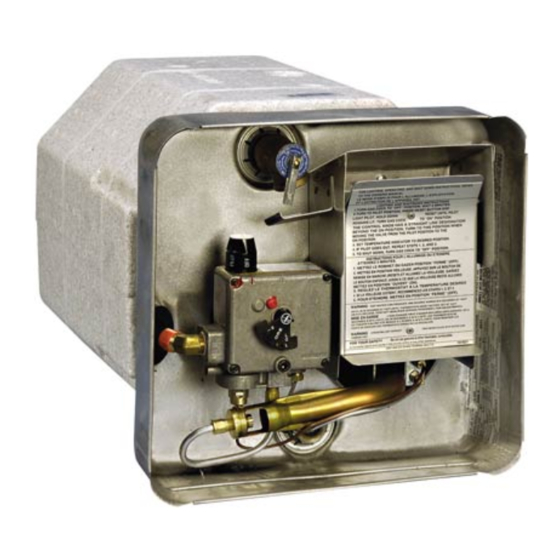

GAS HOT WATER STORAGE HEATER MODELS
SW4DA • SW6DA • SW4DEA • SW6DEA
MANUFACTURED BY AIRXCEL, INC. - SUBURBAN DIVISION
•
DO NOT TRY TO LIGHT ANY APPLIANCE.
•
DO NOT TOUCH ANY ELECTRICAL SWITCH.
•
DO NOT USE ANY PHONE IN YOUR BUILDING OR RV.
•
IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A NEIGHBORS' PHONE &
FOLLOW THEIR INSTRUCTIONS.
DRAIN HEATER IF SUBJECTED TO FREEZING TEMPERATURES
WARNING: IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR
MAINTENANCE CAN CAUSE INJURY OR PROPERTY DAMAGE. REFER TO THIS
MANUAL FOR ASSISTANCE OR FOR ADDITIONAL INFORMATION CONSULT AN
AUTHORISED INSTALLER, SERVICE AGENCY OR GAS SUPPLIER.
DO NOT STORE OR USE PETROL, OR OTHER COMBUSTIBLE MATERIALS OR
LIQUIDS NEAR OR ADJACENT TO THIS HEATER OR ANY OTHER APPLIANCE.
THIS APPLIANCE SHALL NOT BE INSTALLED IN ANY OTHER LOCATION WHERE
FLAMMABLE LIQUIDS OR VAPORS ARE LIKELY TO BE PRESENT. WARNING! THIS
APPLIANCE IS UNSUITABLE FOR USE AS A POOL HEATER.
THIS APPLIANCE IS NOT INTENDED FOR USE BY YOUNG CHILDREN OR INFIRM PERSONS WITHOUT
SUPERVISION. YOUNG CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH
THE APPLIANCE.
INSTALLER: AFFIX THESE INSTRUCTIONS TO OR ADJACENT TO THE WATER HEATER.
OWNER: RETAIN THESE INSTRUCTIONS AND WARRANTY FOR FUTURE REFERENCE.
ALL TECHNICAL AND WARRANTY QUESTIONS SHOULD BE DIRECTED TO THE COMPANY LISTED ON THE
WARRANTY, OR RATING PLATE WHICH CAME WITH YOUR HOT WATER HEATER.
Gas appliance repair is not a do it yourself type of repair.
All repairs should be performed by a qualified service agency.
Suburban Division
FOR YOUR SAFETY
WHAT DO YOU DO IF YOU SMELL GAS?
FREEZE WARNING
ADDITIONAL SAFETY
Advertisement
Table of Contents
Related Manuals for Airxcel SW6DEA
Summary of Contents for Airxcel SW6DEA
-
Page 1: For Your Safety
OPERATING, INSTALLATION AND SERVICE MANUAL FOR INSTALLATION IN RECREATIONAL VEHICLES AND MOBILE HOUSING GAS HOT WATER STORAGE HEATER MODELS SW4DA • SW6DA • SW4DEA • SW6DEA Suburban Division MANUFACTURED BY AIRXCEL, INC. - SUBURBAN DIVISION FOR YOUR SAFETY WHAT DO YOU DO IF YOU SMELL GAS? •... -
Page 2: Installation Requirements
DO NOT use or store flammable materials near this appliance. INSTALLATION REQUIREMENTS INSTALLATION USING HINGED DOOR (See Figure 2 for models SW4DEA/SW6DEA) (See Figure 2A for models SW4DA/SW6DA) WARNING! Installation of this appliance must be made in accordance with the written A. -
Page 3: Safety Warnings
This is your visual warning that the water heater is operating in 240 VOLTS A.C. (For Models SW4DEA and SW6DEA only) an unsafe manner. If soot is present, immediately shut the water heater down and contact your dealer or an authorised service person. -
Page 4: Pressure Relief Valve
water tank. Then run the chlorinated water throughout the system, opening each To prevent a water leak when replacing the anode rod, a pipe thread sealant approved for potable water (such as Teflon Tape) must be applied to the threads faucet one at a time until you smell the chlorine. - Page 5 CAULK ALL THE WAY AROUND DOOR FRAME TO SEAL FRAME TO COACH WALL, WATER TIGHT (SEE DETAIL A) MOUNTING SCREWS, FRAME TO COACH WALL (11) REQ'D. MOUNTING SCREW (SPECIAL) HINGE ROD DOOR FRAME TO CONTROL HOUSING (3) REQ'D. RADIUS CORNER DOOR Figure 2 (Models SW4DEA and SW6DEA)
- Page 6 DOOR FRAME TO CONTROL HOUSING Figure 3 (3) REQ'D. RADIUS CORNER DOOR Figure 2A RADIUS CORNER DOOR INSTALLATION (Models SW4DA and SW6DA) SW4DEA, SW6DEA WATER HEATERS JW 3/11/11 A-204649-A CONTROL HOUSING 240 V.A.C. ONLY ILLUSTRATED SHOWING INSIDE OF HOUSING DISCONNECT POWER SUPPLY BEFORE REMOVING COVER SUBURBAN MANUFACTURING COMPANY;...
-
Page 7: For Your Safety Read Before Operating
HI-LIMIT Figure 7 Figure 7A (All Models) (Models SW4DEA and SW6DEA) Figure 8 Figure 8A FOR YOUR SAFETY READ BEFORE OPERATING WARNING! If the user of this appliance fails to maintain it in the condition in which it was shipped from the factory or if the... - Page 8 MODEL & SERIAL NO. PLATE Figure 9 SW4DEA AND SW6DEA MODEL & SERIAL NO. PLATE Figure 9A SW4DA AND SW6DA...
- Page 9 PARTS ILLUSTRATION AND REPLACEMENT PARTS LIST PARTS LIST FOR MODELS: SW4DA • SW6DA • SW4DEA • SW6DEA Only factory authorized parts are to be used. Do not attempt to repair defective parts. When ordering repair parts from your dealer or a distributor, always give the following information: 1.
- Page 10 INCORRECT INCORRECT Figure 10 Figure 11 CORRECT Figure 12...
- Page 12 RECREATIONAL VEHICLE WATER HEATER LIMITED WARRANTY THIS IS A LIMITED 24 MONTH WARRANTY ONLY!! This water heating product is warranted by Coast to Coast RV Services to the original purchaser to be free from defects in material and workmanship under normal use and maintenance for a period of 24 months from the date of purchase, regardless of the commencement date of use.
