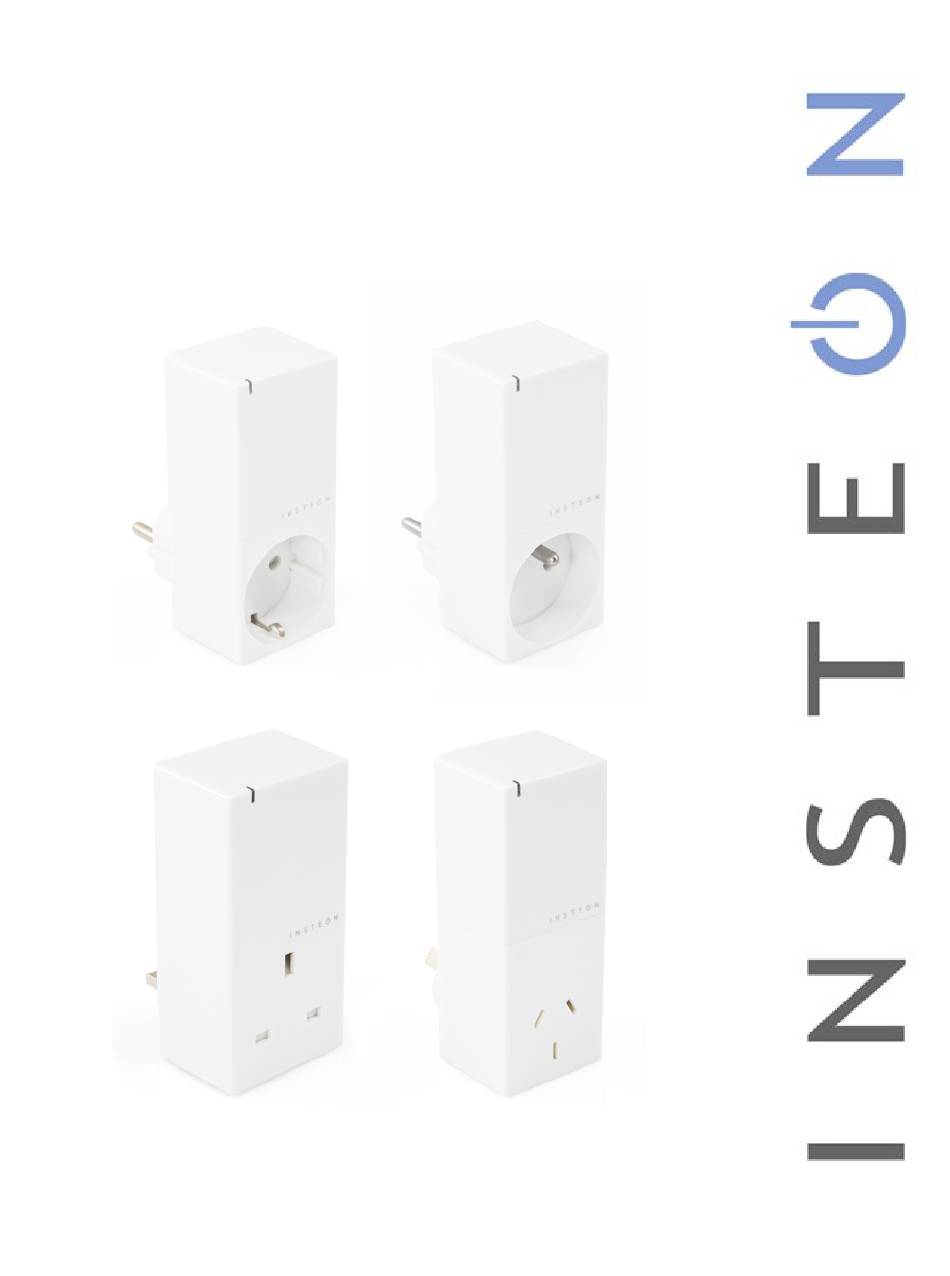

- Page 1 On/Off Module Owner’s Manual 2633-422 (France) 2633-432 (Germany) 2633-442 (UK) 2633-522 (AUS/NZ) 2633-432 2633-422 (Germany) (France) 2633-442 2633-522 (UK) (Aus/NZ) Page 1 of 14 Rev: 1/8/2013 7:36 PM...
-
Page 2: Table Of Contents
Limited Warranty ............................. 14 About On/Off Module INSTEON On/Off Module makes adding customizable INSTEON (and X10) remote control to your lamps and appliances as easy as plug and play. It’s home automation at its simplest and most convenient. Paddle top... -
Page 3: Features And Benefits
Features and Benefits - Integrated on/off relay - Compatible with all INSTEON (and X10) controllers; can also act as an INSTEON (and X10) controller - Super-easy setup with multi-color LED and beeper - Dual-band communicates simultaneously over both RF and powerline - Stores setup state in non-volatile memory so settings aren’t lost during power outages... -
Page 4: Using On/Off Module Paddle
Using On/Off Module Paddle On/Off Module’s paddle will control the load and any additional linked responders with tap, double-tap and press and hold actions to initiate different behaviors. On/Off Module Paddle Press and hold Double-tap Brighten Instant full-on Green until release or 100% (dimmable responders only) Bottom Instant full-off... -
Page 5: Beep On Button Press
INSTEON Controllers, Responders and Links Let’s define a few terms. • The INSTEON “transmitter” is called a controller • The INSTEON “receiver” is called a responder • The association between the controller and responder is called a link... -
Page 6: Make On/Off Module A Controller
Make On/Off Module a Controller 1) Press and hold On/Off Module set button until it beeps On/Off Module LED will start blinking green You will have four minutes to complete the next steps before linking mode times out 2) Adjust responder to desired state 3) Press and hold responder set button until it double-beeps On/Off Module will double-beep and its LED will stop blinking 4) Test link by tapping or pressing and holding On/Off Module paddle to turn on/off or brighten/dim... -
Page 7: Make On/Off Module A Controller Of Multiple Responders
3) Adjust On/Off Module to desired level (on or off) 4) Press and hold On/Off Module set button until it double-beeps 5) For each additional scene member: a) Adjust member to desired scene brightness b) Press and hold set button until it double-beeps 6) Tap controller set button Controller will beep and LED will stop blinking 7) Test by tapping controller button on and off... -
Page 8: Remove On/Off Module As A Controller Of Multiple Responders
Remove On/Off Module as a Controller of Multiple Responders 1) Press and hold On/Off Module set button until it beeps LED will start blinking green 2) Press and hold On/Off Module set button until it beeps a second time LED will start blinking red 3) Tap On/Off Module set button LED will start double-blinking red 4) For each responder you are removing:... -
Page 9: Specifications
813922012668 Germany 813922012675 UK 813922012682 AUS/NZ Warranty 2 years, limited INSTEON INSTEON powerline mesh repeater INSTEON RF mesh repeater INSTEON controller INSTEON responder Maximum links/scenes Green when load is on, red when load is off Blinks green once when all responders acknowledge (can be... - Page 10 Software configurable RF range Up to 50 meters (150 feet) open air Phase bridge detect beacon INSTEON device category 0x02 appliance control 2633-422 (France, 869.85 MHz) 0x2D 2633-432 (Germany, 869.85 MHz) 0x30 INSTEON device subcategory 2633-442 (UK, 869.85 MHz) 0x35 2633-522 (Aus/NZ, 921.0 MHz)
-
Page 11: All Product Specifications Are Subject To Change
On/Off Module won’t add to a be too weak scene as a controller or responder Add additional INSTEON devices or move around existing INSTEON devices. All INSTEON devices act as Large appliances, such as INSTEON network repeaters. refrigerators or air conditioners, may be producing electrical noise on the powerline. -
Page 12: Phase Bridge Detect Beacon/Rf Range Test
Other electrical devices, such as computers, televisions or power strips, may be absorbing the INSTEON signal Remove from the scene any unused The controller may be responders from the controller. (HINT: sending commands to a If you are using home automation... -
Page 13: Certification And Warranty
2) Electromagnetic Compatibility Directive 2004/108/EC 3) Hazardous Substance Directive 2005/95/EC Technical data and copies of the original Declaration of Conformity are available and can be obtained from INSTEON; 16542 Millikan Ave, Irvine, CA, USA. User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE) This document contains important information for users with regards to the proper disposal and recycling of INSTEON products. -
Page 14: Limited Warranty
Separate collection and treatment of WEEE will thus decrease CO2 emissions as well. For the above reasons, INSTEON expects end-users to dispose of the material in an environmentally friendly way through separate collection and treatment. Electrical and Electronic Equipment is labeled with the following 'crossed out wheeled bin' symbol indicating that the equipment should be disposed of, by the end-user, separate from other types of waste.
