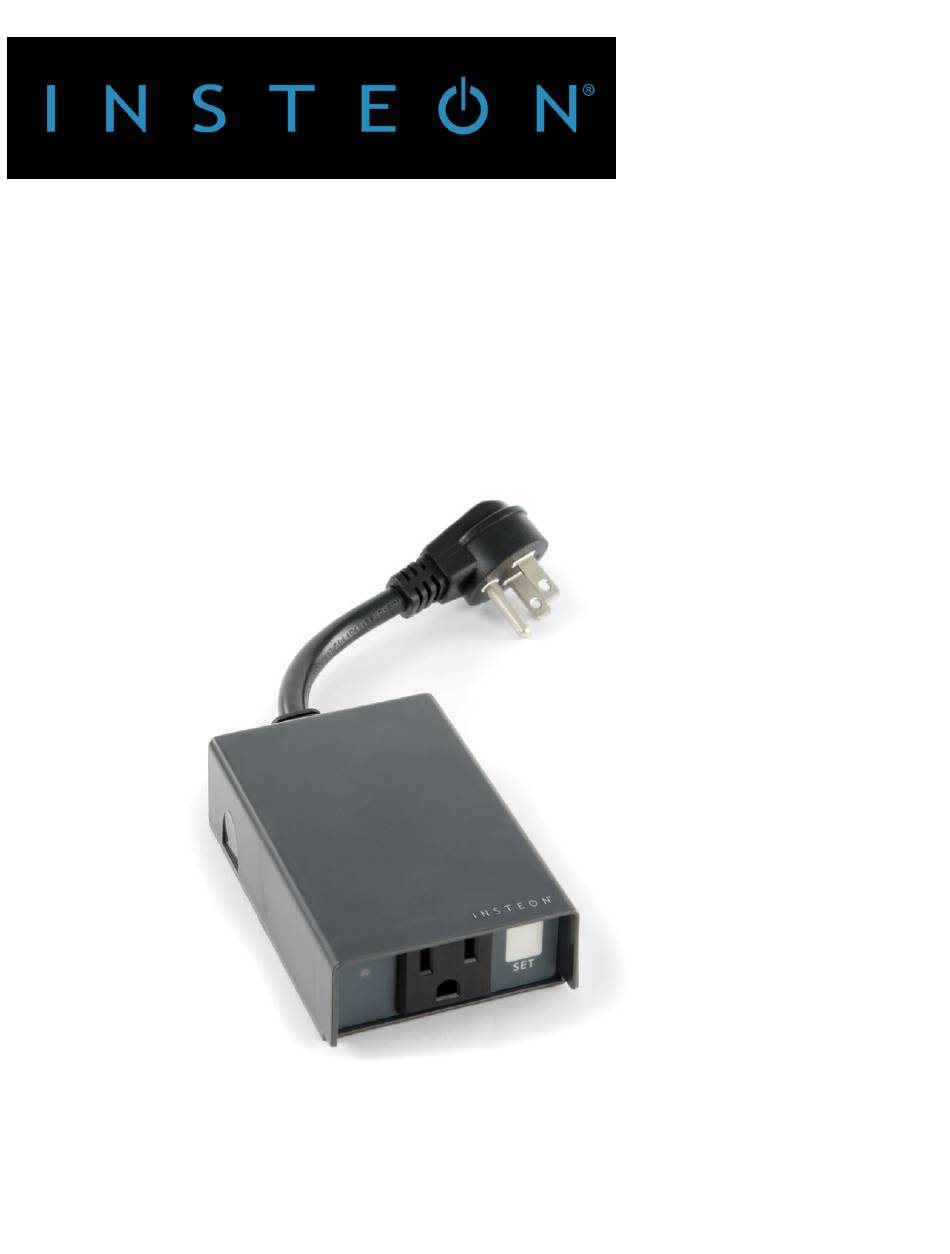

- Page 1 On/Off Outdoor Module Owner’s Manual 2634-222 Page 1 of 13 2634-222 - Rev: 2/11/2019 9:16 AM...
-
Page 2: Table Of Contents
LED On or Off ................................5 Blink on Traffic ................................5 Programming Lock ..............................5 INSTEON Setup ................................6 INSTEON Controllers, Responders and Links ......................6 Make On/Off Outdoor Module a Responder ......................6 Make On/Off Outdoor Module a Controller ....................... 6 Groups ..................................7 Scenes .................................. -
Page 3: About On/Off Outdoor Module
On/Off Outdoor Module is a simple way to remotely control any plug-in device, in or outside your home, at the touch of a button. Send commands to On/Off Outdoor Module from any INSTEON controller, or link it to other INSTEON devices as a controller. -
Page 4: Before Installation
Don’t use any electrical cord or extension cord that is damaged or in poor condition IMPORTANT! If you have any difficulties or questions, consult an electrician. If you have any questions, call the INSTEON Support Line at 866-243-8022. Installation Plug appliance/device (also called the load) you want to control into On/Off Outdoor Module outlet... -
Page 5: Using On/Off Outdoor Module
Blink on Traffic Default = enabled This setting is only adjustable via software or a central controller. On/Off Outdoor Module LED will blink green for INSTEON traffic and if it detects noise that could disrupt communication. Programming Lock Default = disabled This setting is only adjustable via software or a central controller. -
Page 6: Insteon Setup
INSTEON Controllers, Responders and Links Let’s define a few terms. The INSTEON “transmitter” is called a controller The INSTEON “receiver” is called a responder The association between the controller and responder is called a link... -
Page 7: Groups
3) Press and hold On/Off Outdoor Module set button until it double-beeps Controller LED will stop blinking 4) Test by tapping controller button on and off On/Off Outdoor Module will no longer respond Page 7 of 13 2634-222 - Rev: 2/11/2019 9:16 AM... -
Page 8: Remove On/Off Outdoor Module As A Controller
On/Off Outdoor Module Status LED will stop blinking and turn on solid green if the load is on or solid red if it is off 3) Test by turning the load on and off from its built-in switch Load will not respond Page 8 of 13 2634-222 - Rev: 2/11/2019 9:16 AM... -
Page 9: Specifications
INSTEON device category 0x02 switched lighting control INSTEON device subcategory 0x38 (US – 915 MHz RF frequency) Mechanical Mounting Type A (US) AC Outlet Wires Max Cable Size Min Cable Size Page 9 of 13 2634-222 - Rev: 2/11/2019 9:16 AM... - Page 10 Retains all settings without power Yes, saved in non-volatile EEPROM Standby power consumption < 1 watt Conforms to ANSI/UL Std. 508-2005 Safety approval(s) Certified to CAN/CSA Std. C22.2 #14-05 FCC ID SBP26342 Page 10 of 13 2634-222 - Rev: 2/11/2019 9:16 AM...
-
Page 11: Troubleshooting
Re-link On/Off Outdoor Module to the controller On/Off Outdoor Module The controller and On/Off Make sure a least one other INSTEON dual-band device is Outdoor Module may be on properly installed to bridge the two powerline phases. opposite powerline phases... -
Page 12: Phase Bridge Detect Beacon/Rf Range Test
2- and 3- phase circuits. The phase bridge detect beacon can also be used as an RF range test to see if your devices are within communication range. You will need at least one other INSTEON dual-band device installed. -
Page 13: Certification And Warranty
You may also have other legal rights that may vary from state to state. Protected under U.S. and foreign patents (see www.insteon.com/patents) © Copyright 2019 Insteon, 1621 Alton Parkway, Suite 100 Irvine, CA 92606, 866-243-8022, www.insteon.com Page 13 of 13 2634-222 - Rev: 2/11/2019 9:16 AM...
